MEP Shark 332-1 CCS Constant Cut Bandsaw

Product overview

About this machine.

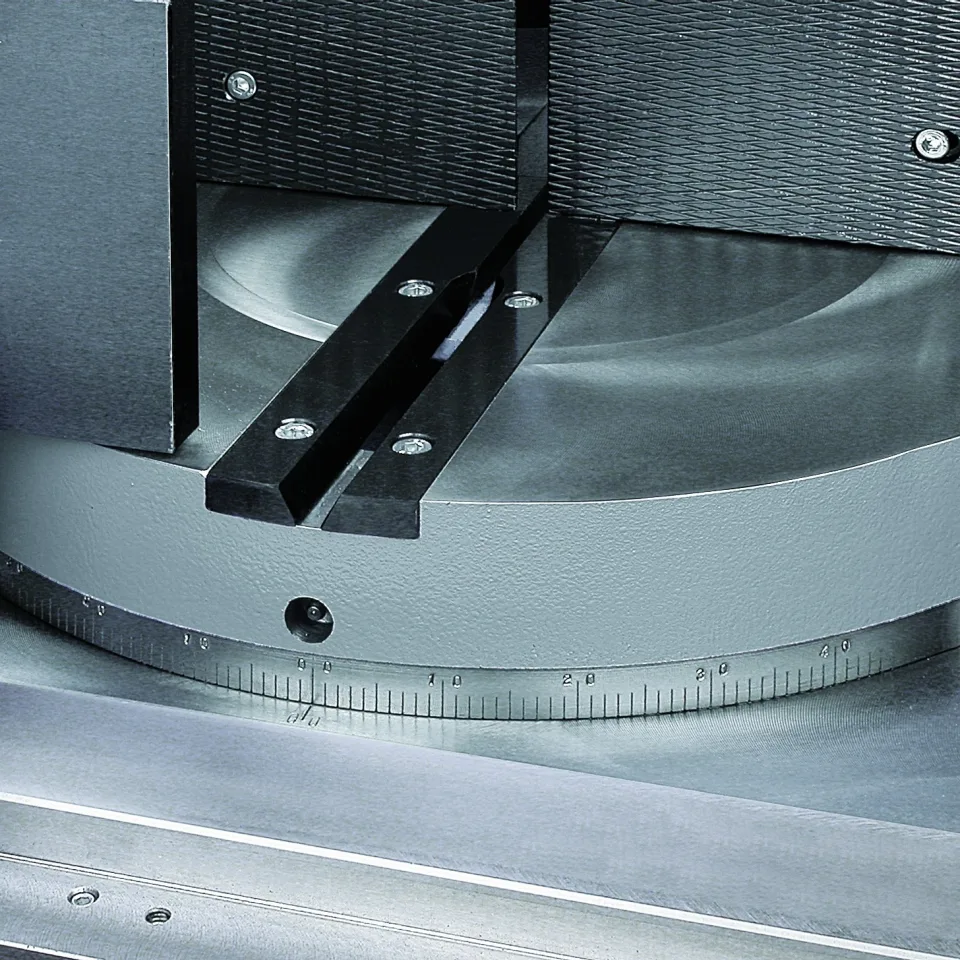

SHARK 332-1, Cut Control System (CCS) band sawing machine to cut from 0º to 60º left. In this version, the sawing machine can make single cuts without operator, using the head weight controlled by a spring and a hydraulic brake: after the cut the band stops. The frame at this point is manually lifted to the position needed in order to reposition the bar to cut . The vice on the pneumatic versions (MA) opens and closes by means of a manually operated valve (or by means of a footpedal which is instead optional).

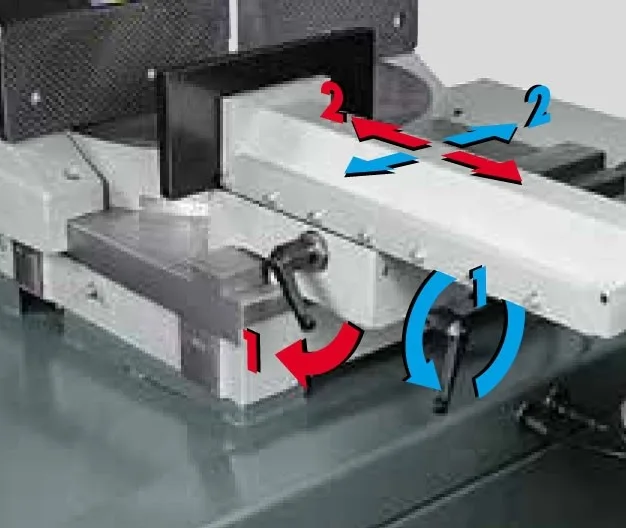

Features Electric panel (wiring totally identifiable, stand-by, loose-key safety switch, main switch, pole change switch, emergency stop, motor magneto-thermal overload, minimum tension coil, protection against missing phase, low tension safety device (LTSD 24 V).- IP55 control handle. Vice with fast clamping device. Hydraulic transducer to visualize band tensioning. Electric pump for band lubrication and cooling. Wire chip brush for band cleaning. Head return spring. Adjustable rod to measure stop to make cuts of the same length with millimetred steel rod. Stock support arm with roller predisposed to mount loading table.
