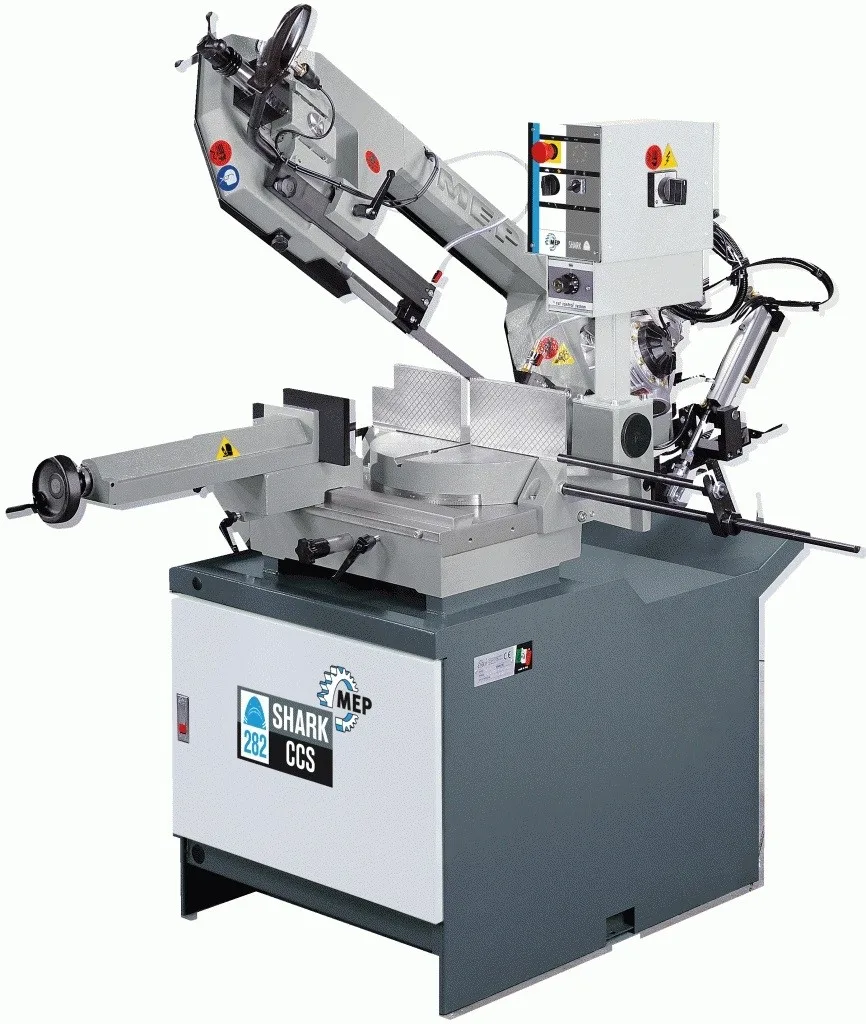

MEP Shark 282 CCS Constant Cut Bandsaw

Product overview

About this machine.

SHARK 282, Cut Control System (CCS) band sawing machine to cut from 45º right to 60º left. In this version, the sawing machine can make single cuts without an operator, using the head weight controlled by a spring and a hydraulic brake: after the cut the band stops. The frame at this point is manually lifted to the position needed in order to reposition the bar to cut .

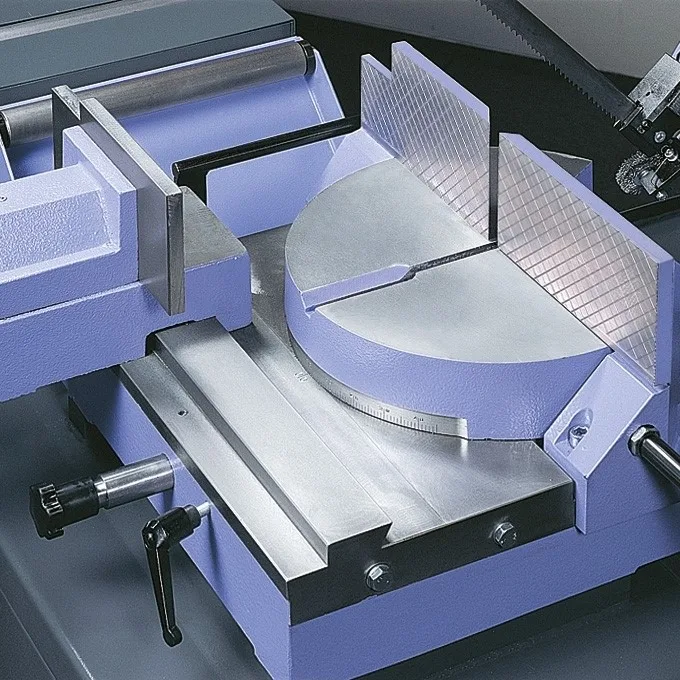

Features The MEP Shark 282CCS Bandsaw has the excellent inherent design features listed below: Quality Italian Manufacturing Electric panel (wiring totally identifiable, stand-by, loose-key safety switch, main switch, pole change switch, emergency stop, motor magneto-thermal overload, minimum tension coil, protection against missing phase, low tension safety device (LTSD 24 V).- IP55 control handle. Vice with fast clamping device. Hydraulic transducer to visualize band tensioning. Electric pump for band lubrication and cooling. Wire chip brush for band cleaning. Head return spring. Adjustable rod to measure stop to make cuts of the same length with millimetre steel rod. Stock support arm with roller predisposed to mount loading table. Control handle of the manual cycle at 24 V, IP55. Wide working surface with rotating table installed on a roller bearing, dia. 265 mm, pre-loaded with thrust bearing. Double band rotation speed (36/72 m/min) Manually-operated blade tensioning through electronic transducer, with display. Steel base with removable coolant tray. Machine arranged for handling with movement equipment.
