MEP Shark 281 CCS Constant Cut Bandsaw
Single Mitre
Product overview
About this machine.

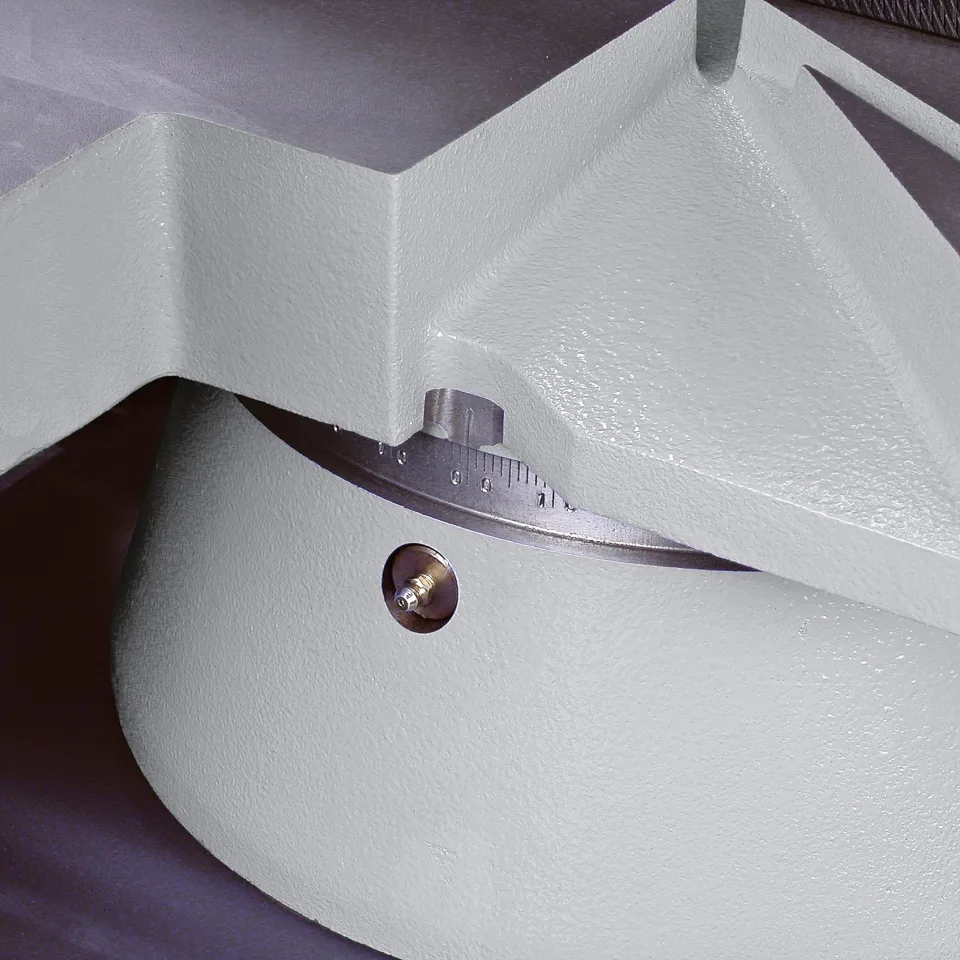

SHARK 281, Cut Control System (CCS) band sawing machine to cut from 0º to 60º left. In this version, the sawing machine can make single cuts without operator, using the head weight controlled by a spring and a hydraulic brake: after the cut the band stops. The frame at this point is manually lifted to the position needed in order to reposition the bar to cut . The vice on the pneumatic versions (MA) opens and closes by means of a manually operated valve (or by means of a footpedal which is instead optional).

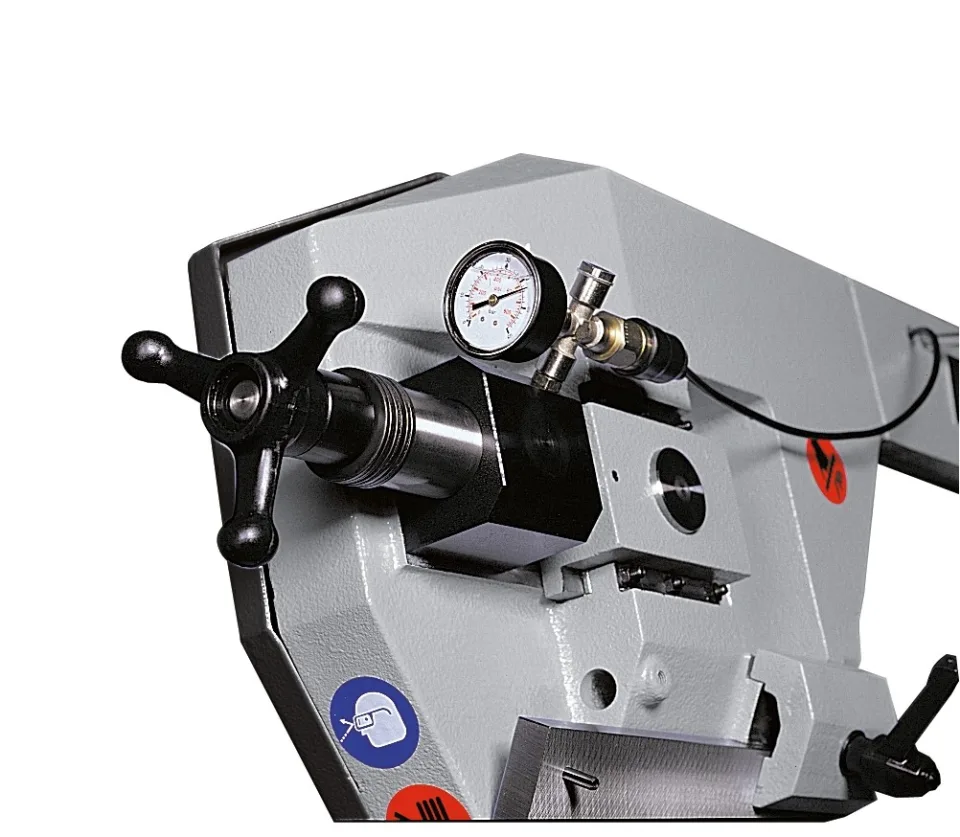

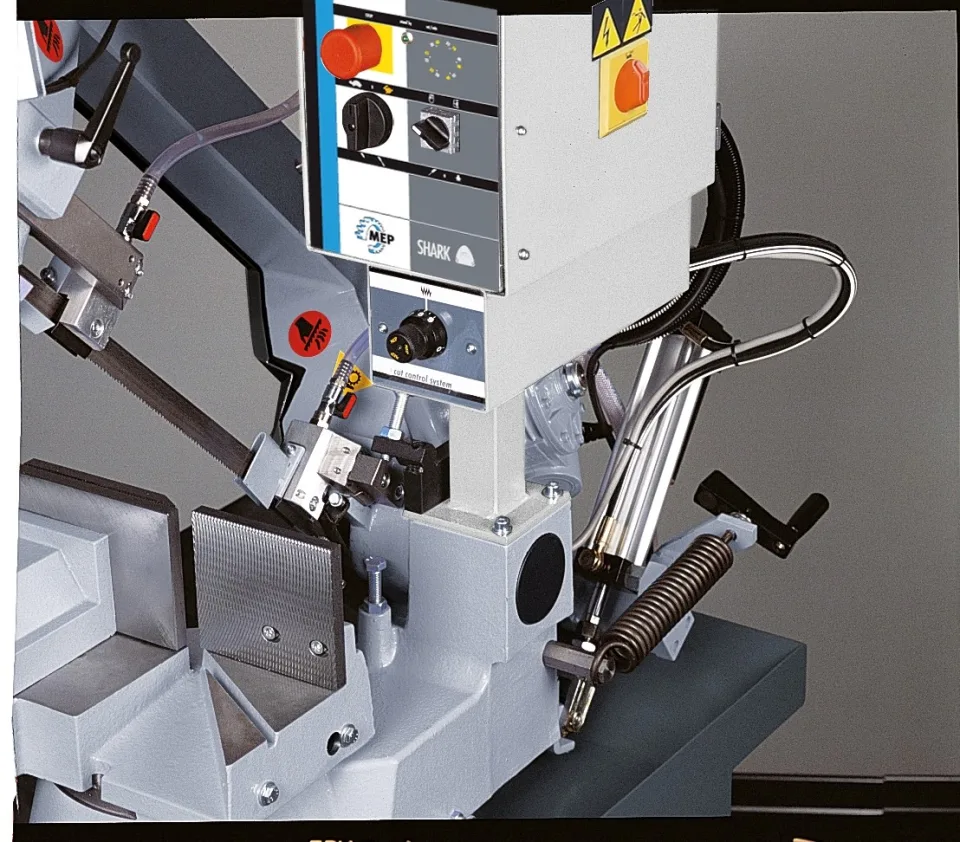

Features Electric panel (wiring totally identifiable, stand-by, loose-key safety switch, main switch, pole change switch, emergency stop, motor magneto-thermal overload, minimum tension coil, protection against missing phase, low tension safety device (LTSD 24 V).- IP55 control handle. Vice with fast clamping device. Hydraulic transducer to visualize band tensioning. Electric pump for band lubrication and cooling. Wire chip brush for band cleaning. Head return spring. Adjustable rod to measure stop to make cuts of the same length with millimetred steel rod. Stock support arm with roller predisposed to mount loading table.
Quality Italian Manufacturing
Optional
- Loading tables ( as shown )
- Unloading tables ( as shown )
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| MEP | Shark | 281 CCS | |
|---|---|---|---|
| Capacity | Straight | +45deg | +60deg |
| Rounds | 250mm | 190mm | 120mm |
| Square | 230mm | 180mm | 110mm |
| Rectangular | 280 x 200mm | 180 x 180mm | 110 x 110mm |
| Blade size | 2950 x 27 x 0.9mm | ||
| Blade speed | 36/72 m/min | ||
| Motor power | 1.5/1.8kW 415V 3 PH | ||
| Floor size | 800 x 1880mm | ||
| Weight | 370kg | ||
| Shipping | 2.8m3 420kg |
