Cosen M5 CNC Fully Automatic Double Mitre Bandsaw

Product overview

About this machine.

Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years maximizing efficiency and quality in every step of design, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen have also earned ISO-9001 standards as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.

The Cosen M5 CNC bandsaw is a double swivel, angle cutting band saw for cutting structural material. This high production fully programmable bandsaw, which incorporates a massive base, sturdy saw frame, a 5HP drive motor, 34 mm wide blade and a user-friendly control station. The M5 band saw machine can handle a 310mm round and a 500mm width. It features a large-angle swivel, ranging from 30 degrees to 150 degrees, allowing the machine to cut at various angles. The machine offers a 2000mm stroke, which can be delivered in just 12 seconds, significantly saving feeding time. This bandsaw machine is specifically designed to cut structural materials, such as H-beams, I-beams, pipes, and channels. This saw is equipped with an automatic programming feature for cutting jobs, facilitating easy mass production. Cosen offers the latest in Touch Screen Control Technology, SNC-100. Coupled with a Mitsubishi PLC controller, the 10" Color Touch Screen allows for fast easy programming of any job. Utilizing the SNC-100 System the operator easily programs the cut length, angle and quantity desired. The SNC-100 System stores up to 100 cutting jobs and features Automatic Kerf Compensation for parts longer than a single index. The SNC-100 System also utilizes "Save-A-Blade" which retracts the material 2 mm from the blade at the end of each cut so the blade will not rub the material while the saw head moves up to allow the next index. All machine functions are controlled from the operator's station. The control panel is ergonomically designed and located for convenient use by the operator.

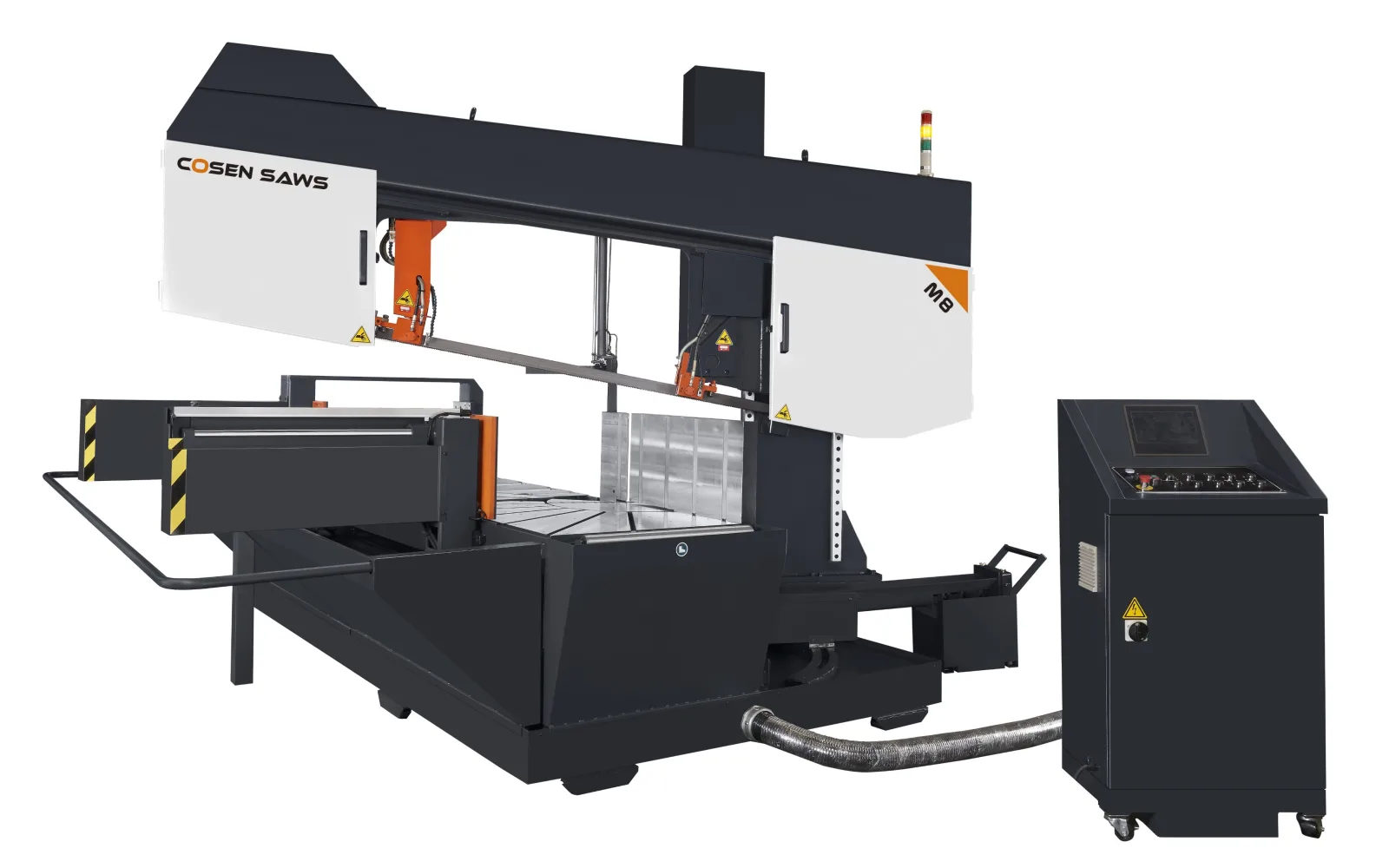

M8 model pictured for reference
