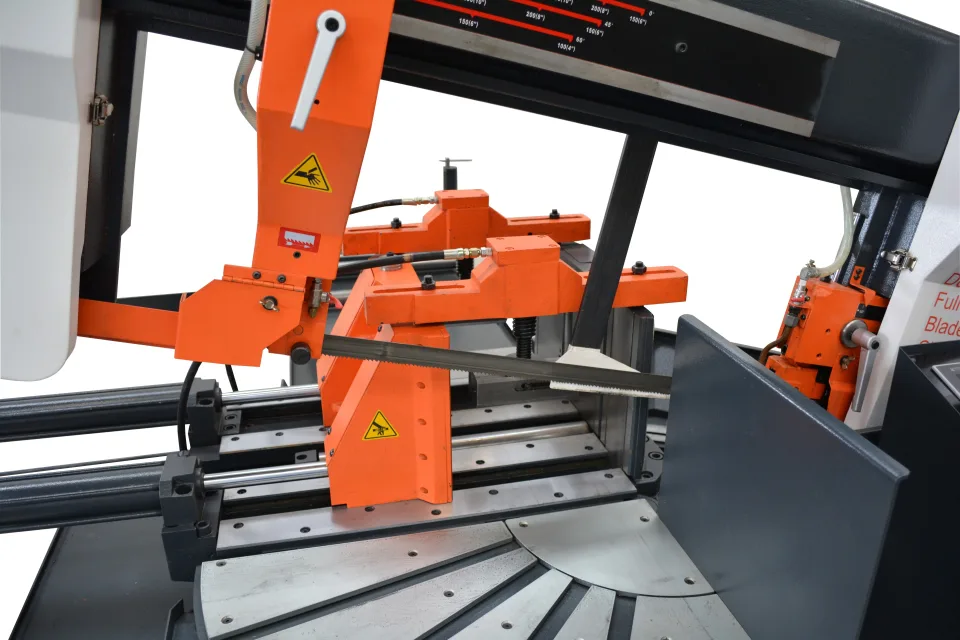

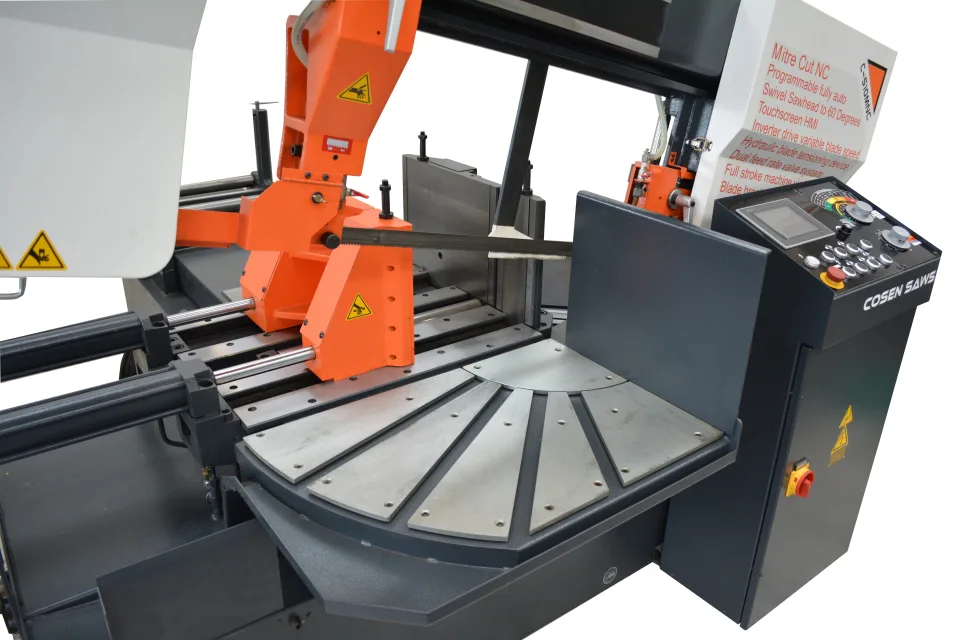

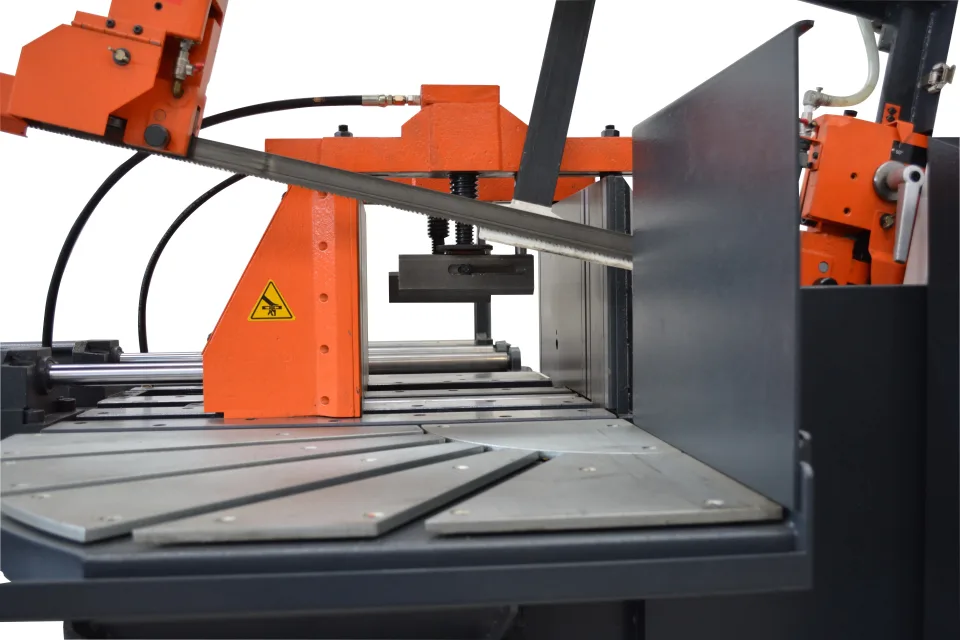

Cosen C-510MNC Hinge Type Fully Automatic Mitre Bandsaw
Product overview
About this machine.
Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years maximizing efficiency and quality in every step of design, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen have also earned ISO-9001 standards as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.
The Cosen C-510MNC CE bandsaw is a high production fully programmable automatic miter-cutting bandsaw, which incorporates a massive base, sturdy saw frame, a 5HP drive motor, 34 mm wide blade and a user-friendly control station. The SNC-100 technology is programmable up to 100 different jobs including quantity and length of cut with Automatic Multiple Indexing & Automatic Kerf Compensation. Cutting information such as blade speed, blade life and error message is clearly displayed for ease of use.
Features:
- Saw head swivels forward up to 60deg via precision pivot system
- Quick angle change with a large protractor and pointer in clear view
- Large discharge table slotted at common cutting angles and built with coolant return
- Inverter controlled variable blade speed drive with worm gearbox
- Automatic work height sensor with position adjustable via a quick lock & release handle
- Adjustable right guide arm for optimum cutting stability at bigger angles
- Full stroke hydraulic front and index vise
- Precision feed pressure & feed rate dual valve
- Automatic hydraulic blade tension device

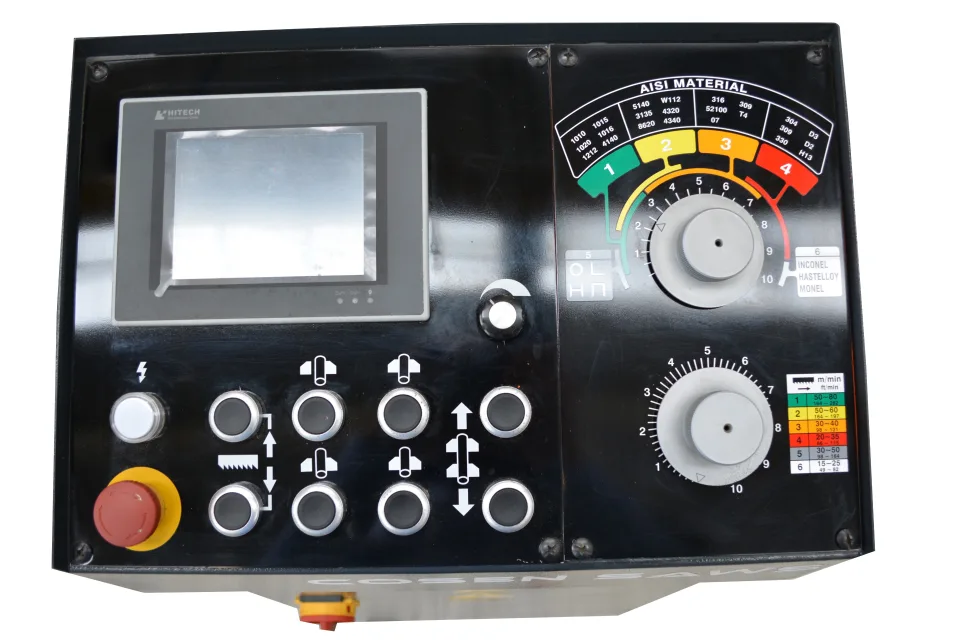

- 7 inch HMI Touch Screen & Mitsubishi PLC Controller
- 100 individual jobs can be programmed and stored
- Automatic kerf compensation
- Save-a-Blade function
- Rapid troubleshooting via error feedback system
- Quality Taiwanese Manufacturing
Standard accessories:
- Infinitely variable blade speed control via frequency inverter
- Dual hydraulic full stroking vices
- Hydraulic blade tensioning device
- Blade slippage or breakage sensing
- Rapid approach automatic work height sensor
Power driven blade cleaning brush
- Coolant system with flushing point at blade brush or for machine cleaning
- Two point coolant system to blade
- Error code display for simplified self-diagnostics
- Blade speed, blade life & vice position display
- Vice clamped indicator and out of stock indicator
- Carbide blade guides
- Automatic shutdown
- Work light
Included options By Scott Machinery:
- Hydraulic Chip Conveyor
- Hydraulic Top Clamp
- Vise Pressure Regulator
- 2M Heavy Duty Roller Table
- Safety features:
- Latching emergency stop
- Safety interlock switch on blade guard
- Automatic blade breakage detection
- Hydraulic gauge to ensure blade is not over tensioned
- Safety guarding
CE conformity
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Cosen | C-510MNC | ||
|---|---|---|---|
| Capacity | Straight | +45deg | +60deg |
| Round capacity | 360mm | 360mm | 230mm |
| Rectangular capacity (H x W) | 330 x 510mm | 330 x 330mm | 230 x 230mm |
| Blade speed range | 20 - 100 m/min | ||
| Blade size | 4900 x 34 x 1.1mm | ||
| Blade tension | Hydraulic | ||
| Bundle width | 180mm - 450mm | ||
| Bundle height | 180mm - 240mm | ||
| Feeding length | 0 - 9999mm (Single Stroke 503mm) | ||
| Coolant pump | 0.09kw (1/8HP) | ||
| Hydraulic pump | 0.7kW (1hp), 3 Phase | ||
| Workbed height | 783mm | ||
| Blade motor | 3.7kW (5hp), 3 Phase | ||
| Nett machine weight | 1,980 kg | ||
| Gross weight | 2,135kg | ||
| Floor space | 3300mm x 2750mm x 2200mm | ||
| Shipping dimensions | 2.6 x 2.6 x 1.7m (11.5m3, 2200kg) |
