Cosen C-300NC Automatic Hinge Type Bandsaw
Product overview
About this machine.
Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024.

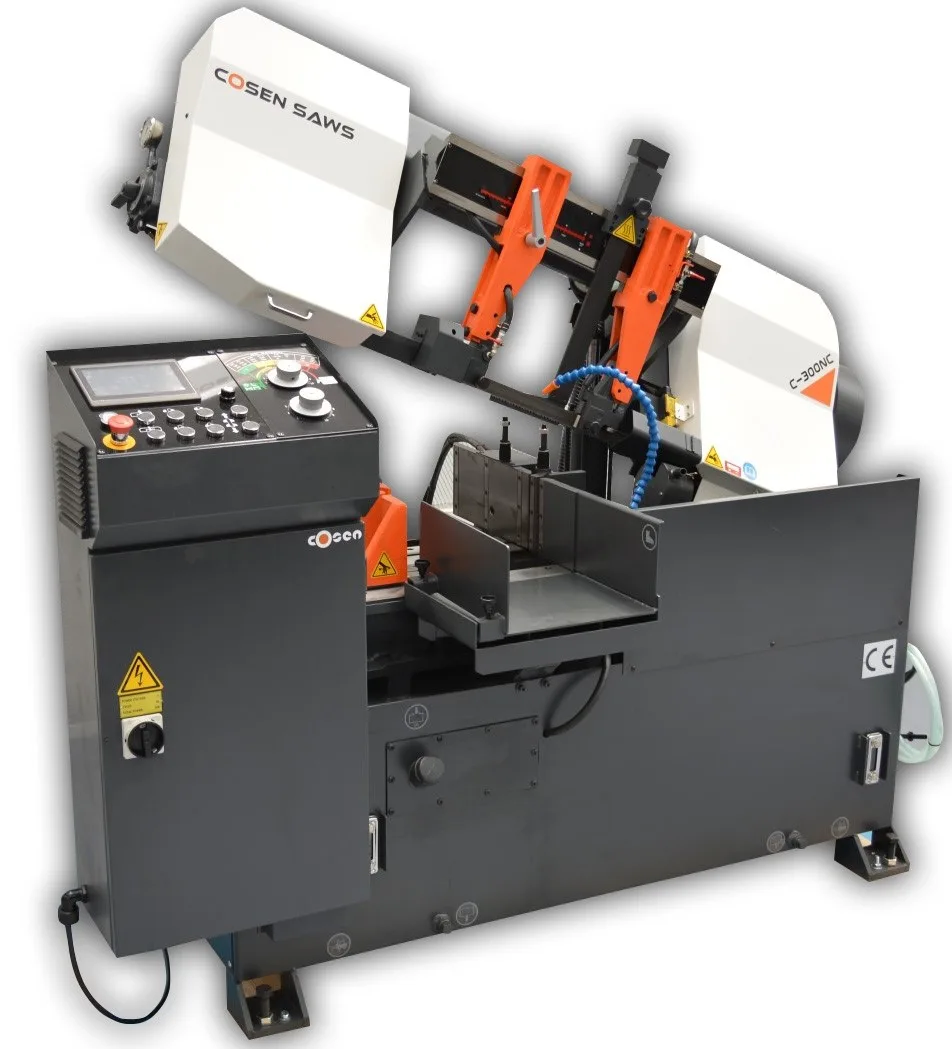

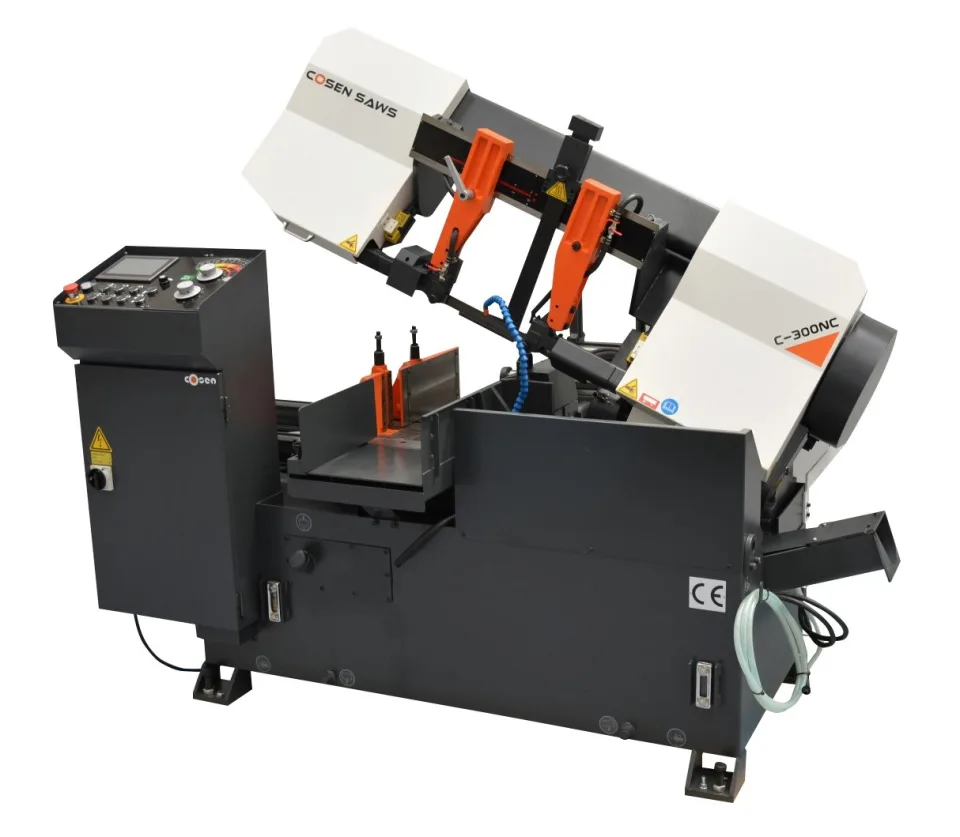

The C-300NC Automatic horizontal scissor style bandsaw is an affordable and fully programmable automatic band saw. It is high production machine which incorporates a massive base, sturdy saw frame, with an extremely heavy-duty gear box, a 5HP drive motor, and a user-friendly programmable control for ease of operation. With a 1" wide blade, it's ideal for small to medium-sized businesses. Smart NC-100 (SNC-100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC-100 controls are programmable up to 100 different jobs including quantity and length of cut. The controls automatically compensate for Kerf loss after data input and requires no manual calculation of number of times to index. The controller also automatically shutdowns the machine, blade motor, and hydraulics, once the programmed number of cuts (or out of stock situation) has been achieved. The system includes an error feedback function enabling rapid troubleshooting through an error code to be displayed in the event of a malfunction.
Features:
- All cutting job setting on touch panel
- Key pad entry of programmable quantity and length of cut with automatic shut-off for finished job(s) or out of stock.
- Stored program(s) may be easily recalled and executed at will.

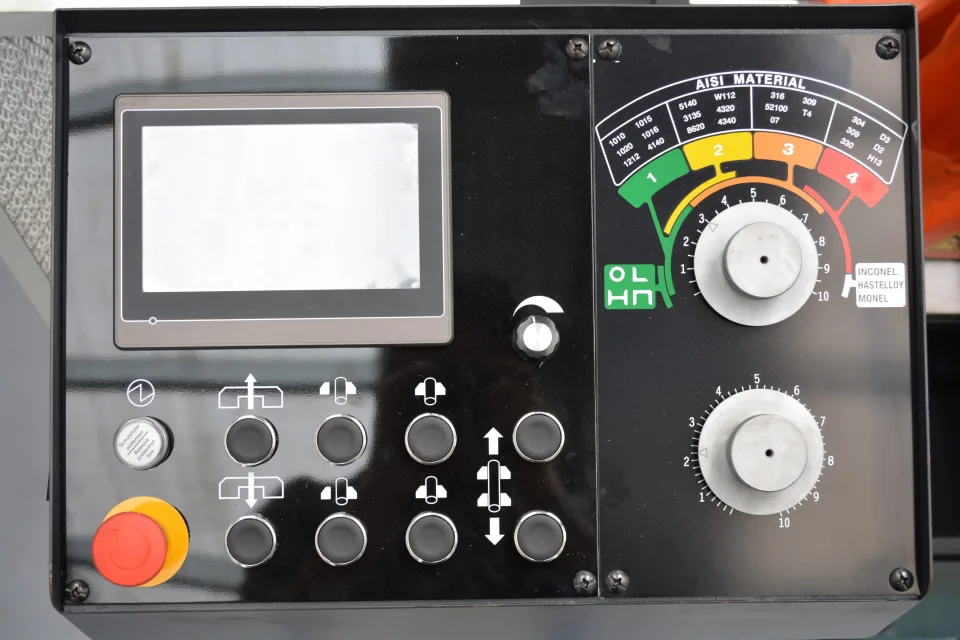

- 7" HMI touch screen.
- The two wheels adopt high-level cast iron and have been heat treated to ensure endurability and long-life.
- "Save-a-Blade" function.
- Rapid troubleshooting via error feedback system.
- Selector Switch for bundle or single cutting modes.
- Full stroke hydraulic cylinder.
- Ductile cast iron vises with replaceable hardened wear plates.
- Inverter-controlled infinitely variable blade speed.
- Automatic hydraulic blade tension device.
- Blade Speed Display
- Blade Life Indicator
- Feed Vice Position Display
- Automatic Kerf Loss Compensation & Automatic Multiple Indexing up to 9999 mm
- Error Code Display Provides simplified self-diagnostics.
- Accuracy of programmed cutting length +/- 0.2mm per stroke
- Hydraulic dual shuttle vice feed system
- Back tilting hinge type bow for longer blade life
- Specially designed gearbox for high lateral pressure
- *Photos may not be exactly the same as current stock.*
Standard Accessories:
- Infinitely variable blade speed control via frequency inverter
- Dual hydraulic full stroking vices
- Hydraulic blade tensioning device
- Blade vibration dampening device
- Blade slippage or breakage sensing
- Rapid approach automatic work height sensor
- Power driven blade cleaning brush
- Coolant system with flushing point at blade brush or for machine cleaning
- Two point coolant system to blade
- Error code display for simplified self-diagnostics
- LCD Screen with film type key pad
- Blade speed, blade life & vice position display
- Vice clamped indicator and out of stock indicator
- Carbide blade guides
- Automatic shutdown
- Work light
Included options by Scott Machinery:
- Hydraulic chip conveyor
- 2m Heavy duty roller table
- Vibration dampening
- Nesting fixture
Safety features:
- Latching emergency stop
- Safety interlock switch on blade guard
- Automatic blade breakage detection
- Hydraulic gauge to ensure blade is not over tensioned
- Safety guarding
- CE Conformity
