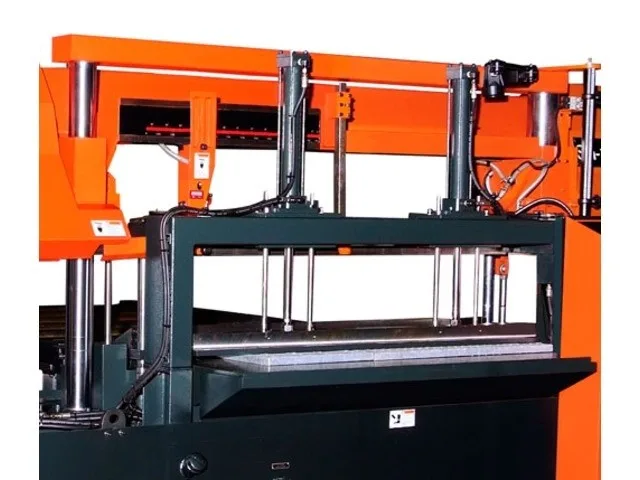

Cosen SH-13032 Double Column Grating Bandsaw
Product overview
About this machine.
Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024.
The Cosen SH-13032 Bandsaw is saw a that incorporates a massive base, sturdy saw frame, with a heavy-duty gear box, a 5HP drive motor and a 34 mm wide blade. It is a gantry-style bandsaw and is engineered for cutting large-format grating materials, ceramic panels, and a wide range of ferrous and non-ferrous metal plates. With an impressive cutting capacity of 1300mm (W) x 320mm (H), it is ideally suited for structural steelworks, public infrastructure, heavy fabrication, and manufacturing environments that demand reliable and consistent performance. Rigid Structure for Maximum Stability Heavy-duty twin round columns guide the sawhead with continuous surface contact, ensuring rigidity during the entire cutting cycle. The rear-tilted sawhead design reduces blade twist between the wheel and guide, minimizing blade stress and extending its lifespan. A robust arch-style crossbeam connects the columns, reinforcing structural integrity for long-term operation. Blade Drive & Cutting Control Custom high-pressure-resistant gearbox design prevents thermal distortion, ensuring smooth operation under industrial loads. Inverter-controlled blade speed allows infinitely variable adjustment via the front control panel, with LED display for precise setting. Dual-valve system for feed pressure and feed rate control optimizes cutting conditions across various materials.
Features:
- Quality Taiwanese Manufacturing
- Automatic hydraulic tension device will provide tension to blade when machine is turned on and will release tension when turned off, extending blade life.
- The bearing guides eliminate stress by pre-aligning the blade before it enters the carbide. There are two extra bearings located on a central axis, which supports the blade from the top, giving it extra penetrating force. The grooved carbide guide allows coolant through to lubricate and cool blade as well as work piece.
- The hydraulic chip conveyor (Option) features shiftless design which is more convenient and effective for chips removal.
Standard Accessories:
- The extra-hardened steel plate on the front vice avoids wear.
- Additional coolant nozzle for cutting large section piece.
- Built in work light.
- Flushing hose for wire brush and machine cleaning.
- Blade breakage detector.
- Self-lubricating carbide blade guide and guide roller.
- Precision pressure and feed rate dual valve.
- Integral coolant system.
- Blade clipping device for one operator changing of blade.
- One piece of Bi-Metal M42 saw blade.
Included Options By Scott Machinery:
- 2m Heavy duty roller table
- Variable blade speed
- Nesting fixture
- Minimum Quantity Lubrication (MQL) mist cutting
Safety features:
- Latching emergency stop
- Safety interlock switch on blade guard
- Hydraulic gauge to ensure blade is not over tensioned (Automatically releases tension when not in use)
- Automatic blade breakage detection
