Cosen SH-500M Semi Automatic Mitre Cutting Bandsaw c/w 1M Table
Product overview
About this machine.
Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years in maximizing efficiency and quality in every step of designing, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen has also earned ISO-9001 standards as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability
The Cosen SH-500M CE bandsaw is an industrial use semi-auto single swivel head mitering bandsaw. It has large capacity and is a compact sized machine needing a relatively small space when compared to machines with the same capacity. The SH500M has hydraulic lifting of the saw frame and a full stroke hydraulic vise. These features enable semi-automatic operation to securely hold the work piece, cut, and return the saw frame to a preset work height. The large, heavy-duty trunnion and swivel 'n' lock mechanism allows for up to 60 degrees of mitering capability.
Features:
- Quality Taiwanese Manufacturing
- Heavy duty bow & wide base construction
- Carbide blade guides with rollers
- Bow swivel for mitre cutting around HD pivot & locking system
- Hydraulic cylinder with semi-automatic bow lift
- Specially designed base for mitre cutting from 90 - 60 degrees
- Rigid guide arms mounted on extra wide precision ground dovetail slide
- Two additional bearings to support blade from the top along with replaceable carbide blade guides

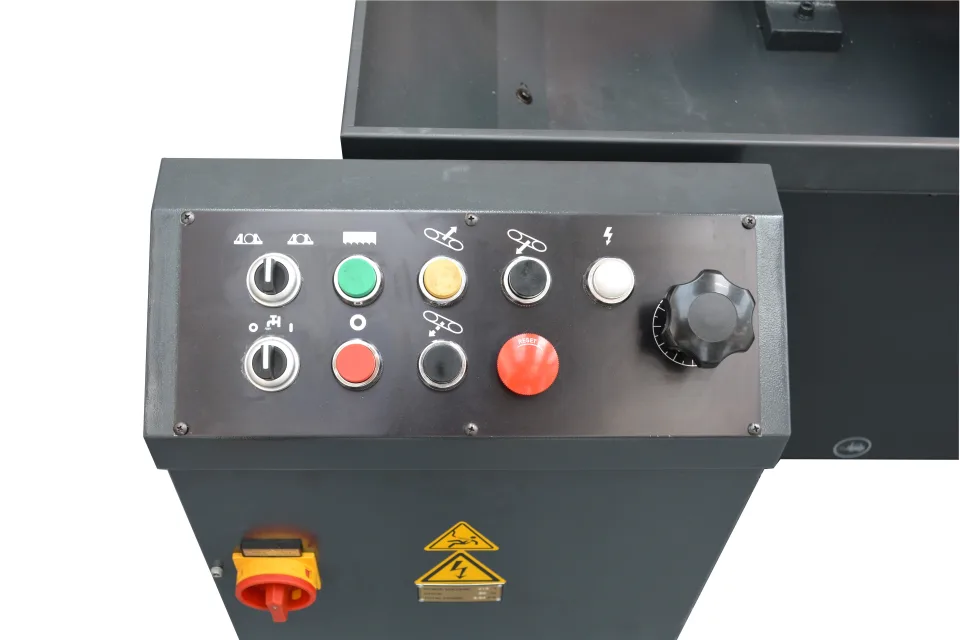

- Convenient operator control station
- Easy blade change with front access
Standard accessories:
- Variable blade speed control
- Full stroke hydraulic clamping vice
- Carbide blade guides
- Down feed rate control via hydraulic valve
- Blade breakage detection
- Power driven blade cleaning brush
- Two point coolant system to blade

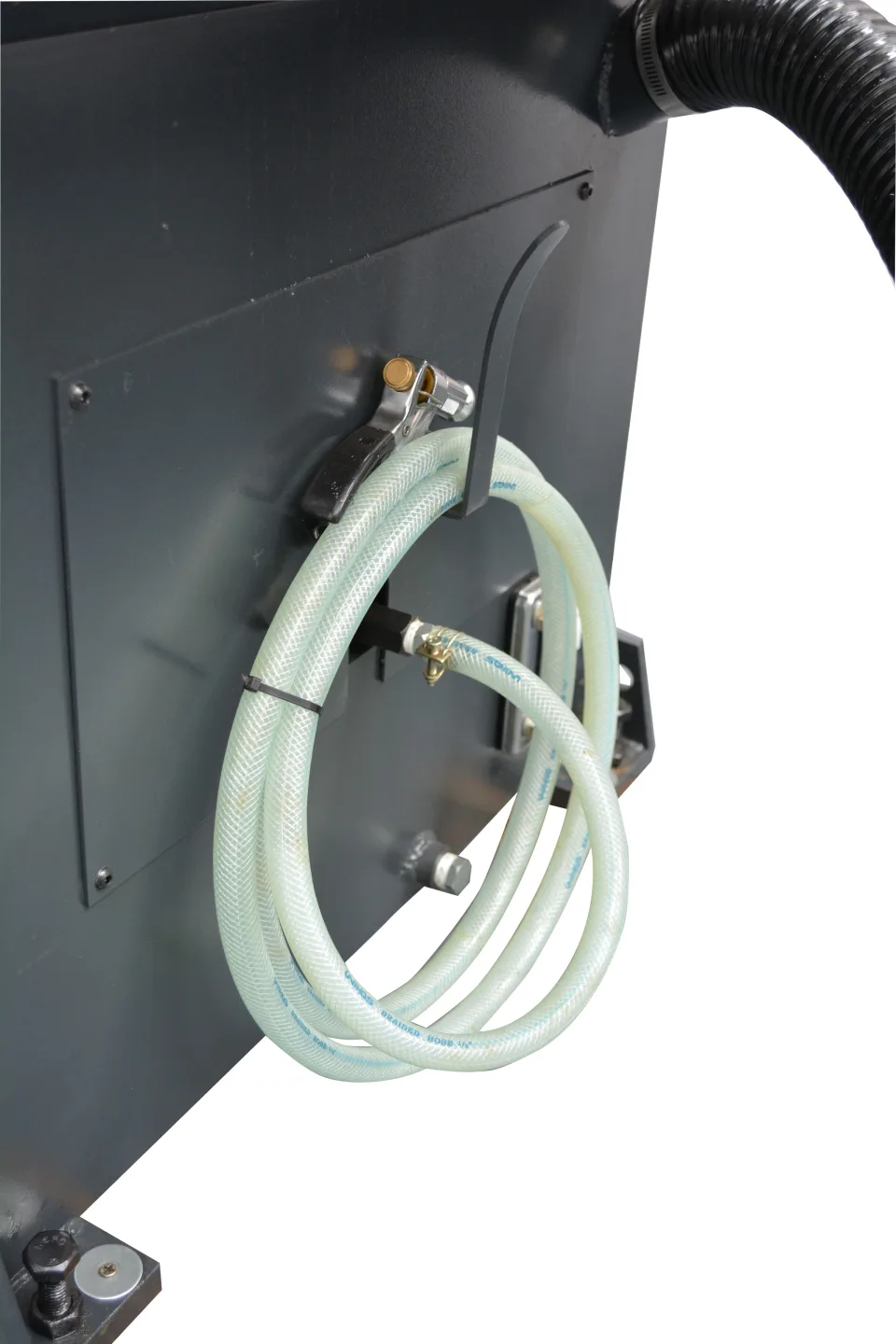

- Coolant system & wash down gun
- Adjustable length stop
- Work light
- 1m roller table ( max. capacity 500kg )
Included Options by Scott Machinery:

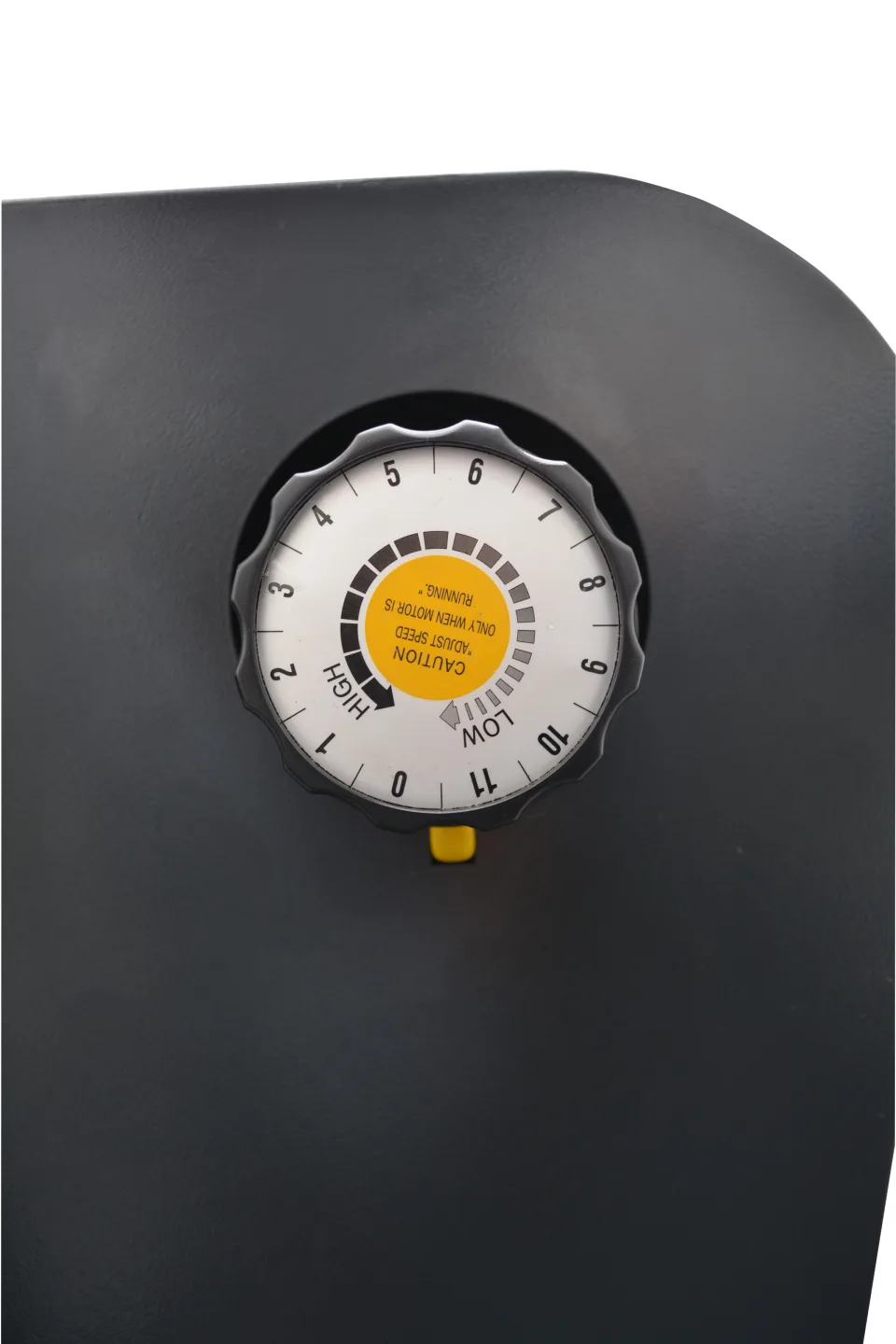

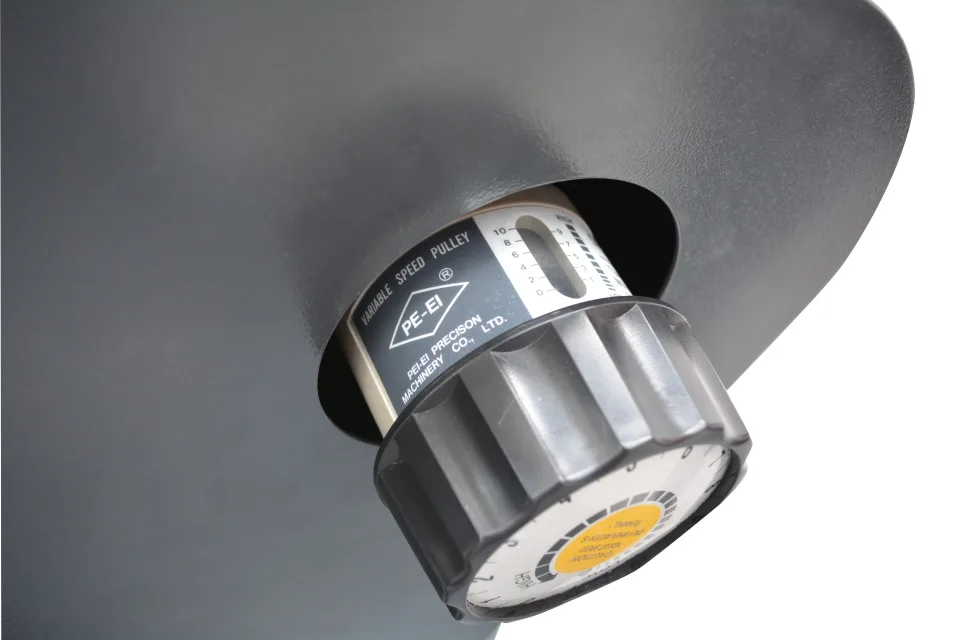

- Infinite variable blade speed unit
Optional accessories:
- Heavy duty two meter roller table
Safety features:
- Latching emergency stop
- Safety interlock switch on blade guard
CE Conformity
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Cosen | SH-500M | ||
|---|---|---|---|
| Capacity | Straight | 45deg | 60deg |
| Round section | 330mm | 290mm | 220mm |
| Rectangular section H xW | 280 x 500mm or 330 x 420mm | 280 x 280mm | 280 x 200mm |
| Blade speeds | 26 - 96 m/min variable | ||
| Blade length | 4150 x 27 x 0.9mm | ||
| Coolant motor | 0.09 kW (1/8 HP) | ||
| Hydraulic motor | 0.37 kW (1/2 HP) | ||
| Table height | 830mm | ||
| Main motor | 3hp 3 phase | ||
| Weight | 790kg | ||
| Shipping | 6.8m3, 990kg |
