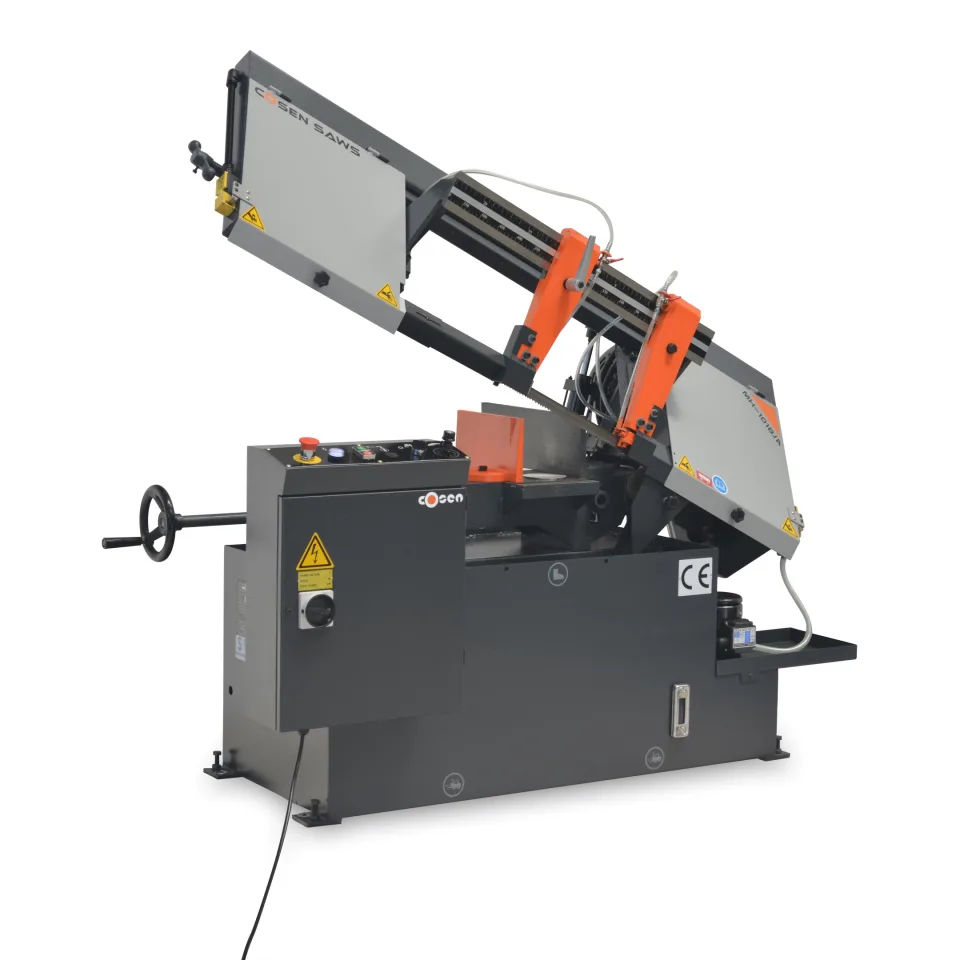

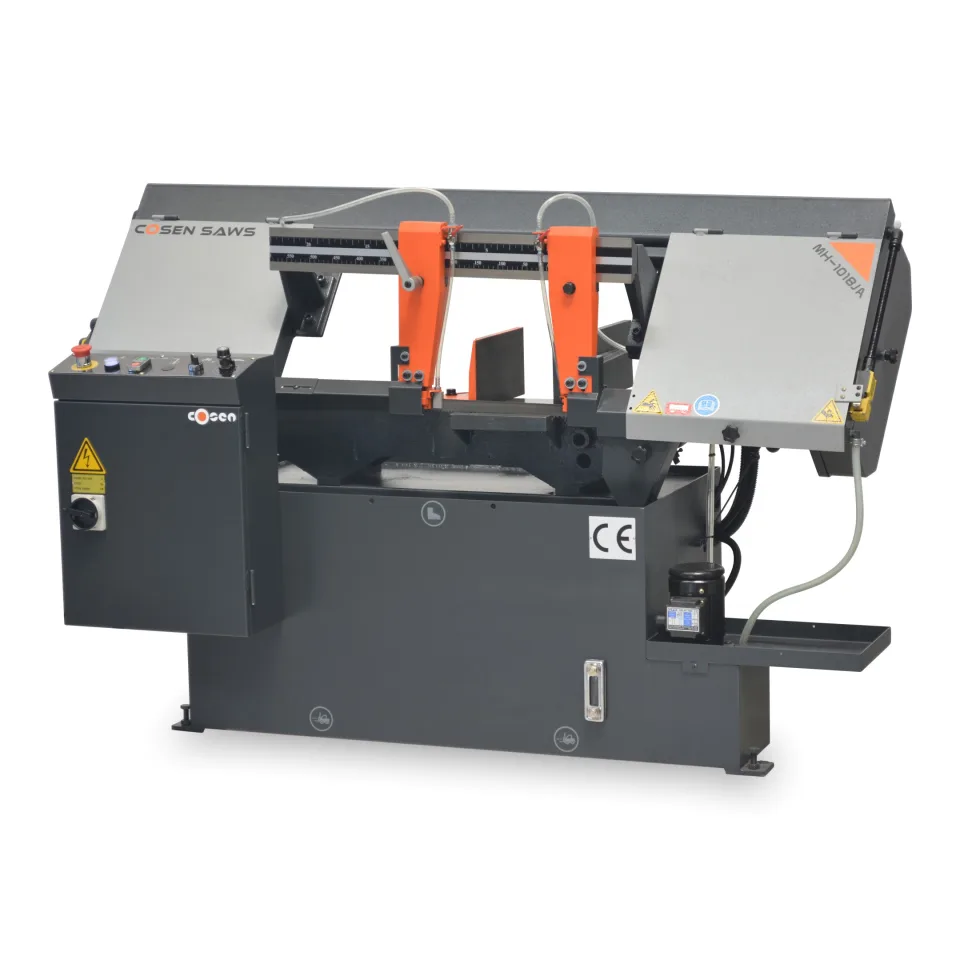

Cosen MH-1018JA Manual Bandsaw
230v
Product overview
About this machine.
Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024.
The MH-1018JA single phase bandsaw features a manual vise and an adjustable hydraulic down feed, making it well-suited for small to medium-sized machine shops, maintenance facilities, metal fabrication shops, educational settings, and short-run production tasks. It efficiently cuts square, round, and rectangular solids, as well as tubing. Built with a robust frame, this saw delivers consistent accuracy and dependable performance over years of use.
Features:
- Quality Taiwanese Manufacturing
- 230v Single phase
- Rigid bow construction
- Rigid guide arms mounted on extra wide precision ground dovetail slide
- Two additional bearings to support blade from the top
- Two point coolant system to blade
- Blade cleaning brush wheel
- Down feed rate & cutting pressure control via hydraulic down feed valve.
- New push pull system on bow for easy lift & fast approach.
- Carbide blade guides.
- 4 blade speed steps.
- Mitre cutting via swivel in vice
- Adjustable length stop
- 1" RONTGEN bi-metal blade
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Cosen | MH-1018JA | |
|---|---|---|
| Capacities | Straight | 45 deg |
| Round section | 255mm | 230mm |
| Rectangular section (WxH) | 460 x 230mm | 255 x 230mm |
| Blade speeds | 24, 38, 53, 81 m/minute | |
| Blade size | 3505 x 27 x 0.9mm | |
| Table Height | 650mm | |
| Main motor | 2HP / 1.5 kw 230v | |
| Nett weight | 328 kg | |
| Floor Space (LxWxH) | 1730 x 740 x 1050 mm | |
| Shipping | 330kg 1.8m3 |
