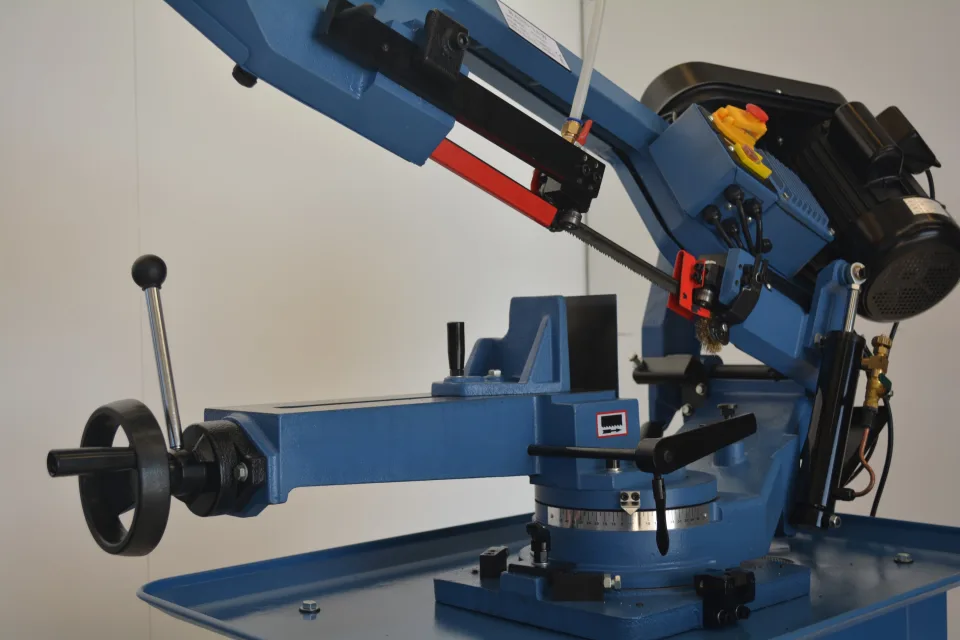

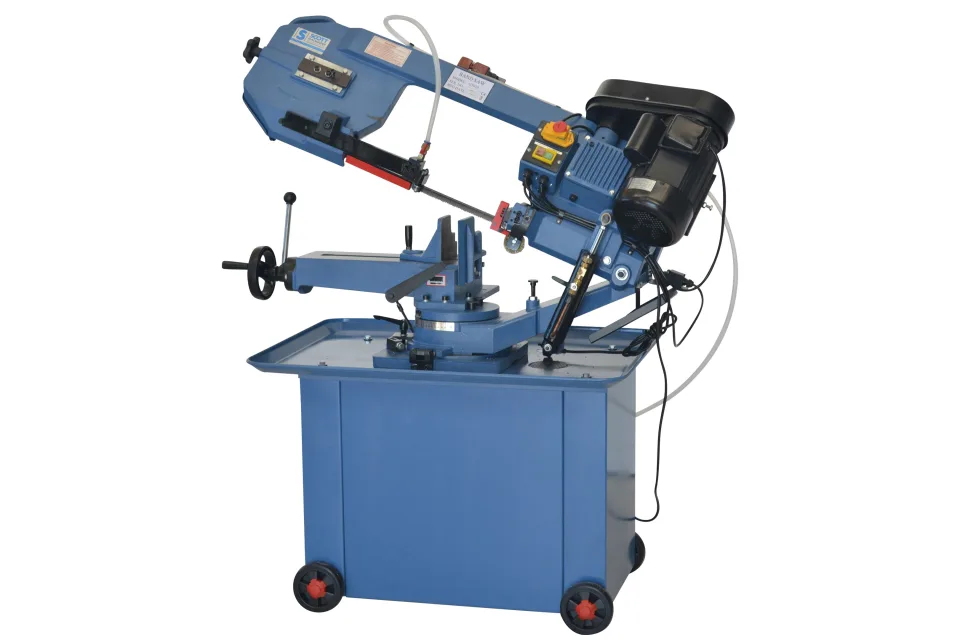

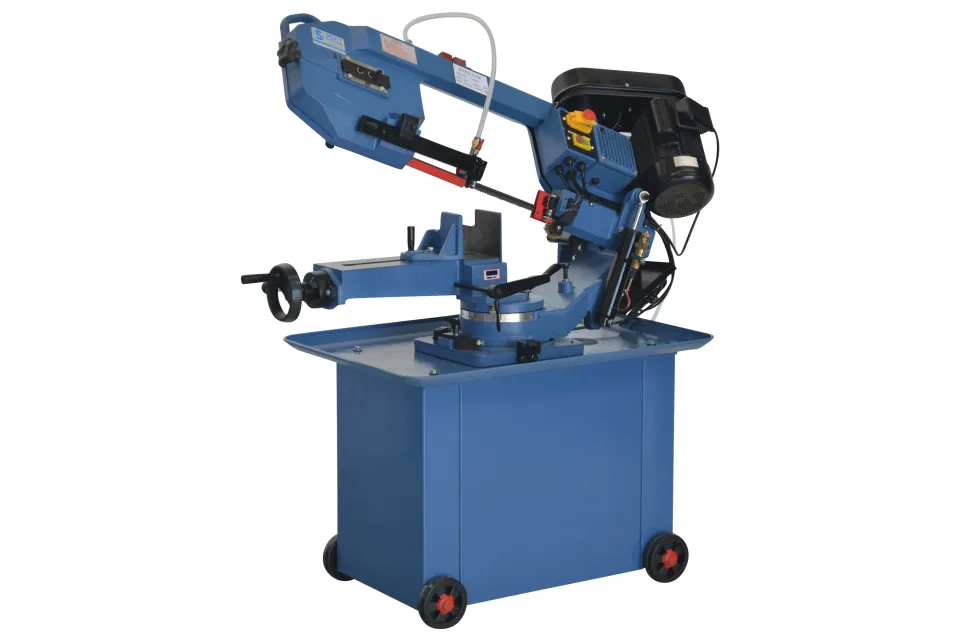

METALEX BS-812DR Manual Mitre Bandsaw, 230v
$2,890.00
SAWB-0-0811 | Prices exclude GST
Product overview
About this machine.
Horizontal Mitre Bandsaw 8" capacity 20mm blade
Swivel bow for Mitre cutting to +/- 45 degrees
- Hydraulic dampening cylinder to bow
- Hand wheel & lever type vice clamping
- Bi-metal 20mm blade
- Coolant system
- Wire blade cleaning wheel brush
- On wheels for easy moving & storage
Stepped belt drive providing 4 blade speeds
- Adjustable material length stop

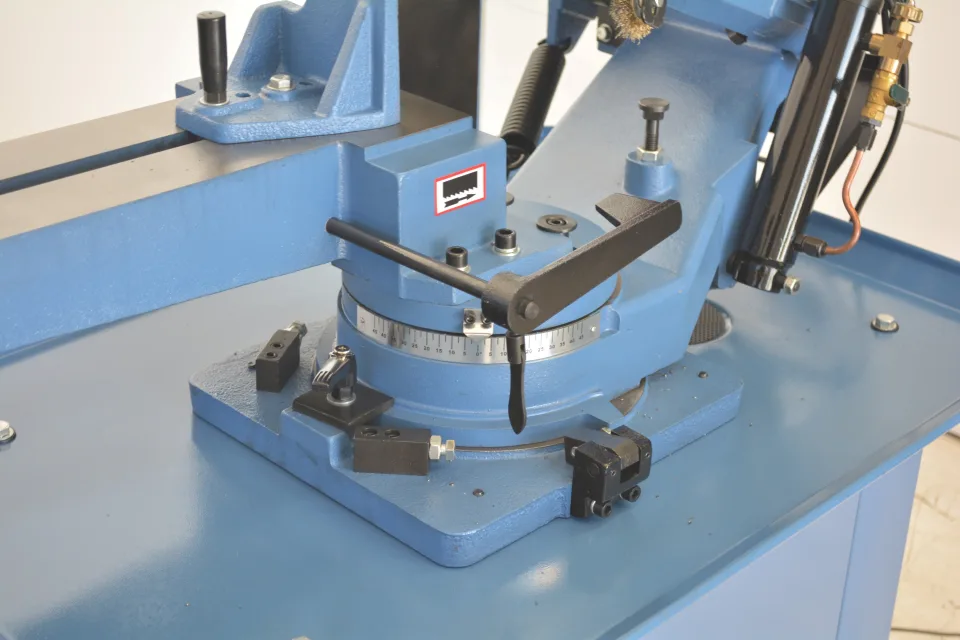

- Convenient positional stops at +/-45 & 90 degrees
- Lever handle for locking bow position
- Manual cast iron vice with quick nip lever clamp plus fast unclamp.
- Single phase 230v motor
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | BS-812DR | |
|---|---|---|
| Capacity | @ 90 degrees | @ 45 degrees |
| Round | 205mm | 143mm |
| Rectangular | 205 x 215mm or mm x mm | 205mm x 115mm |
| Blade speeds | 24, 41, 61, or 82 m/min | |
| Blade length | 2360mm x 20mm | |
| Motor | 1100W 230V | |
| Machine weight | 190 kg | |
| Shipping | 0.8x1.4x1.5=1.68m3, 240kg |
