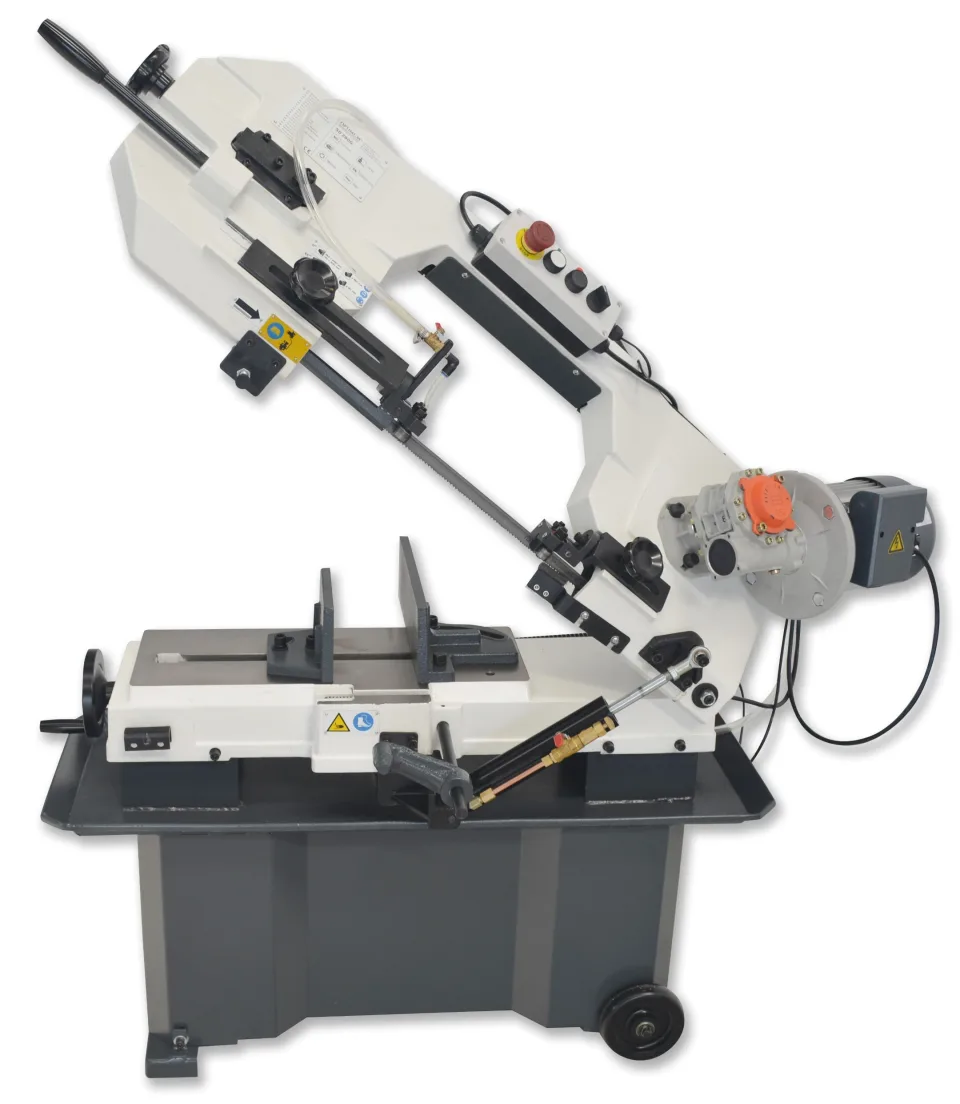

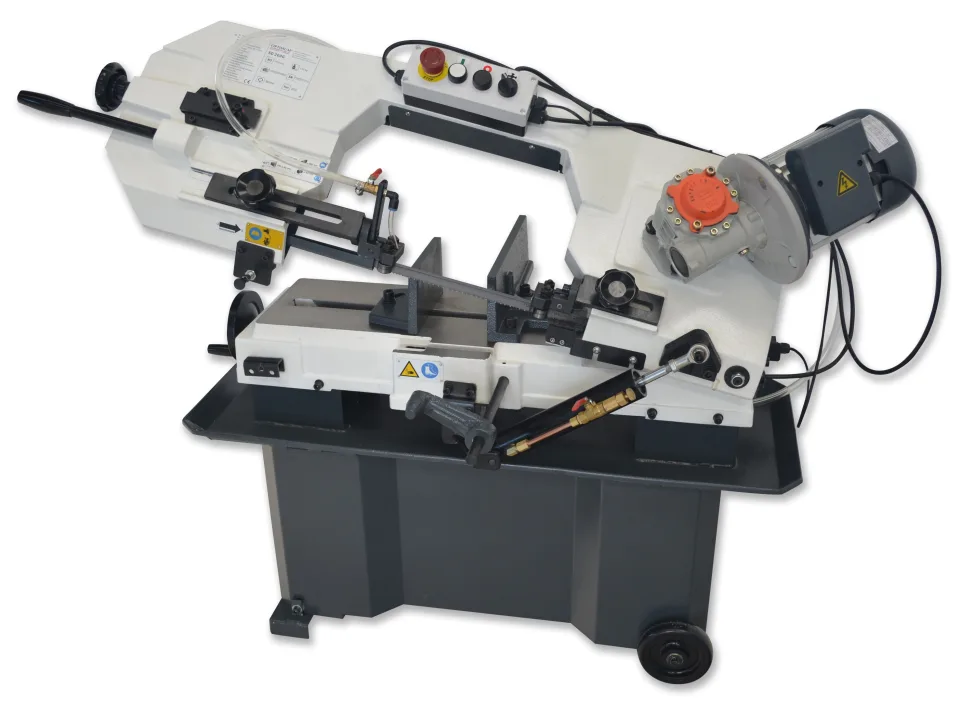

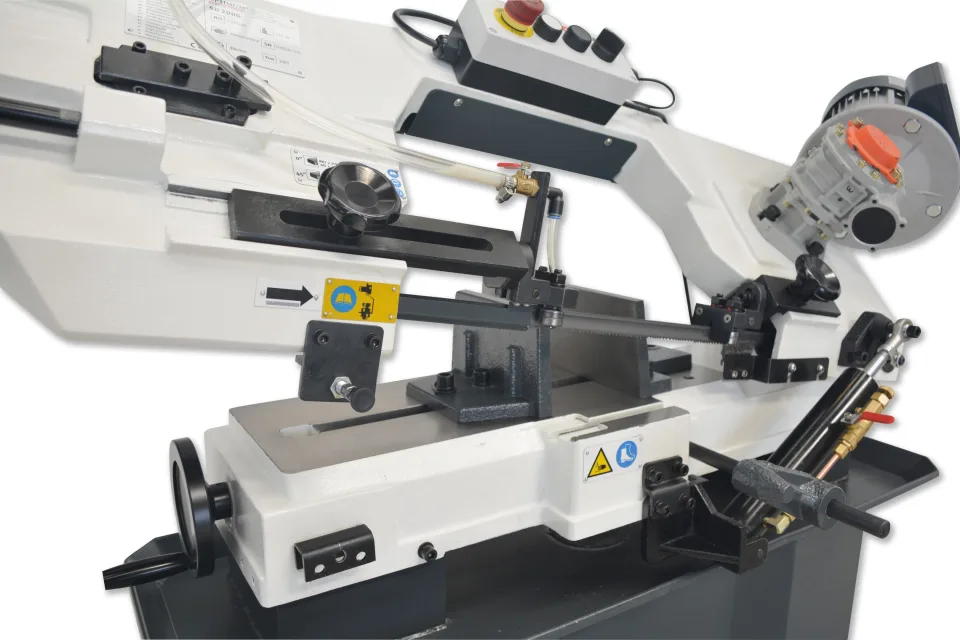

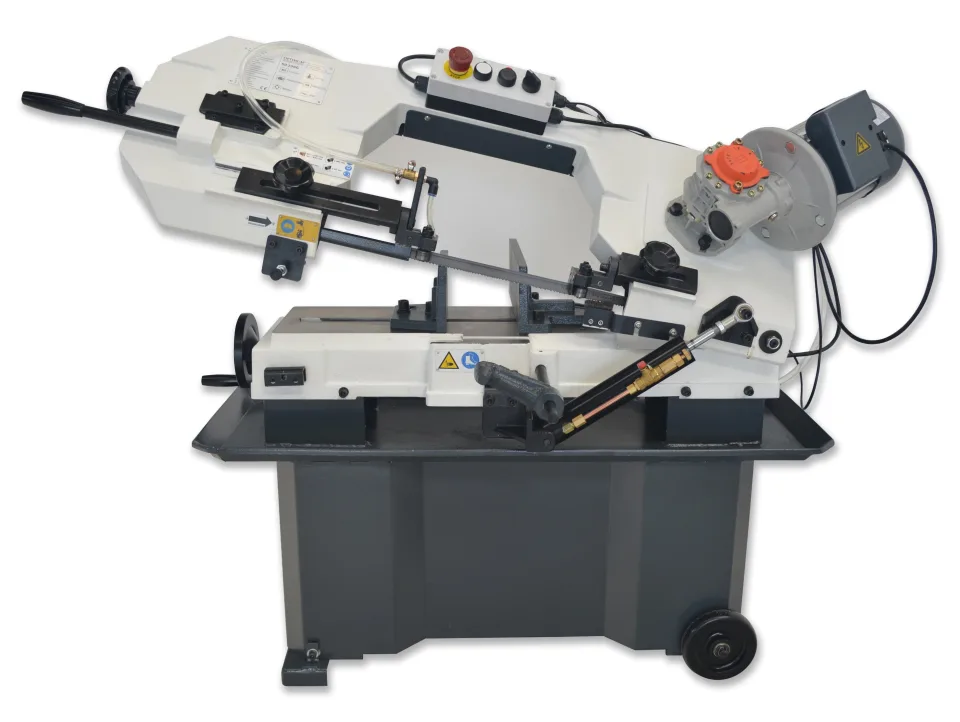

OPTIMUM SD-200G Manual Bandsaw, 230v
$1,890.00
SAWB-0-0700 | Prices exclude GST
Product overview
About this machine.
Horizontal Bandsaw 180mm round capacity 20mm blade
Single phase 1HP 230v motor
- Hydraulic dampening cylinder
- Strong welded stand
- Strong cast bow
- Bimetal 2360mm x 20mm blade
- Coolant system
- Wire blade cleaning wheel brush
- On wheels for portability
- Direct drive gearbox
- Adjustable material length stop
- Mitre cutting in swivel vice to 45 degrees
- Convenient lever handle for bow lift
- Long 305mm back vice for easy alignment
Optional:
- Roller feed tables
- German Rontgen Blades
- 4-6, 5-8, 6-10, 8-12, 10-14 TPI options
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | SD-200G | |
|---|---|---|
| Capacity | 90deg | 45 deg |
| Round section | 180mm | 110mm |
| Rectangular section W x H | 180 x 240mm | 170 x 110mm |
| Blade specification | 2360 x 20 x 0.9 mm | |
| Bed height | 570mm | |
| Weight | 130kg | |
| Floor space | 1275 x 450 x 1100mm |
