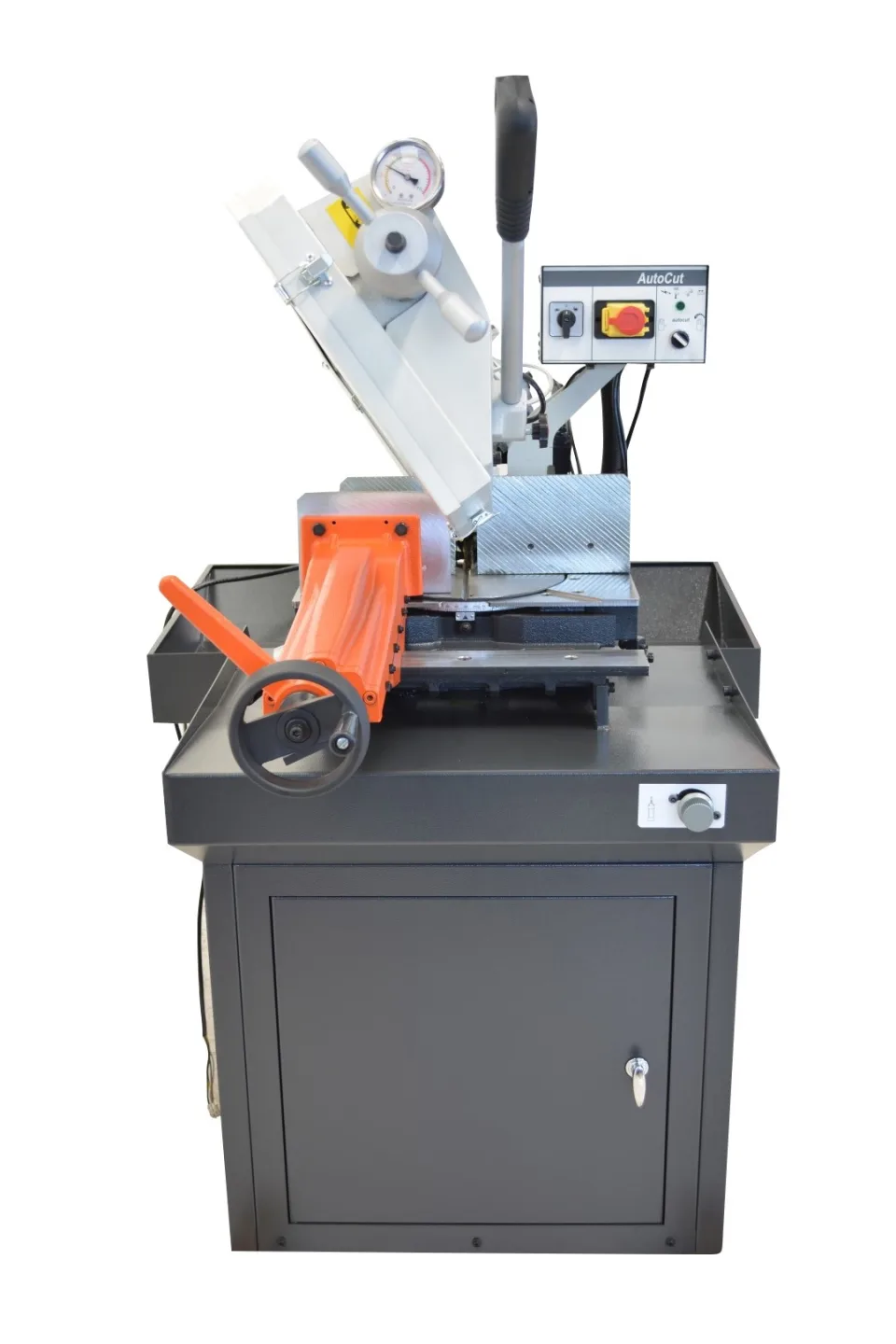

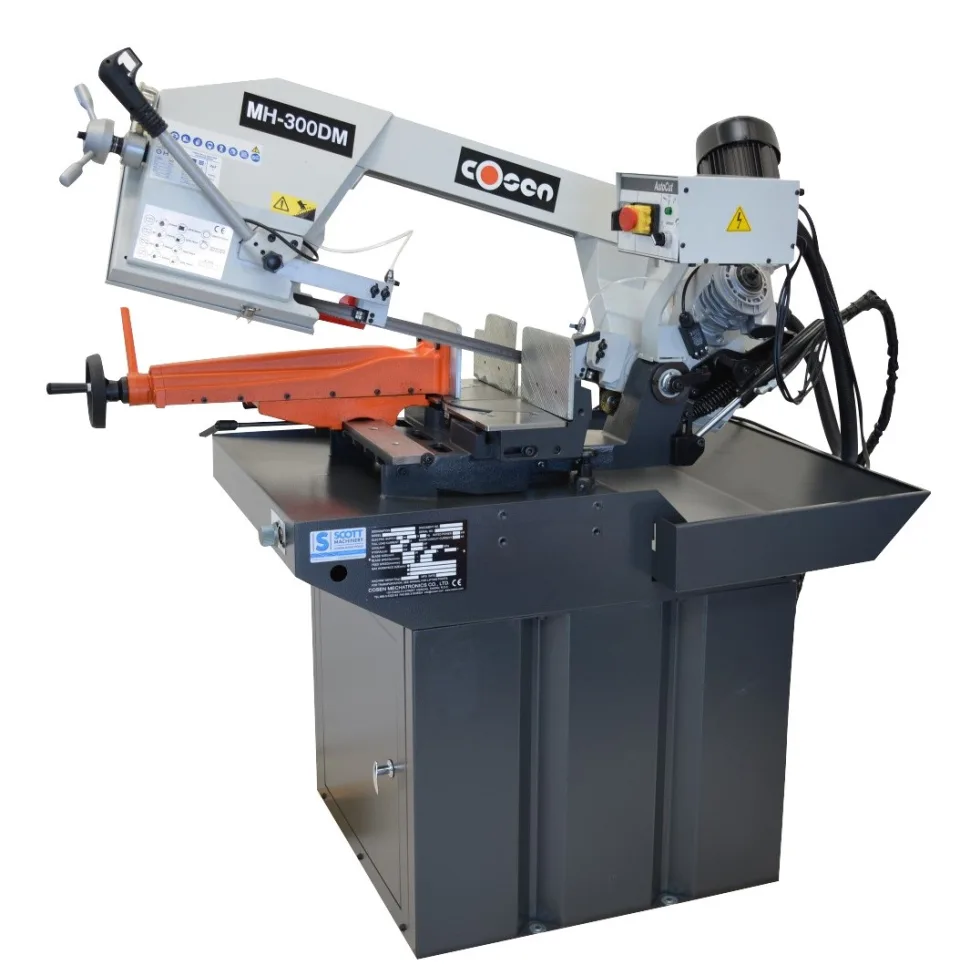

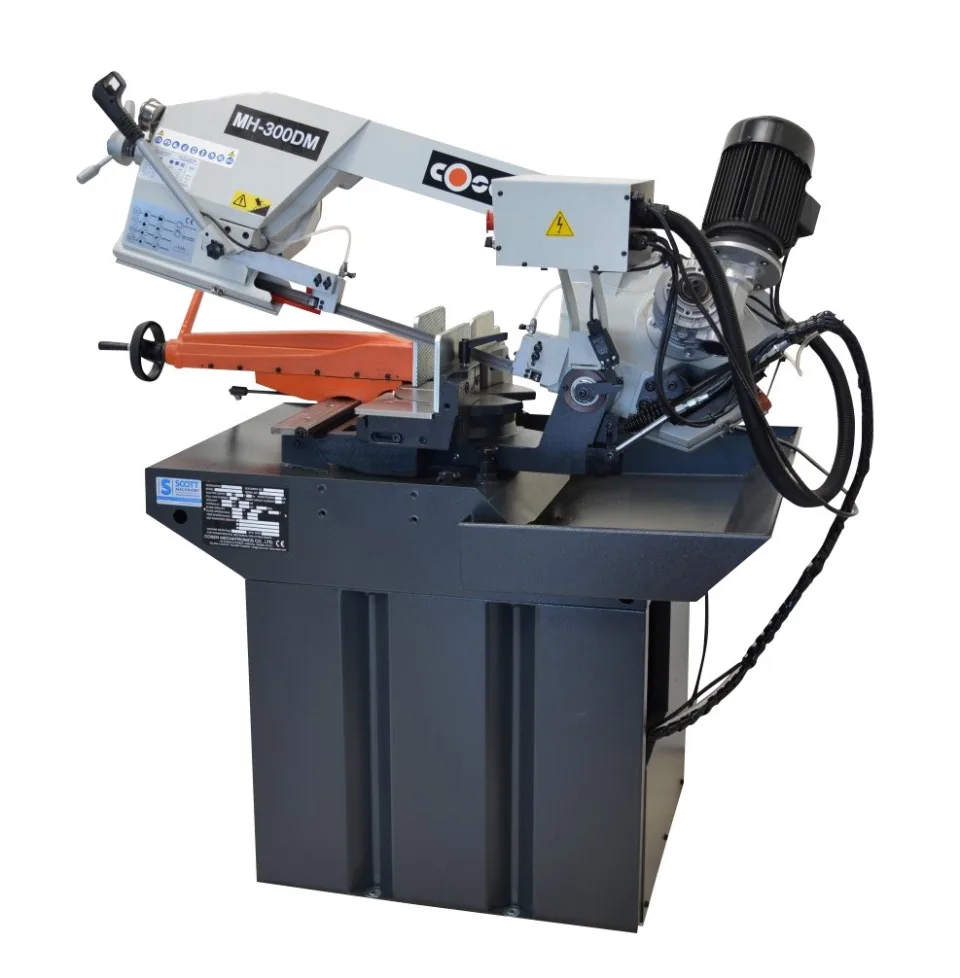

COSEN MH-300DM AutoCut Manual Double Mitre Bandsaw
Product overview
About this machine.
Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years maximizing efficiency and quality in every step of design, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen have also earned ISO-9001 standards as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.
The MH-300DM bandsaw is a high quality Taiwanese built double mitre bandsaw, based on refined Italian design principles. This model combines robust construction with user friendly operation, offering smooth and accurate cutting performance for a wide range of materials. Ideal for general fabrication, maintenance workshops, educational facilities, and production environments requiring frequent mitre cutting. It features a manual vise and an adjustable hydraulic down feed, making it well-suited for small to medium-sized machine shops, maintenance facilities, metal fabrication shops, educational settings, and short-run production tasks. It efficiently cuts square, round, and rectangular solids, as well as tubing. Built with a robust frame, this saw delivers consistent accuracy and dependable performance over years of use.
Features:
- Quality Taiwanese Manufacturing
- Based on Italian styling
- Double mitre cutting swivel bow mounted with a bearing system for easy pivoting of the bow to -45 to +60 degrees
- Convenient positional stops at 45, 60 & 90 degrees
- Lever handle for locking bow position
- Carbide blade guides with twin roller bearings for blade support
- Manual cast iron vice with quick nip lever clamp plus fast unclamp.
- Removeable chip tray.
- Convenient cabinet in floor stand
- Two point coolant system to blade
- Blade cleaning brush wheel
- Down feed rate & cutting pressure control via hydraulic down feed valve
- Convenient operator control station
- 2 speed 415v motor for high/low blade speeds
- Blade tension gauge
- RONTGEN bi-metal 27mm saw blade

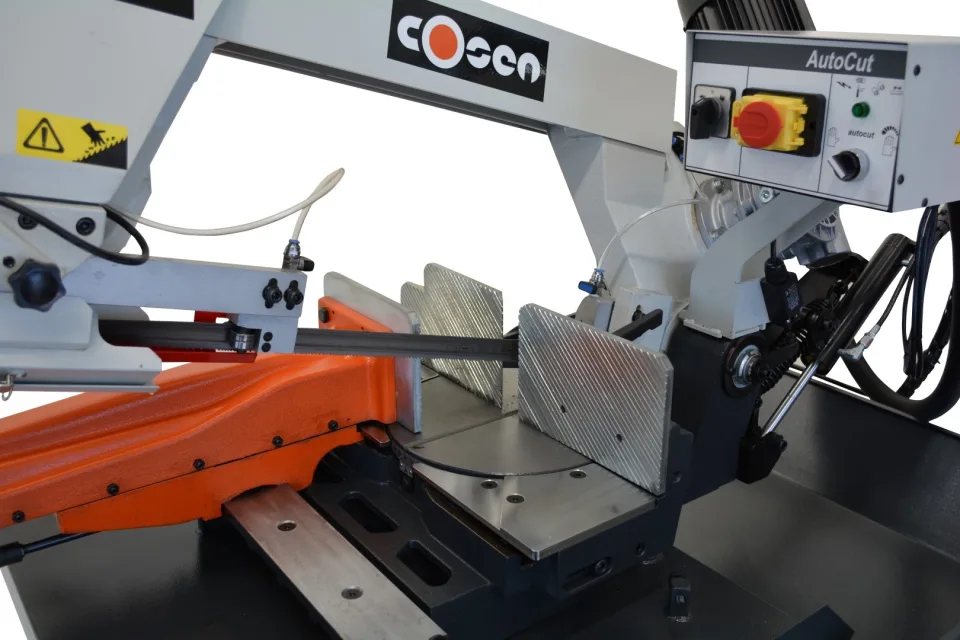

Plus AutoCut features include
- Bow hand lever with trigger start switch
- Separate hydraulic valve downfeed control with large dial
- Three function switch giving : Fast Approach, Auto Downfeed, Manual Downfeed
Safety features:
- Latching emergency stop
- Safety interlock switch on blade guard
- Hydraulic gauge to ensure blade is not over tensioned
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Cosen | MH-300DM AutoCut | ||
|---|---|---|---|
| Capacity | 90 degrees | 45 degrees | 60 degrees |
| Round capacity | 260mm | 240mm | 190mm |
| Rectangular capacity | 295mm x 230mm | 225 x 215mm | 190 x 190mm |
| Blade speeds | 36 or 72 m/min | ||
| Blade specification | 27mm x 2950 - 2965mm | ||
| Working table height | 950mm | ||
| Motor power | 1.6hp 415V | ||
| Weight (Net) | 295 kg | ||
| Floor space W x D x H | 1500 x 970 x 1350mm | ||
| Shipping cubic m / kg | 2.52m / 345 kg |
