FALCON HPK80 Profile Rolling Machine
Digital displays & lateral guide rolls
Product overview
About this machine.
Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

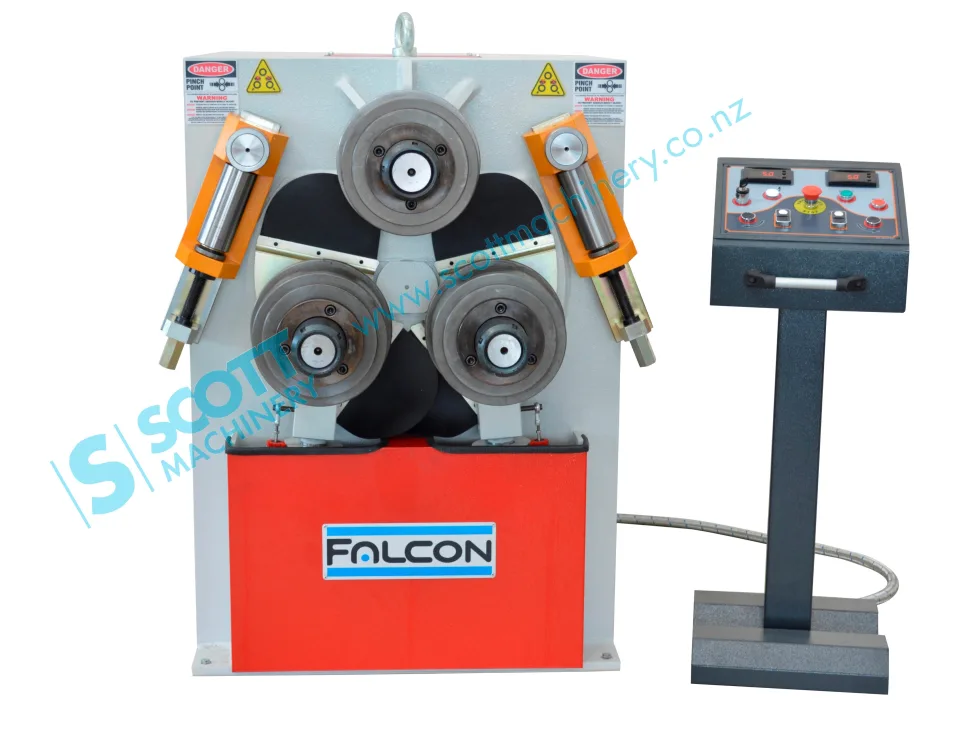

The FALCON HPK80 Motorized profile rolling machine is a robust and versatile solution for precision metal bending tasks utilizing twin hydraulically positioned bottom rolls. Engineered for both horizontal and vertical operations, this hydraulically operated, European-made machine is designed to handle a variety of profiles with efficiency and accuracy, designed to bend angle iron (flange in or flange out),flat , flat on edge, pipe, RHS, solid round and square bar, I or U sections, etc. in steel or other materials.
Features:

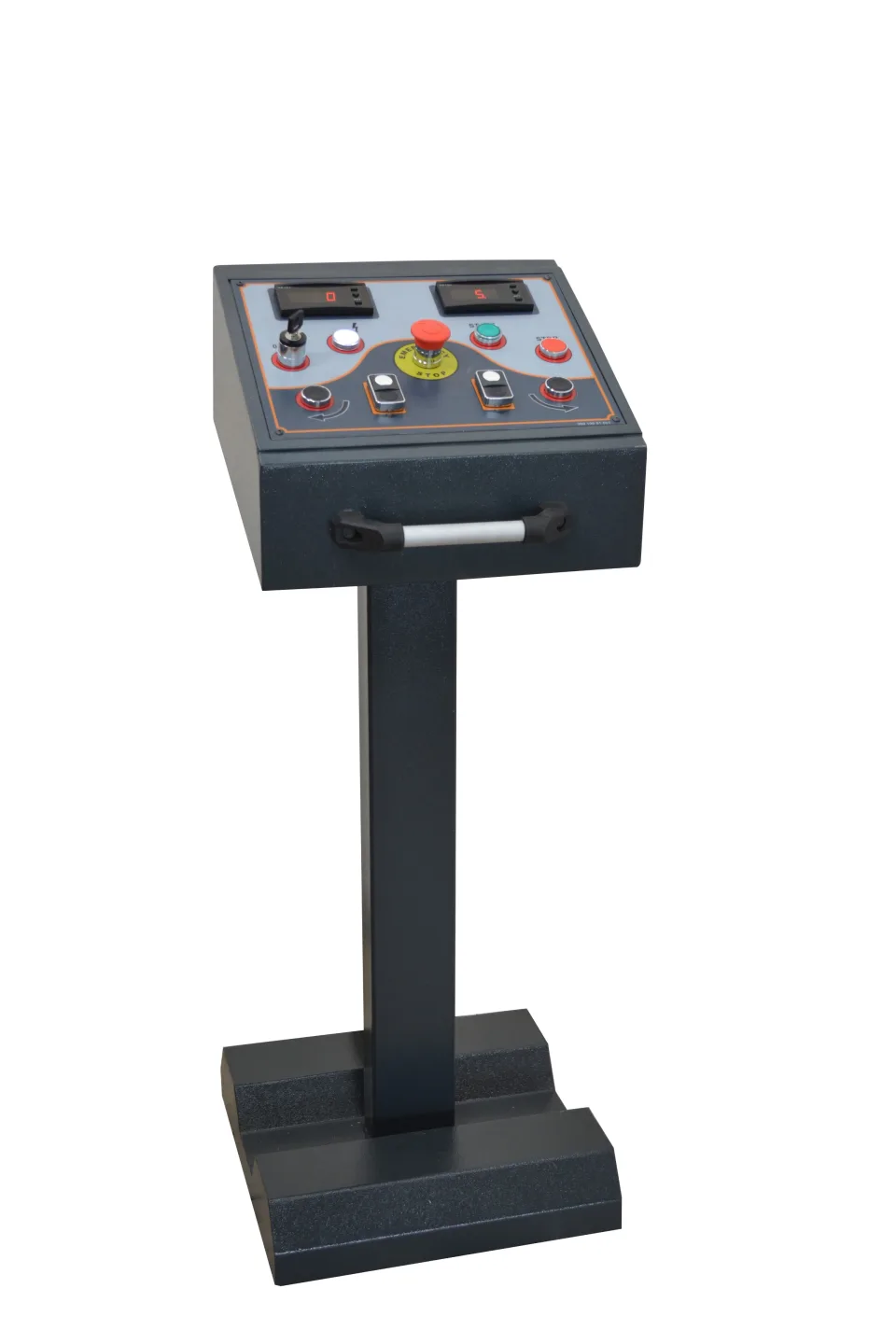

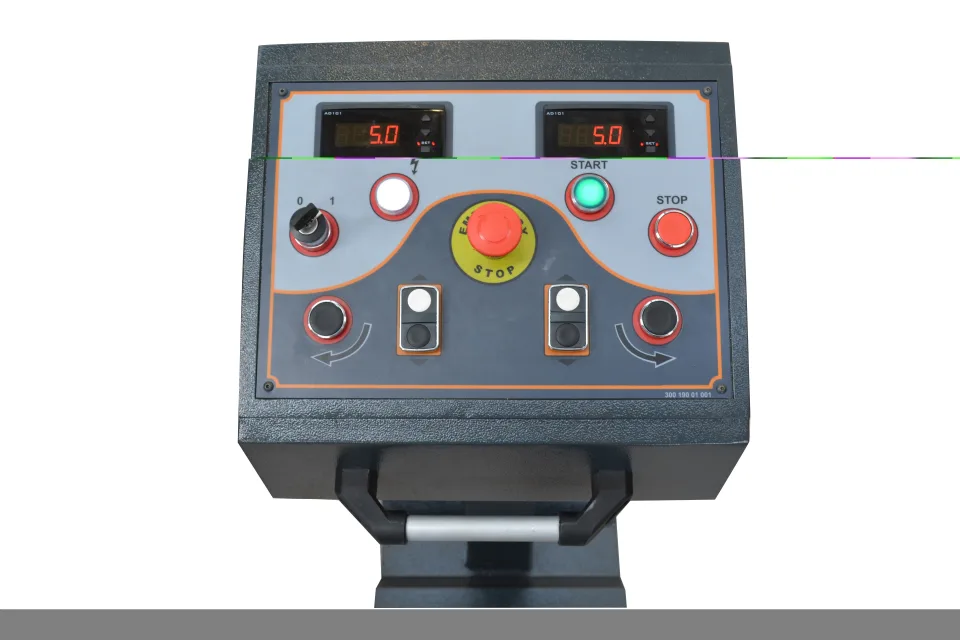

- The mobile control panel is equipped with push-button controls and digital readouts. This interface enables precise control over the positioning of the bottom rolls and other machine functions, c/w foot pedals
- Robust welded Steel Frame
- All three rolls are mechanically driven via an electric motor through a planetary gearbox and heavy duty gears ensuring consistent bending performance
- The HPK80 can operate in both horizontal and vertical orientations
- Hardened Standard Rolls
- Hardened and Ground Shafts
- 2 sets of Digital Read Displays for bottom rolls positions

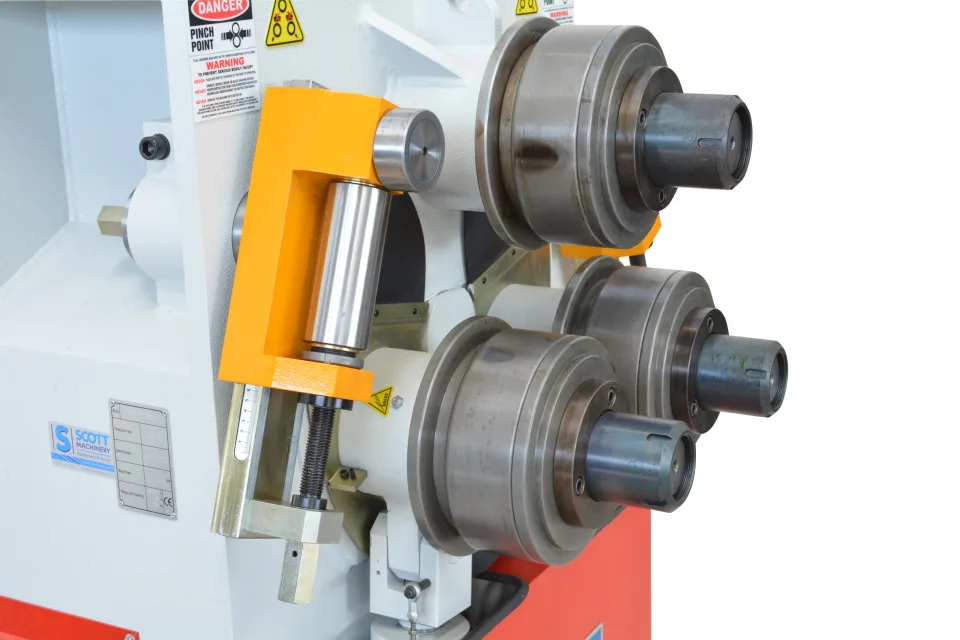

- 3 axis Mechanical Lateral Angle Guide Rolls
- Centralized lubrication system
- Braked electric motor for precision bending
- Hydraulic elements : Bosch, Rexroth or Duplomatic (Italian) components used.
- Electric components : Siemens (German) or Telemecanique(France)
- Built according to EC Safety Directives .(CE Mark) and ISO 9000 Certificate
- User's Manual in English
Included Scott Machinery features:
- Twin digital read outs for individual bottom roller positioning
Optional Accessories:
- Pipe / Tube bending rolls
- Special profile bending rolls
- Angle bending rolls
- Special lateral angle guides
- The NC controller option for the HPK80 NC offers multiple modes of operation: manual, semi-automatic, and automatic. This flexibility allows operators to choose the most suitable mode for their specific bending tasks. The controller can store up to 500 programs, facilitating quick setup and repeatability for various bending operations. --Must be a selected option at time of order.
Machine Specification:
- Top-Shaft Diameter 80mm
- Bottom-Shafts Diameter 70mm
- Roll Diameters 245mm
- Working Speed 7m/min
- Motor Power 4.75kW
- Weight 1,700kg Dimensions 1500 x 1000 x 1400 (LxWxH)
- Power Supply - 415V-3Ph-50Hz
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Falcon | HPK-80 | |
|---|---|---|
| Profile | Capacity | Minimum diameter |
| Flat bar (hard way) | 100mm x 20mm | 2000mm |
| 30mm x 10mm | 300mm | |
| Flat bar (easy way) | 125mm x 25mm | 600mm |
| 60mm x 5mm | 300mm | |
| Square bar (solid) | 45mm x 45mm | 500mm |
| 15 x 15mm | 380mm | |
| Round bar (solid) | 50mm | 500mm |
| 15mm | 380mm | |
| Round tube | 100mm x 2.5mm | 1200mm |
| 15mm x 1mm | 380mm | |
| Round pipe | 75mm x 5.48mm | 800mm |
| 21.34mm x 2.77mm | 380mm | |
| RHS | 80mm x 25mm x 3mm | 800mm |
| 25mmx 15mm x 2mm | 350mm | |
| SHS | 70mm x 3mm | 1300mm |
| 25mm x 2mm | 350mm | |
| Angle - Flat in | 70mm x 70mm x 7mm | 700mm |
| 30mm x 30mm x 3mm | 450mm | |
| Angle - Flat out | 80mm x 80mm x 8mm | 800mm |
| 30mm x 30mm x 3mm | 400mm | |
| Channel - Flange out | UPN 140mm | 1600mm |
| UPN 120mm | 900mm | |
| UPN 100mm | 800mm |
