FALCON HPK60 Profile Rolling Machine
with Hydraulic top roll & DRO
Product overview
About this machine.
Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

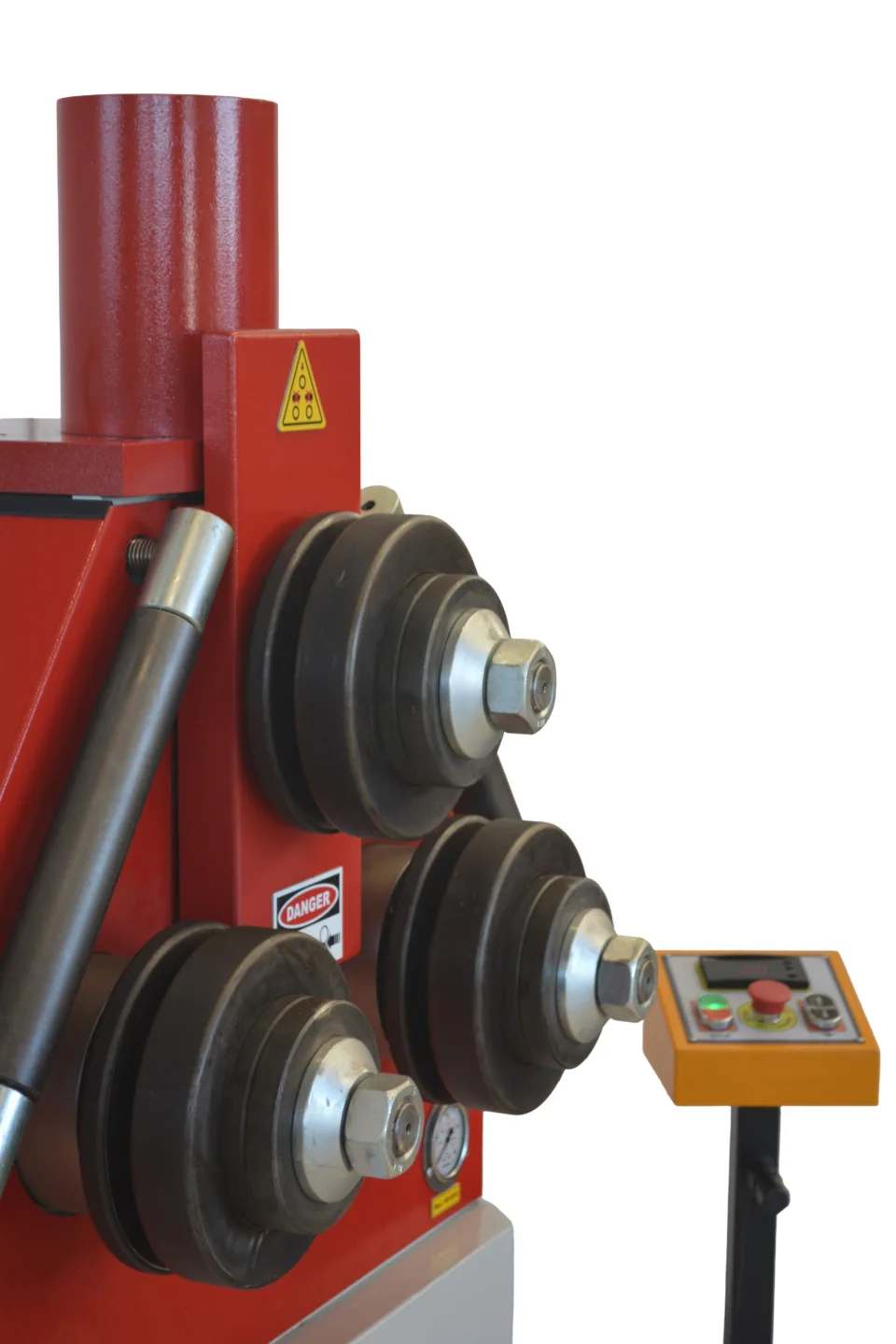

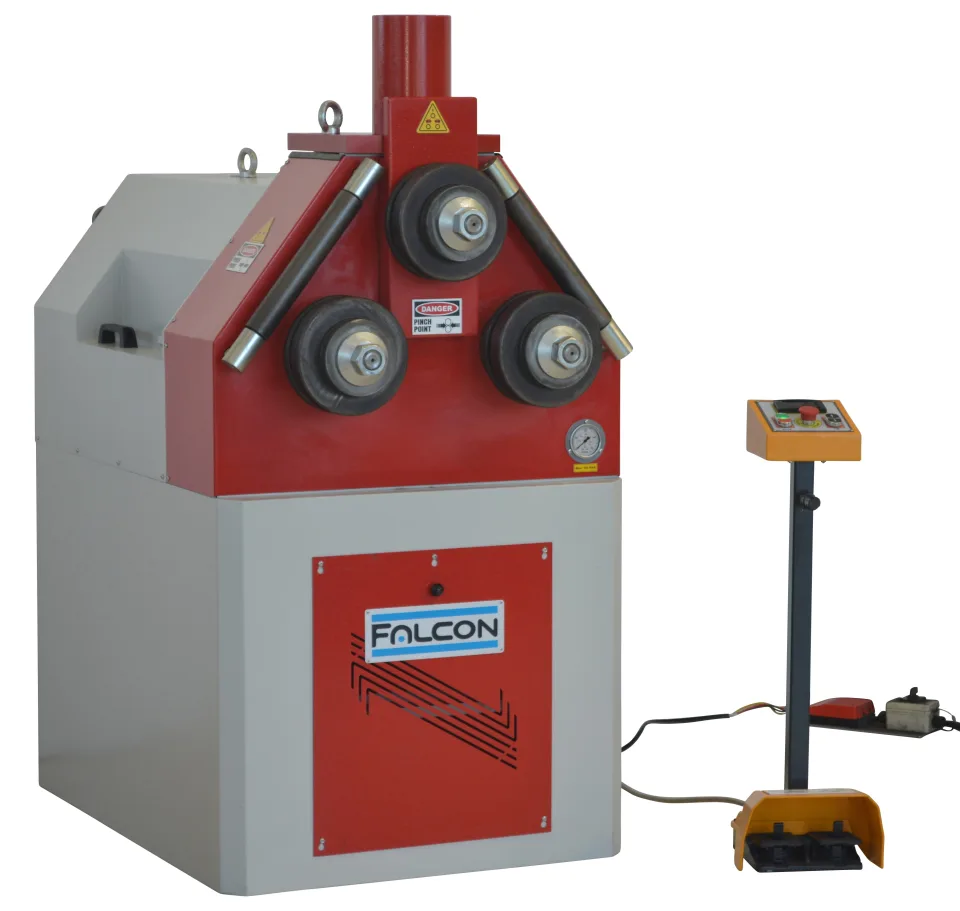

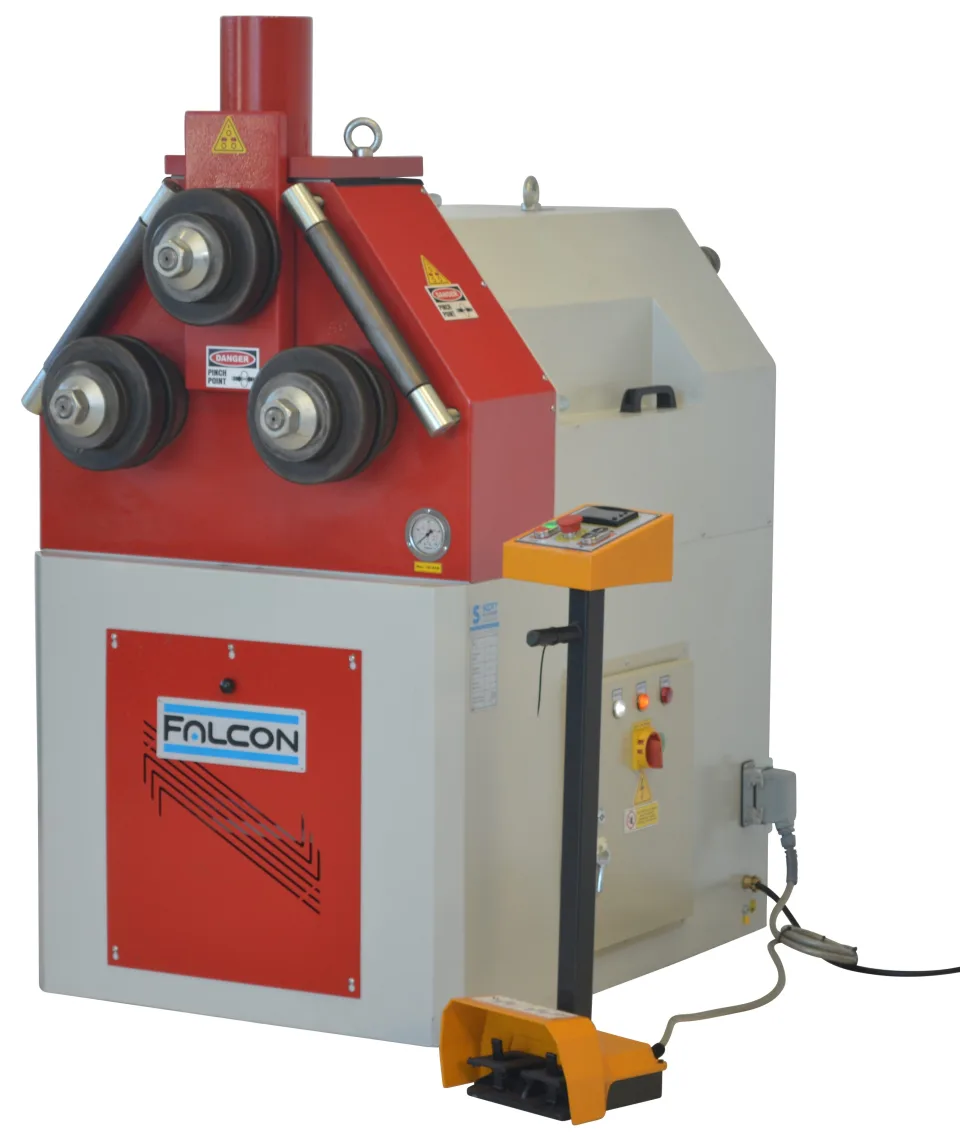

The FALCON HPK60 Motorized Profile Rolling Machine is a robust and versatile solution for precision metal bending tasks utilizing a hydraulically positioned top roll. Engineered for both horizontal and vertical operations, this hydraulically operated, European-made machine is designed to handle a variety of profiles with efficiency and accuracy, designed to bend angle iron (flange in or flange out),flat , flat on edge, pipe, RHS, solid round and square bar, I or U sections, etc. in steel or other materials.
Features:
- Hydraulic positioning top roll with digital read out for repeatable accuracy
- Robust welded Steel Frame
- All three rolls are mechanically driven via an electric motor through heavy duty gears and a universal joint ensuring consistent bending performance
- The HPK60 can operate in both horizontal and vertical orientations

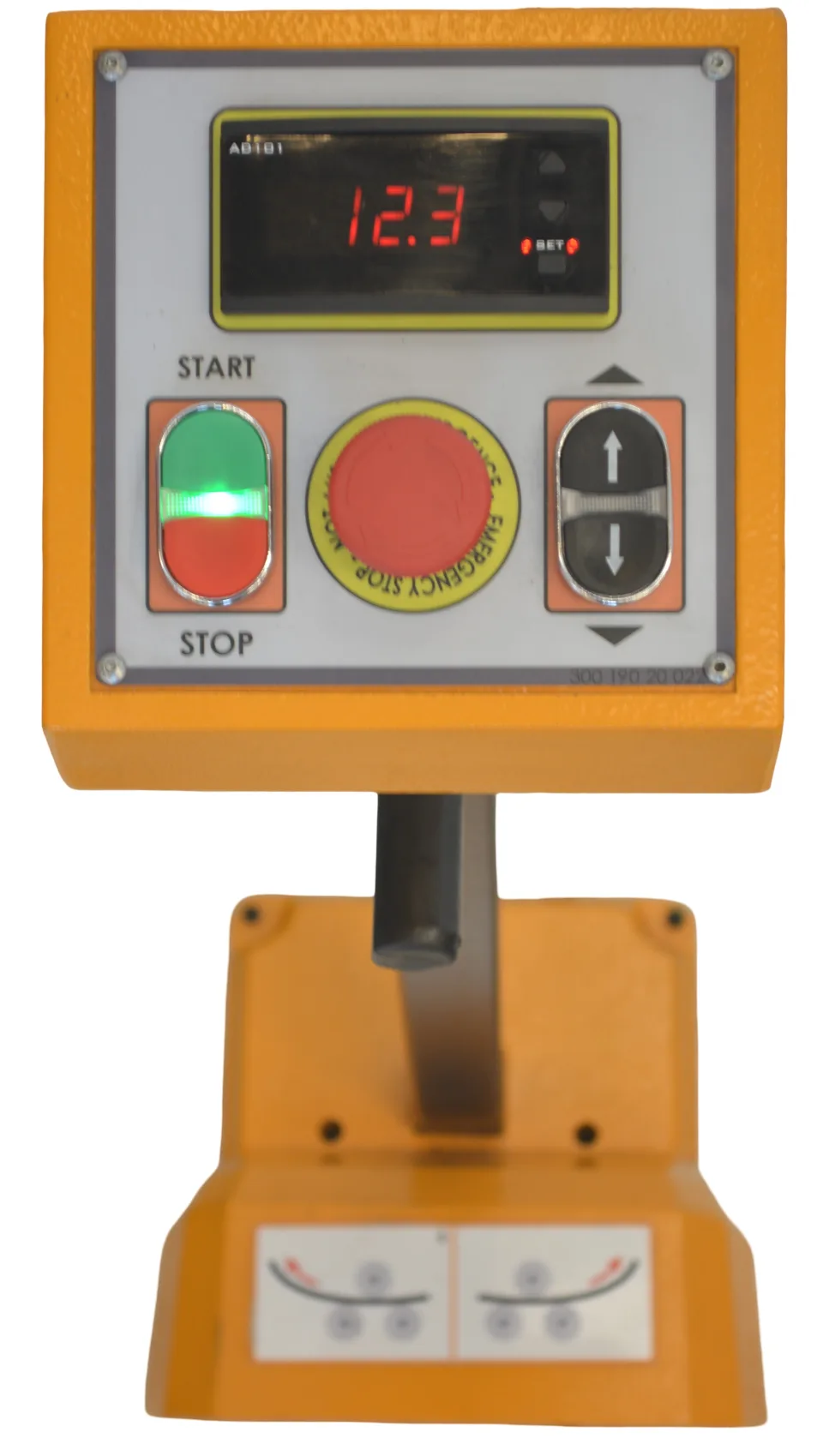

- Mobile Control Panel c/w foot pedal
- Hardened Standard Rolls
- Hardened and Ground Shafts
- Lateral Guide Rolls
- Centralized lubrication system
- Braked motor for precision bending
- Hydraulic elements : Bosch, Rexroth or Duplomatic (Italian) components used.
- Electric components : Siemens (German) or Telemecanique(France)
- Built according to EC Safety Directives .(CE Mark) and ISO 9000 Certificate
- User's Manual in English
Included Scott Machinery features:
- Digital readout for top roll position
Optional:
- Pipe / Tube bending rolls
- Special profile bending rolls
- Angle bending rolls
- Special lateral angle guides
- NC Controller
Machine Specifications:
- Shaft diameters 60mm
- Roll diameters 215mm
- Working speed 4 m/min
- Motor power 2.25KW
- Weight 860 kg
- Dimensions 830 x 1140 x 1650mm (LxWxH)
- Power Supply - 415V-3Ph-50Hz
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Falcon | HPK-60 | |
|---|---|---|
| Profile | Capacity | Minimum diameter |
| Flat bar on edge | 80mm x 20mm | 1200mm |
| 40mm x 10mm | 400mm | |
| Flat bar (easy way) | 120mm x 25mm | 600mm |
| 50mm x 10mm | 400mm | |
| Square bar (solid) | 50mm x 50mm | 800mm |
| 20mm x 20mm | 400mm | |
| Round bar (solid) | 50mm | 800mm |
| 20mm | 400mm | |
| Round tube | 100mm x 2mm | 1600mm |
| Round Pipe | 89.9mm x 3.2mm | 1600mm |
| RHS | 80mm x 40mm x 3mm | 1400mm |
| 40mm x 20mm x 2mm | 500mm | |
| SHS | 70mm x 3mm | 1600mm |
| 40mm x 2mm | 500mm | |
| Angle - Flat in | 70mm x 70mm x 7mm | 1200mm |
| 40mm x 40mm x 5mm | 600mm | |
| Angle - Flat out | 70mm x 70mm x 7mm | 1000mm |
| 40mm x 40mm x 5mm | 500mm | |
| Channel - Flange out | UPN 120mm | 800mm |
| UPN 60MM | 500MM |
