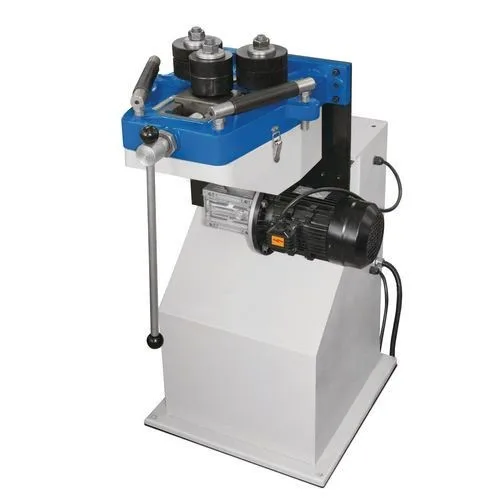

METALEX RBM10HV Profile Rolling Machine
230V
Product overview
About this machine.
Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications
The Metalex RBM10HV offers all the versatility of the RBM10, with the added advantage of dual position operation. This allows the machine to be used in either horizontal or vertical orientation making it especially useful for working with longer sections or when space is limited. Designed for forming flat, round, square, and angle steel, the RBM10HV features a heavy duty cast frame, adjustable guide rolls, and a smooth single phase powered drive, delivering precise curves and consistent results. Whether mounted vertically for compact use or horizontally for handling longer stock, it's an ideal solution for custom fabrication, repair, and general workshop tasks.
Features
- Powered by a smooth single-phase motor with reduction gearbox for controlled rolling
- Dual position design can be used in horizontal or vertical orientation
- Two bottom driving rolls
- Suitable for bending flat, round, square, and angle steel

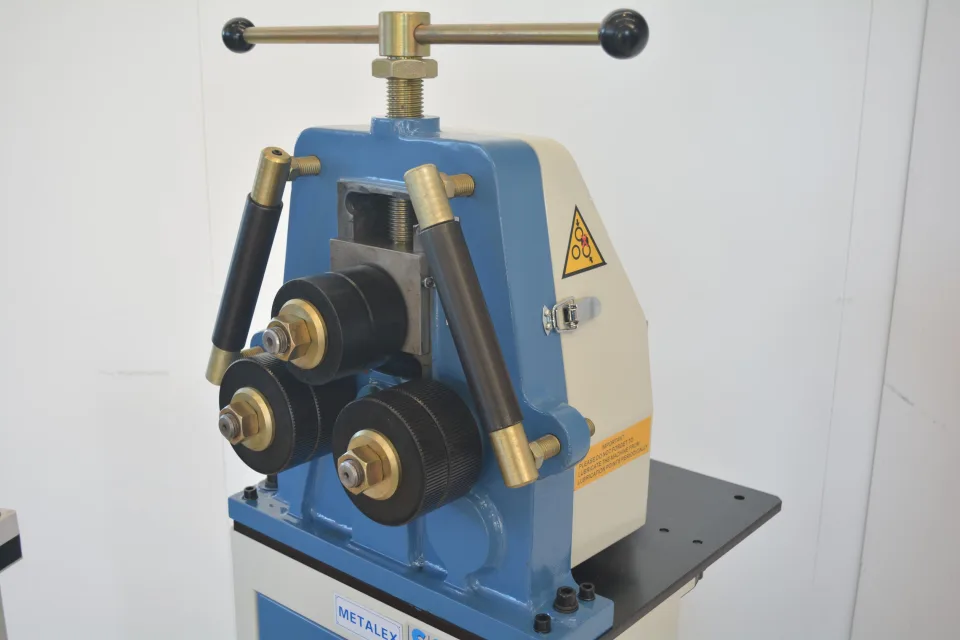

- Adjustable guide rolls for accurate forming and repeatability
- Tempered and polished rollers and shafts
- Compact, bench mountable design for space saving use. Supplied on a stand

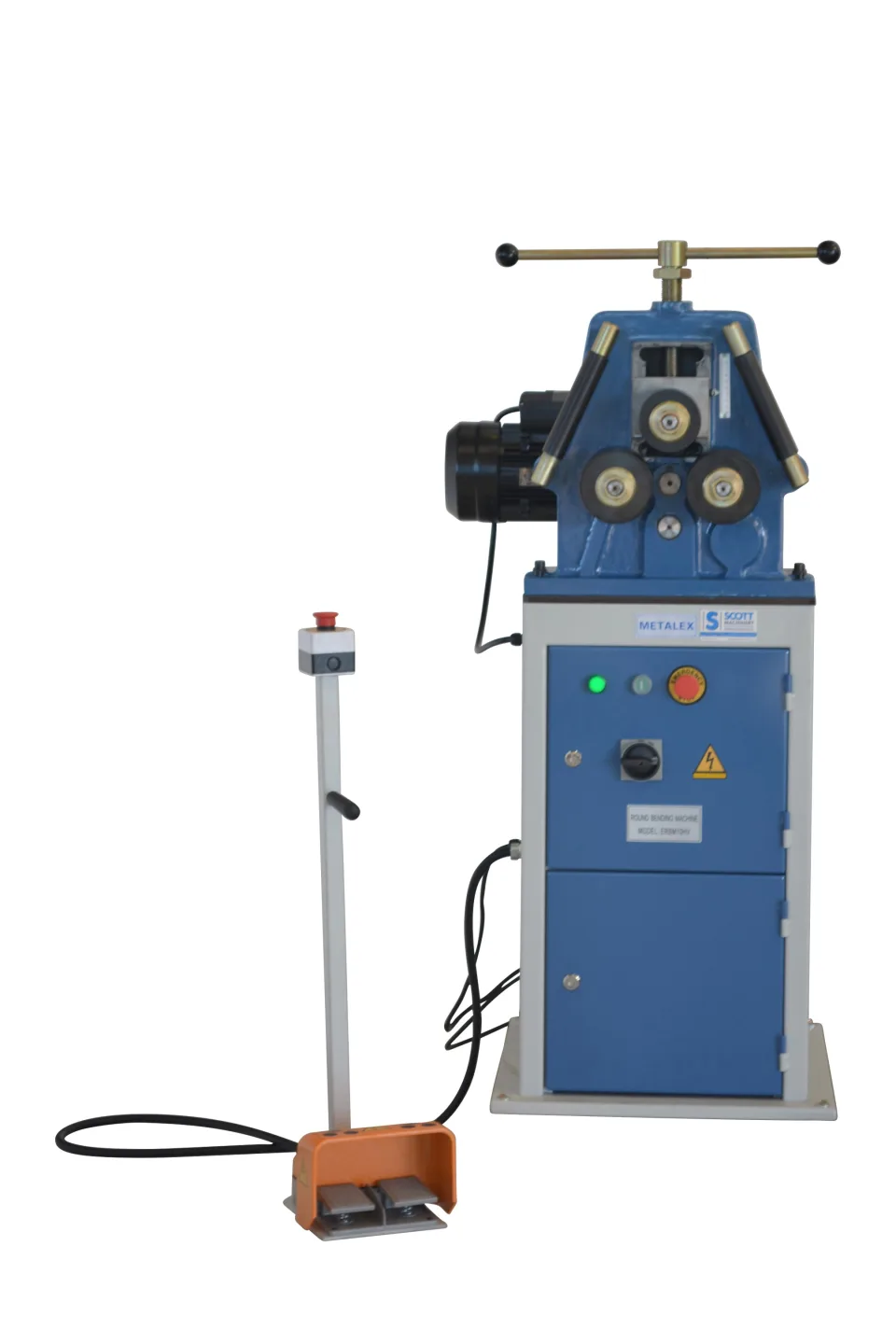

- Remote foot switch fwd/rev & e-stop
- Single phase 230V motor
- Robust cast iron frame for long lasting durability
- Ideal for light fabrication, custom metalwork, and repair tasks
Published data
Specifications

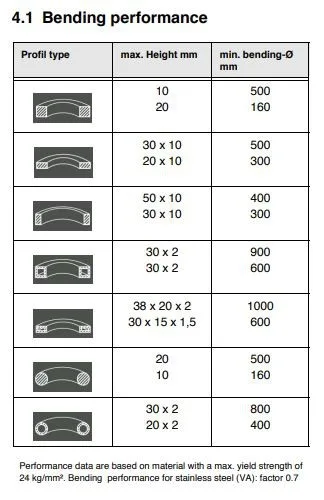

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Capacity | ||
|---|---|---|
| Box section | 30 x 20 x 2mm | 900mm diameter |
| 20 x 20 x 2mm | 600mm diameter | |
| Solid Square bar | 20 x 20mm | 500mm diameter |
| 10 x 10mm | 160mm diameter | |
| Flat bar hard way | 30 x 10mm | 500mm diameter |
| 20 x 10mm | 300mm diameter | |
| Flat bar easy way | 50 x 10mm | 400mm diameter |
| 30 x 10mm | 300mm diameter | |
| Specifications | ||
| Shaft Diameter | 30mm | |
| Top roller diameter | 98mm | |
| Bottom roller diameter | 118mm | |
| Single Phase | 230V | |
| Weight | 230kg | |
| Dimensions | 700 x 700 x 1440mm (245kg) | |
