FINTEK L-20 Lock Seamer
Pittsburgh, double seam & flanger, 230v
Product overview
About this machine.
FINTEK, Established in 1983, has become one of Taiwan's leading manufacturers of sheet metalworking equipment. With over four decades of expertise, FINTEK produces a comprehensive range of machines, including hydraulic press brakes, guillotine shears, folding machines, rolling machines, and iron workers. All machines are 100% built in Taiwan, ensuring high precision, stability, and excellent quality at a reasonable price.

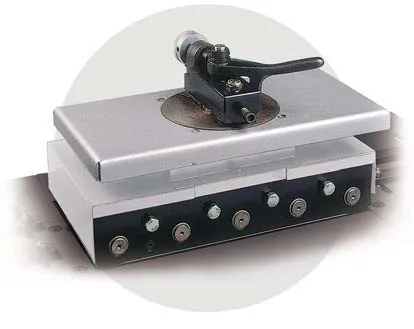

The Fintek L20 20-gauge Pittsburgh-style lock former is a robust, heavy-duty machine designed for efficient and consistent sheet metal fabrication. Engineered for ductwork and custom HVAC projects, it reliably produces Pittsburgh style joints on mild steel up to 20 gauge thickness. Its hardened, precision steel forming head, with ground shafts and case-hardened forming rolls riding on needle bearings, ensures long service life and smooth, uniform results, even under continuous shop use. The L20 accepts standard 220 V single-phase power, forming clean, strong locks while minimizing waste. Typically using about 1 inch of material per lock and offering a pocket depth adjustable between 5/16" and 3/8". Fast (25 ft/min) yet durable, the Fintek L20 is a shop floor workhorse ideal for HVAC duct fabrication, custom sheet metal assembly, and any project demanding reliable, repeatable Pittsburgh joints Made in Taiwan by FINTEK.
Features:
- Forms Pittsburgh style locks in mild steel up to 20 gauge capacity (.9mm)

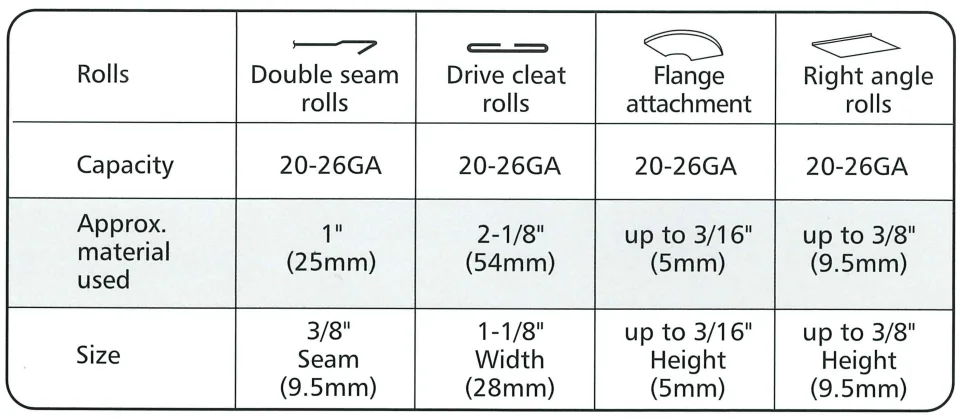

- Supplied with Pittsburgh-style rolls, supports optional Double Seam rolls and Drive Cleat rolls
- All steel forming head with hardened and ground shafts for strength and durability
- Case hardened steel forming rolls riding on needle bearing support for smooth, consistent operation
- Produces strong, uniform locks with minimal material waste (approx. 1 inch per lock)

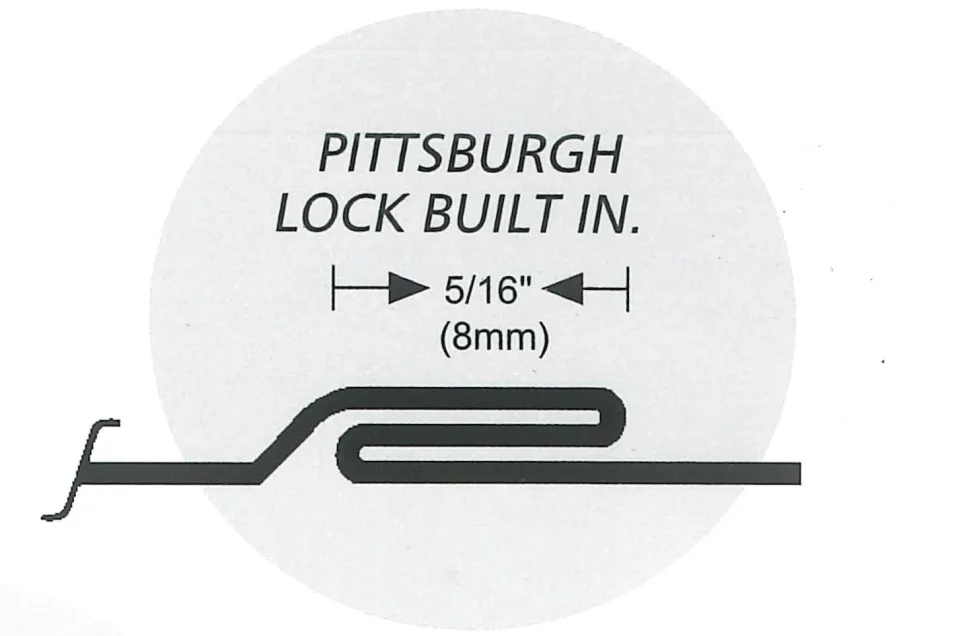

- Adjustable pocket depth from approximately 5/16" to 3/8"
- Forming speed of 25 ft/min for efficient workflow
- Heavy duty, rigid frame for long term reliability
- Suitable for HVAC ducting, general sheet-metal fabrication, and light industrial use
- Operates on single phase 220 V power with an industrial duty drive system
Optional:
- Right angle Flange roll set
