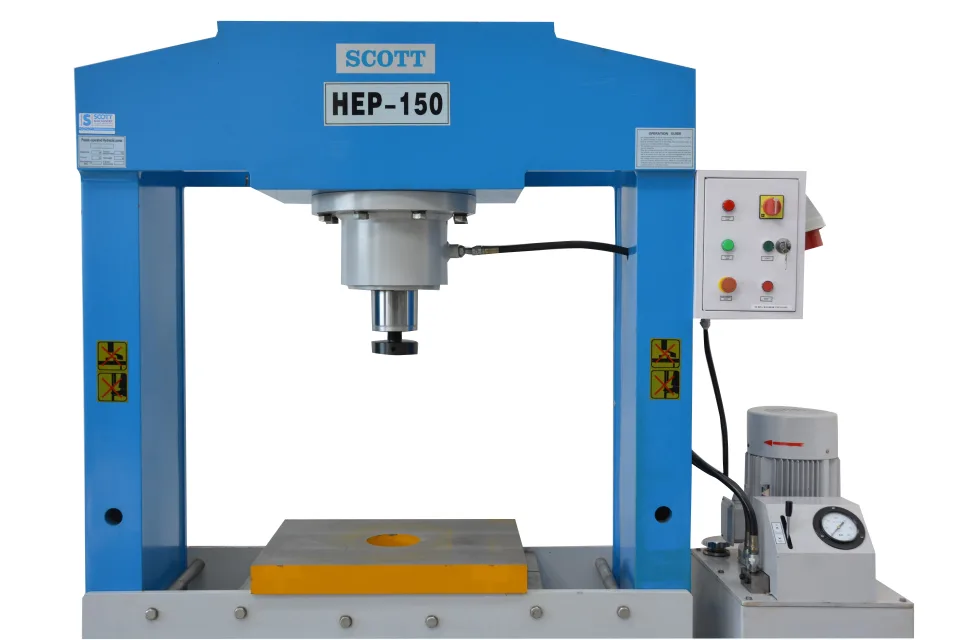

SCOTT HEP-150 Hydraulic Electric Powered Frame Press
150 Ton
POA
PFRM-0-3150 | Prices exclude GST
Product overview
About this machine.

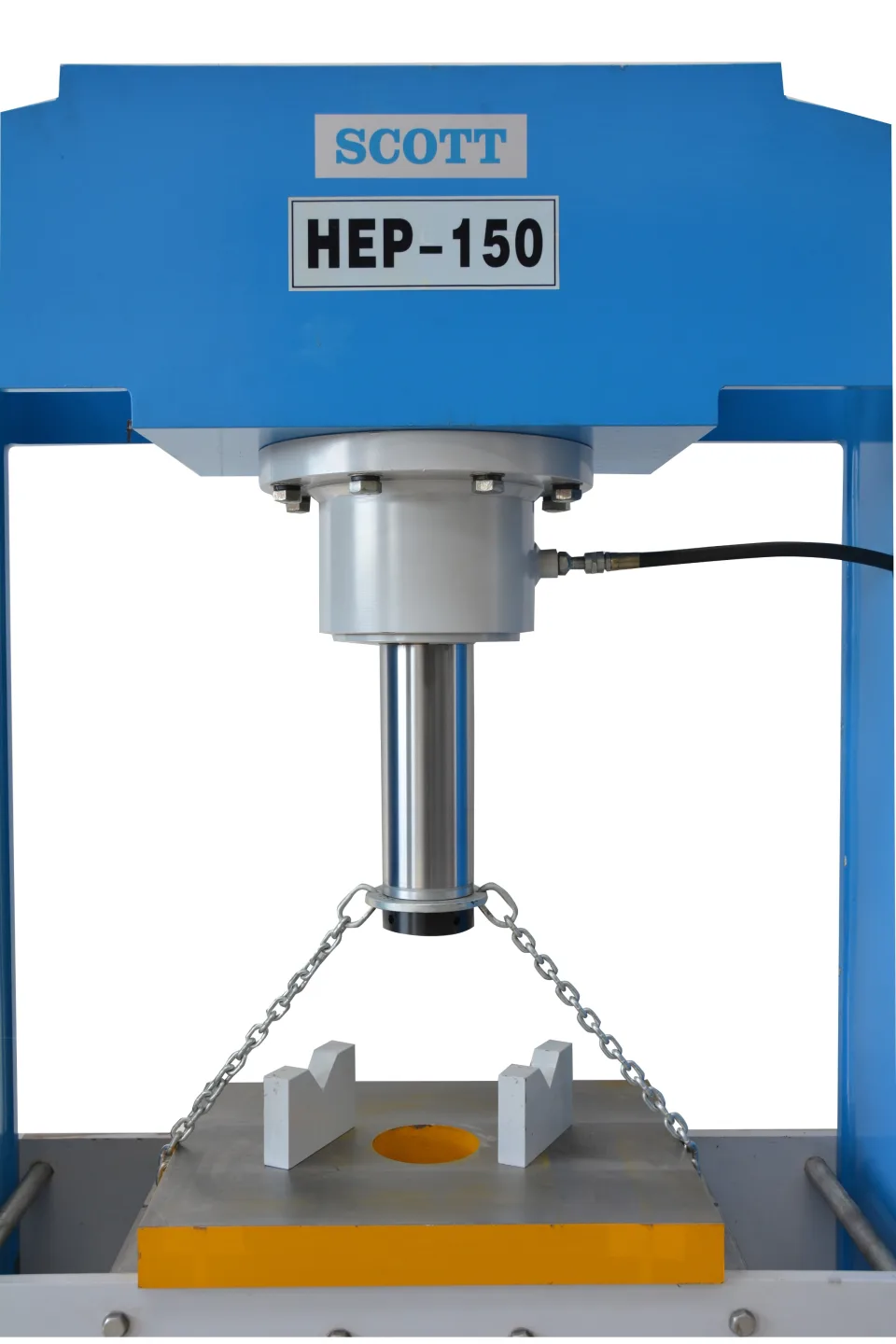

HEP150 hydraulic electric powered heavy duty frame press is designed with a double acting cylinder controlled by a hand control.
Heavy duty frame
- 3 Phase pump & motor
- Sliding work table
- Flow control valve
- Pressure gauge
- Hydraulic table lift
- Vee blocks

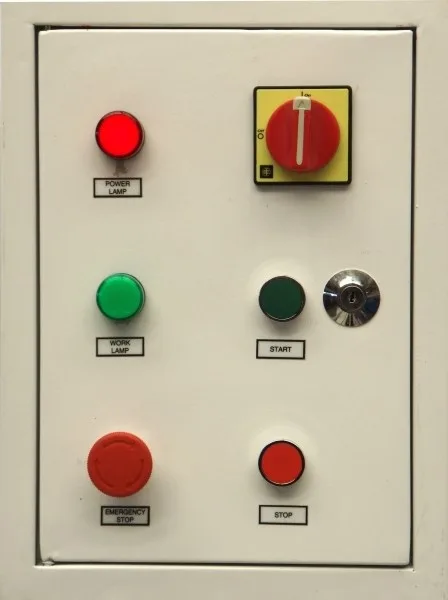

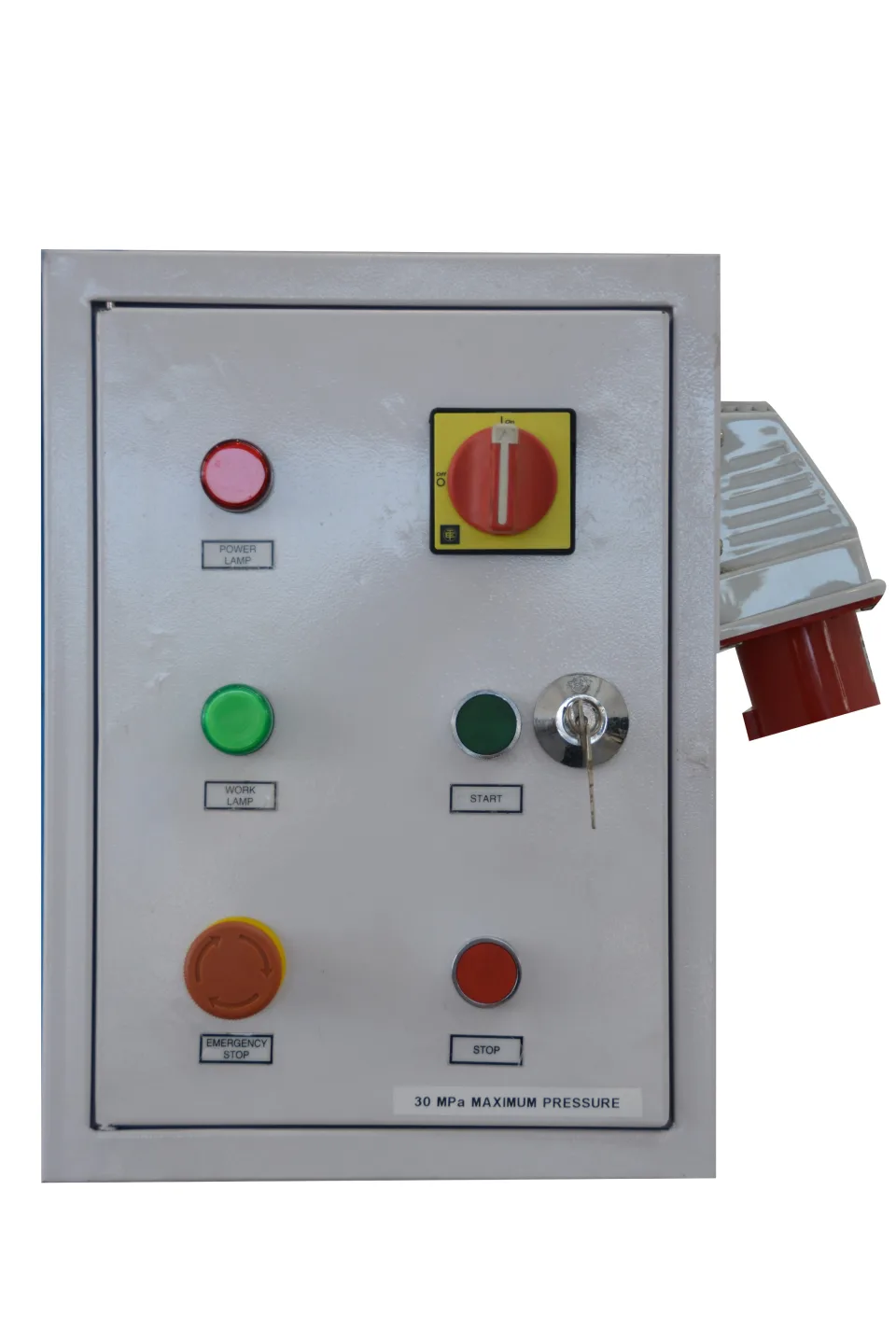

- Emergency stop
- 1250mm between frames
Optional:
- Oil (Machines supplied dry)
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Stroke
350mm
Distance between frames
1250mm
Depth of frame
450mm
Table size
700 x 530mm
Overall height
2310mm
Motor
7.5 kW
Oil tank capacity
120L
Overall dimensions
2040 x 1300 x 2310mm
Weight
2300 kg
