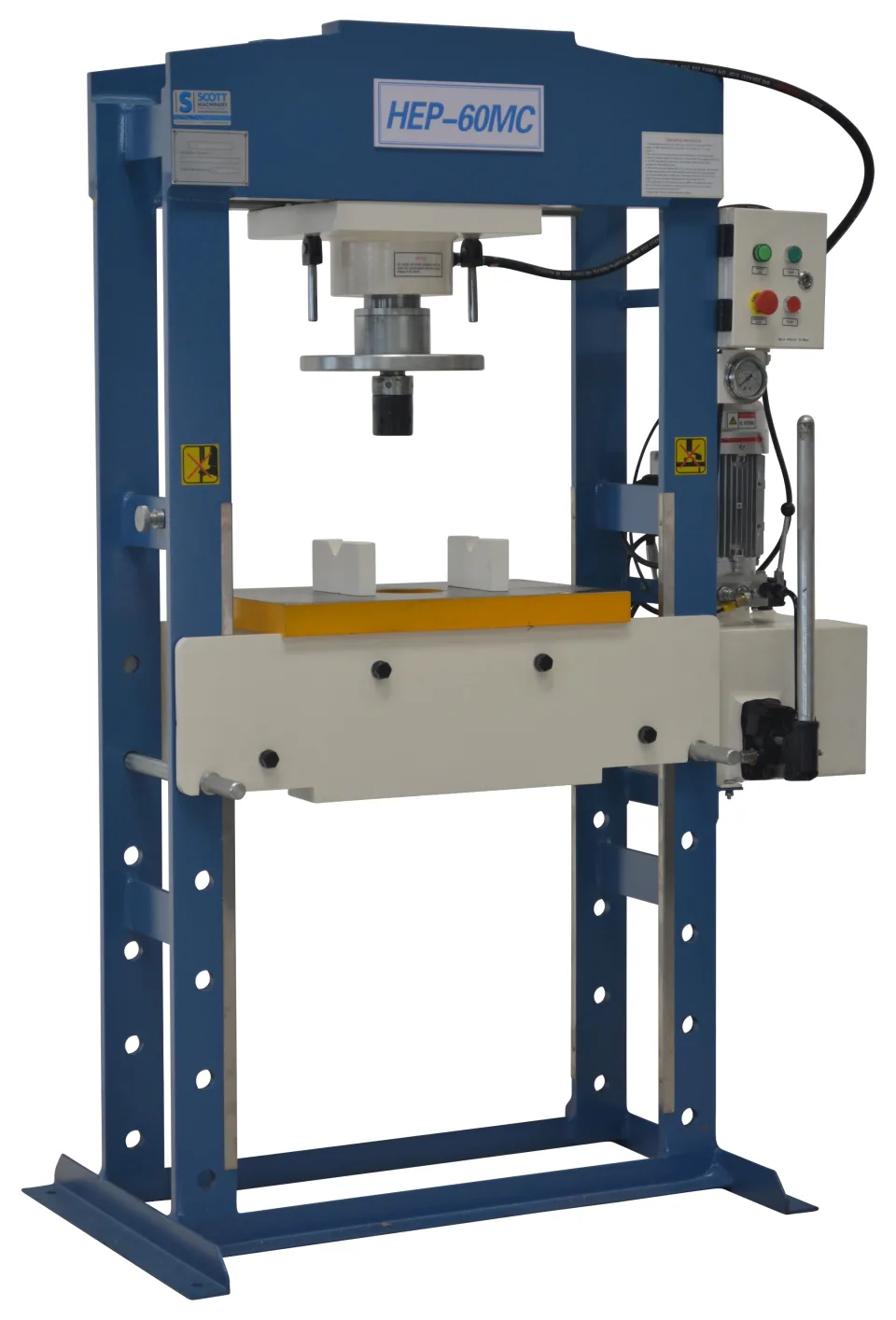

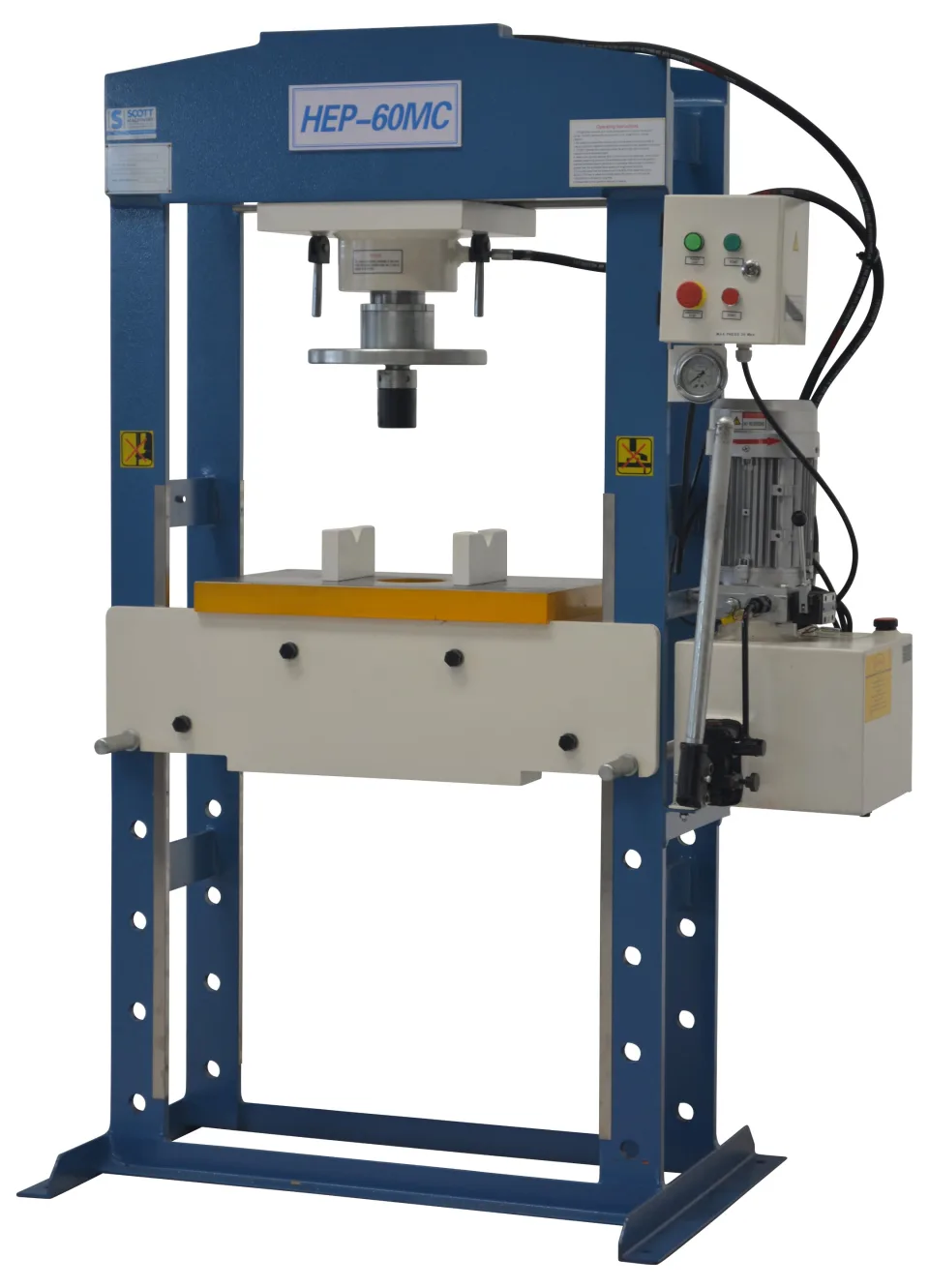

SCOTT HEP-60MC Hydraulic Electric Press with moving Cylinder
60 Ton
$7,990.00
PFRM-0-3060 | Prices exclude GST
Product overview
About this machine.
HEP hydraulic electric powered frame presses are designed with a double acting cylinder controlled by a hand control. In addition the HEP60MC also has a manual handle for the finer jobs that need gentle pressure and a steady hand.
This new model of press comes with the following unique features:
Movable sliding cylinder adjustment (left to right) Electric operation plus hand pump for fine adjustment Open side frame design Compact hydraulic system Will suit user where slow cylinder pressing speed is required
Heavy duty frame
- 3 Phase pump & motor
- Hand pump for fine feel
- Hand operated screw adjustment
- Flow control valve
- Pressure gauge
- Hydraulic table lift
- Vee blocks
Optional:
- Hydraulic oil - Machines supplied dry
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity
588kN (60 Ton)
Stroke
250mm
Distance between frames
750mm
Depth of table
300mm
Table size
600x360
Overall height
1900mm
Motor
2.25kW (3HP) / 415v / 3ph
Oil tank
18L
Overall dimensions
1900x1260x700mm
Weight
462kg (Dry)
