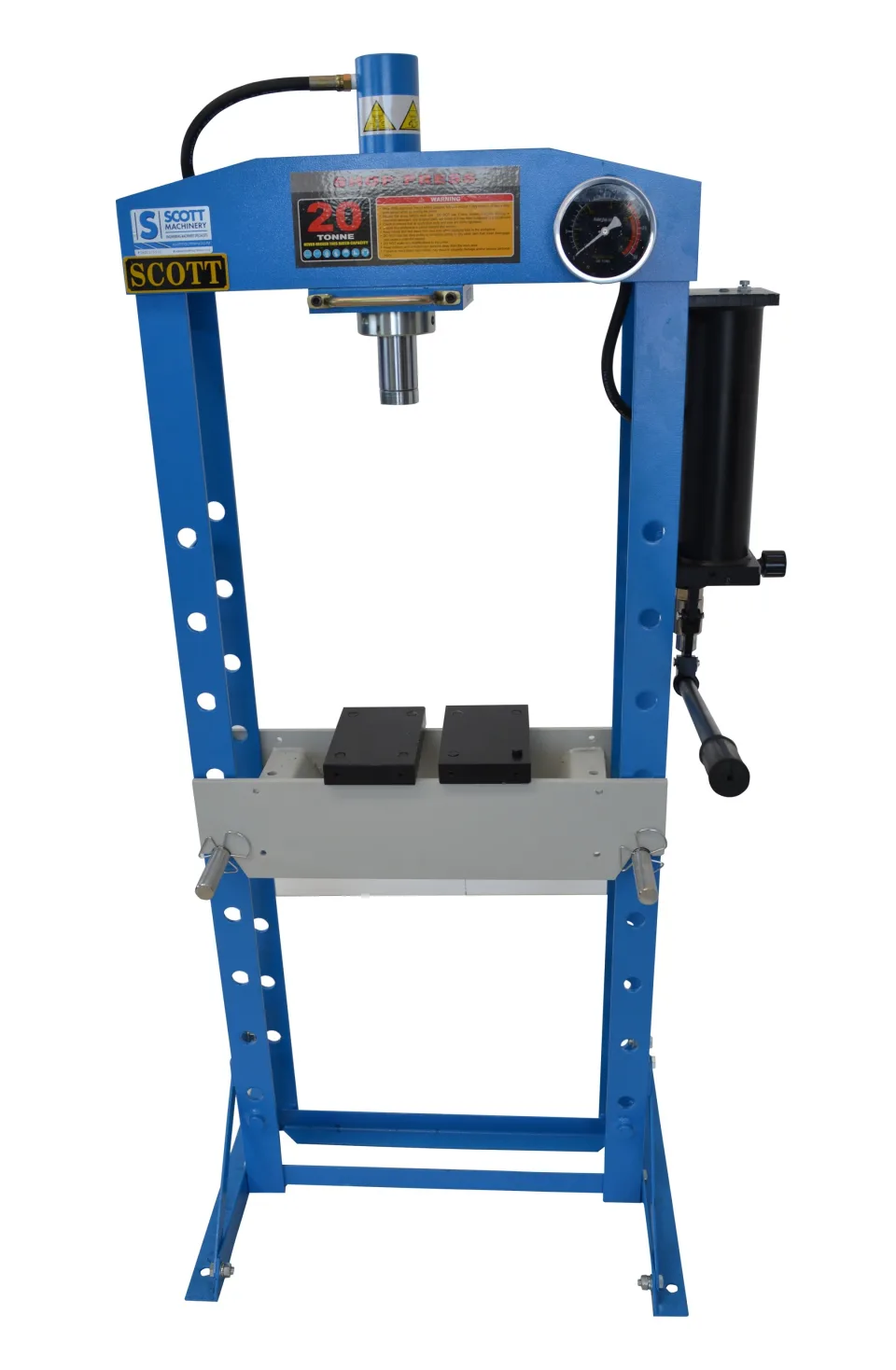

SCOTT HP-20 Workshop Hydraulic Frame Press
20 Ton
$985.00
PFRM-0-2020 | Prices exclude GST
Product overview
About this machine.
Hand Hydraulic Single Stage pump Moving cylinder type
20 Tonne hard-chrome ram handles punching, pressing and straightening jobs

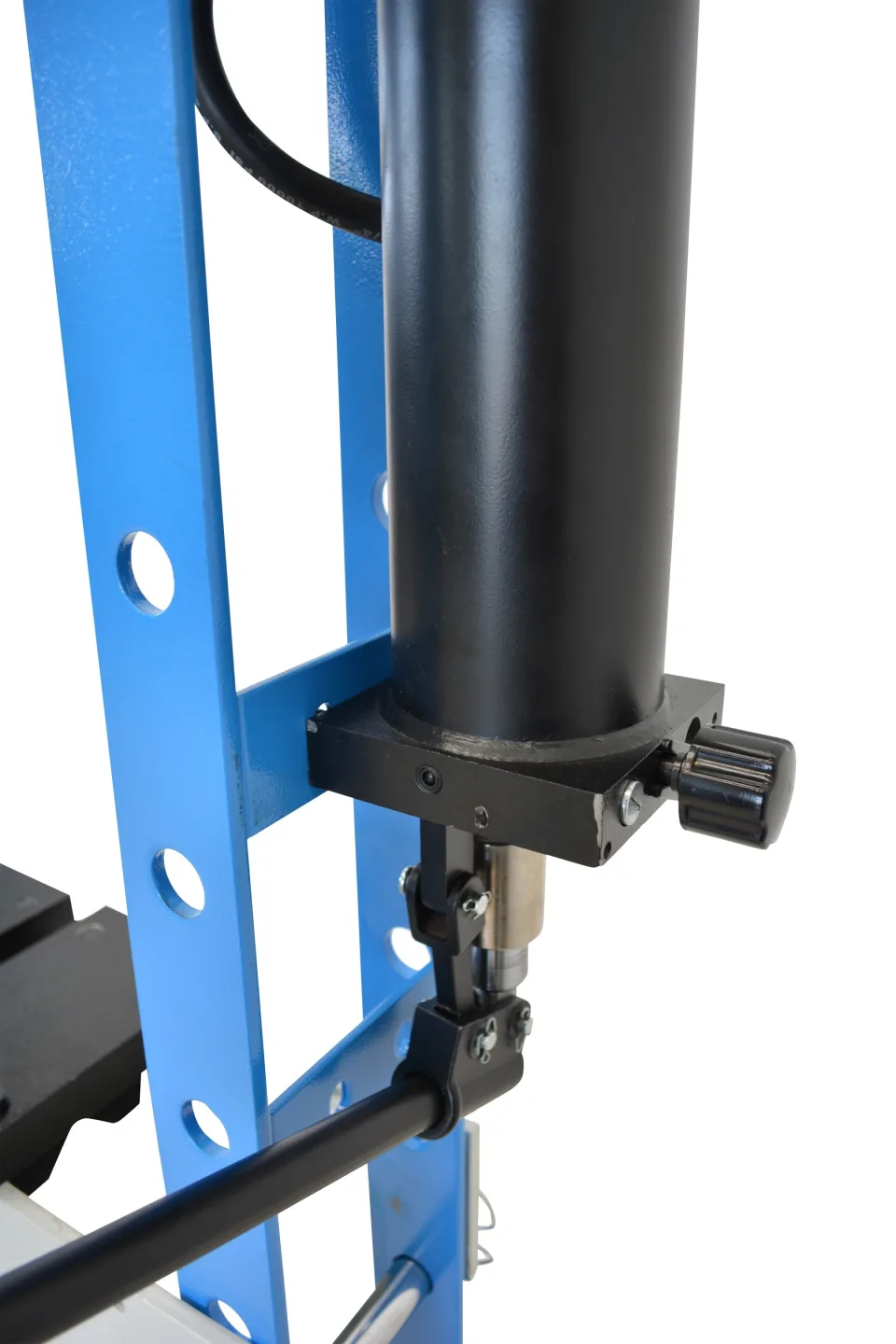

- Hydraulic Cylinder is mounted to a bearing carriage allowing cylinder positioning left/right of centre
- Hand operated hydraulic pump for precise control

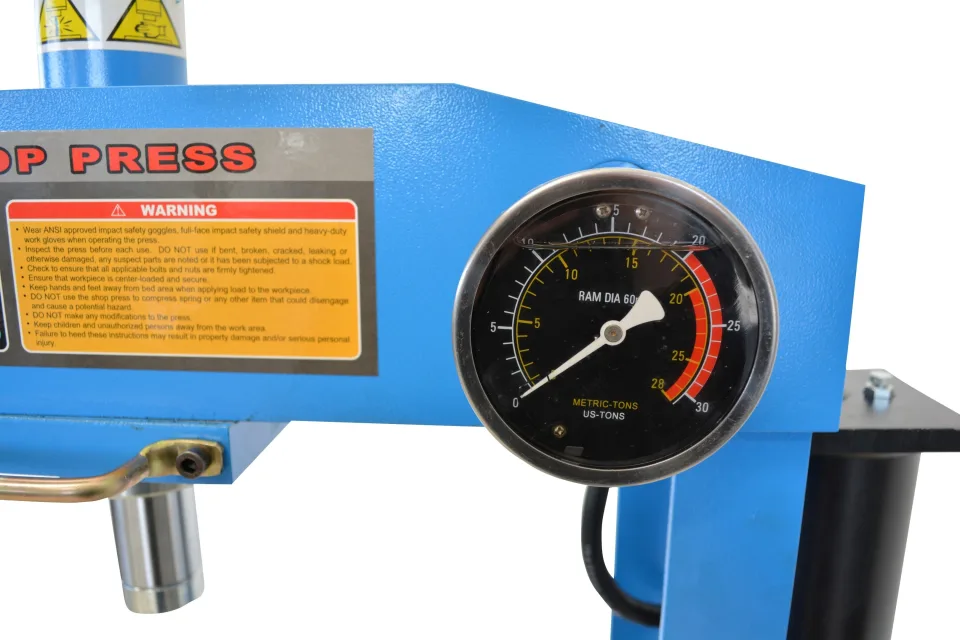

- Pressure gauge fitted for safe, repeatable setup
- Rigid fabricated steel H-frame construction
- Adjustable work table with shaft stands and pin set for fast height changes
- Supplied fully assembled - ready to get straight to work
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
SCOTT
HP20
Capacity
20 Ton
Distance between frames
510mm
Min-Max Height
38 - 918mm
Ram Stroke
186mm
Ram Travel Left/Right
mm
Machine Weight
120kg
Shipping
135kg
Floor Size (WxDxH)
800 x 600 x 1700mm
