Used Luxcut TM-2VSL 3ph Turret Mill
c/w 3 Axis DRO, Vice, Tooling
SOLD
MTUR-2-0105 | Prices exclude GST
Product overview
About this machine.
Sold new to a retiring customer in 2012, this turret mill has hardley been used and comes now with all of the accessories that were purchased.
Standard features:

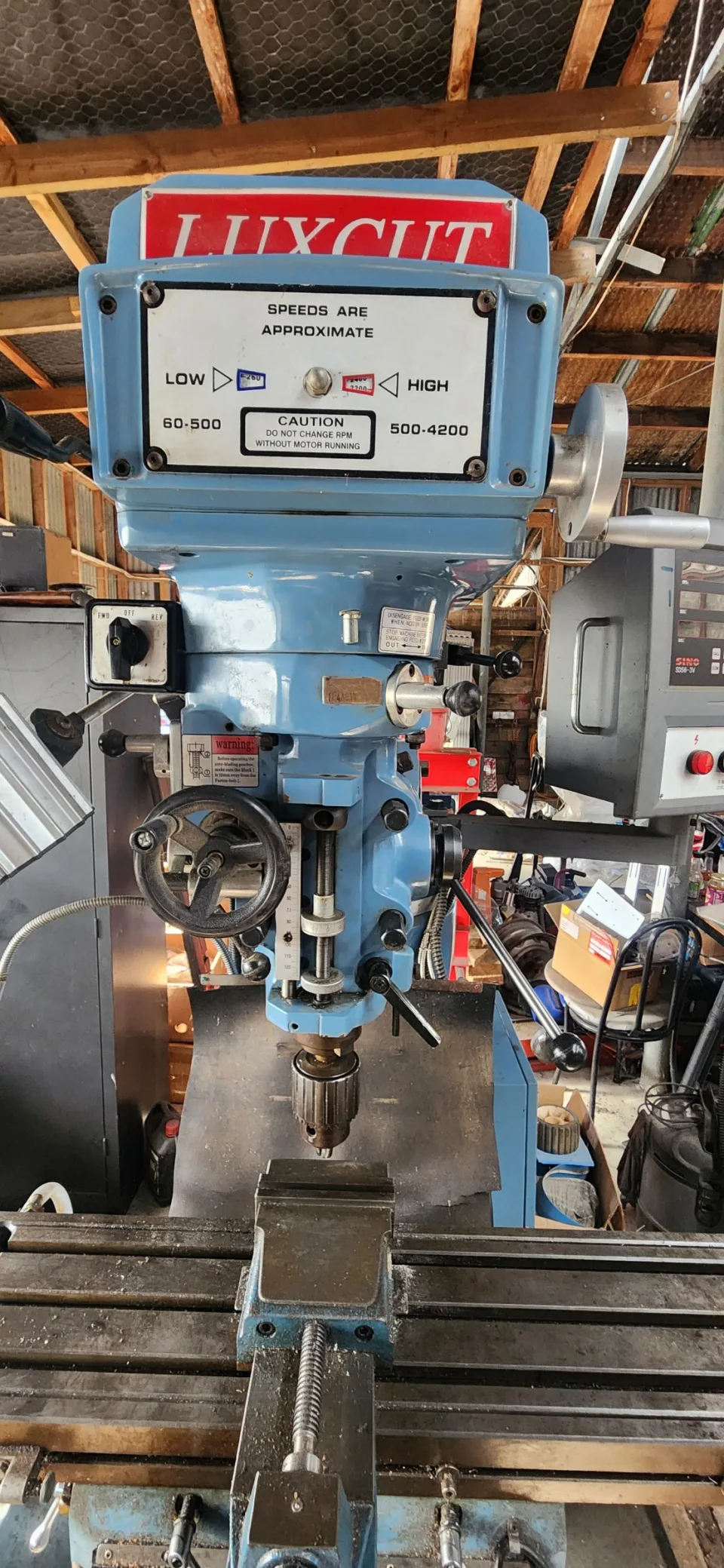

- Taiwanese variable speed change milling head
- Variable speed change milling head

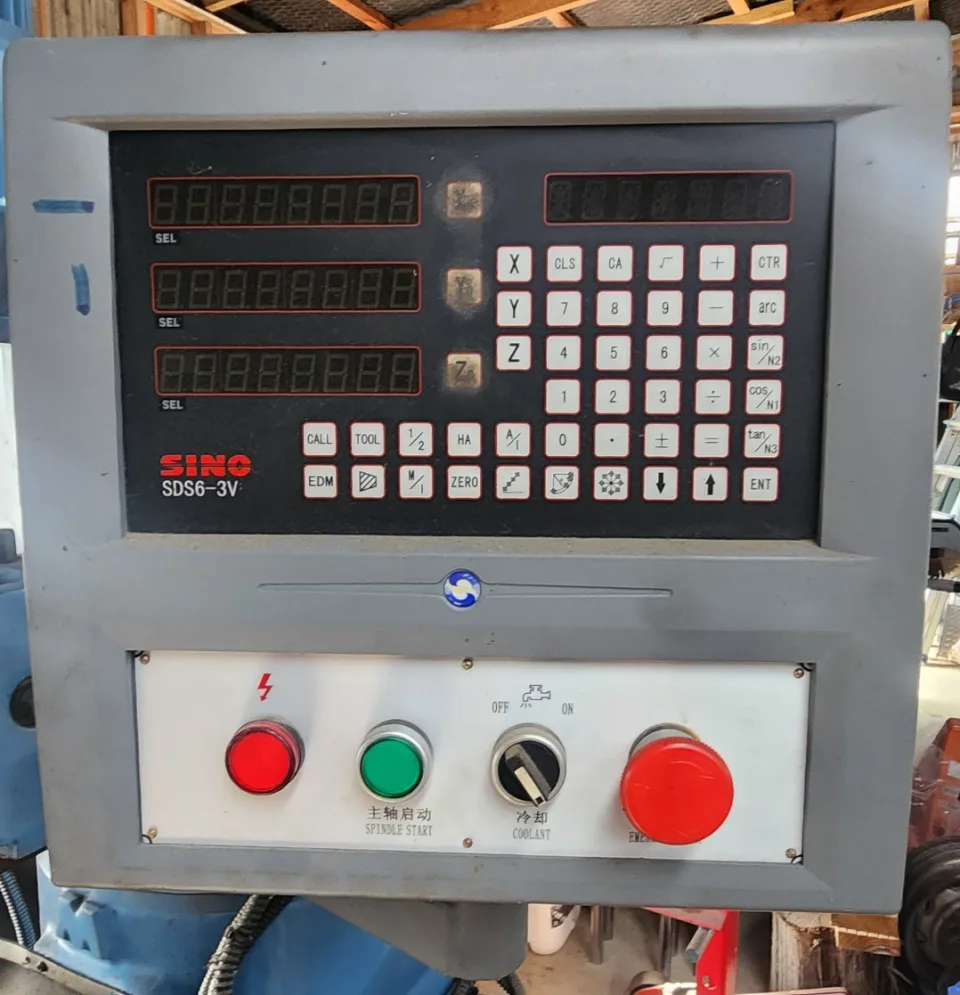

- Digital Readout 3 Axis
- Power Feed On Quill

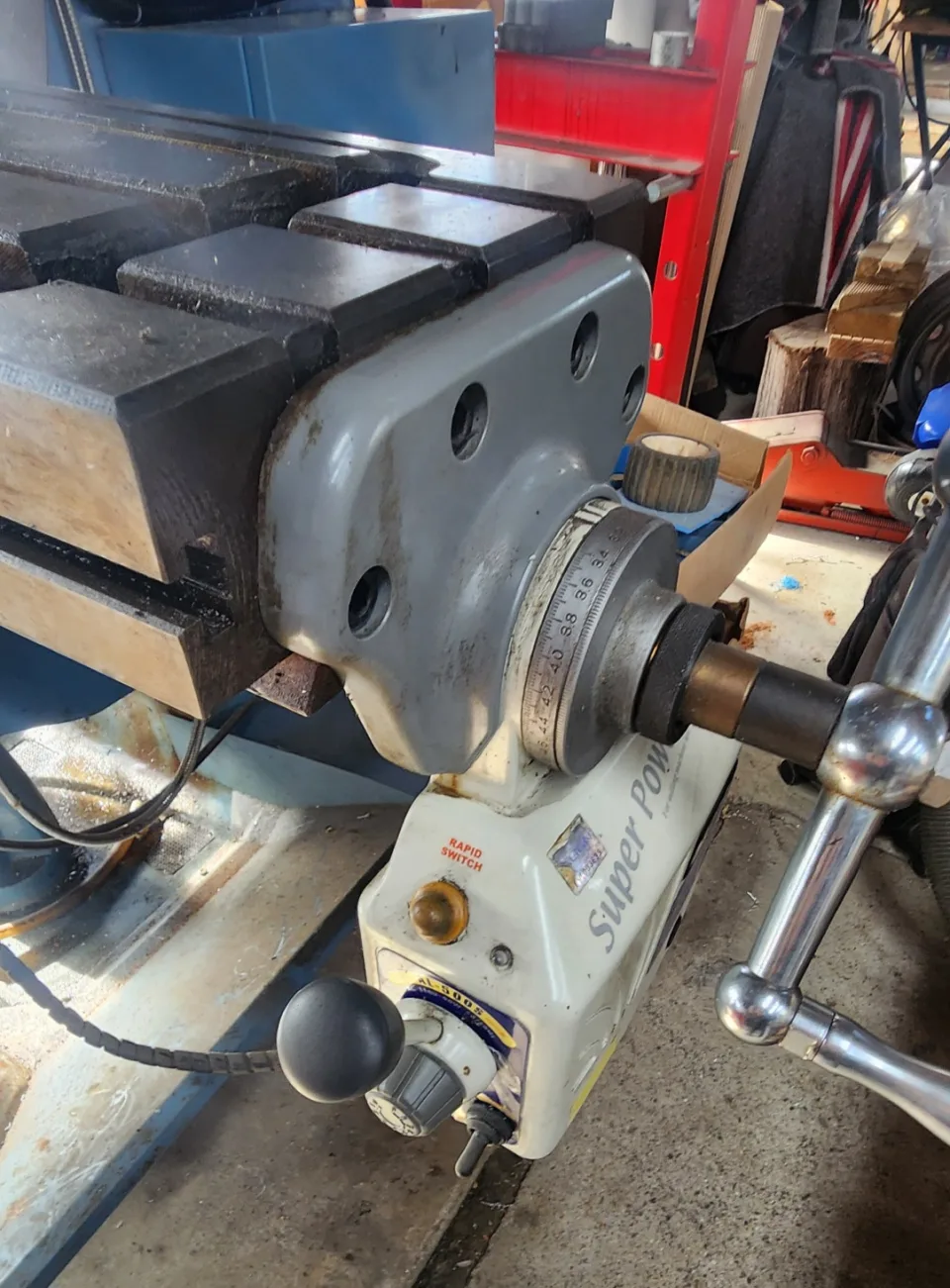

- ALIGN Longitudinal Power Feed
- Manual Centralised Lubrication System
- Brake on spindle
- Meehanite Casting
- Three phase
- Hardened and ground table & slideways
- ( accepts M12 x 16 Tee nuts )
- Coolant System
- Halogen Lamp
- Splash tray
Included
- Homge HKV-150 vice with removable swivel
- Boring head & bars
- M12 x 16mm clamping kit
- NT30 x ER32 6 piece collet chuck set 6 - 20mm
- Golden Goose 3-19mm keyed drill chuck on NT30 arbor
- Angle plate
- End mill sets x 2
- Manuals
Available to view and shipping from our Auckland Branch
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Used Luxcut | TM-2VSL | |
|---|---|---|
| Working surface of table | 1244 x 230mm | |
| Longitudinal travel | 920mm (*830) | (*) Actual travels with DRO & power feeds |
| Cross travel | 330mm (*300) | |
| Vertical travel | 406mm | |
| Speed range | 68 - 3,600 rpm (50Hz) | Variable |
| Quill diameter | 86mm | |
| Spindle taper | NT30 | |
| Spindle motor power | 3 hp / 2.25 kW | |
| Machine weight | 1000 kg | |
| Shipping | 5.5m3, 1100kg |
