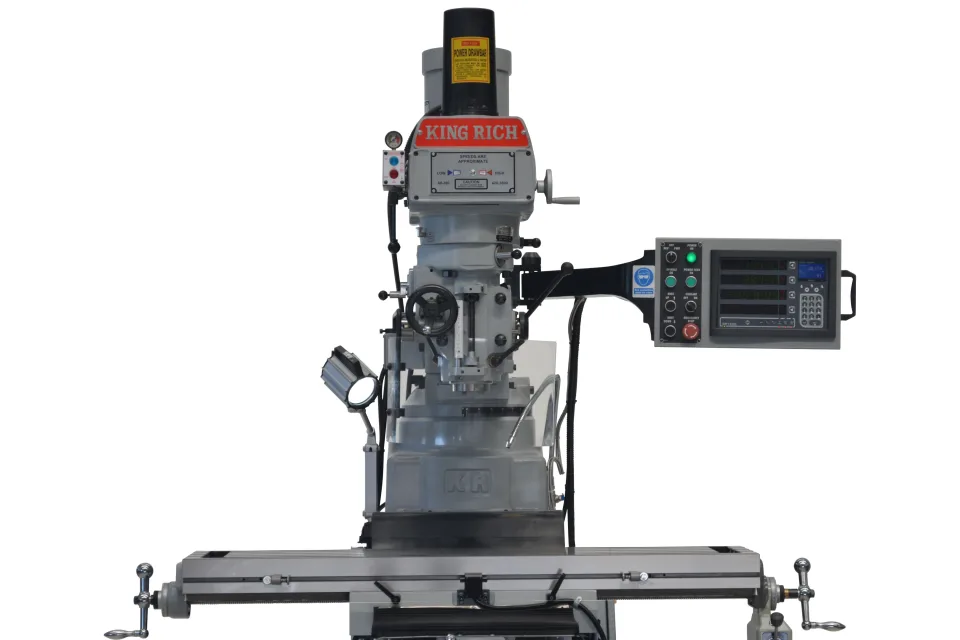

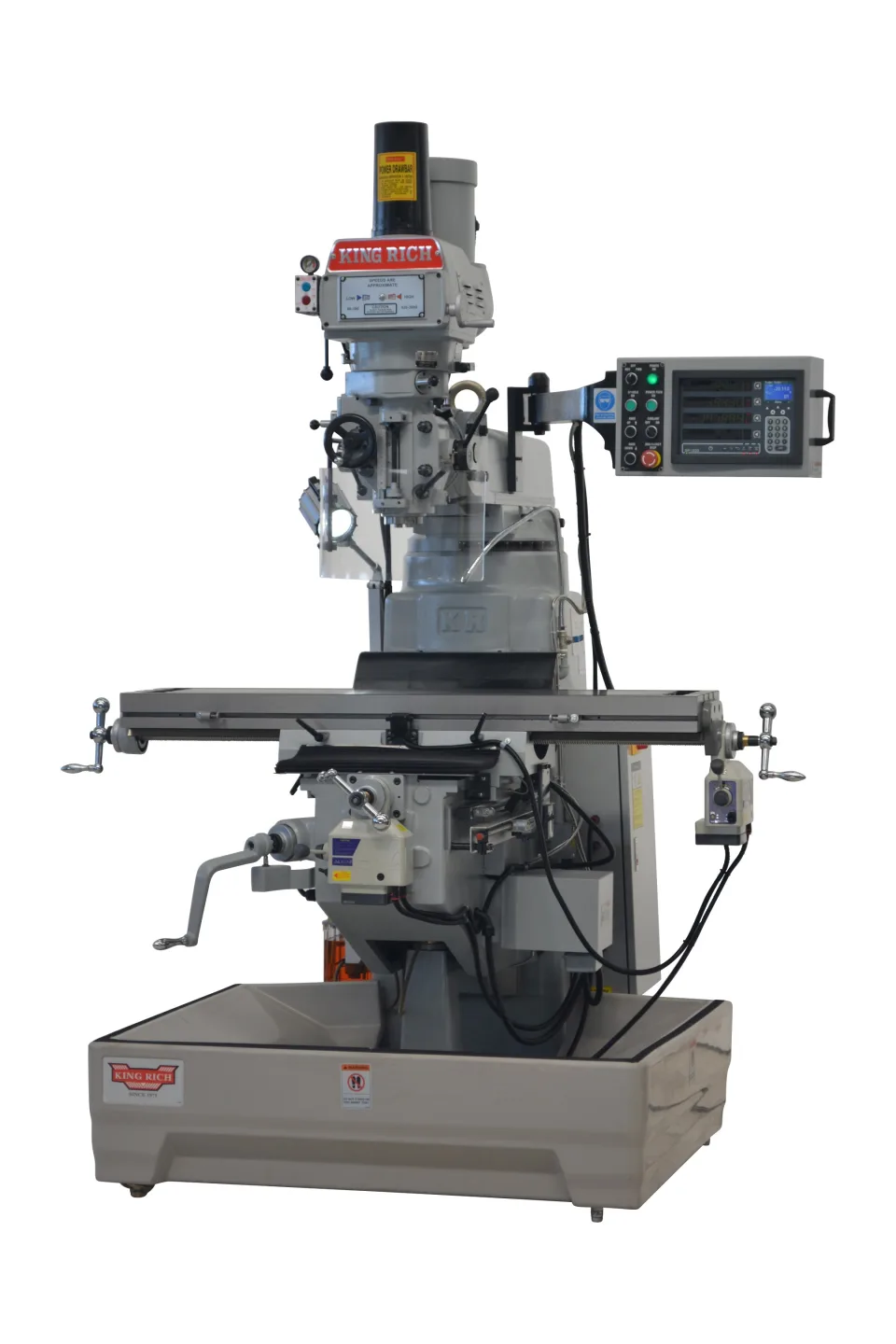

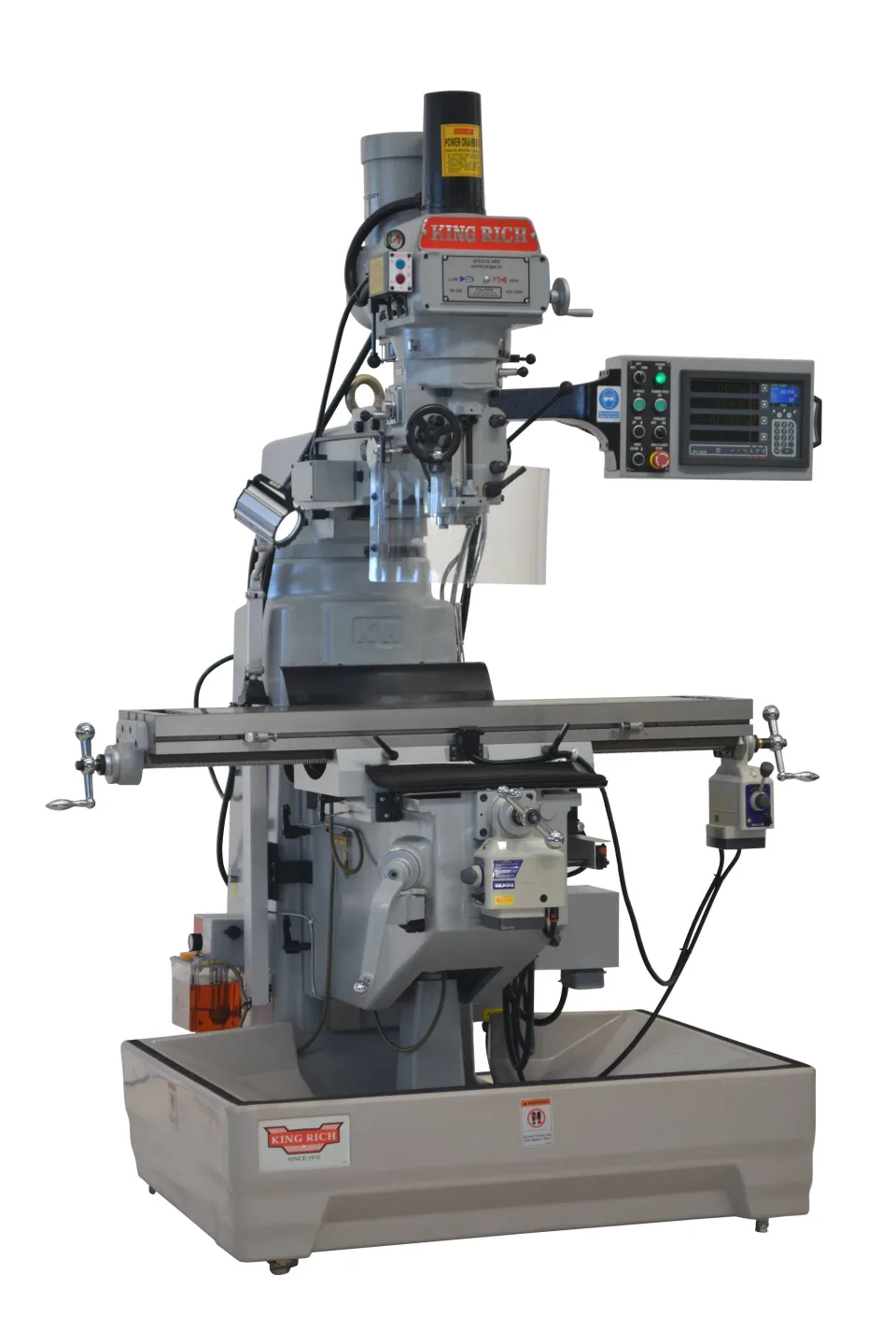

King Rich KR-V3000 Premium Quality Mill
c/w Newall DP1200 Digital Readout
$37,990.00
MTUR-0-0030 | Prices exclude GST
Product overview
About this machine.
The King Rich KRV series are targeted at customers that would like the best in turret mills as they offer the highest reputation of machine build quality, precision, and performance. Featuring robust Meehanite castings and hardened dovetail slideways, ensuring long-lasting structural integrity and smooth operation. Equipped with precision-class 7 spindle bearings, these machines deliver maximum spindle runout of just 5 microns, providing outstanding accuracy for a variety of milling tasks. Renowned for their exceptional precision, durability, and versatility. These mills are ideal for toolrooms, workshops, and educational institutions seeking high-quality, reliable equipment.
Features:
- Precision class 7 spindle bearings
- Maximum spindle runout 5 microns
- Variable speed head
- Unique honeycomb design meehanite castings
- Hardened and ground table
- Hardened dovetail slideway on X axis
- Hardened square ways on Y & Z for rigidity
- Rolled ball screws fitted to X & Y axis
- Raised column
- Forward/backward head tilt is held by 8 bolts through the knuckle to increase stiffness in the head
Standard Accessories:
- ALIGN Longitudinal & cross Power Feed Units
- Power elevating knee
- Automatic centralized lubrication
- Coolant System
- Halogen Lamp
- Fiberglass splash tray
- Air powered draw bar
Key features
- Bolt hole circle (PCD)
- Arc Contouring
- Line hole calculator
- Centre find
- Polar Co-ordinates
Optional:

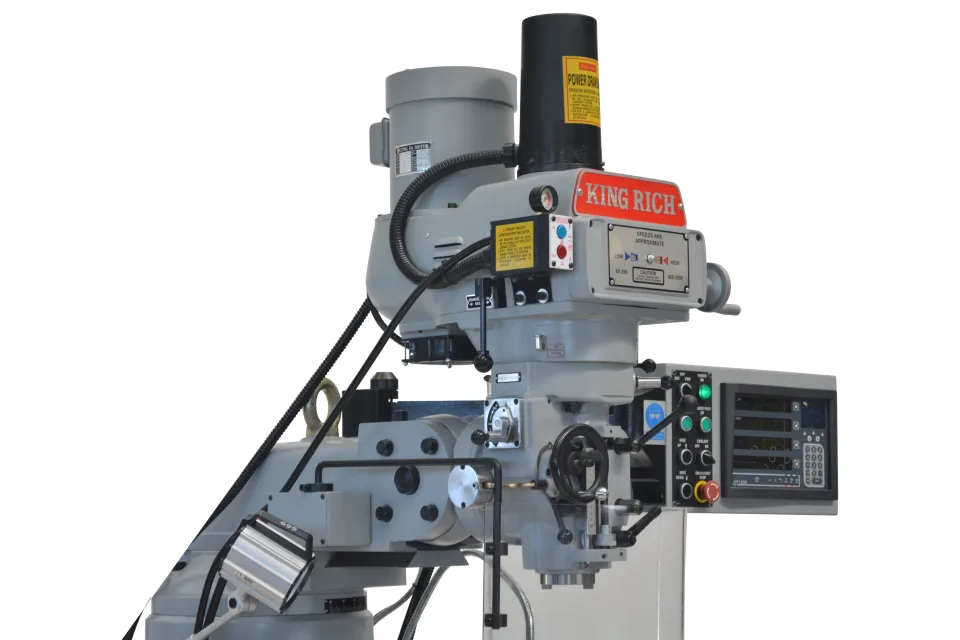

- Rear Splash guarding (shown in 2nd image)
- Slotting head
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| King Rich | KR-V3000 | |
|---|---|---|
| Working surface of table | 1372mm x 305mm | T-slots (3) 15.9mm (M12 x 16mm) |
| Longitudinal travel of table | 863mm (*763mm) | (*) Actual travels with DRO & power feeds |
| Cross travel of table | 400mm (*355mm) | (*) Actual travels with DRO & power feeds |
| Vertical travel of table | 406mm | |
| Ram travel (Overarm) | 450mm | |
| Spindle nose to table | 110mm - 516mm | |
| Quill diameter | 105mm | |
| Quill travel | 127mm | |
| Quill feeds | 0.038 / 0.076 / 0.152 mm/rev | |
| Speed range | 70 - 460rpm (Low) 460-3000 rpm (High) 50Hz | |
| Spindle speed ranges | Low / High | |
| Spindle taper | NT40 | |
| Motor power | 3.72 kW (5HP) | |
| Floor space (LxWxH) | 1850mm x 1700mm x 2450mm | |
| Weight | 1620kg | |
| Shipping dimensions | Pallet size (LxWxH): 1.9 x 1.7 x 2.6m | 8 m3 (1700kg) |
