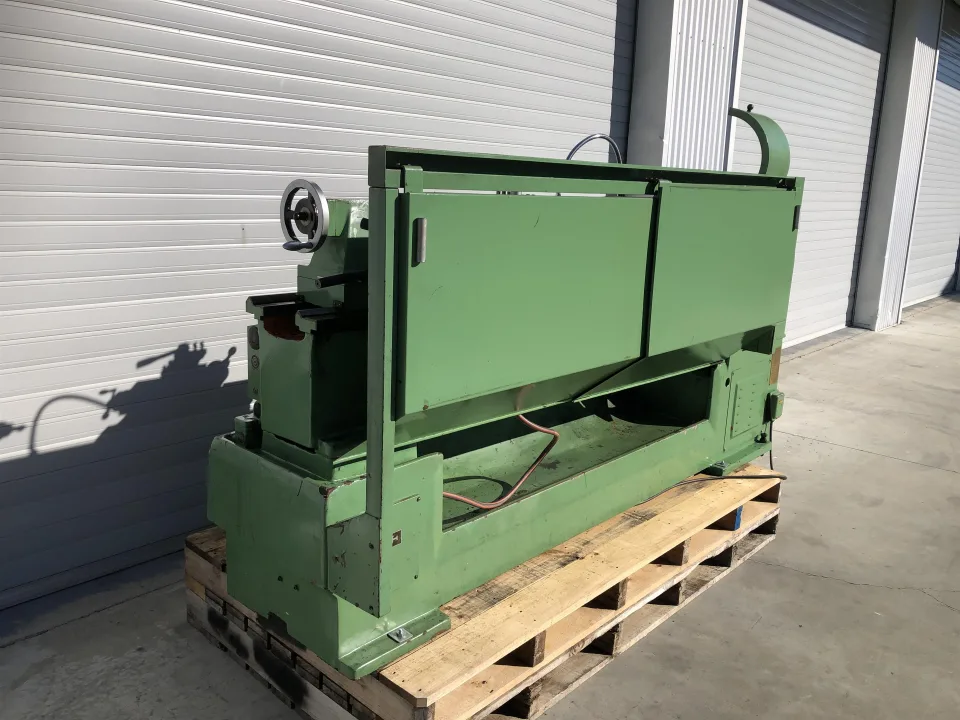

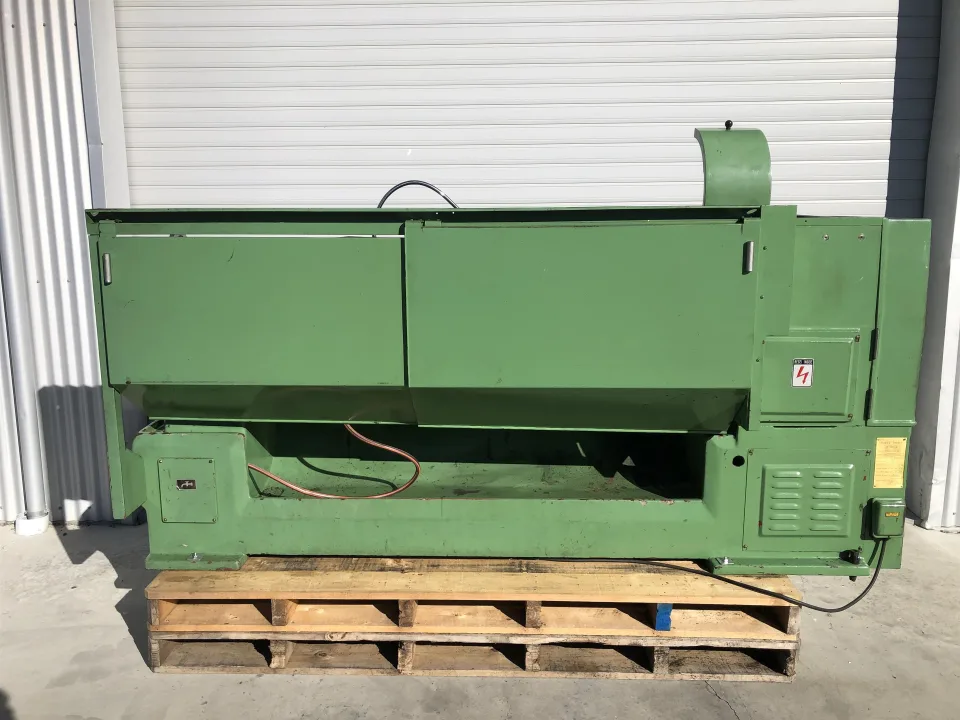

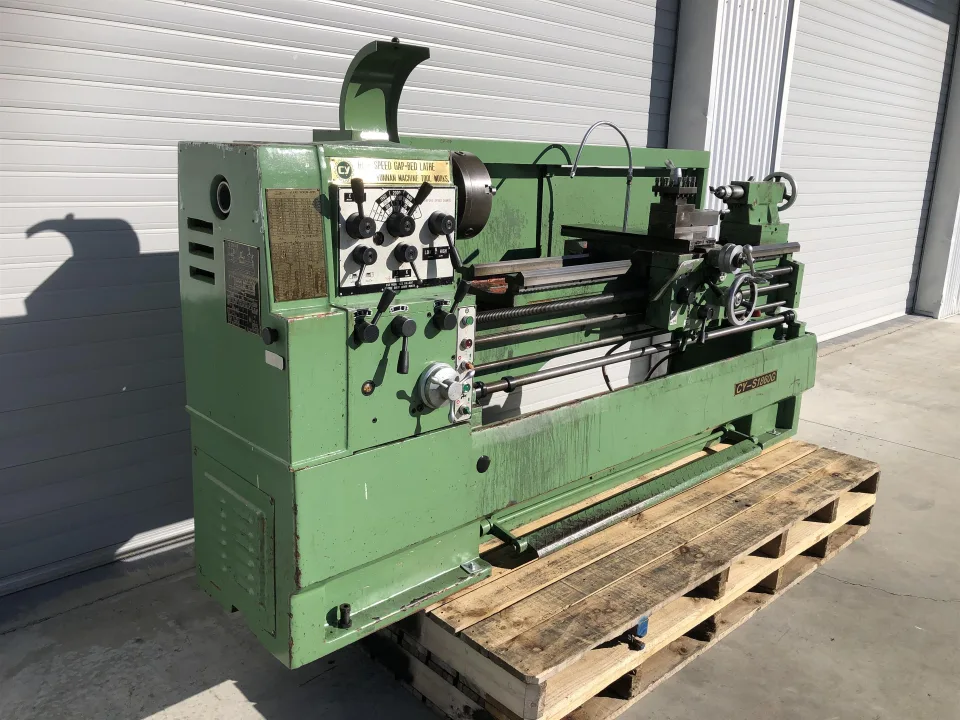

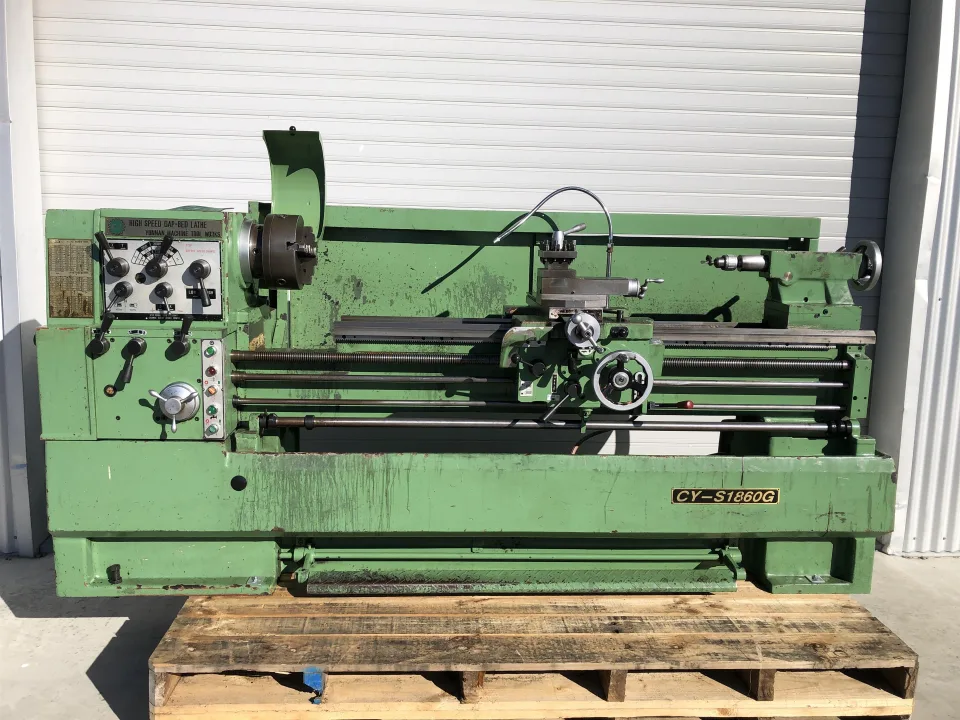

Scott CY-S1860G Used Centre Lathe
$8,990.00
LCNT-1-1864 | Prices exclude GST
Product overview
About this machine.
Very popular model. Solid one piece cast base. Good condition, runs well. Note: missing bed gap.
Features
- 3 phase
- Gap bed (missing gap)
- Solid one piece cast base
- D1-6 camlock type spindle
- Metric configuration
- Full length rear splash guard (retractable)
- Carriage travel stops
- Emergency footbrake
- Chuck guard
- Thread dial indicator
- Right hand carriage wheel
- Carriage clutch overload
- Coolant system
Accessories
- Fixed steady rest
- Travelling steady rest
- 240mm 3 jaw chuck
- 320mm 4 jaw chuck
- 250mm drive plate
- 410mm face plate
- 13mm keyed drill chuck
- Live centre
- Dead centre
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Scott
1860
Swing over bed
460mm
Swing over cross slide
275mm
Swing in gap
690mm
Spindle bore
57mm
Distance between centres
1500mm
Spindle speeds
20 - 2,000 rpm ( 12 steps )
Tailstock taper
4MT
Thread cutting
Metric and imperial
Main motor
7.5 hp
Power supply
415 volts / 50 hz / 3 phase
Freighting details (L x D x H)
2800mm x 1200mm x 1700mm
Weight (approx)
2300 kg
