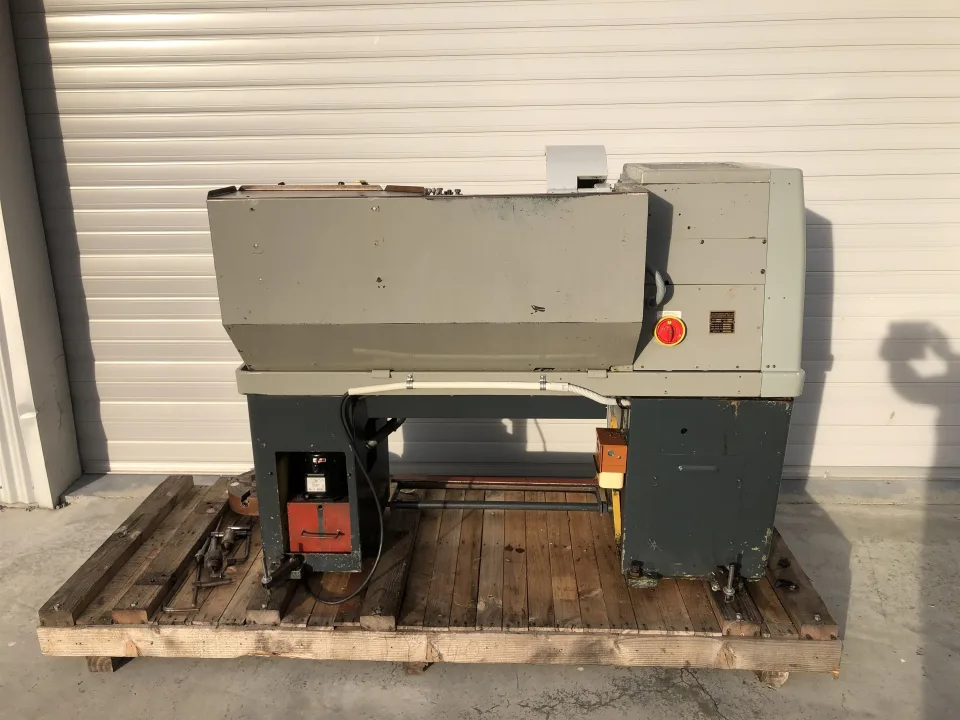

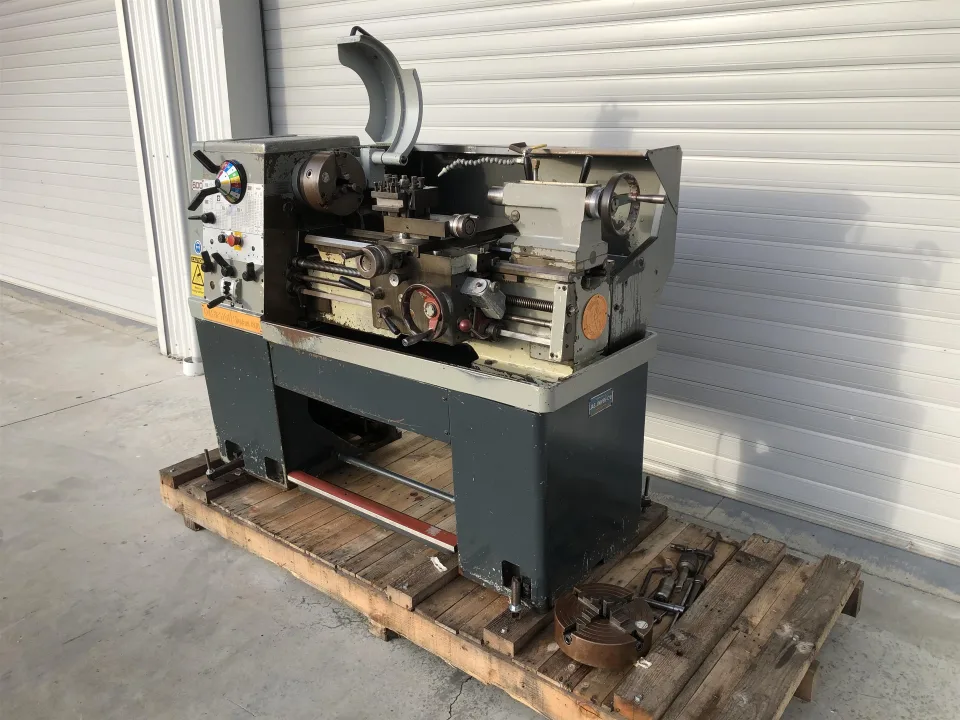

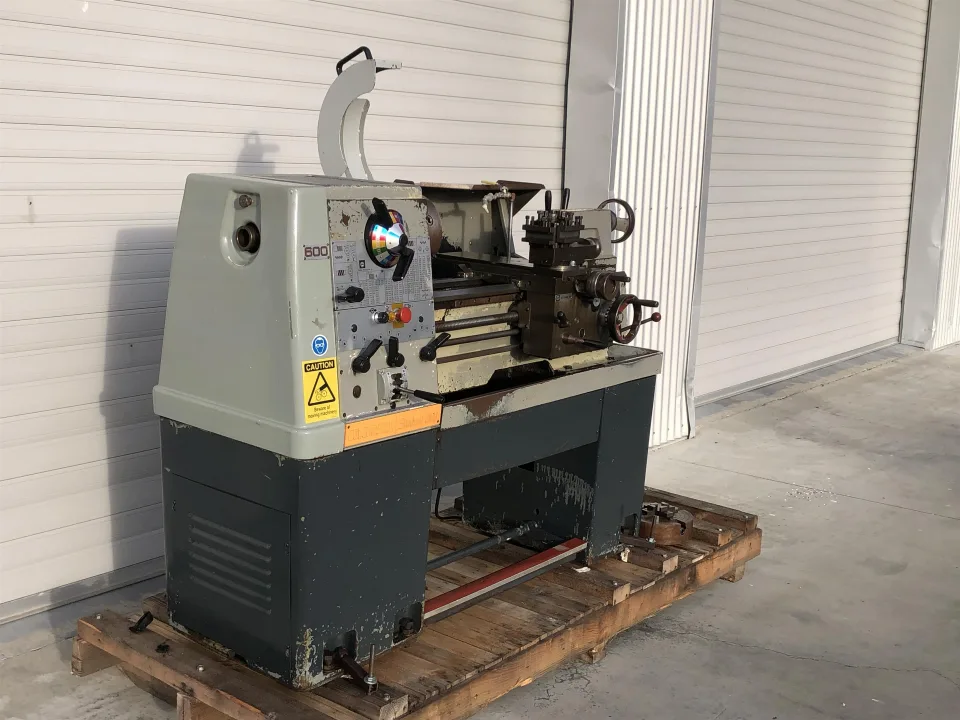

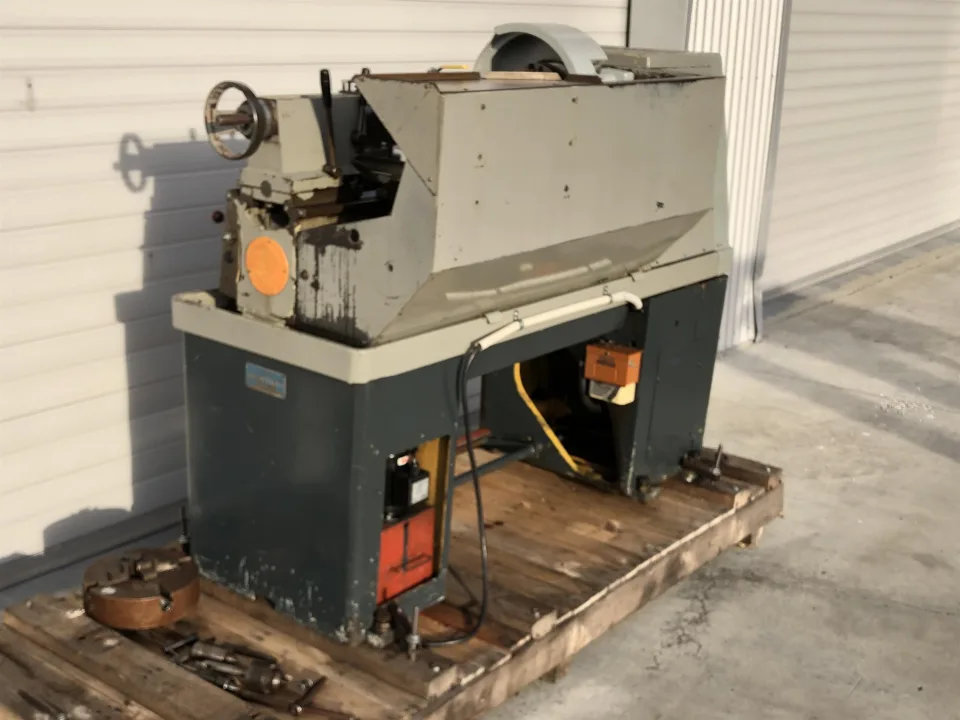

Colchester Student 1800 Used Centre Lathe
POA
LCNT-1-1807 | Prices exclude GST
Product overview
About this machine.
Quality English made gap bed lathe. Good condition, runs well.
Features
- Three phase
- Gap bed
- D1-4 camlock spindle
- Chuck guard (electrically switched)
- Full length rear splash guard
- Right hand carriage wheel
- Thread dial indicator
- Coolant system
- Emergency foot brake
Accessories
- Quick change tool post c/w 3 tool holders
- 200mm 3 jaw chuck (c/w reverse jaws)
- 250mm 4 jaw chuck
- Head stock sleeve
- Live centre
- Dead centre
- 13mm Jacobs keyed drill chuck
- Owners manual (electronic copy)
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Swing over bed
335mm
Swing over cross slide
210mm
Swing in gap
480mm
Distance between centres
635mm
Spindle bore
40mm
Spindle speeds
22 - 1800 rpm 16 steps
Tailstock taper
3 MT
Thread cutting
Metric and imperial
Main motor
2 hp
Power supply
415 volts / 50 hz / 3 phase
Freighting details (L x D x H)
2300mm x 1000mm x 1500mm
Weight (approx)
1000 kg
