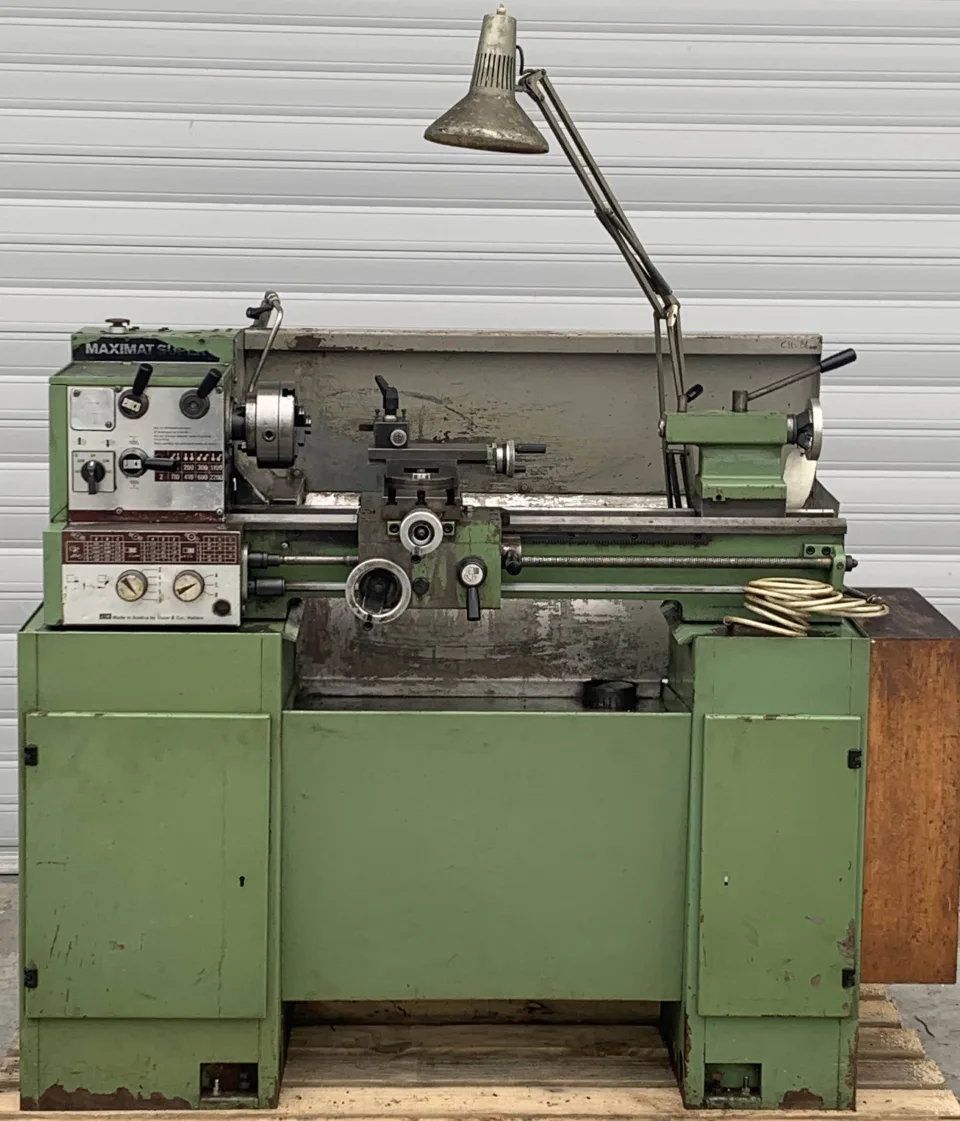

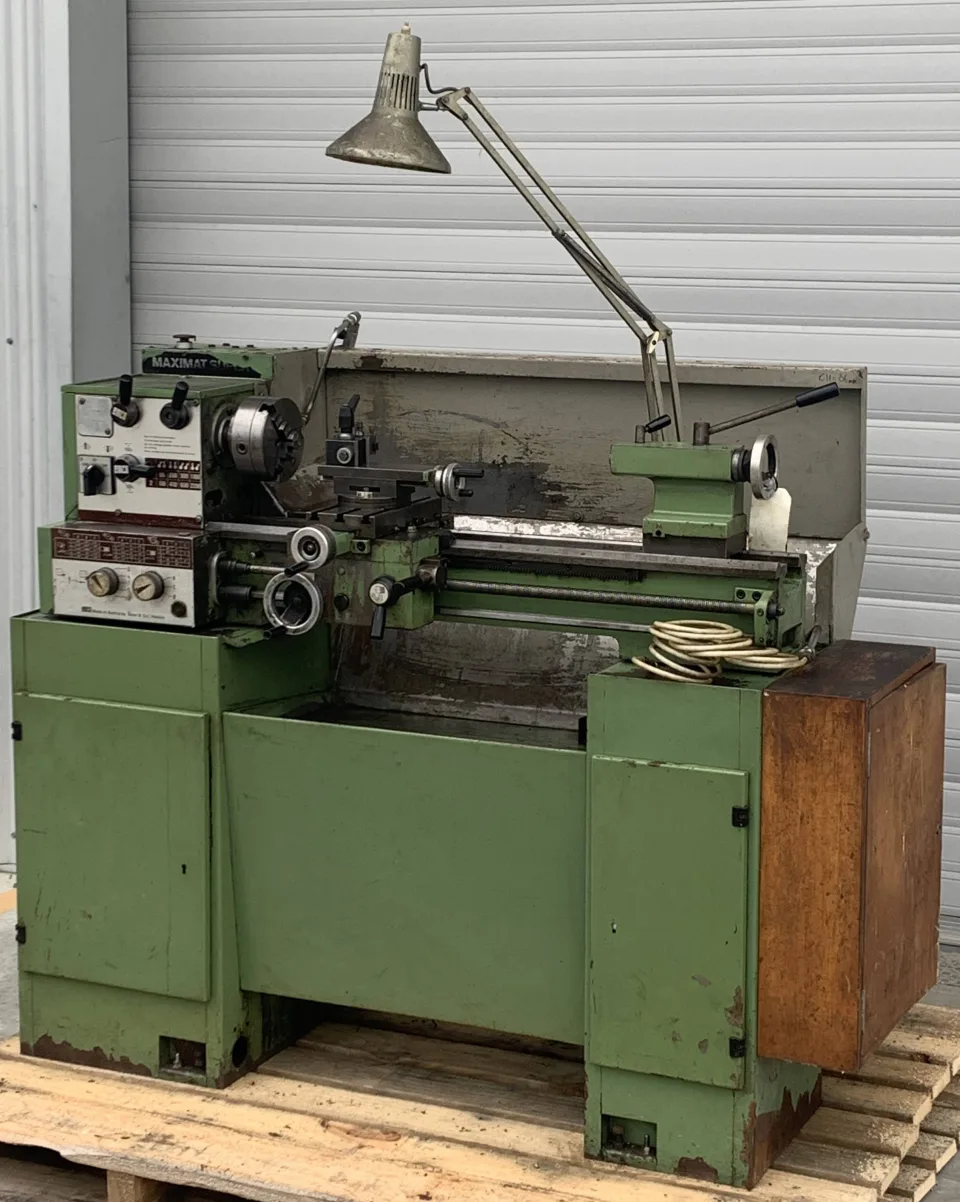

Emco Maximat Super 11 Used Toolroom Lathe
$9,900.00
LCNT-1-1703 | Prices exclude GST
Product overview
About this machine.
The Emco Maximat Super 11, made in Austria, from new this was a premium toolroom lathe suited to workshops, education, and light industrial use. With a 280 mm swing over bed and 650 mm between centres, it delivered precision and versatility in a compact, robust design. This lathe is in reasonable used condition. A well known quality brand.
Accessories
- 3 jaw & 4 jaw chucks (Emco)

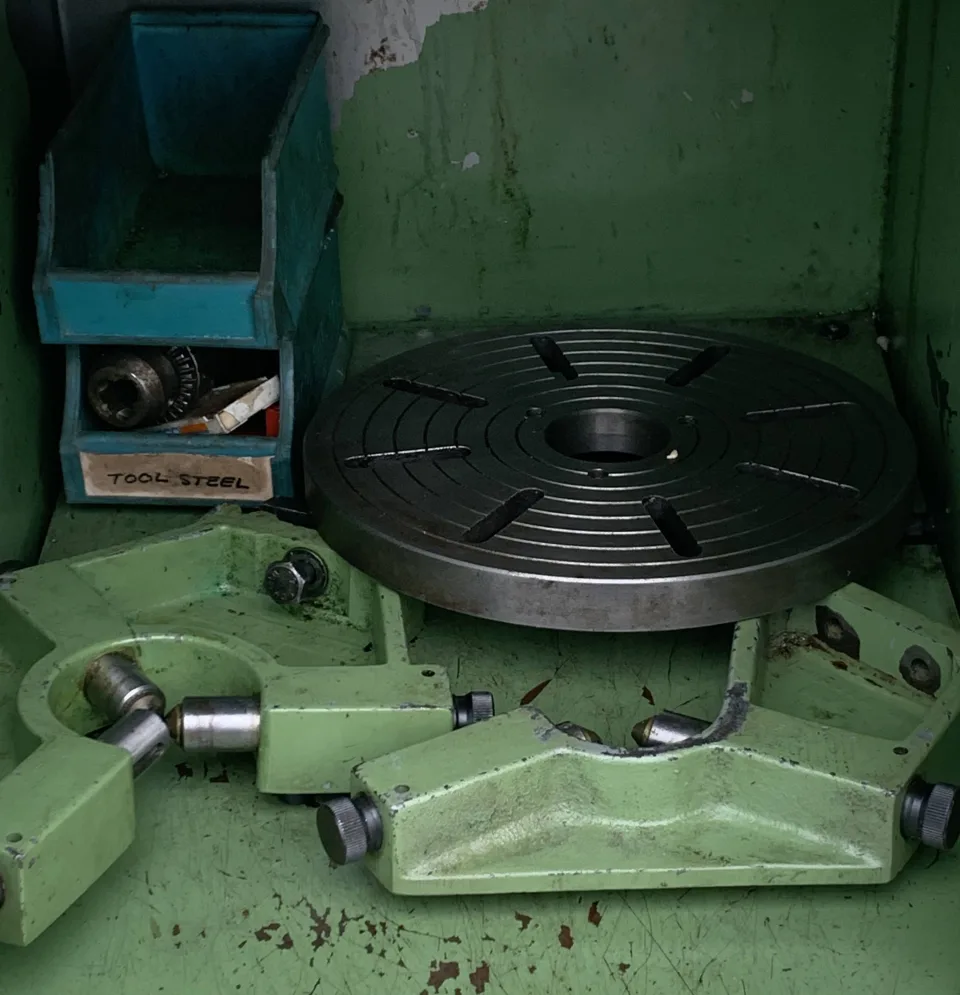

- 255mm Face plate
- Fixed & travelling steady rests
- Work light
- Cabinet stand

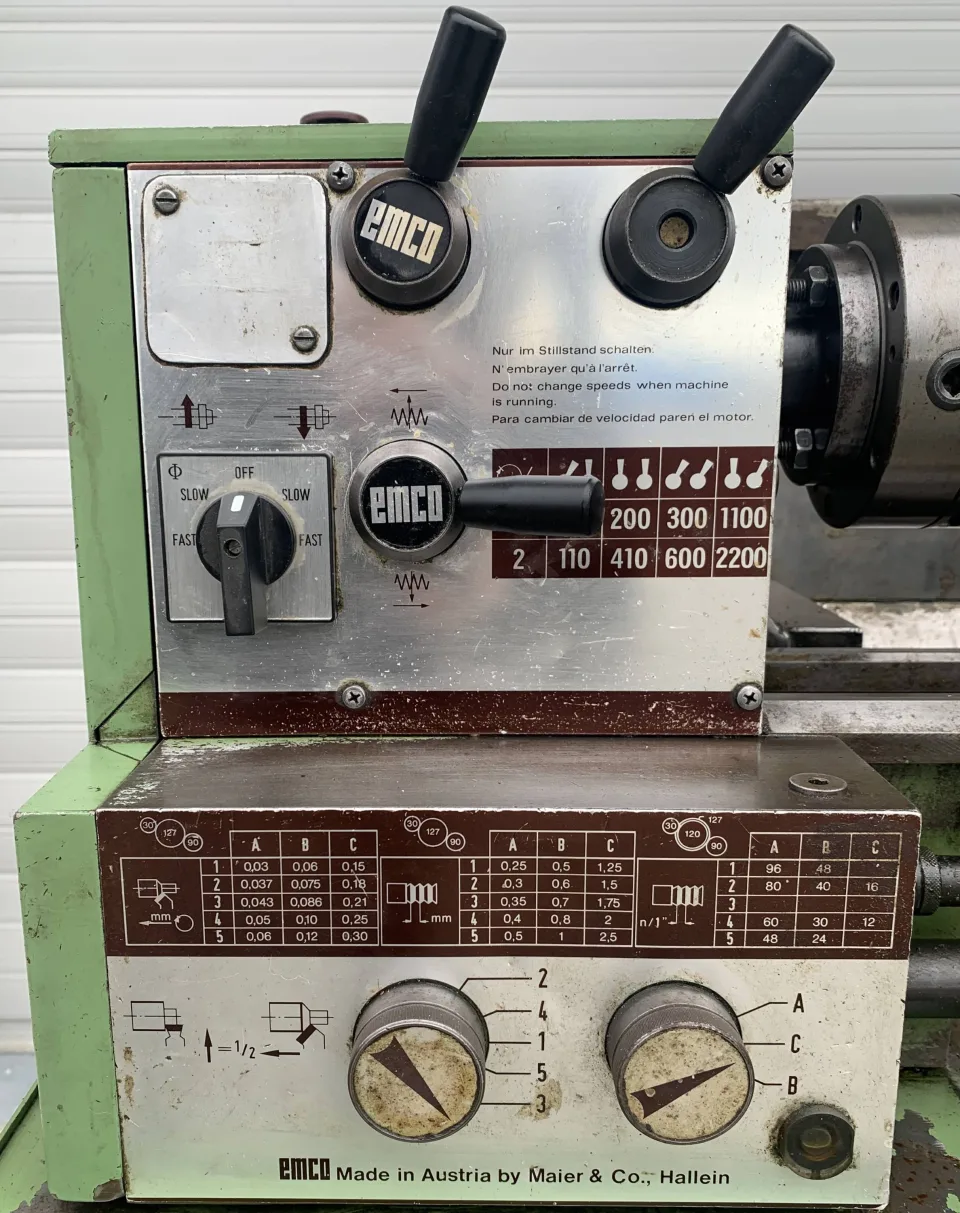

- Two speed motor providing 8 spindle speeds
- Quick change toolpost with multiple tool holders.
- Tooling as per the photos.
- Change gears as per the photos.
Please note
- The Emco Maximat Super 11 runs well in all speeds, in both high and low range.
- The feed on the cross slide appears to be intermittent and will need attention and the leadscrew engages as you would expect.
- The coolant pump runs, but has not had any fluid through it.
- Overhead light works
- We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Emco Maximat
Super 11
Swing over bed
280mm
Swing over carriage
170mm
Spindle bore
26mm
Distance between centres
650
Bed width
155mm
Number of spindle speeds
8
Speed range
55 - 2,200 rpm
Thread range, there are change gears, but no specific details
Tailstock taper
MT 2
Power supply
3 phase
Freight details
1.8m x 1.2m x 1.75
Weight (approximately)
425kg
