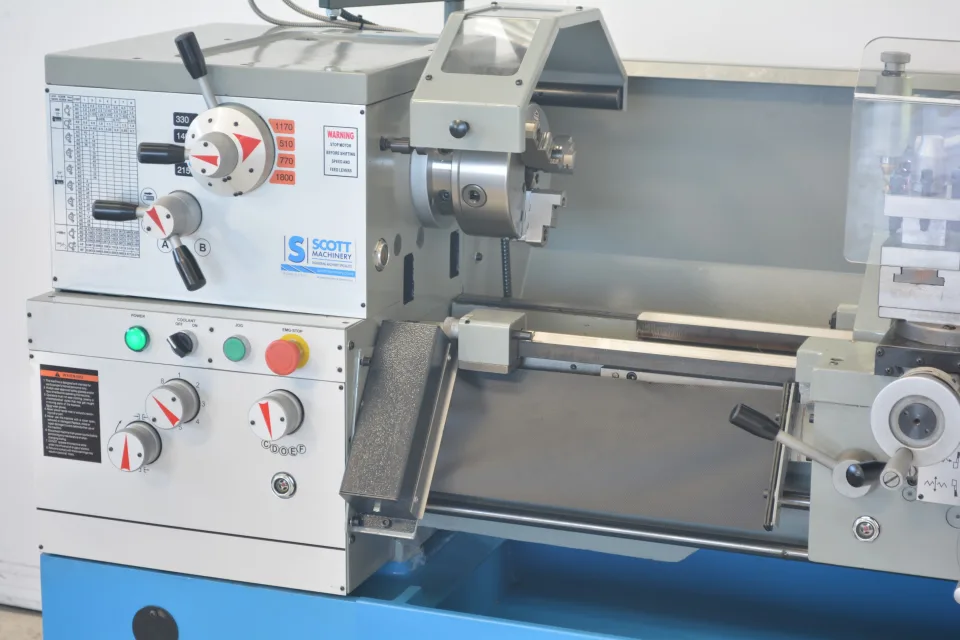

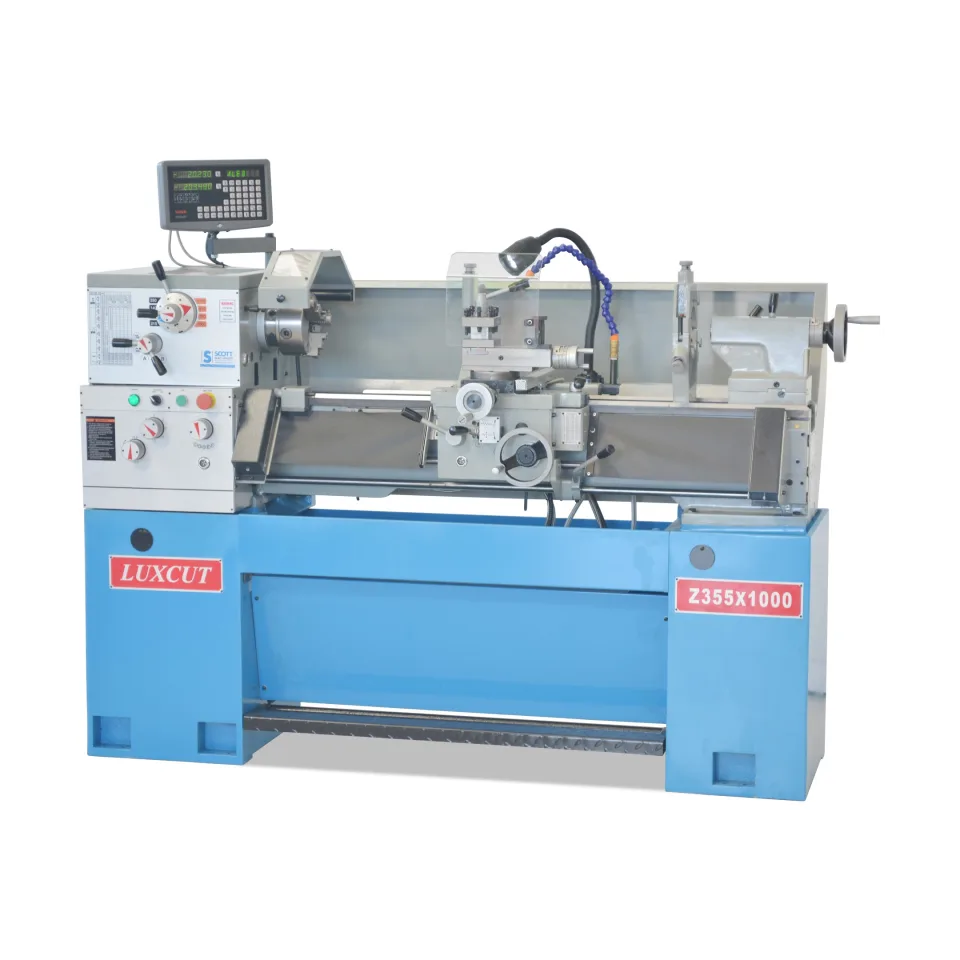

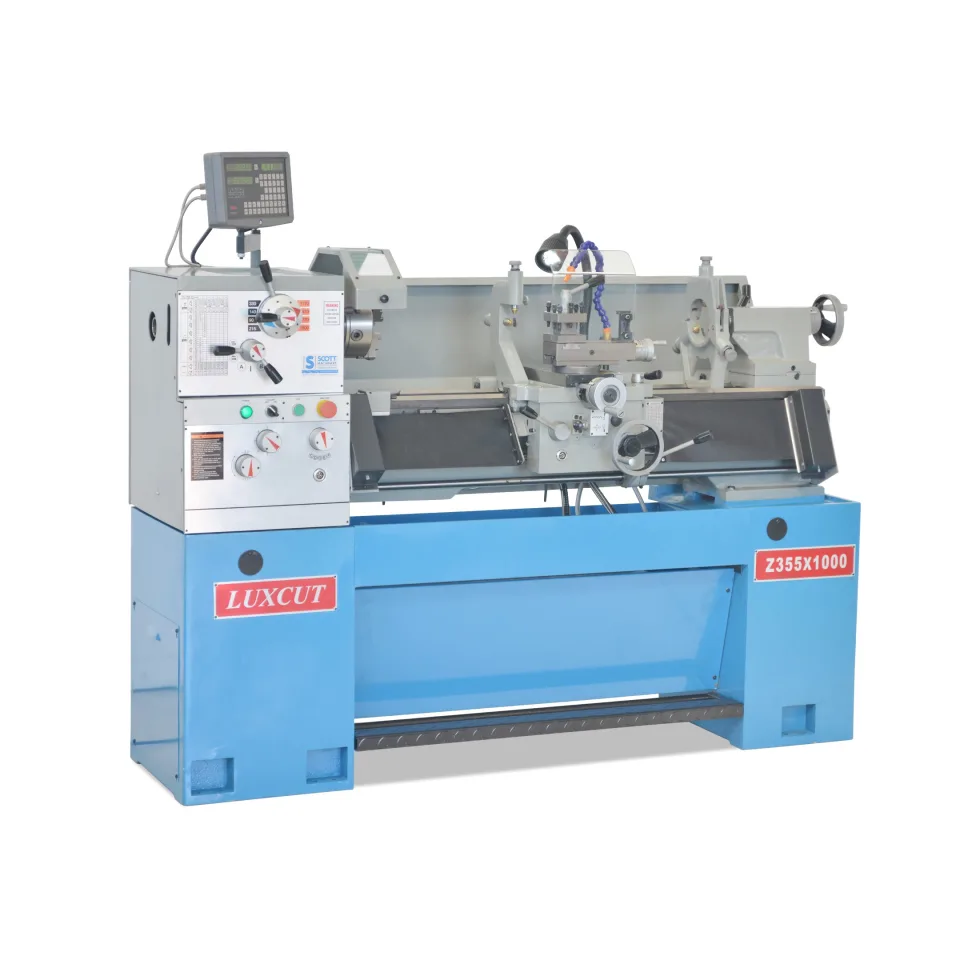

Luxcut Z355 x 1000 Single Phase Lathe
c/w DRO System
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks
The Luxcut Z355x1000 is a new addition to our range of Z series lathes. Offering 1m between centres and still being single phase makes this an excellent machine choice for both training institutes and small workshops. Perhaps most importantly this caters to the home based engineer with out compromising the main characteristics of a larger geared head lathe. Renowned for reliability, performance, and accuracy, the Z355 x 1000 delivers consistent results across a wide range of turning applications. Its robust construction, versatile speed range, and full threading capability make it a practical and dependable addition to any workshop. We have evaluated many similar machines from the international market and have chosen this machine as we believe it represents good value for money. We visit the manufacturer annually. The main purpose of these visits is to evaluate new machine opportunities, and most importantly to ensure that the manufacturing facilities of the selected machine tool company we have chosen continue to produce machines that satisfy our criteria and have sales and technical service support and ex stock availability of spare parts.
Features:
- Compact geared head design with rigid cast bed for stability and durability
- Gap bed design for larger diameter workpieces
- Hardened and ground bedways for accuracy and long service life
- Precision ground headstock gears in a fully enclosed housing
- Spindle bore 38mm, Camlock D1-4 spindle nose
- 8 Step speed range 90-1800 RPM
- Metric, Imperial, Diametral and Module thread cutting capability
- Power feeds on both longitudinal and cross slide axes
- Accepts 16 x 16mm (5/8" x 5/8") tooling
- Approximate machine weight 790-820 kg
- Built to international safety and performance standards
- Two piece cast iron base with pull out chip tray from the front
Standard Accessories:
- 2 Axis SINO DRO System fitted
- 160mm 3 Jaw chuck D1-4
- 200mm 4 Jaw chuck D1-4
- 300mm faceplate D1-4

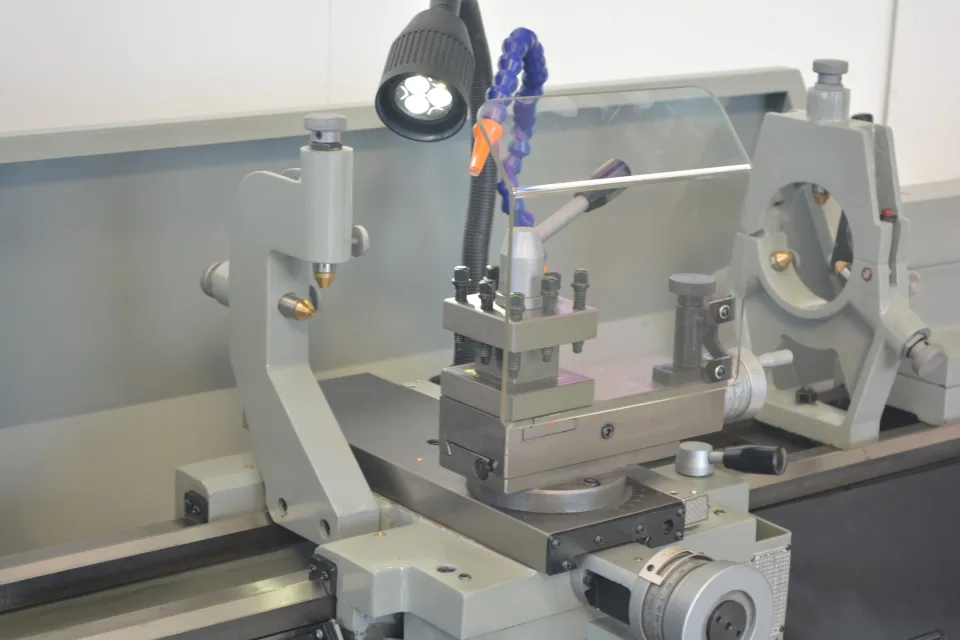

- Fixed steady rest
- Travelling steady rest
- LED Work lamp
- Thread dial indicator
- Toolbox
Safety features:
- Latching emergency stop button
- Chuck guard complete with microswitch
- Fixed guarding
- Curtain-type lead screw protection to prevent damage from debris
- Tool post protection for operator safety and tooling longevity
- Main isolation switch
- Mechanical foot brake
- Optional :
- Quick change tool post (Italian style size A) Accepts 16mm tooling.
Note: Supplied with 15Amp 3 pin plug & heavy duty 1.5m cable. Customer will need 15Amp socket.
