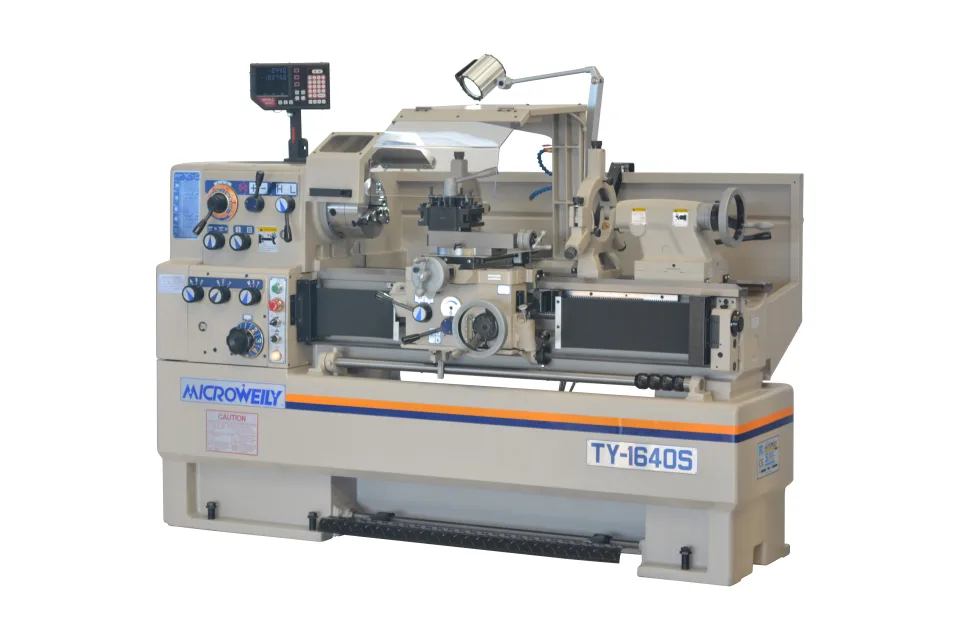

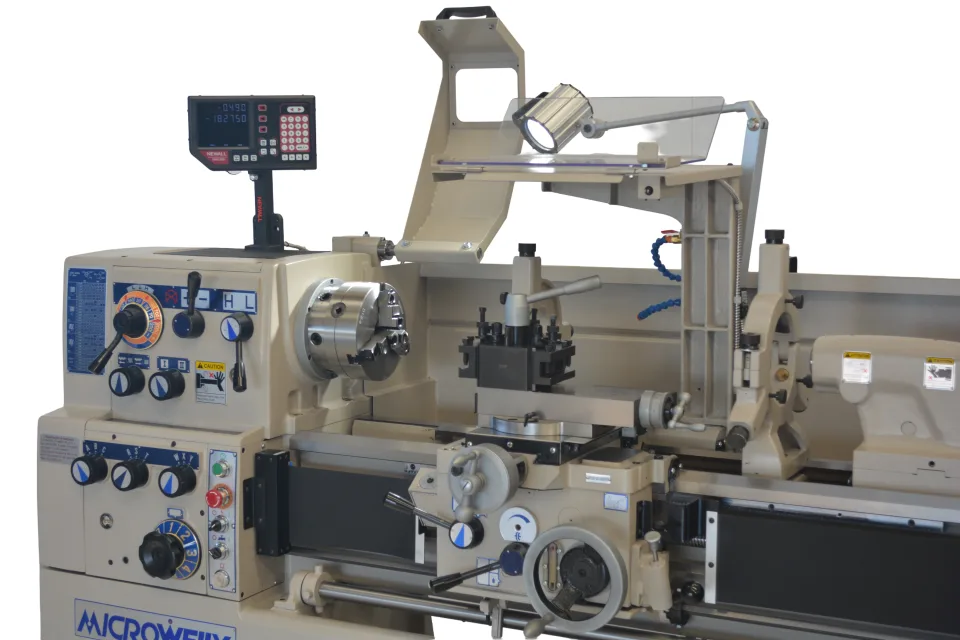

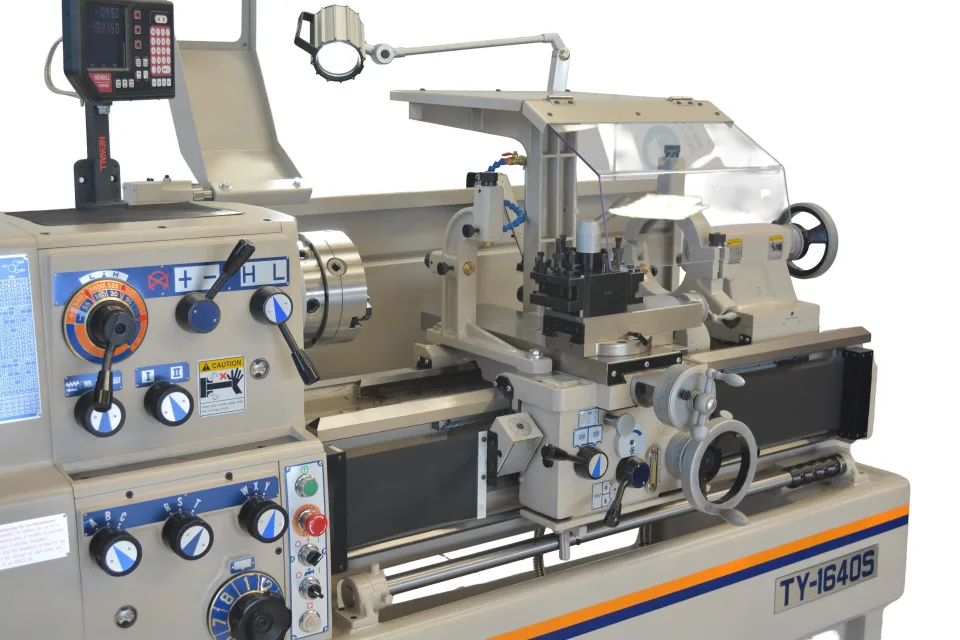

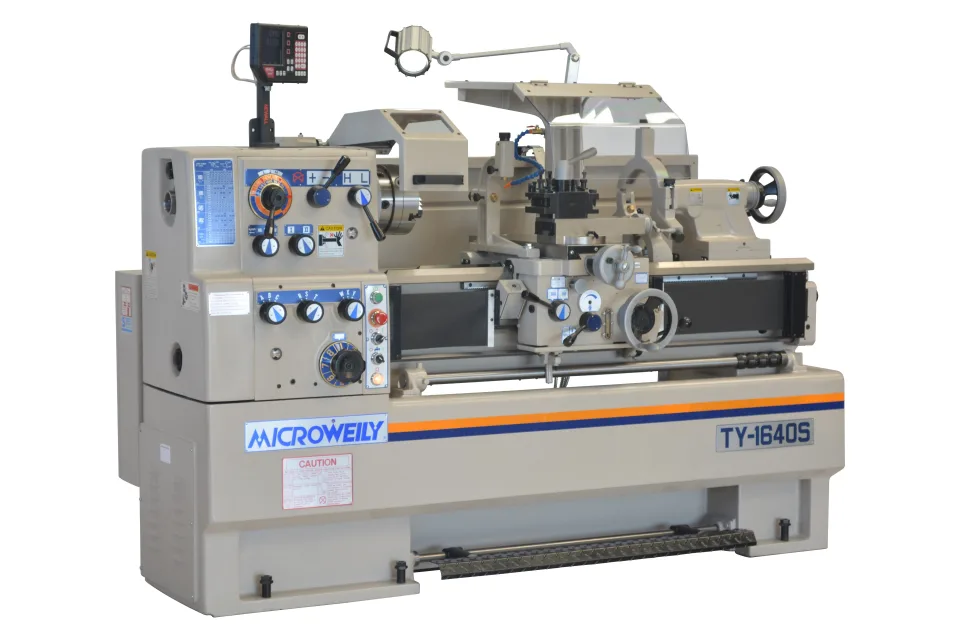

Microweily TY-1640S-CE Precision Centre Lathe
c/w Newall DRO & QCT
Product overview
About this machine.
The Microweily TY series of manual lathes is New Zealands benchmark for quality lathes. They are produced by one of the original Taiwanese machine tool companies, with a history of over 50 years in manufacturing both CNC and high-speed precision conventional lathes. Microweily lathes are a proven choice for precision toolmaking, production, and general engineering applications. Manufactured in Taiwan, trusted worldwide.
The TY-1640S is one of our most popular sellers, suiting a large number of general turning applications. It has a small footprint but offers all the benefits of a heavy-duty solid casting, features typically associated with larger machines. This means you get a light, precision feel that is hard to achieve on bigger lathes, along with quality operation and an excellent finish.
Key features
- Heavy duty one-piece Meehanite cast base for superior vibration dampening and good resistance to wear.
- Bedways and cross slide are induction hardened to HRC 52 and precision ground.
- The slide ways between the saddle and bed are Turcite B coated reducing the friction resistance, providing smoother feel and a more effortless machine operation experience.
- Fully enclosed 12-speed headstock
- Hardened and precision ground headstock gears.
- Precision spindle with 3 precision taper roller spindle bearings to achieve maximum accuracy.
- D1-6 Spindle nose with 52mm spindle bore
- Metric and imperial threading capability via gear driven leadscrew
- Power feed range. From 0.032mm - 0.898mm (40 settings) on both the longitudinal axis (X) and cross slide (Y)
- Generous swing with gap bed.
- Right hand carriage wheel
- One shot lubrication system
- Robust cast tailstock with 4MT quill
- Manufactured to ISO 9002 standards
- CE Conformity
Scott package includes
- Newall NMS300 2 axis digital readout system
- Italian Style quick change toolpost (size BR/BP) c/w 4 holders (not shown in photo)
- 3 Jaw chuck 200mm "Strong" direct mounting (Taiwanese KD6-8)
- 4 Jaw chuck 250mm direct mounting (D6-10)
- Fixed steady rest
- Following steady rest
- Coolant system
- LED lamp
- Longitudinal positional stops
- Chuck guard with microswitch
- Toolpost protector
- Leadscrew protection
- Full length splash guard
- Thread dial indicator
Optional
- Faceplate
- Chuck upgrades available
- Anti-vibration leveling feet
Safety features:
- Latching emergency stop button
- Chuck guard complete with microswitch
- Fixed guarding
- Curtain-type lead screw protection to prevent damage from debris
- Tool post protection for operator safety and tooling longevity
- Main isolation switch
- Mechanical foot brake
