Brierley ZB 25 Used Drill Grinder 1-25mm capacity
On Stand
$5,900.00
GMIS-1-2525 | Prices exclude GST
Product overview
About this machine.
The Brierley ZB 25 was designed and produced in Llandudno Junction, North Wales by Brierley from the early 1960s onward Despite its modest size, this rugged, manually operated machine delivers excellent performance for sharpening HSS and carbide drills up to 25 mm (1″) in diameter The Brierley ZB 25 is a compact, durable, and precise drill grinder ideal for workshops, maintenance teams, and toolrooms seeking manual yet high-quality point sharpening for a broad range of drill diameters.
Features:
- Grinds drill sizes from 1 mm to 25 mm (approximately 1")
- Adjustable point angles from 40 to 180 degrees, suitable for standard and split-point drills
- Variable clearance angles up to 18 degrees to allow for fine tuned rake control
- 0-20 degree work head swivel for grinding angled or special points
- High precision 6-jaw chuck securely holds drills with minimal runout
- Lever operated feed for fast and consistent material removal
- Rotolin spindle bearing system ensures exceptional accuracy (runout +/-0.0002")
- Heavy duty cast iron construction gives vibration dampening
- Simple, manual operation, quick setup and intuitive use without CNC or electronics
- Compact footprint is ideal for toolrooms and maintenance departments
- Compatible with HSS and carbide drills (with correct wheel and setup)
Included:

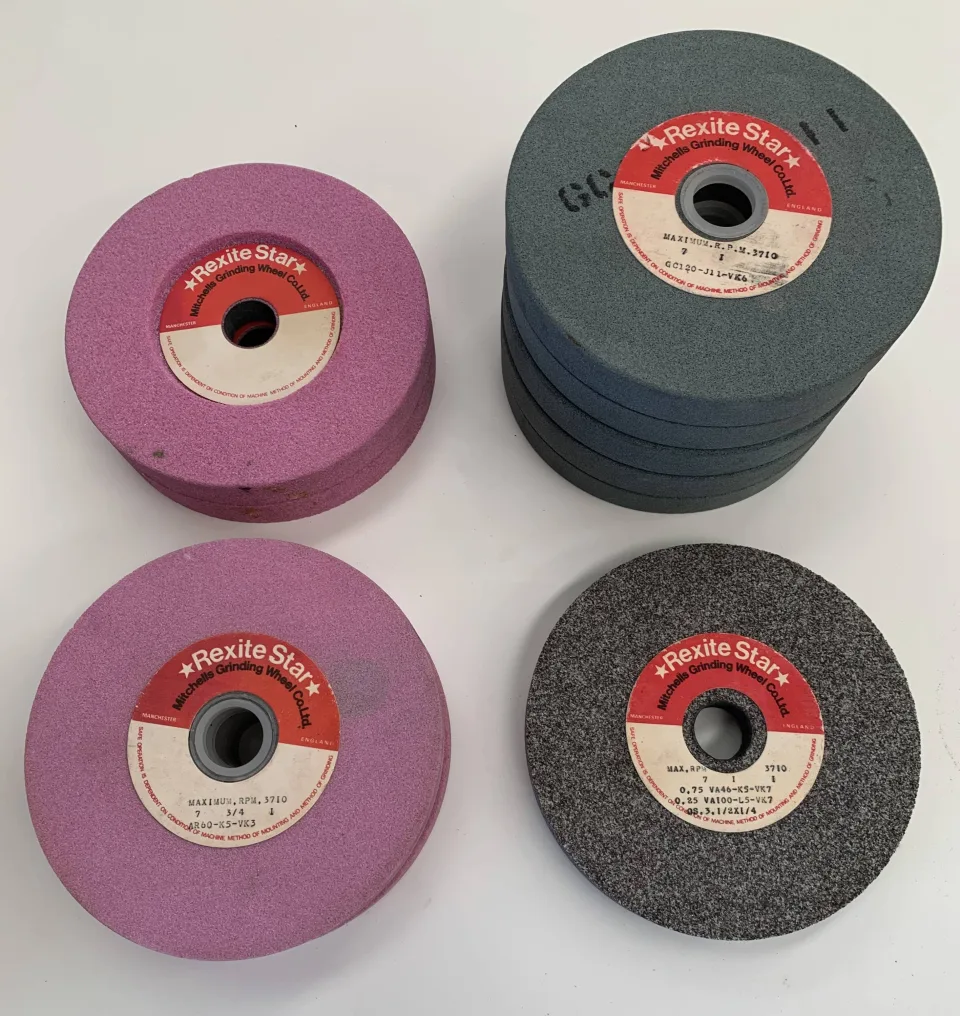

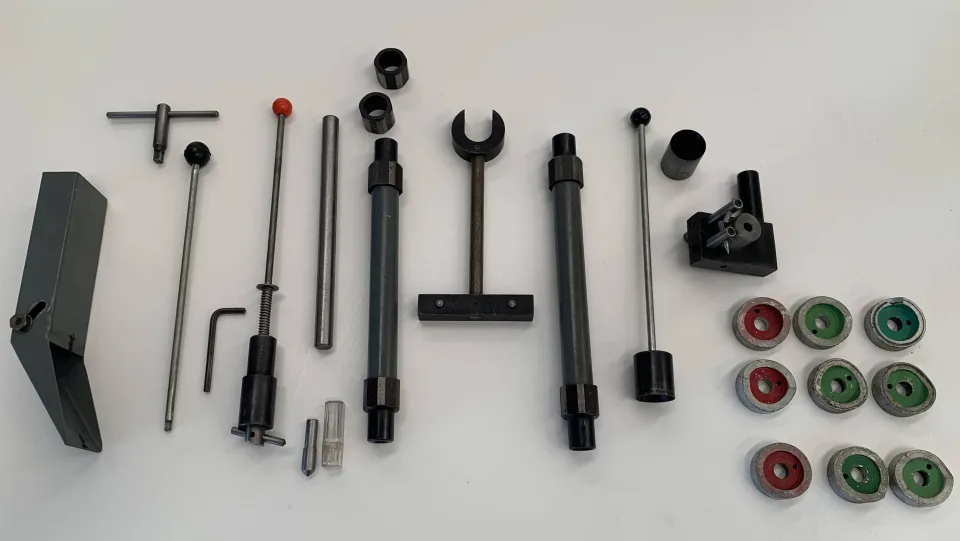

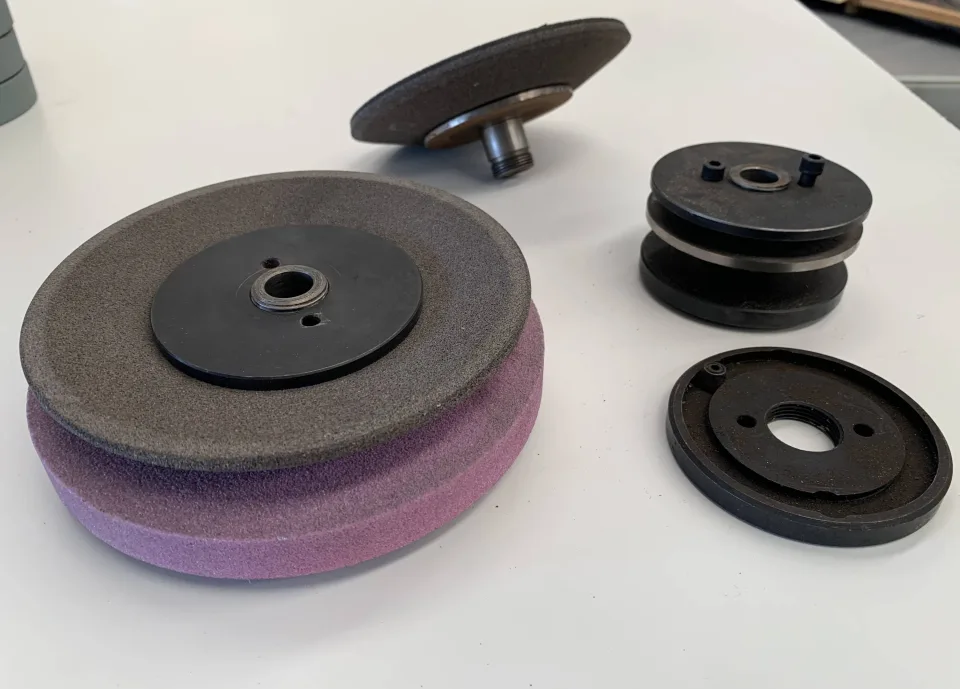

- A huge selection of spare wheels, accessories and the original manual included. See the photos above.
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
Used Brierley ZB 25
Power supply
Single Phase
Freight Dimensions
1000x1000x1250mm
Approximate weight
150kg
