LUXCUT GMV1250x3.5 Electro Mechanical Shear
c/w E21S NC Back Gauge
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

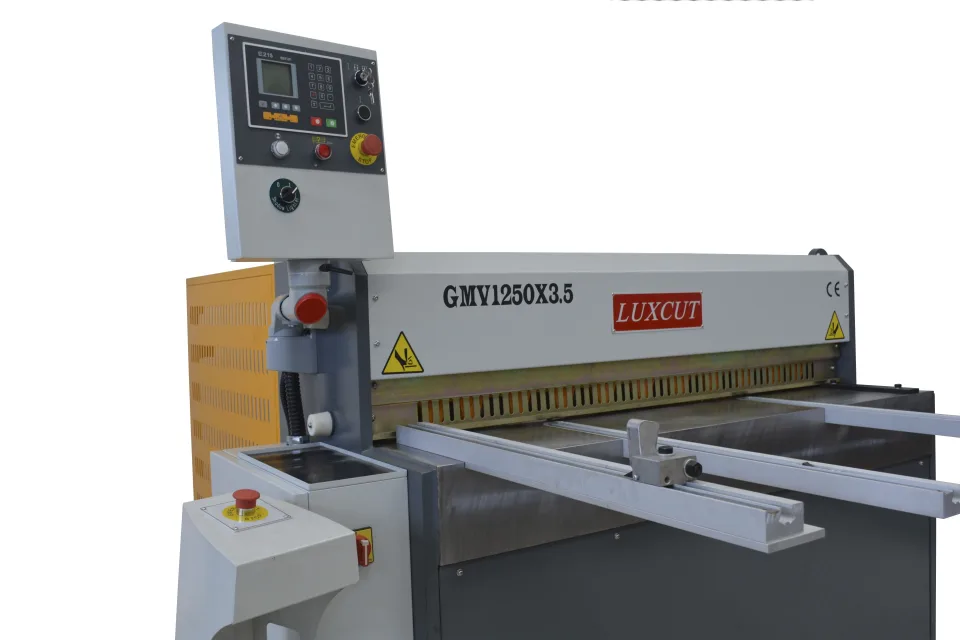

The LUXCUT GMV 1250 x 3.5 is a Mechanical Shearing Machine with a brake motor driving through a shaft-mounted speed reduction unit. It is controlled by a Selector switch for single or continuous strokes provides quiet instantaneous engagement. Different from the traditional driving method of mechanical shearer, its one of the most advanced miniature mechanical shearers. The low cutting angle and inclined shear direction reduces bowing and twist to a minimum blade clearance is easily set by a manually operated Quick Set device. It is an Ideal true cut machining equipment of sheet metal and non-ferrous sheet metal.

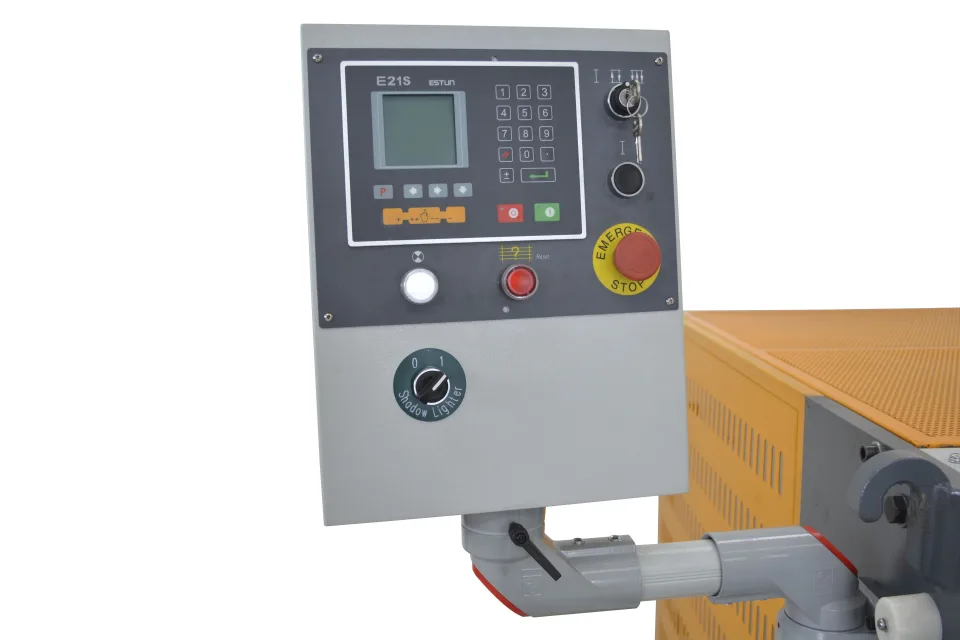

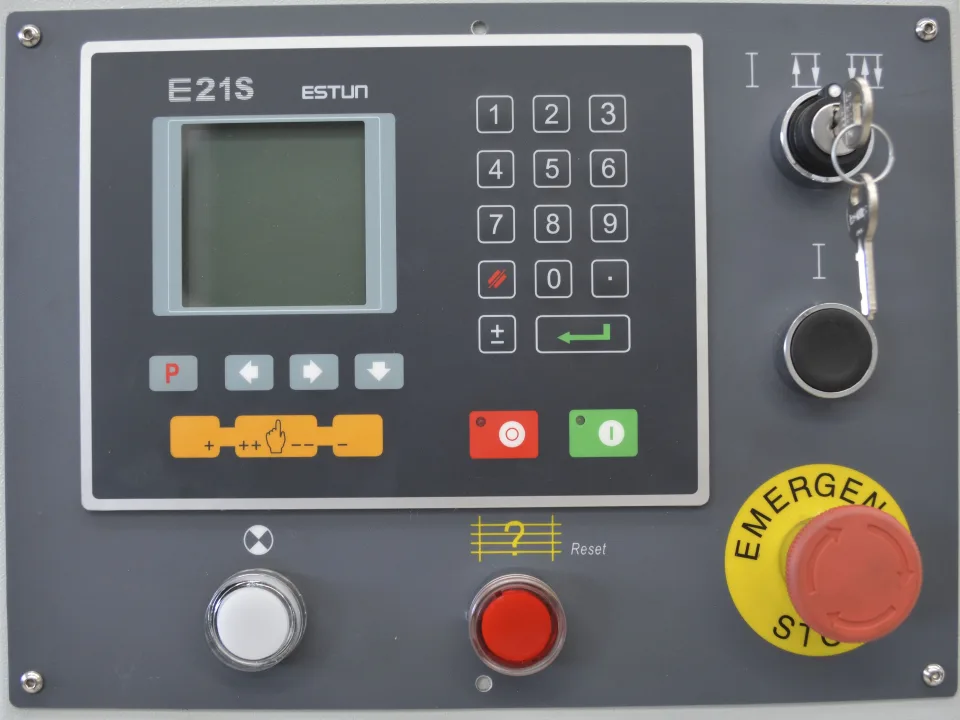

The Estun E21 NC back gauge controller allows the user to simply enter the cut length into the controller & then the machine back gauge goes to that setting for cutting. The NC control saves much time in measuring & can be simply programmed for multi-step programming in a sequence of multiple cut lengths (up to 39 steps). The multiple-step programmes can be saved for repetitive or recurring jobs.
Features:
- Electro mechanical shear for reliable, precise cutting

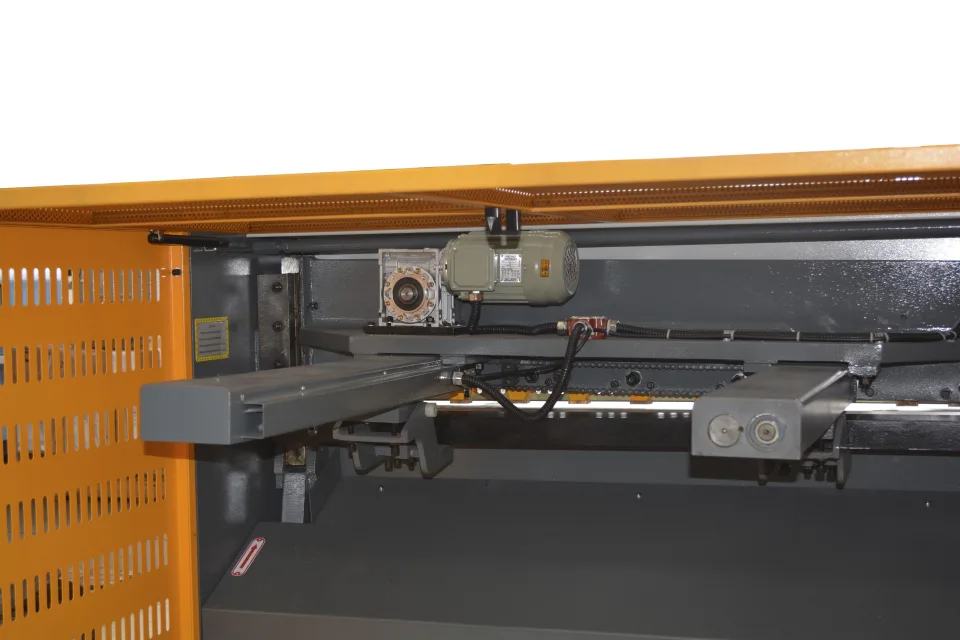

- Electro braked motor with reduction gearbox for smooth and controlled operation
- E21S NC programmable digital back gauge for accurate, repeatable cuts
- Fully enclosed modern compact styling for a clean and safe footprint
- Rear guarding with light beam protection to enhance operator safety
- Remote foot control with emergency stop for convenient and safe operation
- Front arm supports plus squaring arm for accurate material handling
- Continuous stroke mode for efficient repetitive cutting
- Siemens electrics ensuring dependable and robust electrical control
- Blade gap adjustment by dial for precise cutting clearance
- Shadow line lighting for clear cutting line visibility
Safety features:
- Remote foot control pedal with emergency stop
- Two latching emergency stop buttons
- Blade protection guard
- Fixed guarding with latching photoelectric safety beams
- Main isolation switch with lockout
