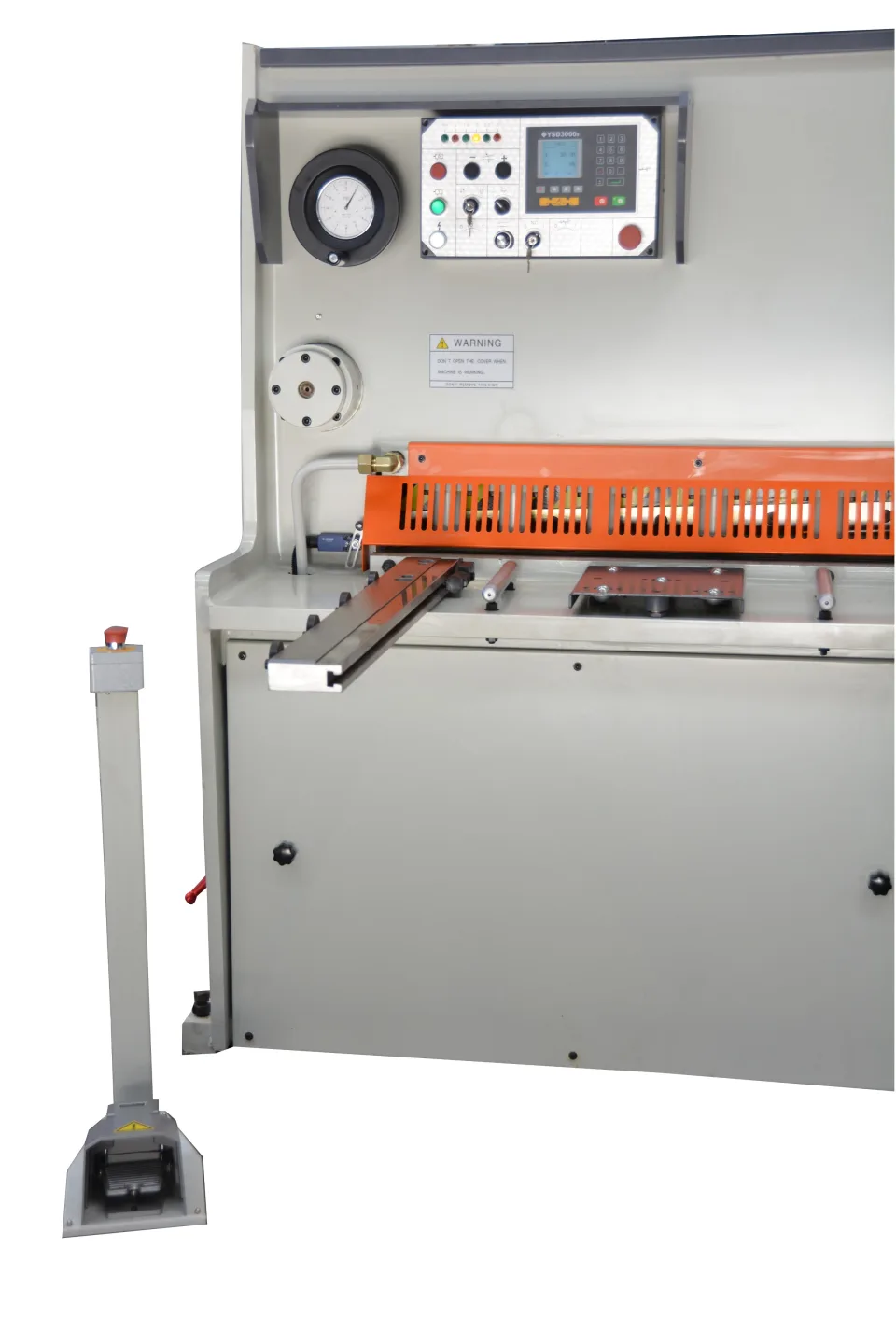

YSD HGOK 31/6.35 Hydraulic Guillotine

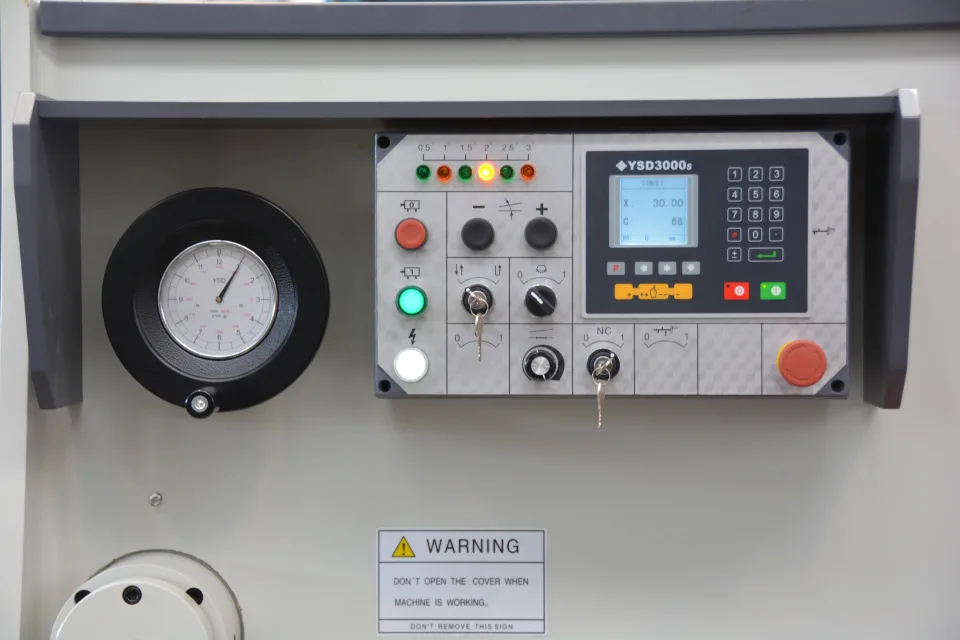

c/w YSD6000S control
Product overview
About this machine.
YSD, the manufacturing company for LVD Belgium, have developed, using technology and experience gained from LVD, a range of pressbrakes and guillotines that has some of the best design features and componentry in its class. These machines, primarily developed for the European market, incorporate many internationally sourced components to achieve the stability, accuracy, reliability and performance expected from a quality machine. The frames have been designed using Uni-Graphics Finite Element Analysis (FEA) software, to ensure acceptable distortion under maximum load. The side frames are fully welded to the bottom beam creating a solid steel structure and the result is an extremely rigid frame.
The YSD HGOK series of guillotines are proven NC controlled, variable rake machines that are top sellers throughout the world. With its robust frame and basic controller, along with time proven Rexroth, Vickers or Bosch hydraulic components and Schnieder electrical components, they are built tough.
Features:
- NC controlled back gauge
- Hydraulically adjustable rake angle

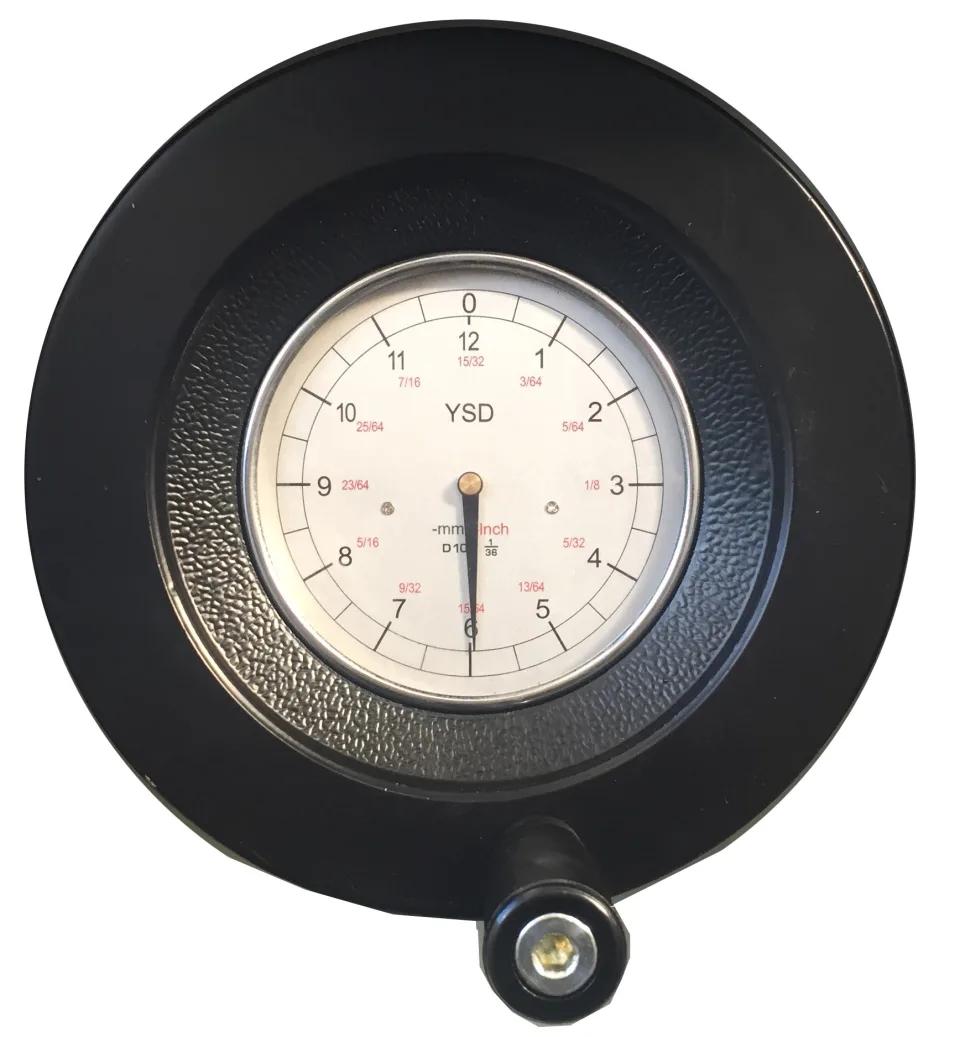

- Hand wheel blade clearance adjustment
- Heavy duty frame
- Digital display
- Powered backgauge
- High quality four sided blades
- Adjustable cutting stroke for speed
- Shadow-line lighting
- Foot switch on cord
- Front support arm with scale
Optional:
- Blades for cutting stainless steel
Safety Features:
- Remote foot control pedal with emergency stop
- Latching emergency stop buttons
- Blade protection guard with micro-switch
- Fixed guarding with latching photoelectric safety beams
- Main isolation switch with lockout
