Linishall

Linishall BG8-L 200mm Grinder complete with linishing attachment

230v 1HP

$696.00
GDE-0-2509 | Prices exclude GST
Linishall BG8-L 200mm Grinder complete with linishing attachment Linishall BG8-L 200mm Grinder complete with linishing attachment Linishall BG8-L 200mm Grinder complete with linishing attachment

Product overview

About this machine.

Linishall is a recognised brand of industrial belt grinding and linishing equipment widely used in engineering and fabrication workshops. The range includes bench and pedestal-mounted linishers, belt grinding attachments, and associated accessories designed for metal finishing, deburring, and general workshop applications. Linishall equipment features heavy-duty construction suited to continuous workshop use. The range is commonly used in engineering workshops, maintenance departments, and training facilities across New Zealand and Australia for routine grinding, deburring, and finishing tasks.

The Linishall BG8 C/W Linish attachment is a double ended bench grinder fitted with a linishing attachment on one end. It allows for both grinding and belt linishing from a single machine setup, providing flexibility for general workshop finishing work. The unit is used in engineering workshops, maintenance facilities, and training environments for grinding, deburring, and surface finishing applications where both wheel and belt operations are required.

Features:

  • Work light
  • Wheel dresser
  • Work piece supports
  • Double quenching trough (oil & water)
  • New standard feature :

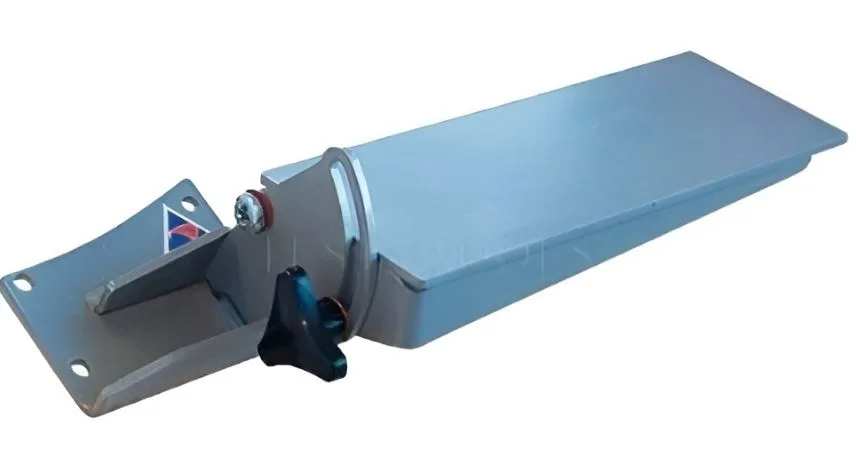

  • Mitre table for disc (shown in photo)

Optional extras

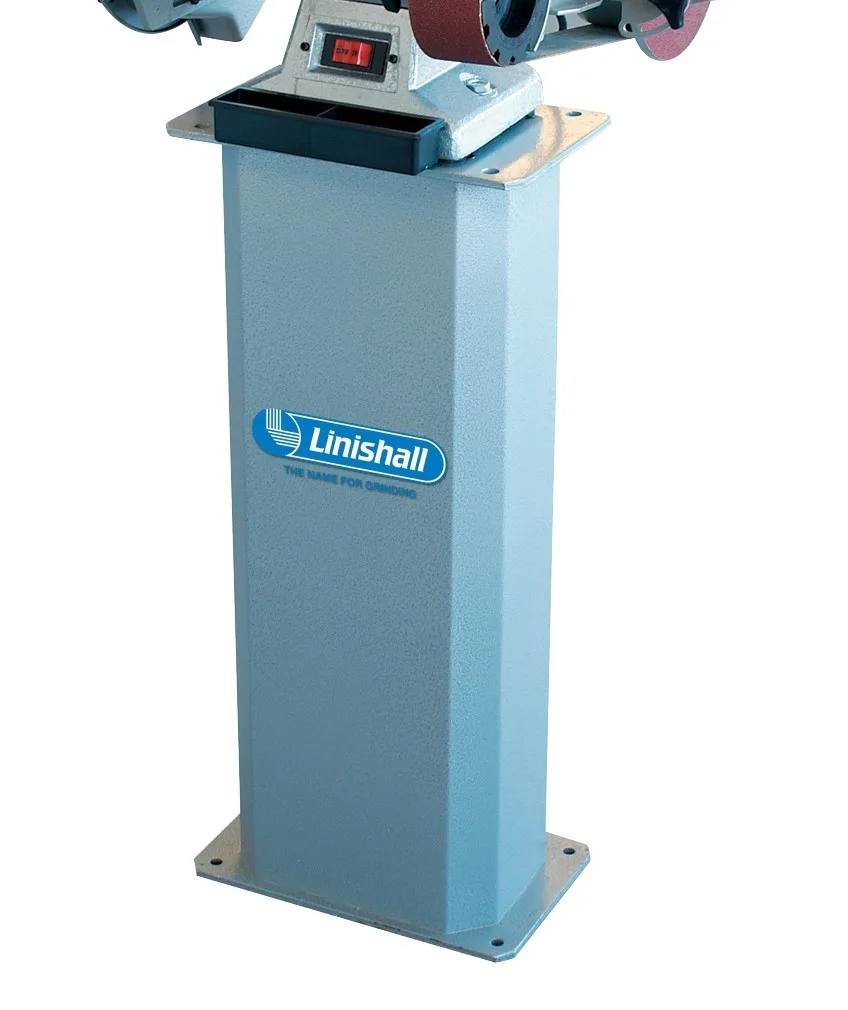

  • Sheet metal floor stand (in photo 2)
  • Linishing belt size; 915x50mm
  • Linishing Disc 180mm dia. self adhesive

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Linishall 200mm D/E C/W linishing attachment
Wheel size 200 x 25mm
Belt length 915x50mm
Linishing disc 180mm dia. self adhesive
Motor 0.75kW 1 Phase
Speed 2850rpm
Size 500mm x 520mm x 360mm (16mm diameter shaft)
Weight 25kg
Shipping 500mm x 520mm x 360mm (27kg)
