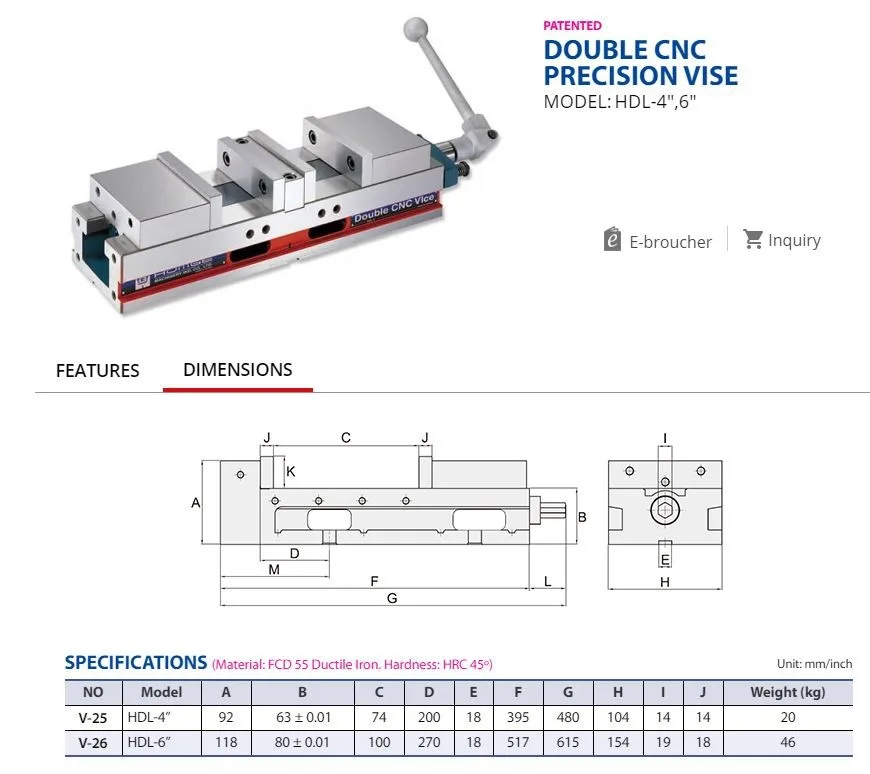

Homge HDL Double CNC Precision Vice
Product overview
About this machine.
HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.
HDL Double CNC Precision Vice Series is designed for high-volume CNC machining where repeatability and rigid workholding are critical. The double-station layout allows two components to be clamped and machined in one setup, improving machine utilisation and reducing cycle changeover time. Built with a heavy-duty cast body and precision-ground components, the HDL series is designed to maintain clamping accuracy under continuous CNC loads. Suitable for production milling environments, it provides consistent parallelism and stable holding force across both stations, making it suited to batch work and automated machining cells.
Features:
- Increases CNC machine workholding capacity by clamping 2 pieces per vice
- Ability to hold 2 components of different sizes simultaneously
- Centre jaw removable to accommodate larger workpieces
- Converts to self-centring operation when centre jaw is removed
- Compact design allows multiple vices to be fitted across the machine table
- Optional soft jaws available for non-marring or precision-finished parts
- Suitable for high-volume CNC milling and production machining environments
- Designed for rigid, repeatable clamping under continuous use
- Two models HDL-4 or HDL-6
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| HOMGE | Jaw width | Opening | Weight | Price Excl GST | |
|---|---|---|---|---|---|
| HDL4 | 100mm | 200mm | 20 kg | POA | |
| HDL6 | 150mm | 270mm | 45 kg | $2,290.00 |
