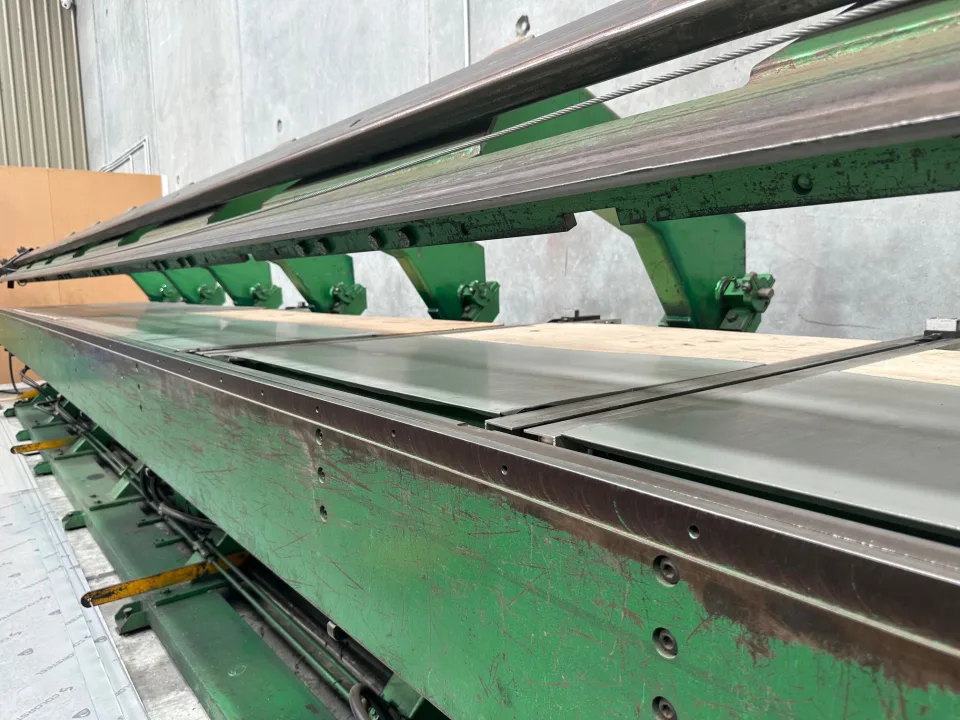

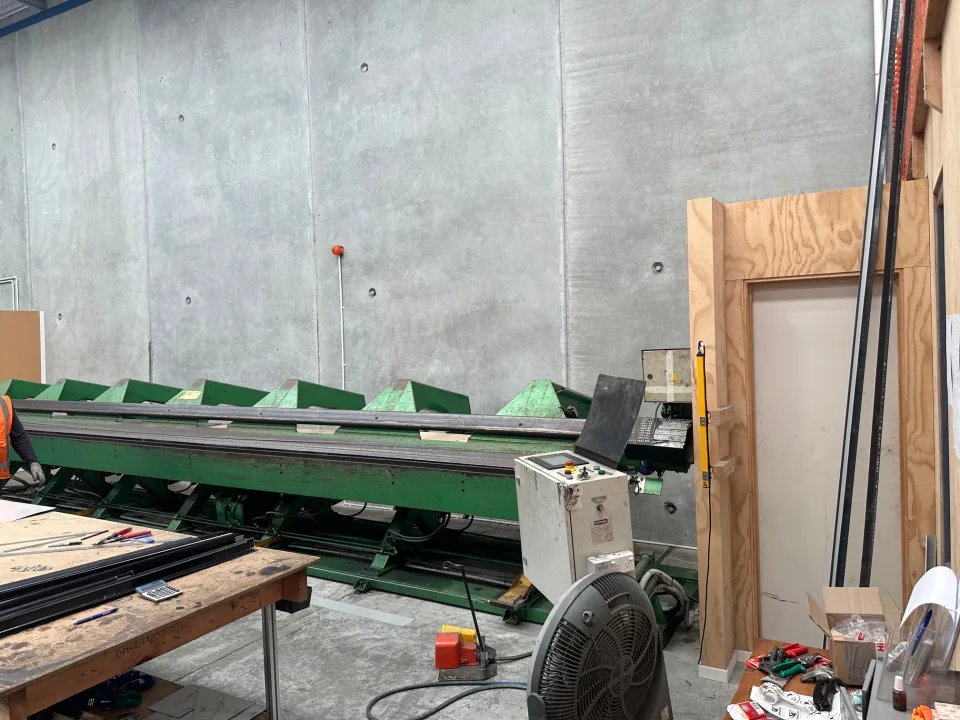

Used Imperial Folder Slitter 8m x 1.5mm

c/w Back Gauge

$88,000.00
FOLD-2-8000 | Prices exclude GST
Used Imperial Folder Slitter 8m x 1.5mm Used Imperial Folder Slitter 8m x 1.5mm Used Imperial Folder Slitter 8m x 1.5mm Used Imperial Folder Slitter 8m x 1.5mm Used Imperial Folder Slitter 8m x 1.5mm

Product overview

About this machine.

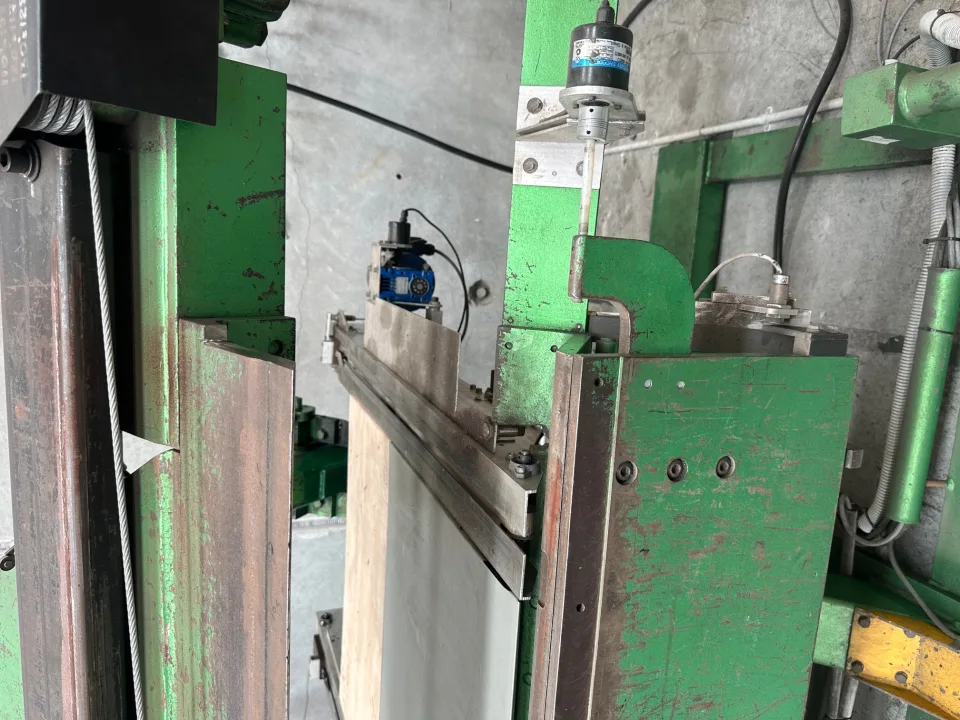

Imperial were one of the established, Australian made pan brake and folder manufacturers in the 1980-90's 8000mm x 1.5mm folder and slitter Programmable angle control & back gauge **Viewing in operation is available in Auckland**

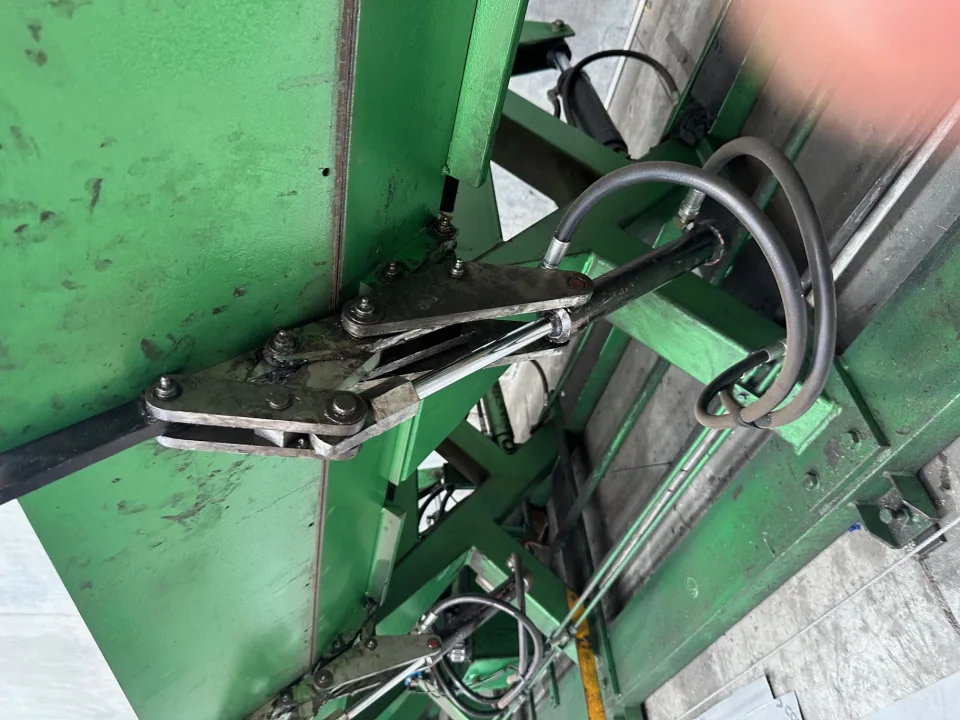

Recent upgrades: New Software and safety system upgrade Sharpened and repaired slitter blades Replaced all hydraulic hoses All new electrical components in electrical cabinet (see image) Resealed some of the folding apron cylinders Replace linkages and bushes (on bending beam) Rebuilt 7 x hydraulic lift cylinders Light curtain included Machine access interlock

This machine is really good condition for its age circa 1990, it folds smoothly. Only being sold as it is being replaced by an automatic twin bending machine

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Imperial 8000x1.5mm
Folding length 8,000mm
Folding capacity 1.5mm
Folding angle (max) 135 degrees
Number of arms / stands 7
Number of back gauge fingers 5
