About this machine.
The Newall Advantage Backed by a company with nearly 50 years of proven quality in manufacturing DRO systems & linear encoders Reliable and dependable inductive encoder technology Encoders carry an IP67 rating. All electronic and measuring components are sealed from the environment No glass scales to break or scratch Continually provides accurate readings even under the harshest work shop conditions No cleaning or maintenance required Tolerant to shock and vibration Easy to install, No backer bar or machined surface needed
The NMS800 is the newest in the Newall range of premium readouts. The DRO hosts many productivity enhancing features that will increase machine tool efficiency.
The NMS800 when matched with Newall Spherosyn Serial and Microsyn Serial encoders provides years of maintenance free trouble free performance. Newall inductive encoders are simple to install and designed to provide consistent accuracy and reliability even under the harshest workshop conditions.
Available in 2 3 or 4 axes Clean Crisp PMVA LCD Display Self Sensing Encoder Input Long Life Membrane Keypad Linear and angular reading (model dependent) Safe Low Voltage Power Supply (UL) Panel Mount Version Available
Features Include:
- Lathe and Mill specific functions (see photo 2)
- Selectable resolutions down to 1 micron
- User definable function keys
- Custom labelling, setup & display messages

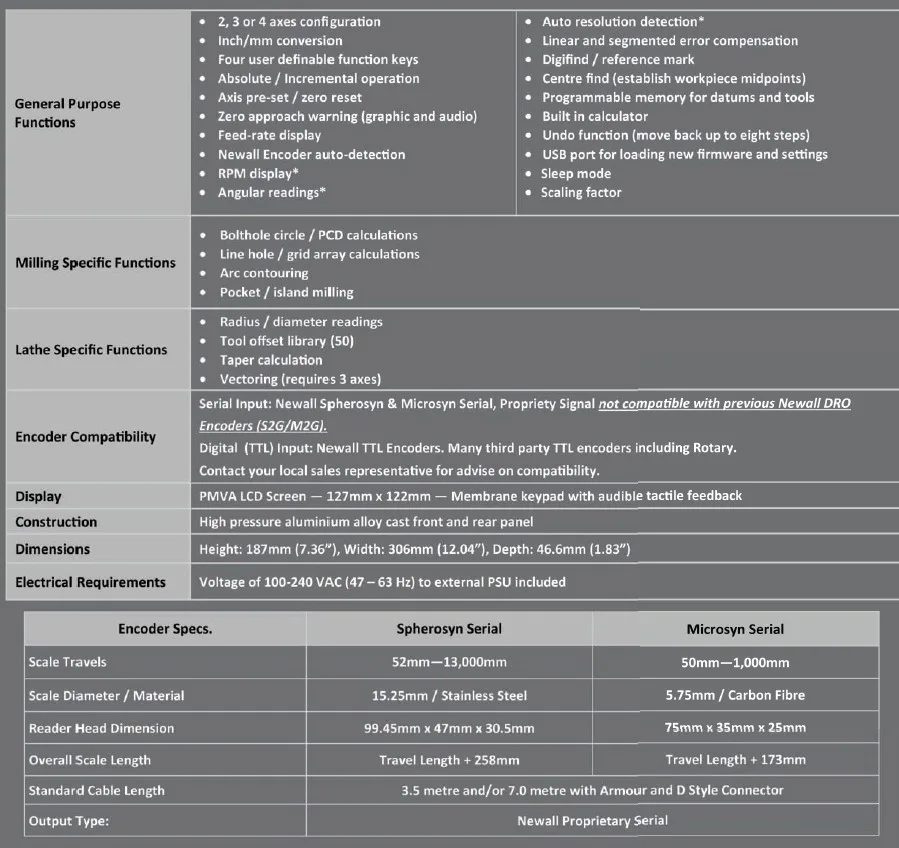

- See 2nd image for specific functions
- Global technical support
- 2 year Warranty
- Lathe Kits Include:
- Newall NMS800 Display
- Spherosyn scale
- Spherosyn scale mounting kit
- Spherosyn Serial reader head with 3.5m cable
- Microsyn scale
- Microsyn scale mount
- Microsyn Serial reader head with 3.5m cable
- Display mounting arm
- Transformer 100-240v input, 15v output
NMS800 Features Include:
- Feed Rate Display
- Bolt Hole Circle Routine
- Line Hole Routine
- Arc Contouring
- Programmable Memory-Teach
- Polar Coordinates
- Tool Offsets
- Taper Calculations
- Axis Vectoring-Summing
- Linear and Segmented Error Comp.
- Undo
- RS232 Output
- Multiple Languages
Optional :
- Reader head extension cables 1m, 2m or 3.5m
2 Axis Lathes kits available to suit lathes
- 1000mm between centres
- 1500mm between centres
- 2000mm between centres
3 Axis kits available to suit turret style milling machines
- up to 406mm x 457mm x 914mm travels with Spherosyn scales.
Note:
- We generally stock a range of linear scales from 200mm - 3000mm travels.
- For an accurate quote please measure each axis travel, not overall length.
