Newall NMS300 Digital Readout Kits
Product overview
About this machine.
The Newall Advantage Backed by a company with nearly 50 years of proven quality in manufacturing DRO systems & linear encoders Reliable and dependable inductive encoder technology Encoders carry an IP67 rating. All electronic and measuring components are sealed from the environment No glass scales to break or scratch Continually provides accurate readings even under the harshest work shop conditions No cleaning or maintenance required Tolerant to shock and vibration Easy to install, No backer bar or machined surface needed
Newall's NMS300 Digital Readout System sets the standard for value and ease of use. Solely designed & sold to machine tool builders & Newall agents the NMS300 Economy DRO System includes the new series of Spherosyn300 and Microsyn300 encoders. Newall's inductive encoders are simple to install and designed to provide consistent accuracy and reliability even under the harshest work shop conditions.
Features Include:
- Lathe and Mill specific functions (see photo 2)
- Selectable resolutions down to 1 micron
- User definable function keys
- Custom labelling, setup & display messages

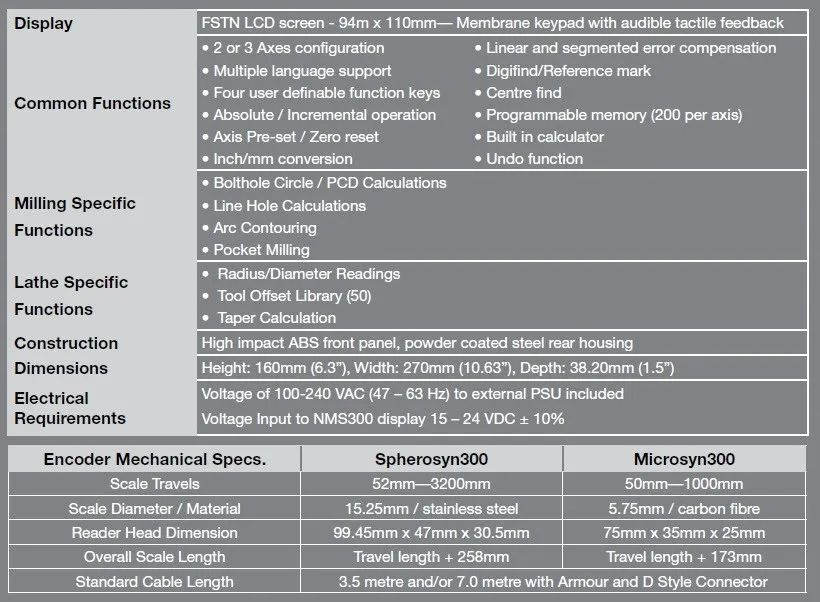

- See 2nd image for specific functions
- Global technical support
- 12 months warranty
- Lathe Kits Include:
- Newall NMS300 Display
- Spherosyn scale
- Spherosyn scale mounting kit
- Spherosyn300 reader head with 3.5m cable
- Microsyn scale
- Microsyn scale mount
- Microsyn300 reader head with 3.5m cable
- Display mounting bracket
- Transformer 100-240V input, 15V output
Optional :
- Reader head extension cables 1m, 2m or 3.5m
2 Axis Lathes kits available to suit lathes
- 1000mm between centres
- 1500mm between centres
- 2000mm between centres
3 Axis kits available to suit turret style milling machines
- up to 406mm x 457mm x 914mm travels with Spherosyn scales.
Note:
- We generally stock a range of linear scales from 200mm - 3000mm travels.
- For an accurate quote please measure each axis travel, not overall length.
