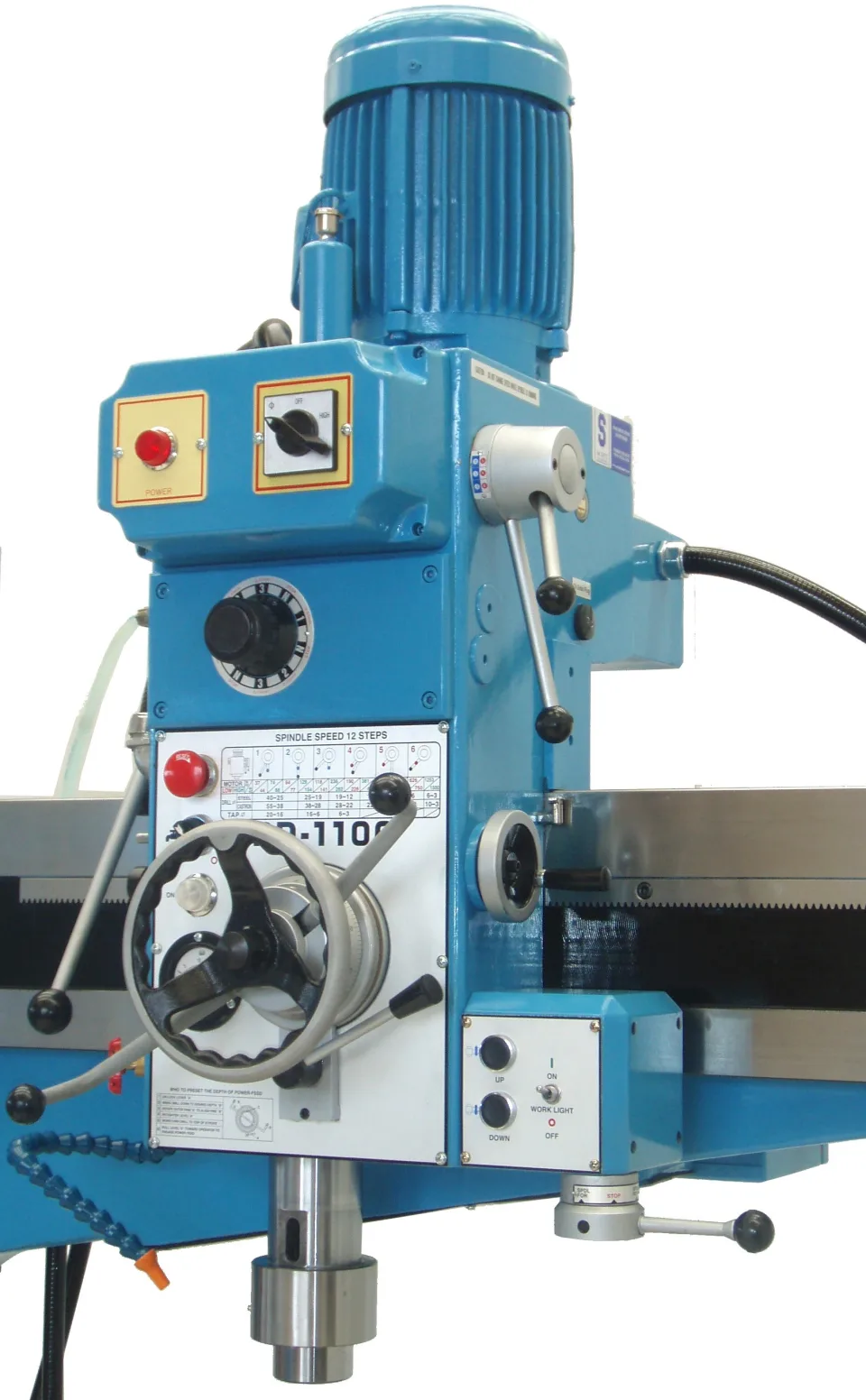

Rong Fu RD-1100 Radial Arm Drilling Machine
c/w Box table
POA
DRAD-0-3045 | Prices exclude GST
Product overview
About this machine.
High Quality - Made in Taiwan for 35 years
Quality Taiwanese Manufacturing Three phase motor
- Geared head
- Power feed to quill
- 12 Spindle speeds
- Motorised arm elevation
- Mechanical switching between fwd & rev
- Main spindle has special balancing system
- Auxiliary dial for spindle depth
- Arm is hardened and ground
Adjustable depth stop
- Heavy duty rigid table
- Emergency stop
Standard Accessories:

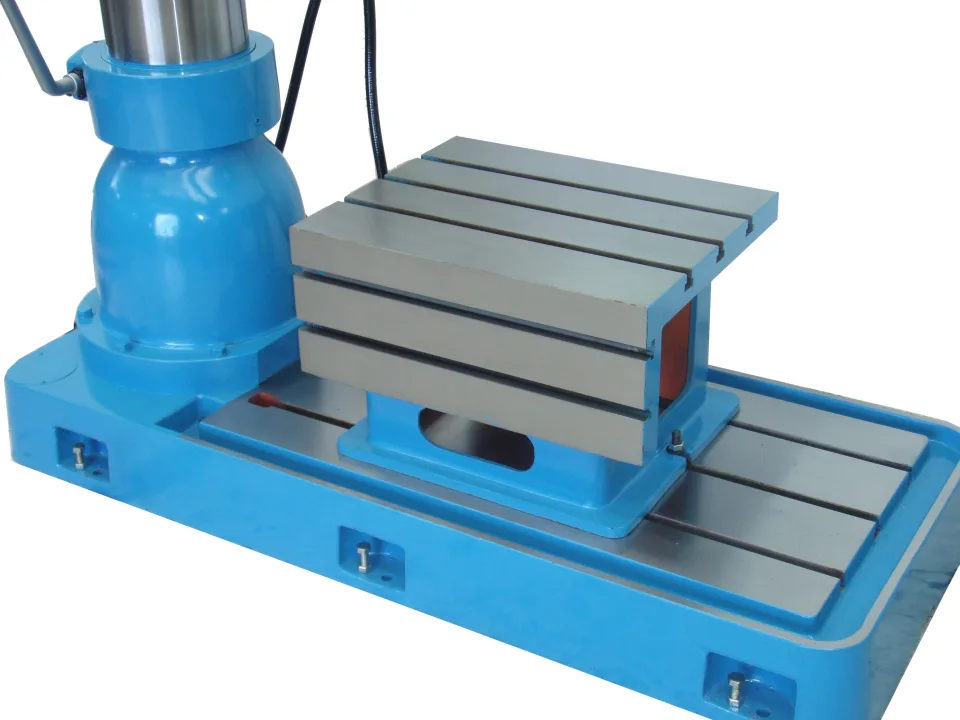

- Box table 635 x 520 x 415mm
- Coolant
- Work light
- 16mm Keyed drill chuck & arbor
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Drilling capacity
42mm
Tapping capacity
M24
Spindle
4MT
Quill travel
230mm
Quill feeds
0.05 / 0.09 / 0.15 mm/rev
Column diameter
260mm
Throat
280 - 1100mm
Spindle to base (maximum)
1270mm
Speed range
37 - 1,253 rpm (12 steps)
Motor power
2.25 kW 3 phase
Dimensions
715 x 1725 x 2320mm
Nett weight
1800 kg
Shipping
3.6 m3 1950 kg
