OPTIMUM B40GSP Geared Head Drilling Machine
Pedestal type c/w Power feed
Product overview
About this machine.
Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.
The Optimum B40GSP is a heavy duty high, performance, column mounted geared head drill designed for demanding workshop environments. Built with a solid cast iron frame and precision ground main spindle. Table can move up/down on rack, rotate around the column 360 degrees, spin 360 degrees and has a generous 120kg load rating. 16mm Keyless drill chuck & arbor (not shown in photos) The B40GSP delivers reliable, high torque drilling suitable for both light industrial and professional metalworking.
Features:
- Heavy-duty solid cast iron construction
- Thick walled cast column (150mm diameter) for high force absorption and stability
- Solid pedestal baseplate with large footprint for maximum stability
- High rigidity fixed drilling head
- Geared head drive with oil-filled, sealed gearbox
- Automatic gearwheel lubrication via oil pump

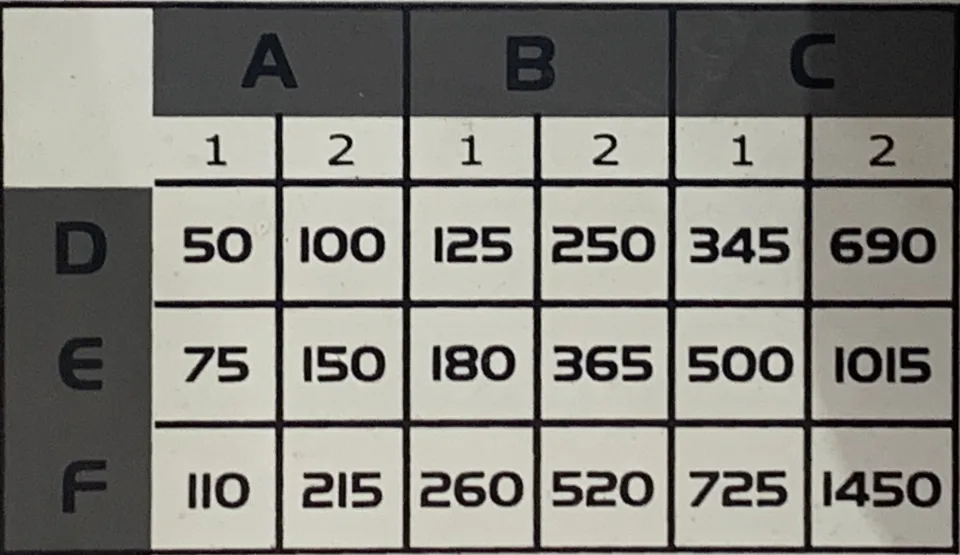

- Large 18-speed range (50-1,450 rpm) for high torque performance
- Three phase, 2-speed motor
- Drilling capacity: 35 mm max in mild steel / 30 mm continuous
- Thread tapping function with forward and reverse
- 4MT spindle taper
- Hardened, ground and polished main spindle for excellent concentricity and low run-out
- 180 mm quill stroke
- 350 mm throat depth
- Mechanical power feed to quill
- Integrated quick-set depth stop with millimetre scale
- Built-in spindle/chuck ejection mechanism (push-out tool)
- Heavy-duty rigid work table
- Table size 560 x 560 mm with diagonal 18 mm T-slots
- Table movement up/down and left/right, plus table rotation
- Integrated coolant system
- Drill chuck safety shield with microswitch
- Emergency stop
- Integrated work light in drilling head
- 16 mm keyless drill chuck & arbor
Standard accessories:
- 16mm Keyless drill chuck & arbor
- Coolant system
Safety Features:
- Latching Emergency stop separate from the on / off buttons
- Drill chuck safety shield with interlocked microswitch
- Main isolation switch with lockout
- Drill ejection system
- CE Conformity
