Luxcut GH-30 Geared Head Drilling Machine
Pedestal type with compound table 230v
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

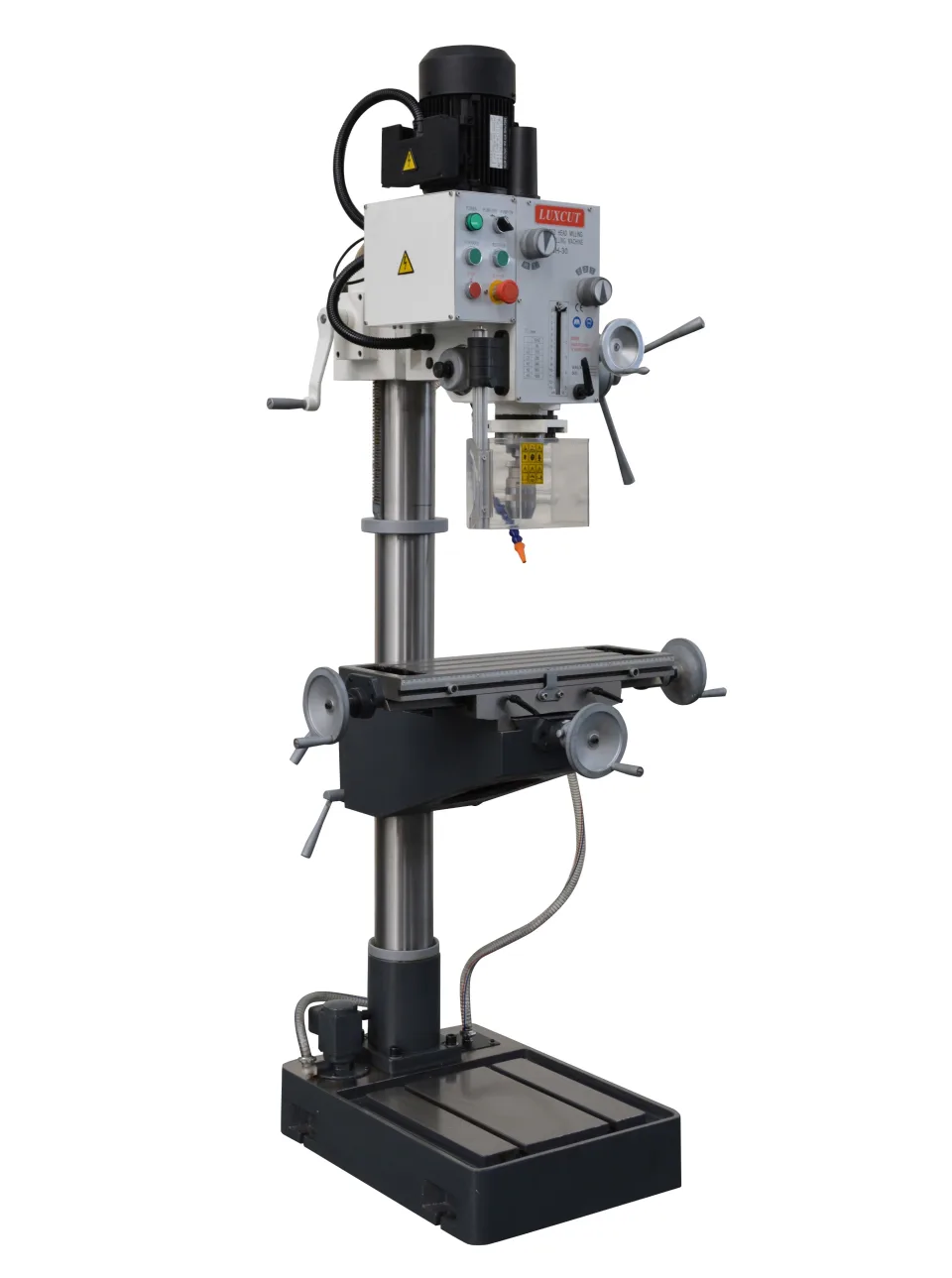

The Luxcut GH30 is a robust geared head drill built for precision and durability. With a 130mm quill travel, six speed head (95-1,600rpm), 4MT spindle, and 30mm steel drilling capacity, it handles tough workshop tasks with ease. Features include a tilting/rotating head, fine-feed handwheel, forward/reverse spindle, coolant system, and a 600 x 190mm compound table with T slots. Powered by a single phase 1.5 kW motor, the GH30 combines reliable performance with versatile setup, ideal for fabrication, prototyping, or general machine shop work.
Features:

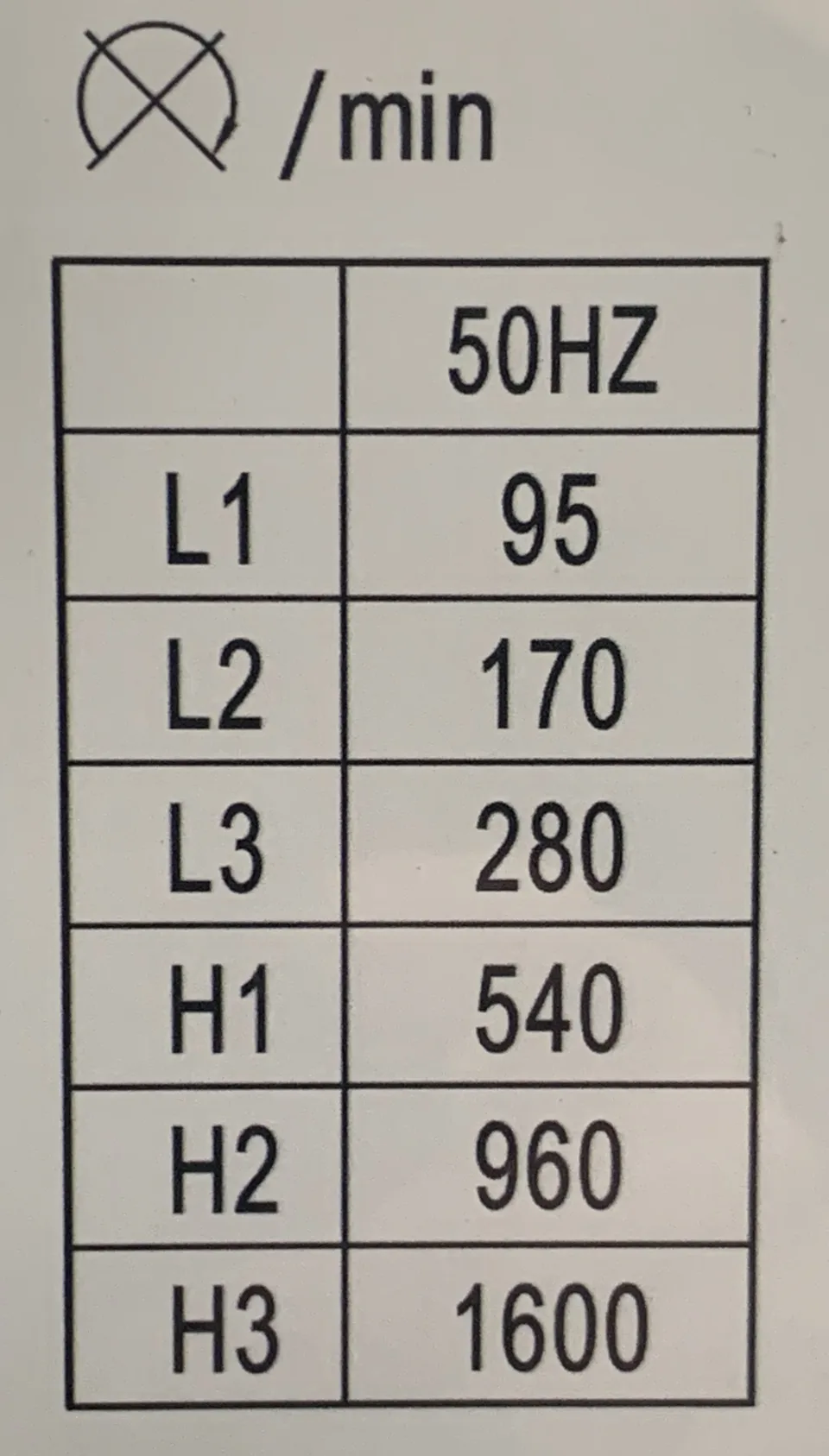

- Geared head drive with 6 speed range (95-1,600 rpm) for smooth, high-torque performance across various materials
- Drilling capacity up to 30 mm in mild steel (maximum) and 25 mm continuous
- 4 MT spindle taper with M16 draw bar
- Tilting and rotating head for angled drilling and versatile setups
- Table can move up/down on rack & rotate around the column 360 degrees
- Integrated fine-feed handwheel for precise depth control
- Forward/reverse spindle operation
- Integrated coolant system for extended tool life
- 600 x 190 mm compound table with 400 x 170 mm X/Y travel, T-slots for secure fixturing
- Tee slots, 12mm table and 14mm base
- Accepts Tee nut M10 x 12mm on compound table
- Accepts Tee nut M12 x 14mm on base

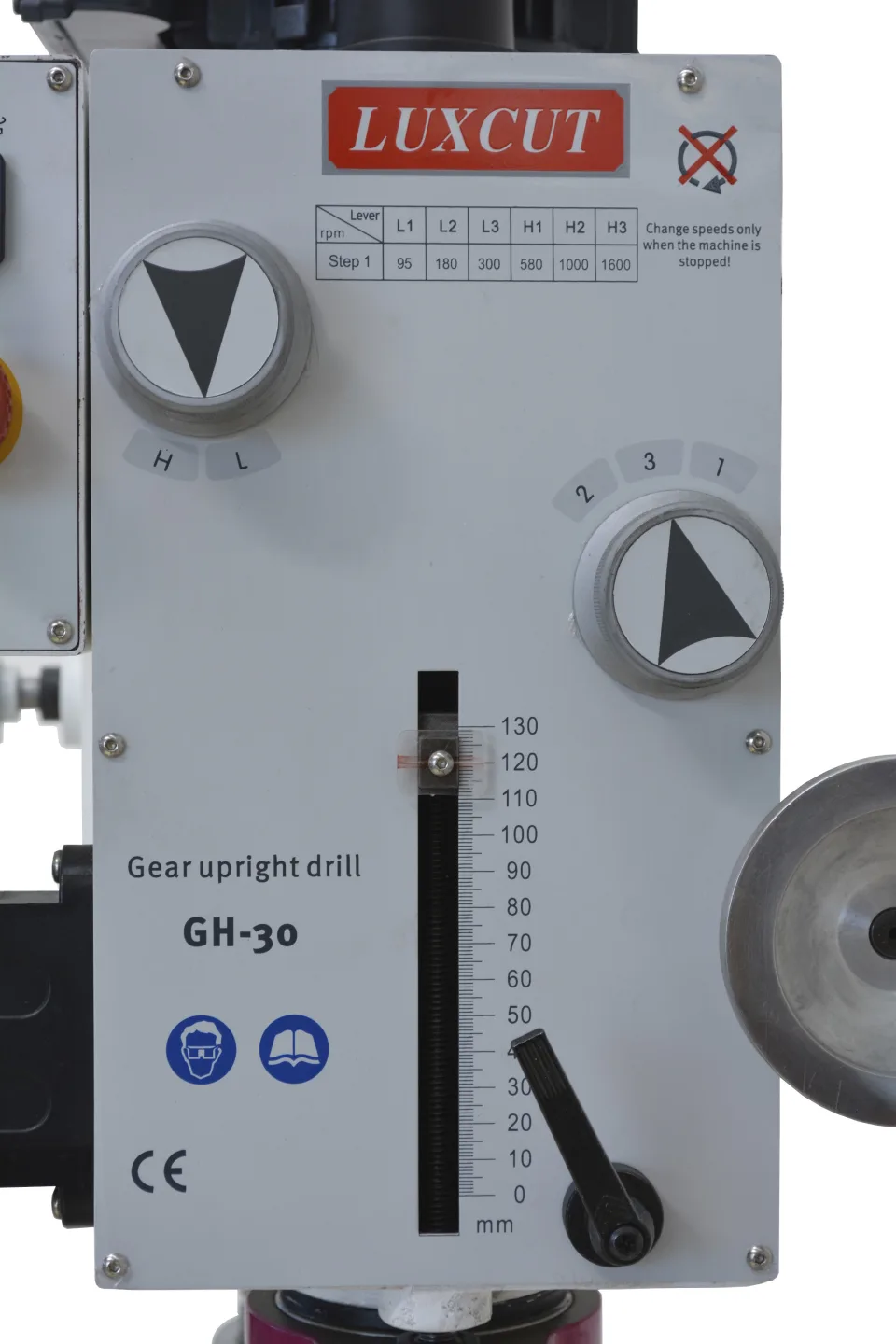

- 130 mm quill travel and 115 mm diameter cast iron column for stability
- Single-phase 230 V, 1.5 kW motor for workshop-friendly operation
- Coolant system
- Pedestal floor mount
- Drilling depth adjustable stop
- Tapping function

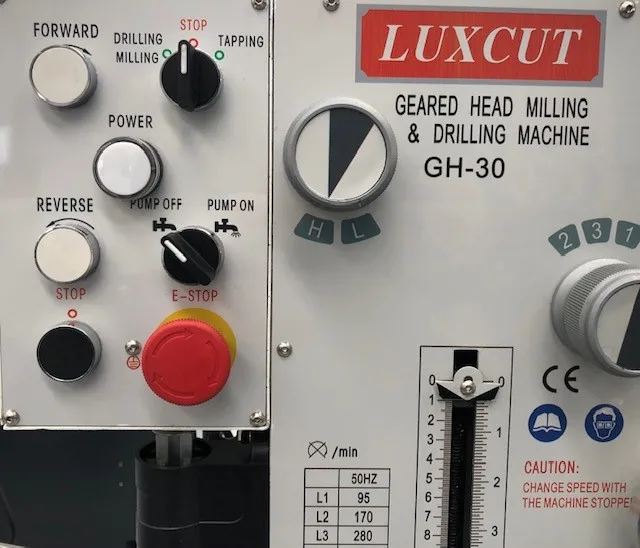

- Forward & reverse spindle direction switch
Standard accessories:
- 16mm Keyless drill chuck & arbor
- Integrated coolant system
Safety features:
- Latching Emergency stop separate from the on / off buttons
- Drill chuck safety shield with interlocked microswitch
- Main isolation switch with lockout
