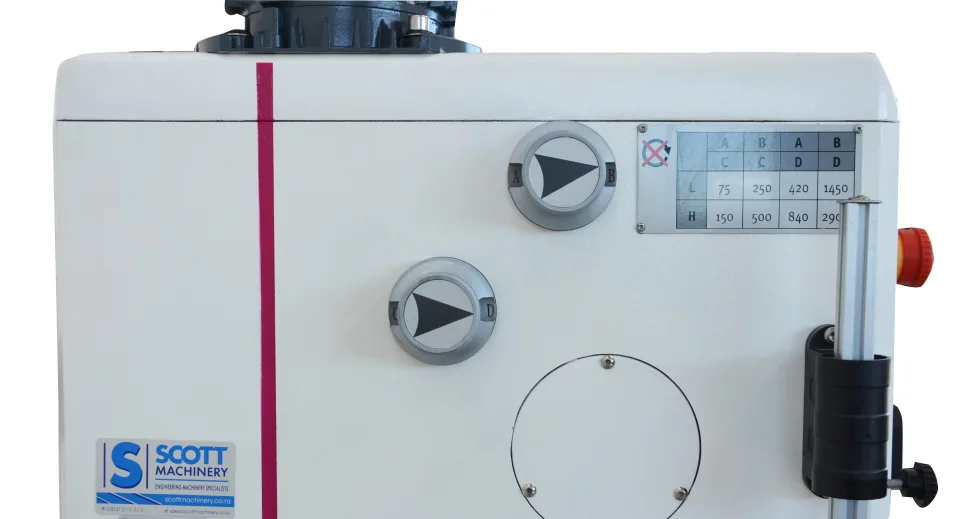

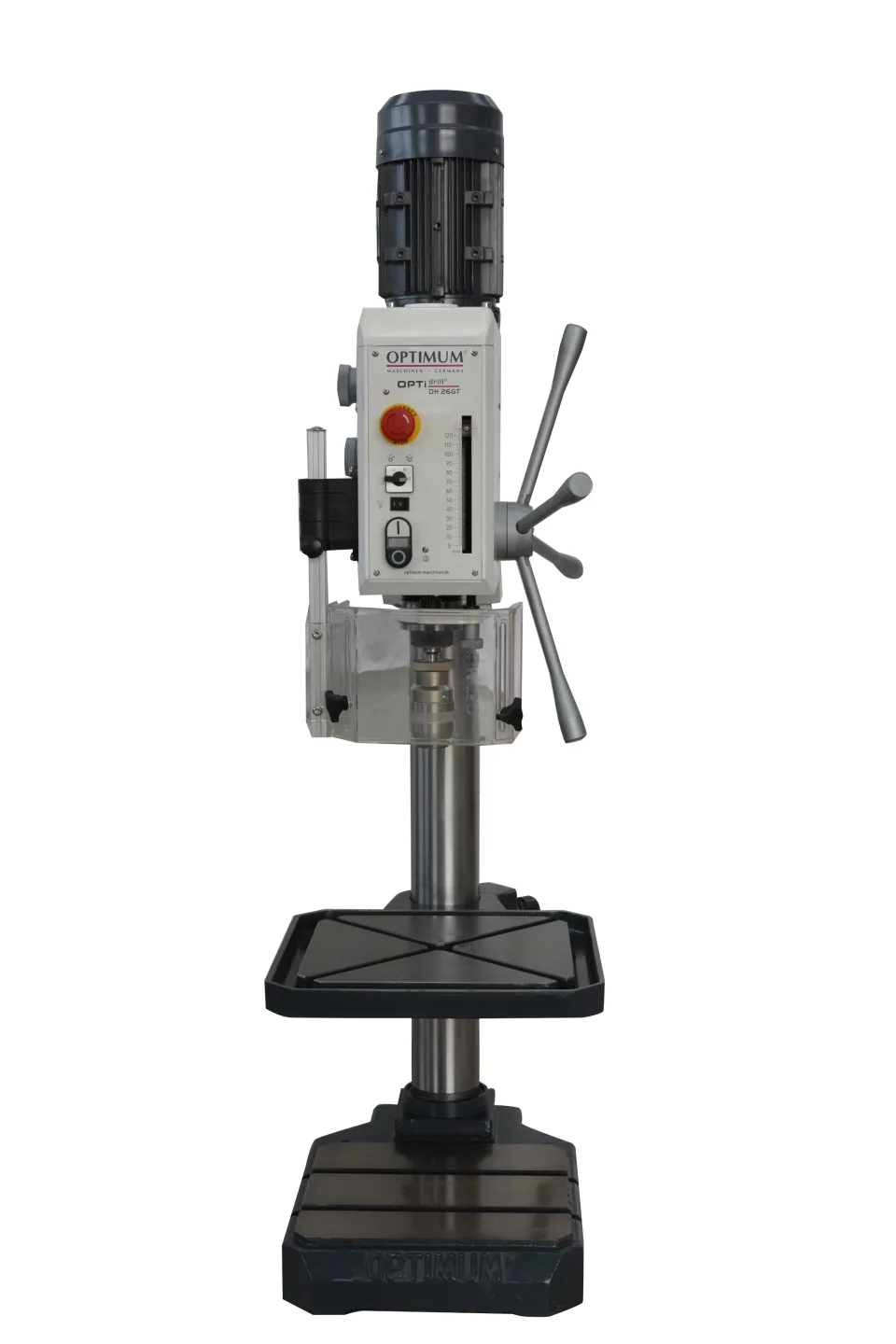

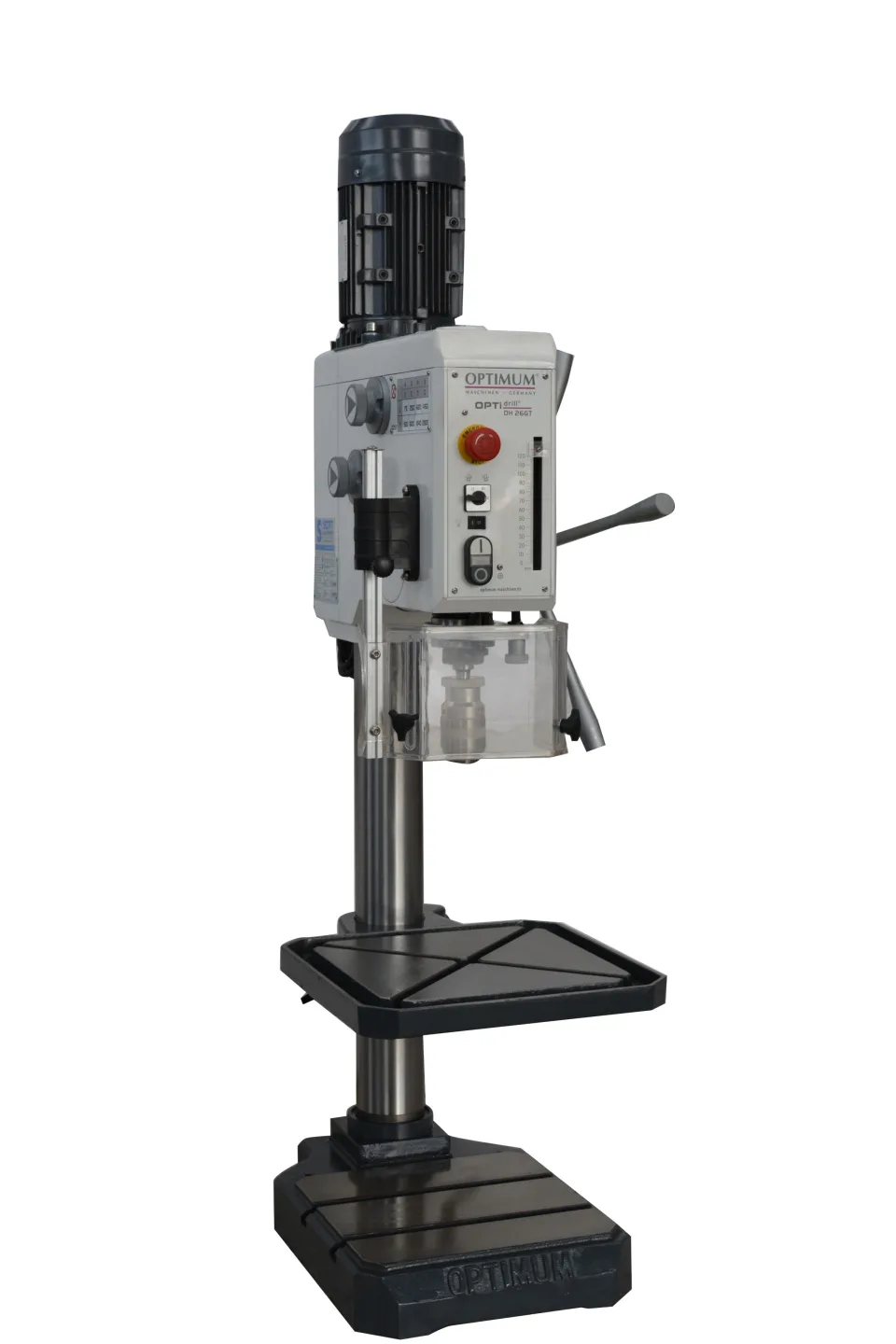

OPTIMUM DH26GT Geared Head Drilling Machine
Bench mount
Product overview
About this machine.
Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.
The Optimum DH26GT is a high performance, bench mounted geared head drill designed for demanding workshop environments. Built with a solid cast iron frame and precision ground main spindle, it delivers reliable, high torque drilling suitable for both light industrial and professional metalworking.
Features:

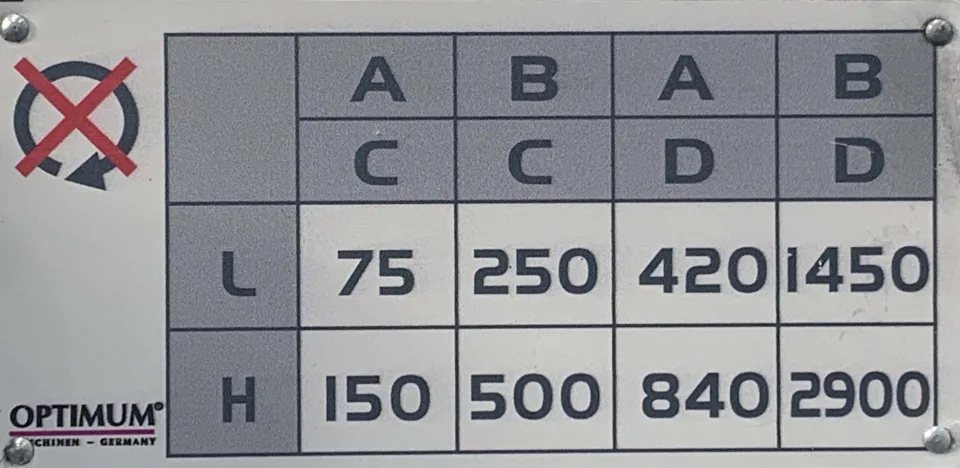

- Geared head drive with 8 speed range (75-2,900 rpm) smooth, high-torque performance for various materials
- Drilling capacity up to 26 mm in mild steel (maximum) and 21 mm continuous
- 3MT spindle taper
- Hardened and ground spindle ensures concentric accuracy and low run-out
- Large 380 x 380 mm table with diagonal 14 mm T slots, rotatable 360 degree, for versatile setups
- 127 mm quill stroke and 235 mm throat depth for handling larger workpieces
- Low maintenance gearbox with grease lubricated PA6 gears
- Integrated depth stop with millimeter scale, spindle ejection mechanism, chuck guard with microswitch, and built-in LED lamp
- Robustly built thick-walled cast-iron column (92 mm diameter), and total weight 166 kg for stable operation
- 16mm Keyless drill chuck & arbor
Standard accessories:
- 16mm Keyless drill chuck & arbor
Safety Features:
- Latching Emergency stop separate from the on / off buttons
- Drill chuck safety shield with interlocked microswitch
- Main isolation switch with lockout
- Drill ejection system
- CE Conformity
