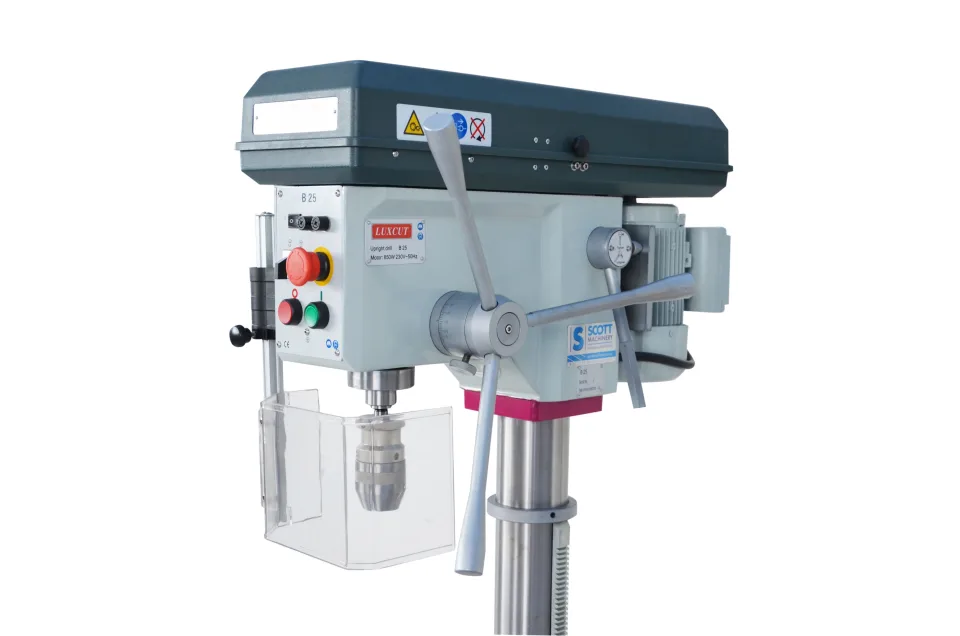

OPTIMUM B-28H Belt Drive Drilling Machine
Pedestal type
Product overview
About this machine.
Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

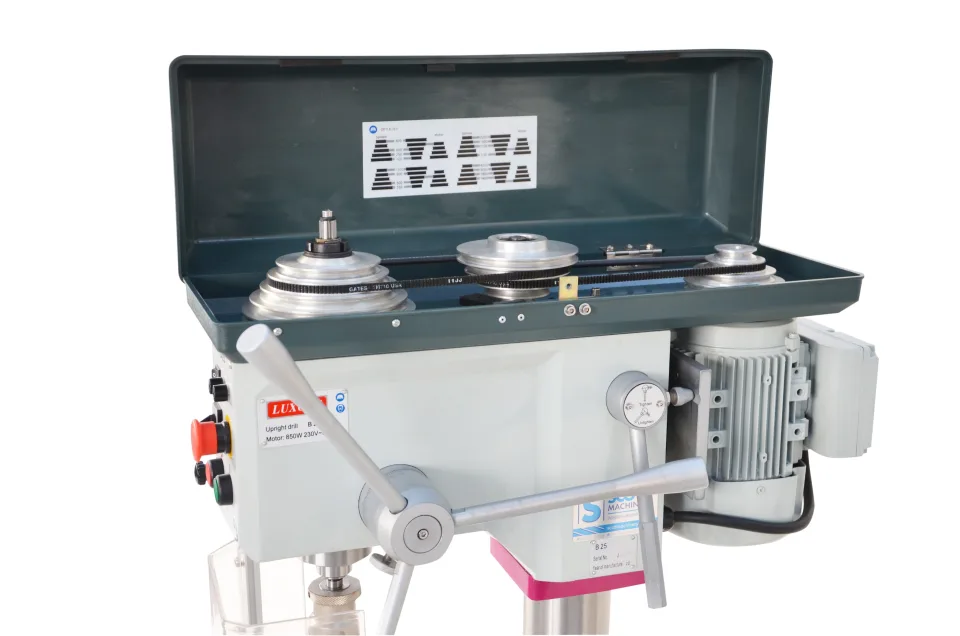

The Optimum B28H is a high performance belt drive pedestal drill designed for professional workshops, fabrication environments, and industrial users. Built with precision in mind, this floor standing drill press combines a powerful motor with a smooth, quiet running belt drive system. Engineered to German quality standards, the B28H delivers reliable, vibration free performance and superior drilling accuracy even under continuous load. Its construction and versatile features make it ideal for drilling steel, non-ferrous metals, and plastics.
Features:

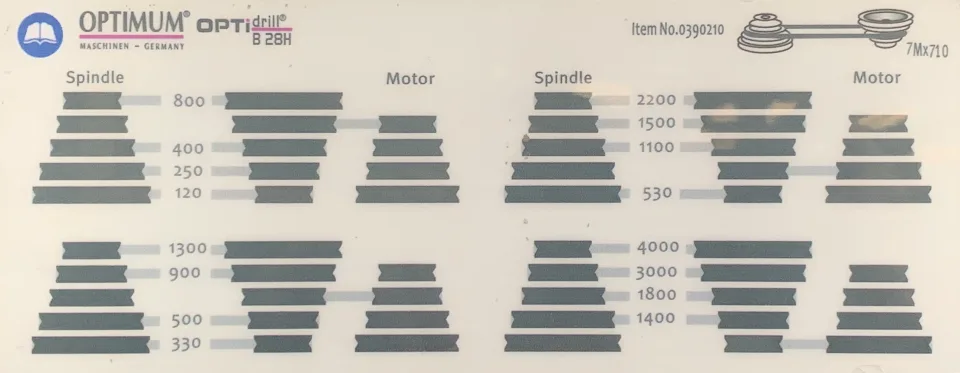

- Belt drive with 16 speed range (120-4,000 rpm) smooth, performance for various materials
- Drilling capacity up to 25mm in mild steel (maximum) and 21mm continuous
- 3MT spindle taper
- Hardened and ground spindle ensures concentric accuracy and low run-out

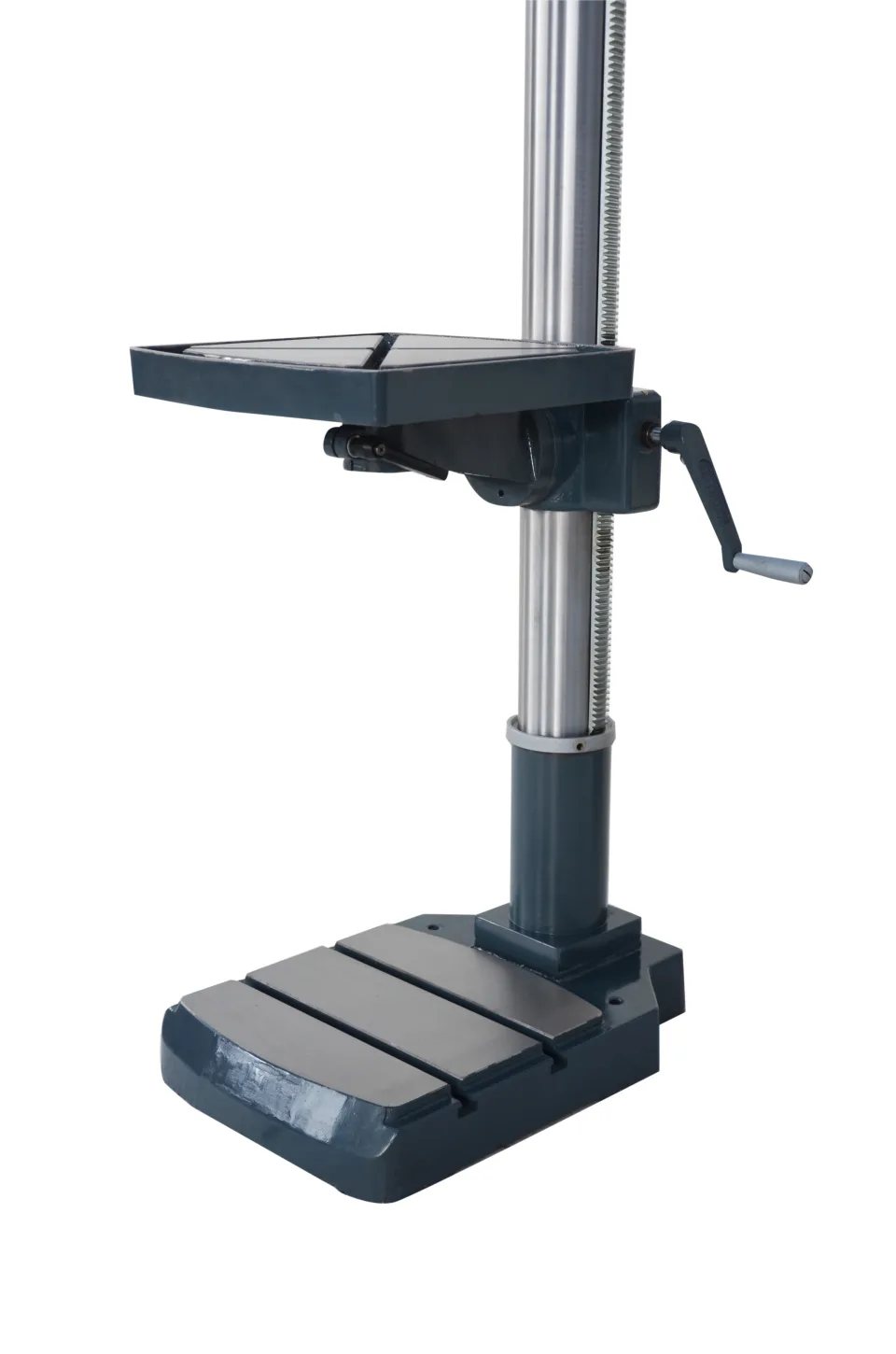

- Large 330mm x 360mm table with diagonal 14mm T slots, rotatable 360 degree, and tilting surface for versatile setups
- 105mm spindle stroke and 200mm throat depth for handling larger workpieces
- Integrated depth stop with millimeter scale, spindle ejection mechanism, chuck guard with microswitch, and built-in LED lamp
Standard accessories:
- 16mm Keyless drill chuck & arbor
- Two 12 x 14 "tee" nuts to suit table and pedestal
Safety Features:
- Latching Emergency stop separate from the on / off buttons
- Zero voltage
- Drill chuck safety shield with interlocked microswitch
- Interlock switch on the V belt cover
- Main isolation switch with lockout
- CE Conformity
