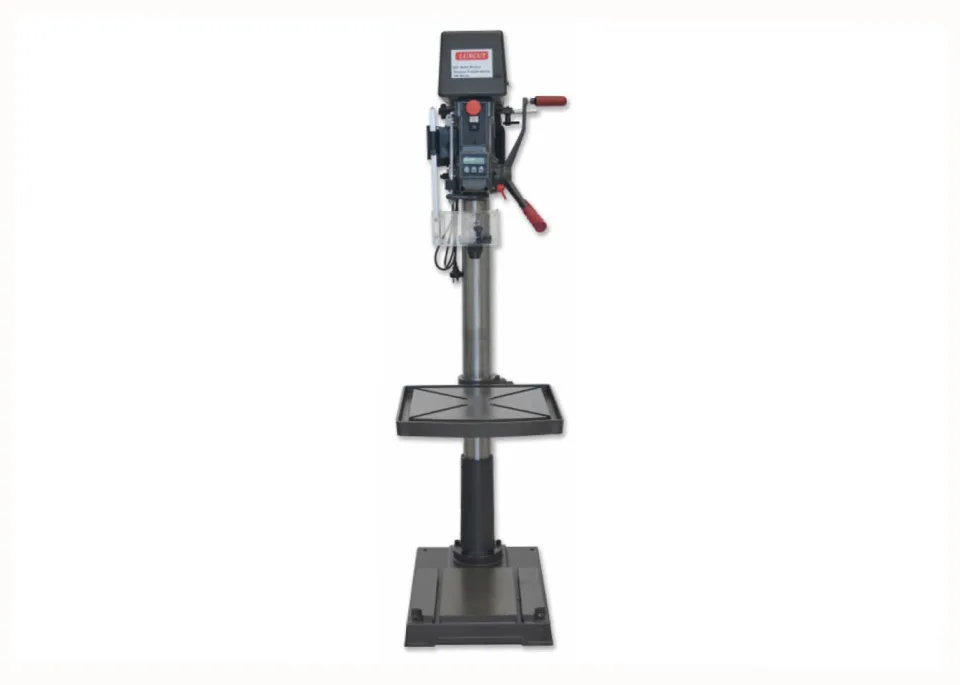

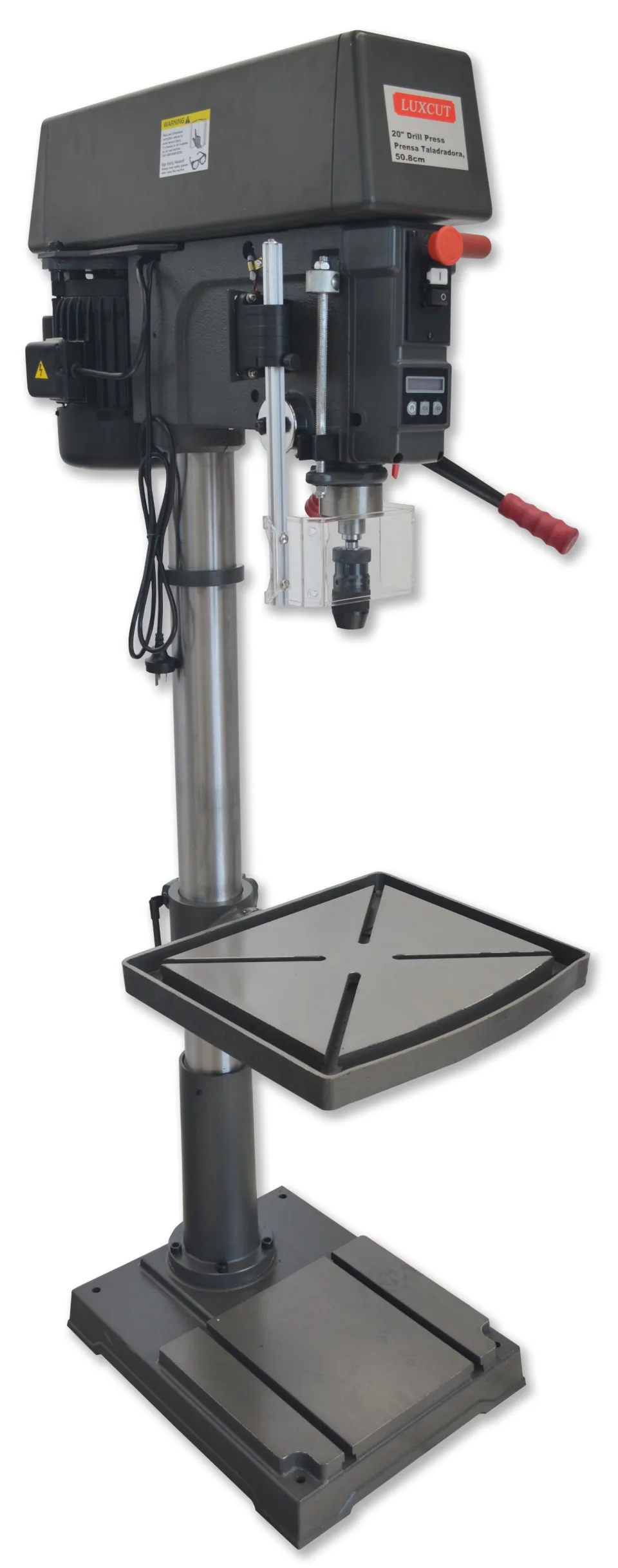

LUXCUT 20F Belt Drive Drilling Machine
Pedestal type
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks
The LUXCUT 20F is a column mounted, belt driven drill press designed to meet both workshop and DIY demands with precision and durability. Its impressive specs and thoughtful features make it a practical choice for accurate, repeatable drilling tasks.
Features:

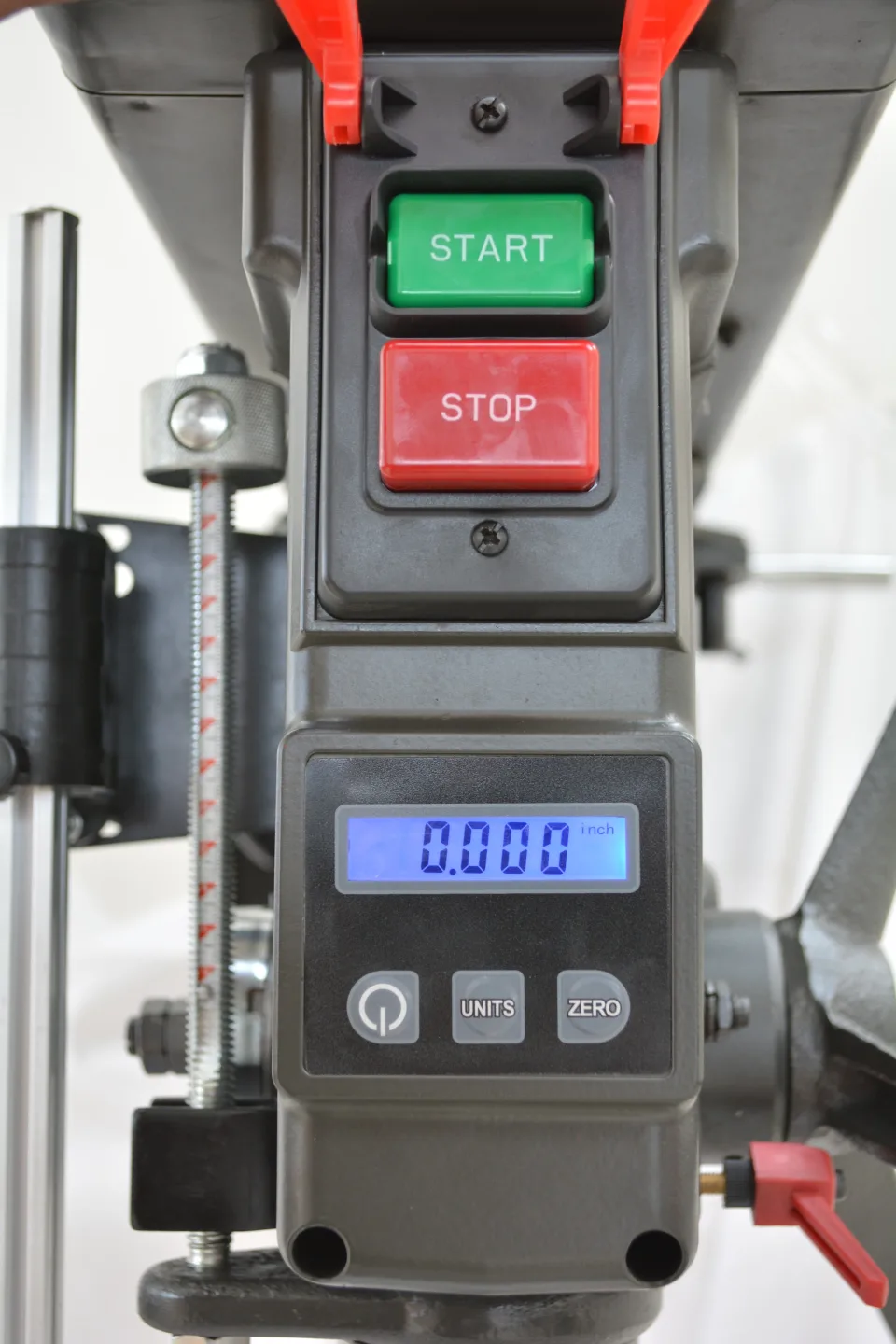

- Digital Quill Depth Display
- Digital speed display (RPM)
- Allows you to zero in on precise drilling depths and easily reference depth for repeat accuracy.
- Sixteen Speed Belt Drive System
- Offers a convenient speed range from 100 rpm up to 3,004 rpm, accommodating various materials and bit sizes.
- Reliable Motor and Safety Design
- Powered by a single phase 750 W (1 HP) motor, paired with a spindle protection guard and a safety micro switch on the pulley guard to enhance operator safety.
- The 422 x 473mm table can tilt +/-45 degrees and rotate, thanks to its 14 mm T-slot configuration ideal for angled or complex drilling.
- Weighing in at 152kg with a 92mm column and 1772 mm overall height, it offers a sturdy base that minimizes vibration during operation.
- Features include a keyless 16 mm chuck, adjustable quill depth stop with lock, and a Morse Taper (3MT) spindle taper balancing usability with mechanical precision.
Safety features:

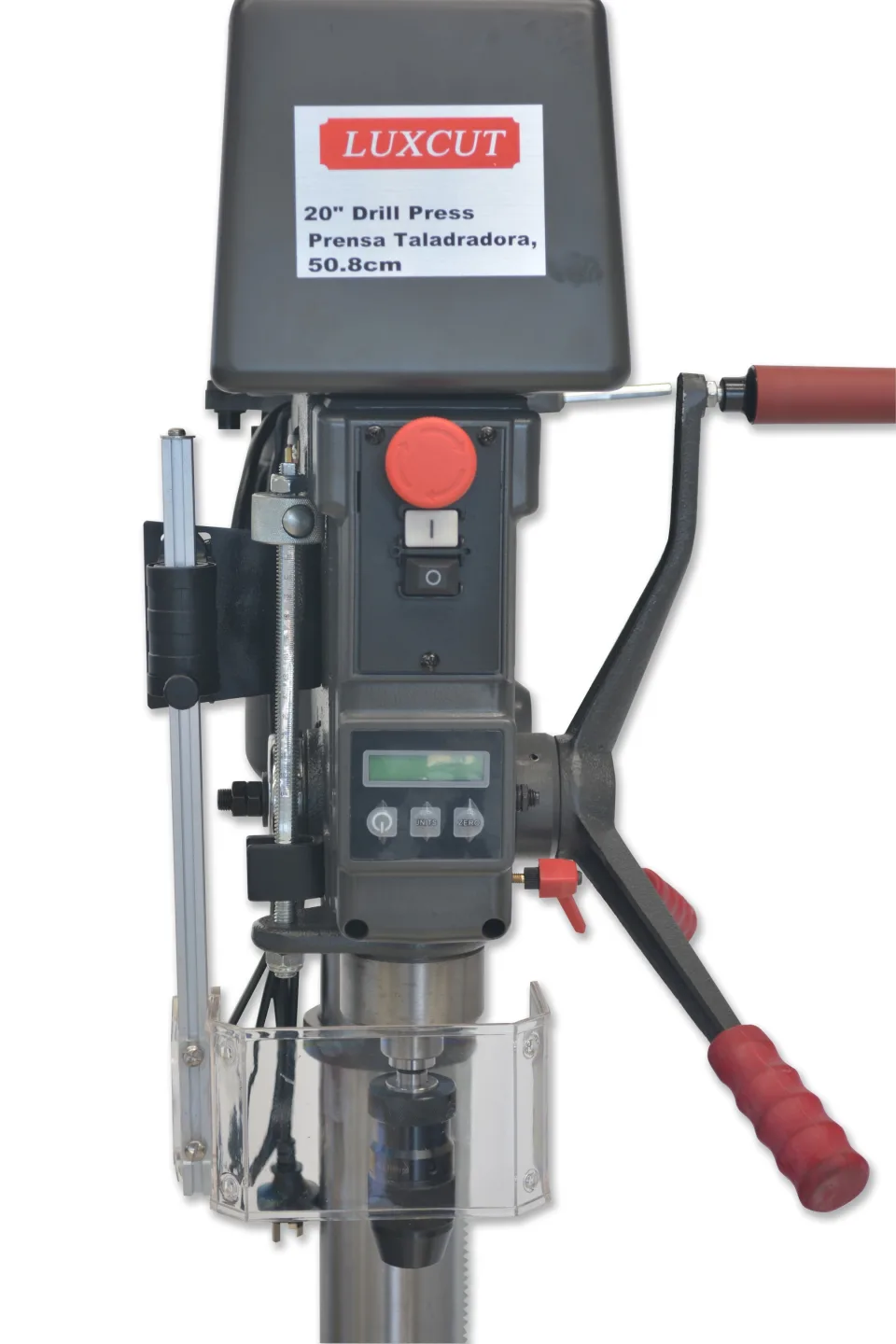

- Latching Emergency stop separate from the on / off buttons
- Drill chuck safety shield with interlocked microswitch
- Main isolation switch with lockout
