LUXCUT 15B Belt Drive Drilling Machine
Bench mount
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

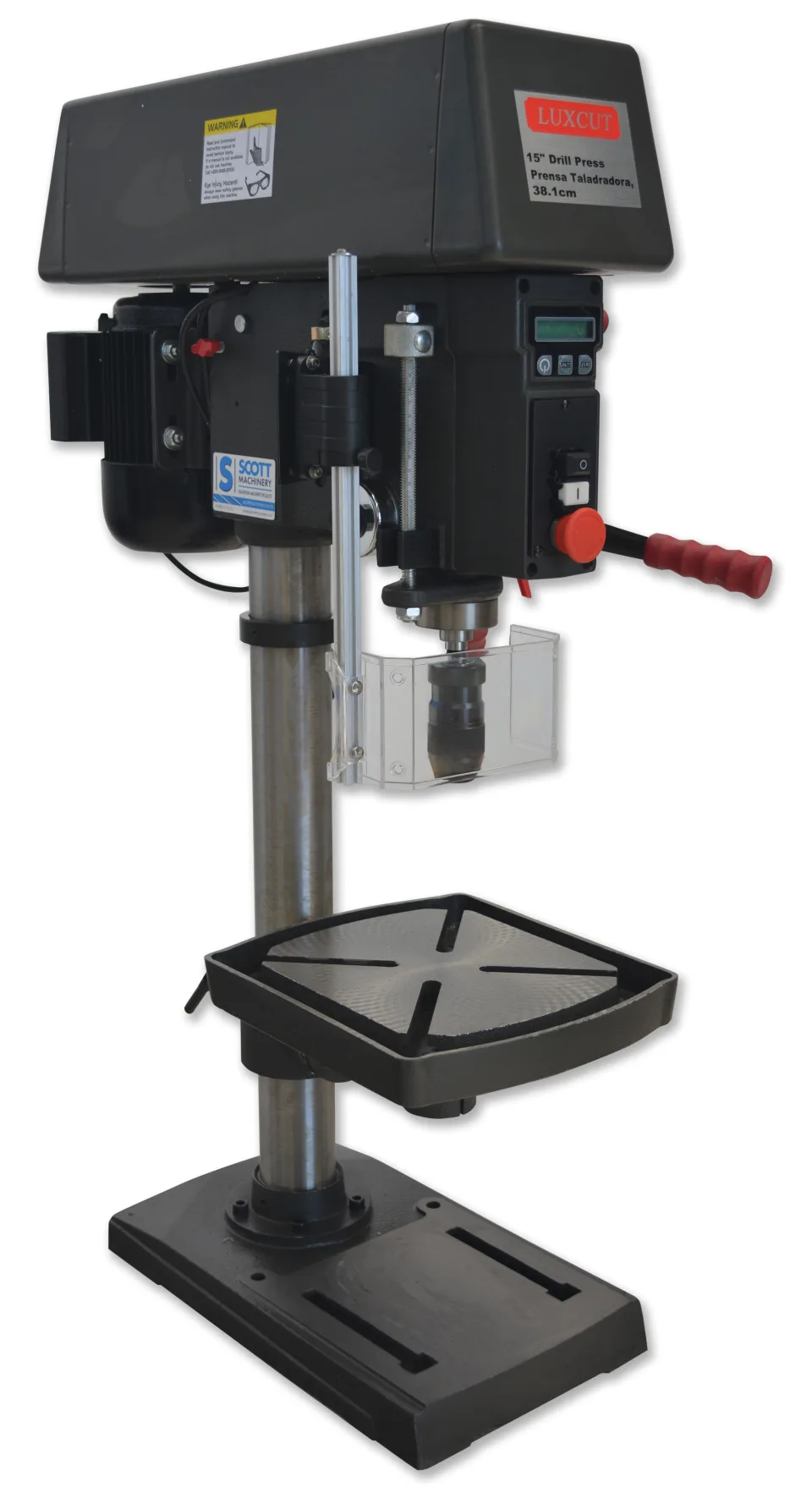

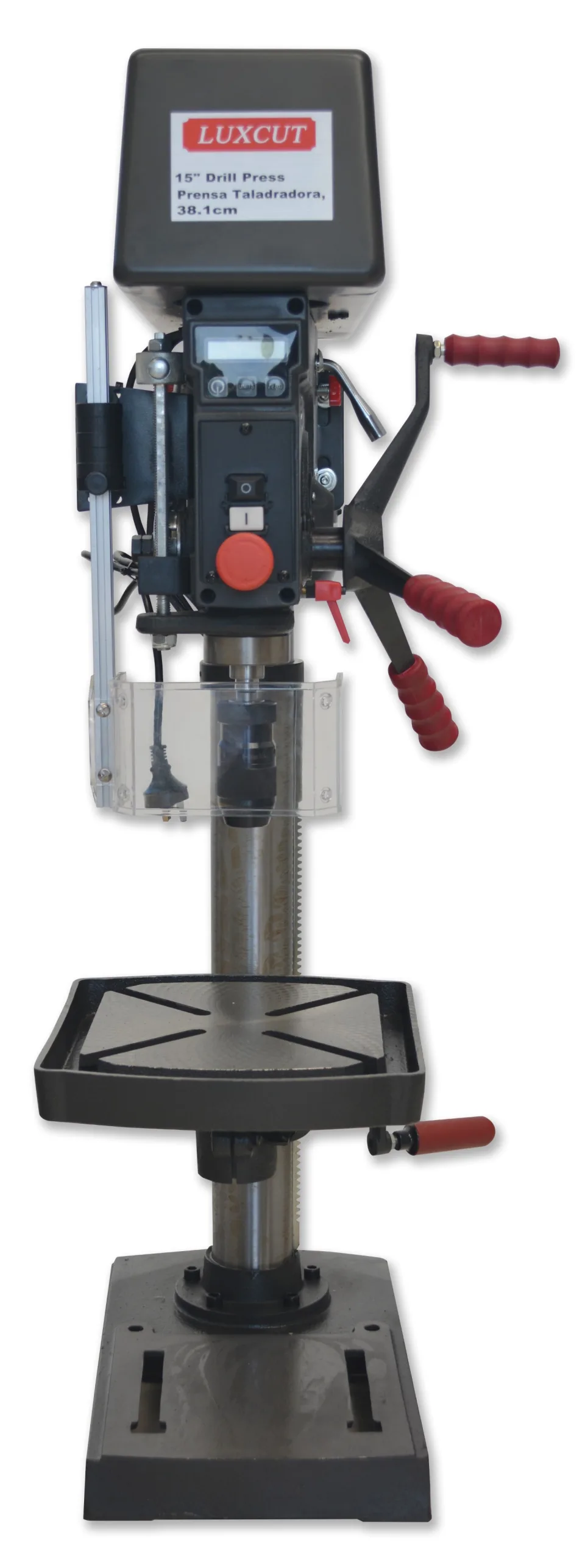

The LUXCUT 15B is a bench mounted, belt driven drill press designed to meet both workshop and DIY demands with precision and durability. Its impressive specs and thoughtful features make it a practical choice for accurate, repeatable drilling tasks.
Features:

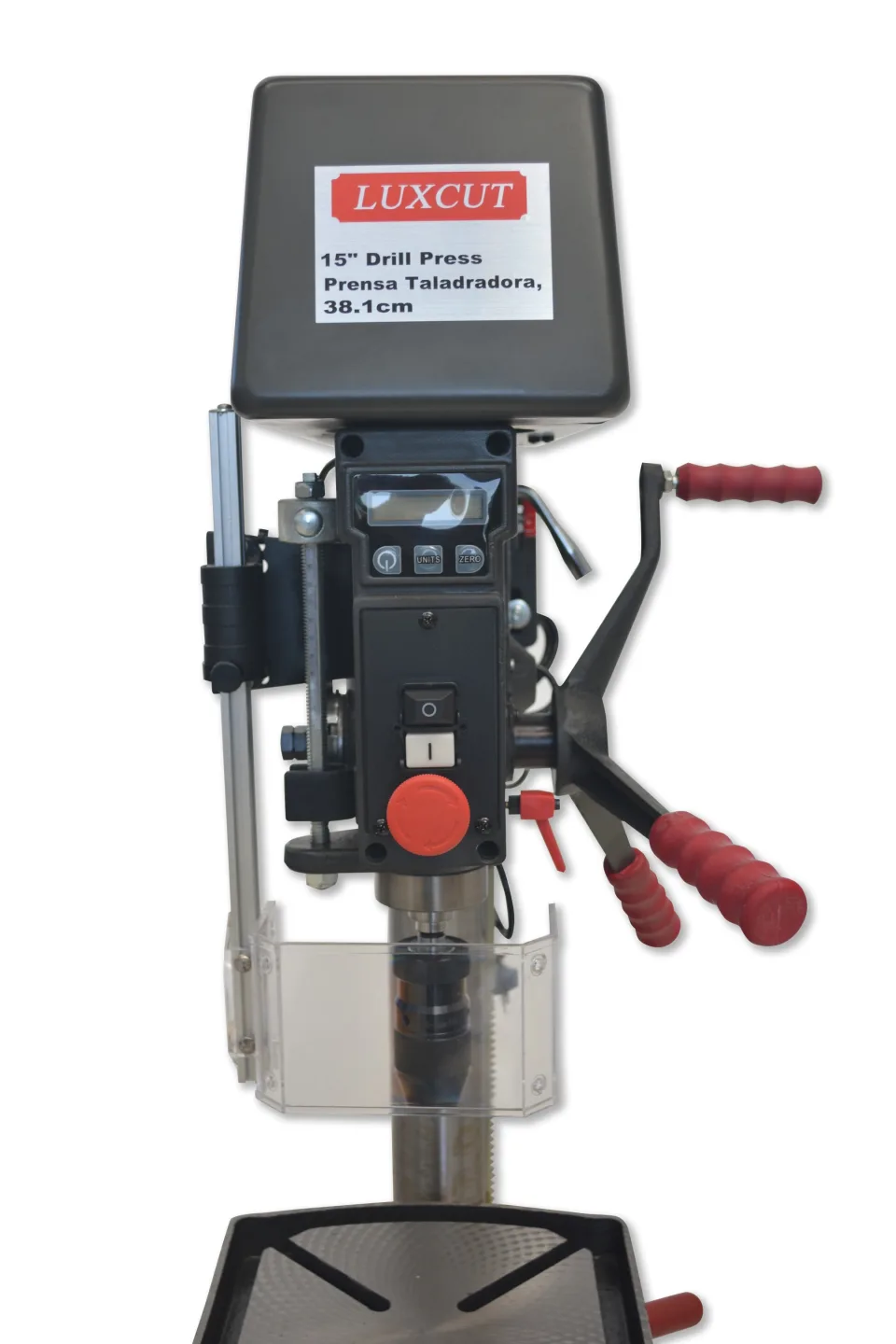

- Digital Quill Depth Display
- Digital speed display (RPM)
- Allows you to zero in on precise drilling depths and easily reference depth for repeat accuracy.

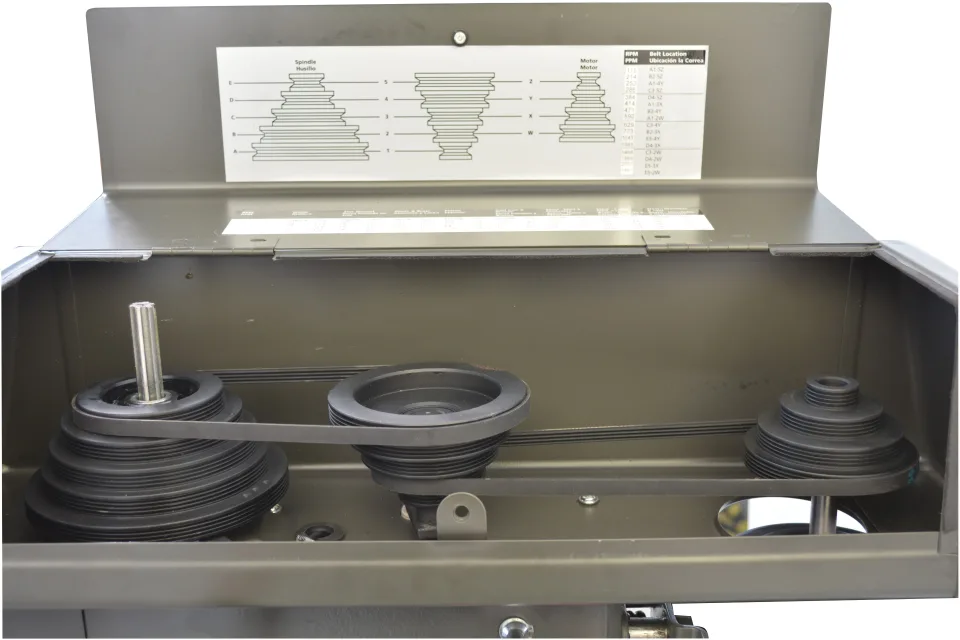

- Sixteen Speed Belt Drive System
- Offers a convenient speed range from 115 rpm up to 2,897 rpm, accommodating various materials and bit sizes.
- Reliable Motor and Safety Design
- Powered by a single phase 750 W (1 HP) motor, paired with a spindle protection guard and a safety micro switch on the pulley guard to enhance operator safety.
- The 317 x 330 mm table can tilt +/-45 degrees and rotate, thanks to its 14 mm T-slot configuration ideal for angled or complex drilling.
- Weighing in at 79 kg with a 73 mm column and 1092 mm overall height, it offers a sturdy base that minimizes vibration during operation.
- Features include a keyless 16 mm chuck, adjustable quill depth stop with lock, and a Morse Taper (2MT) spindle taper balancing usability with mechanical precision.
Safety features:
- Latching Emergency stop separate from the on / off buttons
- Drill chuck safety shield with interlocked microswitch
- Main isolation switch with lockout
