Linworth RMX 2500 ProtoTRAK CNC Mill
3 axis
Product overview
About this machine.

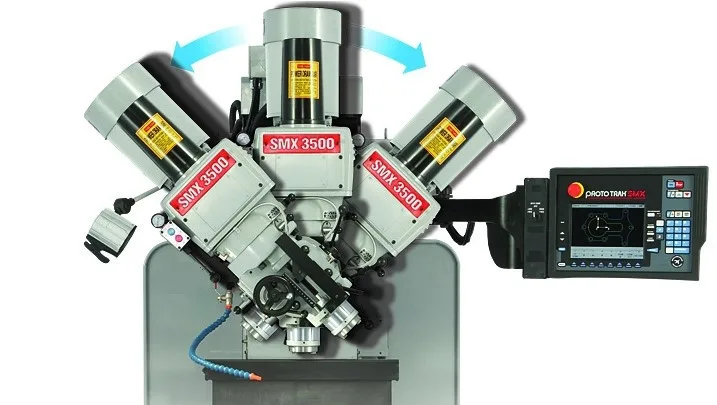

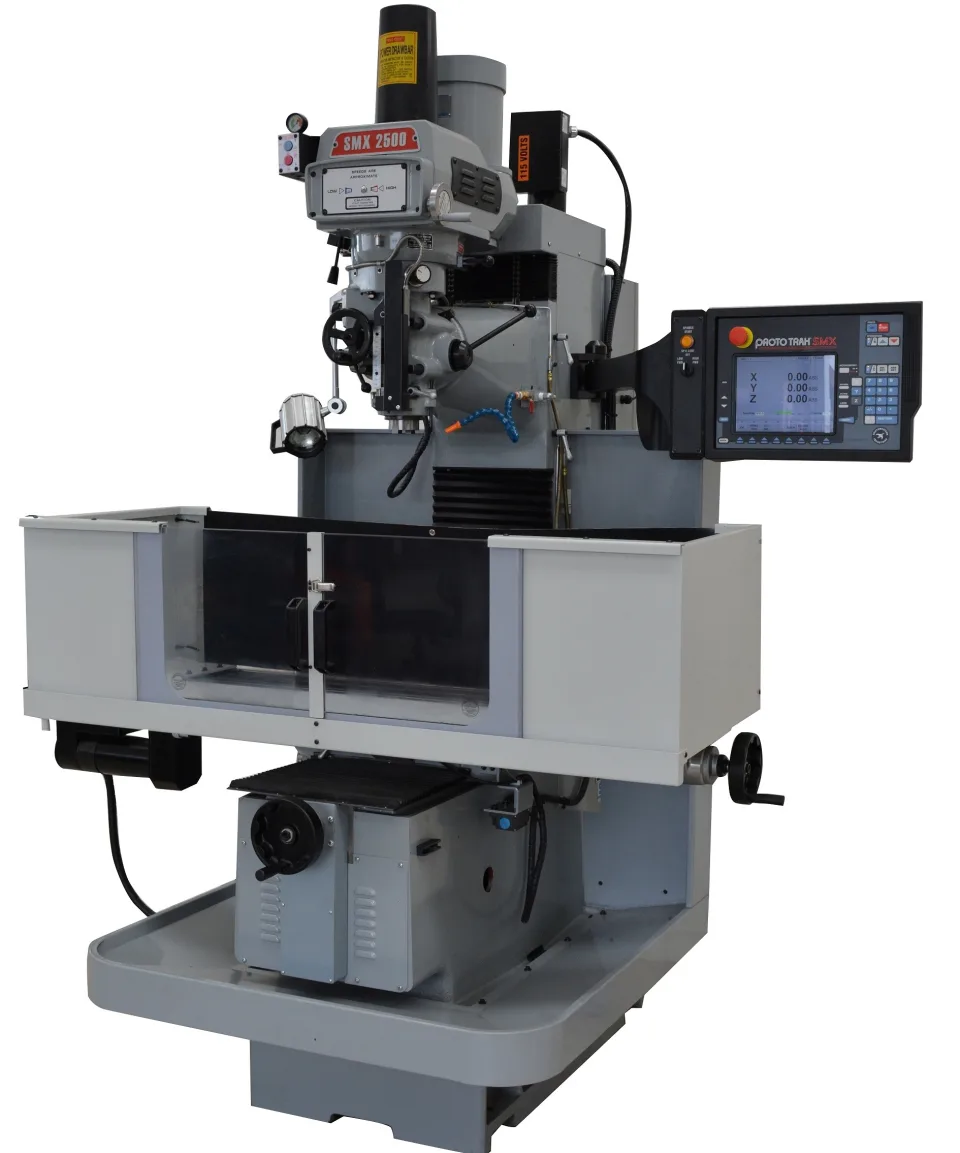

Note: Some machine images shown with SMX control, & optional electronic handwheels.
This brings large milling within reach of all NZ toolrooms.
The Linworth mill interfaced with the ProtoTRAK RMX CNC Controller offers a proven rigid construction solid slide-way fixed bed milling solution.
This 3 axis CNC offers the latest ProtoTRAK technology. Canned cycles include pockets of every shape conceivable, pockets with islands, thread milling, bolt hole patterns, drilling, tapping and boring. AGE profiling means no more calculations! With the unique "guess" key, if a dimension is missing from the drawing simply "guess" the approximate position of a point or intersection, 3D surfacing with on board DNC and the capability to handle virtually unlimited program size.
Features

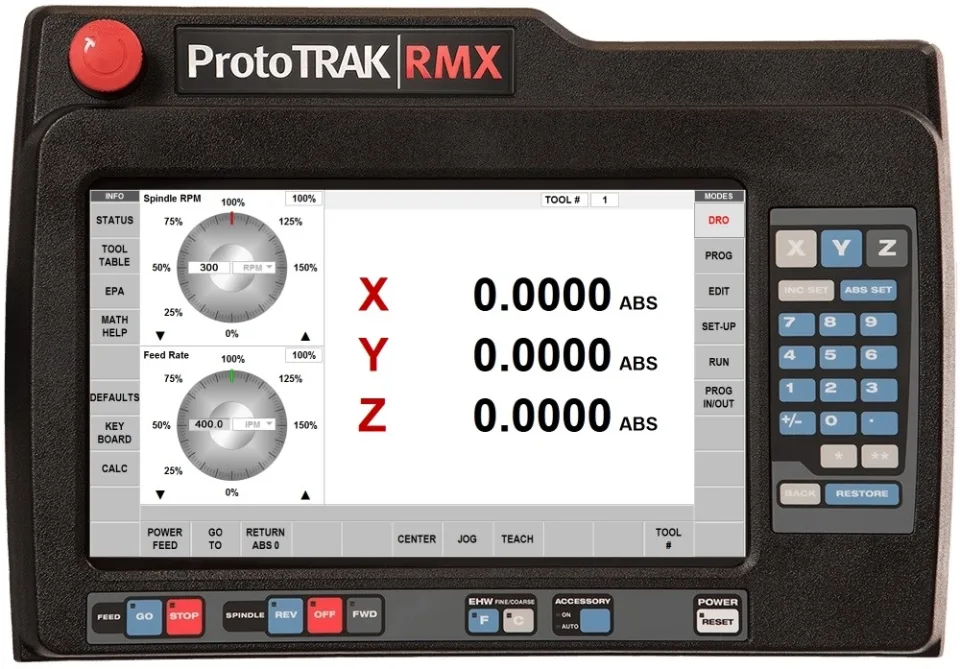

- ProtoTRAK RMX CNC
- Solid ram moves along the column providing mass for heavy cuts
- Generous Z-axis CNC travel
- Strong and rigid construction
- Manual quill with integrated quill and ram encoders
- Real handwheels for manual control (electronic handwheels and TRAKing are optional)
- Efficient for any job: manual, 2-axis CNC or 3-axis CNC
- Spindle: 2.25 kW (3hp) Programmable Variable Speed Head
- Precision ground ballscrews installed in the table, saddle and column
- Wide way surfaces are hardened and ground, slideways are Turcite® coated
- Delta servo drives & brushless AC motors
- 15.6" touchscreen
Scott package includes
- 3HP spindle motor
- Automatic Lubrication
- Limit switches X, Y & Z

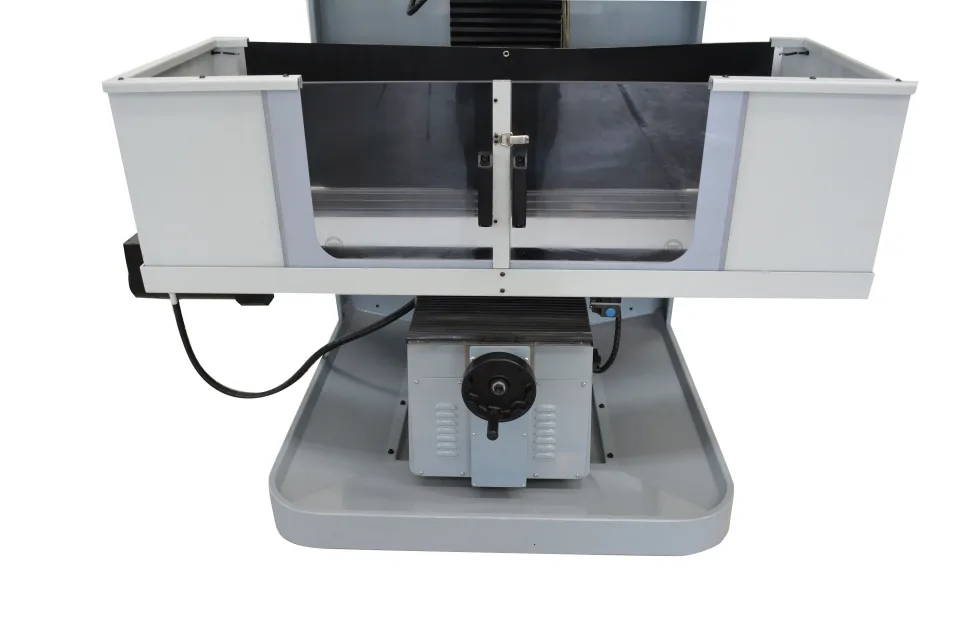

- Coolant system and coolant tray
- Halogen work light
- X & Y axis manual hand wheels
- 2 speed ranges
- Z axis head movement via jog / goto or programming
- Air power drawbar for tool release
- Advanced features
