King Rich KMX SLV ProtoTRAK CNC Mill
2 axis
POA
CNC-0-9831 | Prices exclude GST
Product overview
About this machine.
Note: Some machine images shown with SMX control.
1000mm of ''X'' Travel makes this one of the largest turret mills on the market.
The King Rich KR-V3000SL interfaced with the ProtoTRAK KMX CNC Controller offers a proven rigid construction solid slide-way turret milling solution.
This 2 axis CNC offers the latest ProtoTRAK technology. Canned cycles include pockets of every shape conceivable, pockets with islands, thread milling, bolt hole patterns, drilling, tapping and boring. AGE profiling means no more calculations! With the unique guess key, if a dimension is missing from the drawing simply guess the approximate position of a point or intersection.
NB: Guards removed for clarity
Features

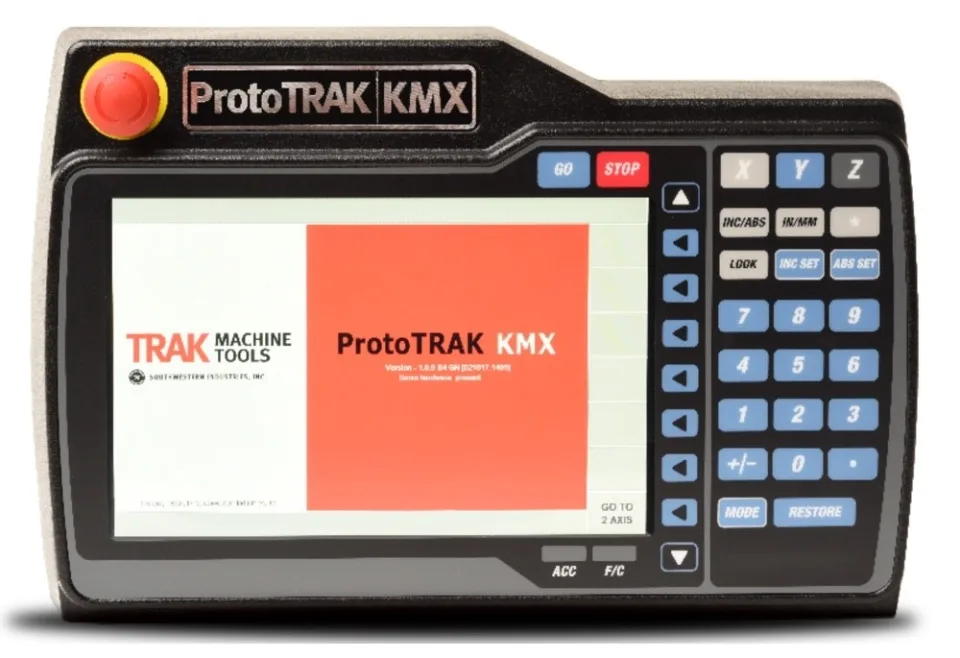

- ProtoTRAK KMX CNC
- 2-axis CNC, 3-axis DRO
- Manual quill with DRO
- Meehanite castings
- Standard Newall Microsyn scale for quill Z readout
- Precision ground ballscrews installed in the table and saddle
- Delta servo drives & motors
- Real handwheels for manual control (electronic handwheels and TRAKing are optional)
- Wide way surfaces are hardened and ground, slideways are Turcite coated
- Forward/backward head tilt is held by 8 bolts through the knuckle to increase stiffness in the head.
Scott package includes
- Automatic Lubrication
- Limit switches X & Y

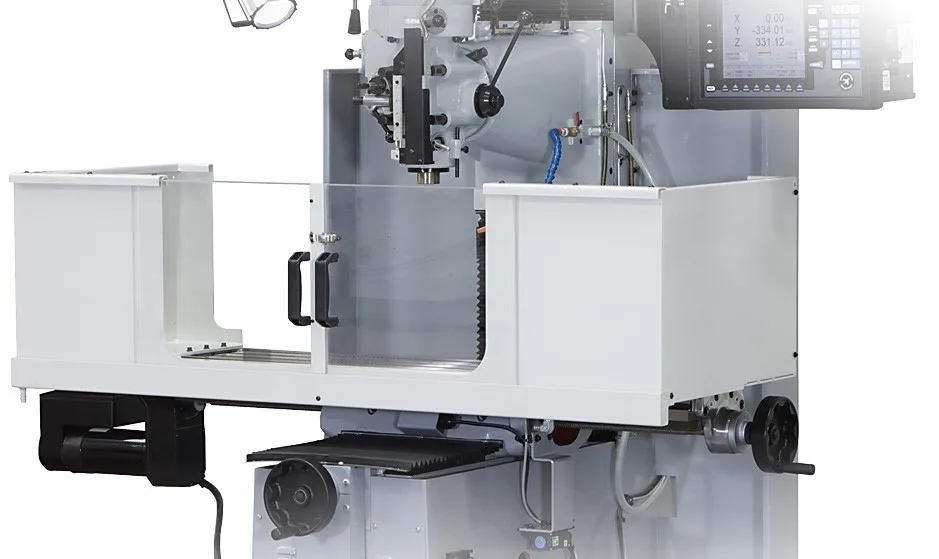

- Coolant system and fibreglass coolant tray
- Halogen work light
- X & Y axis manual hand wheels
- 2 speed ranges
- Power elevating knee
- Air power drawbar for tool release
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
KMX SLV
Table size
1473 x 305mm
Table load capacity
580kg
Longitudinal travel of table
1016mm
Cross travel of table
410mm
Knee vertical travel
400mm
Ram travel
450mm
Spindle nose to table
50 - 450mm
Spindle speed range
60 - 3000rpm
Quill power feeds
.038 / .76 / .15 mm/rev
Quill travel
127mm
Quill diameter
105mm
Head tilt left to right
90deg - 90deg
Head tilt front to back
45deg - 45deg
Spindle taper
NT40
Spindle motor power
3.75kW (5hp)
Weight
1850kg
Shipping
1900kg 6.4m3
