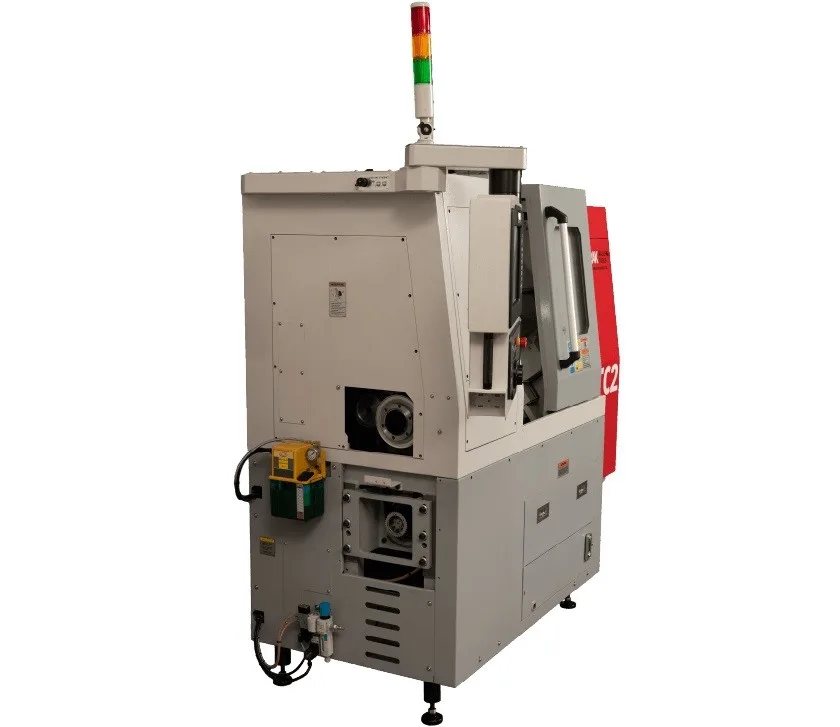

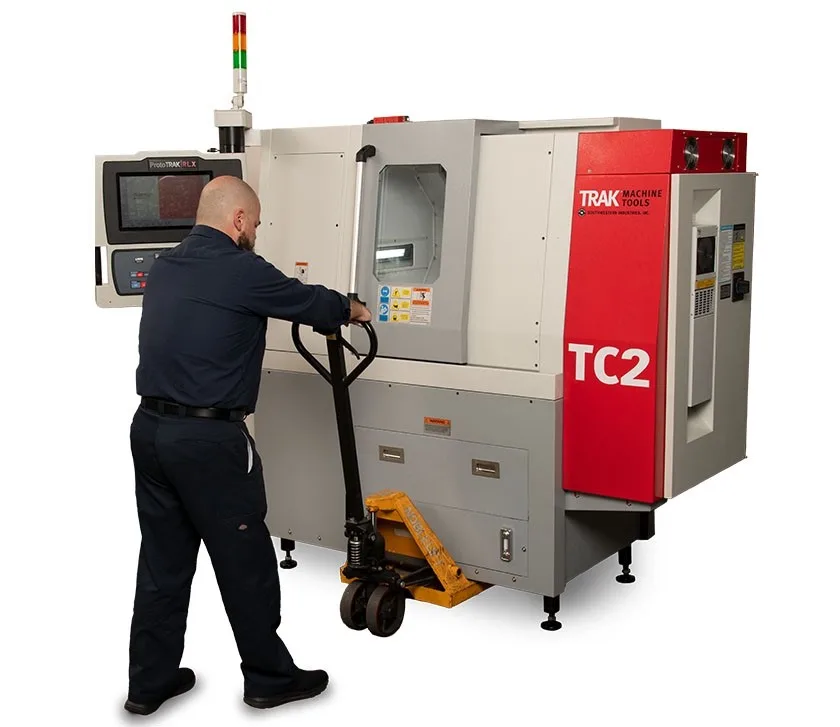

ProtoTRAK Proturn RLX TC2 Slant Bed CNC Lathe

Product overview

About this machine.

Capacity, capability portability, & value! After the first day you will wonder why you ever used a manual lathe. 300mm swing, 60mm bore, 279mm max. turning length, 2500rpm (4000rpm with high speed option)

In 1995, ProtoTRAK introduced the simple to program and use ProtoTRAK conversational control for a Lathe (Proturn) and revolutionised the production of small batch and one off turned parts. The latest RLX ProtoTRAK offers more power and features whilst retaining the original simplicity. If you are looking for an edge over your competition, or you need flexibility and speed on the shop floor then ProtoTRAK really is the answer.

The Trak TC2 has capability and value! After the first day you will wonder why you ever used a manual lathe.

The powerful TRAKing feature of the ProtoTRAK RLX CNC comes in that you no longer have to choose between the efficiency of CNC and manual control. With TRAKing, you don't have to go through the process of proving out the CNC program before you press the Go button. You can run the CNC program at the speed at which you crank the handwheel. Go fast, go slow, stop and take a measurement, go backwards, whatever. You are in complete control as the machine moves through the programmed coordinates.

This Lathe offers the latest ProtoTRAK technology. Canned cycles including turning, boring, threading, grooving, thread repair & others.

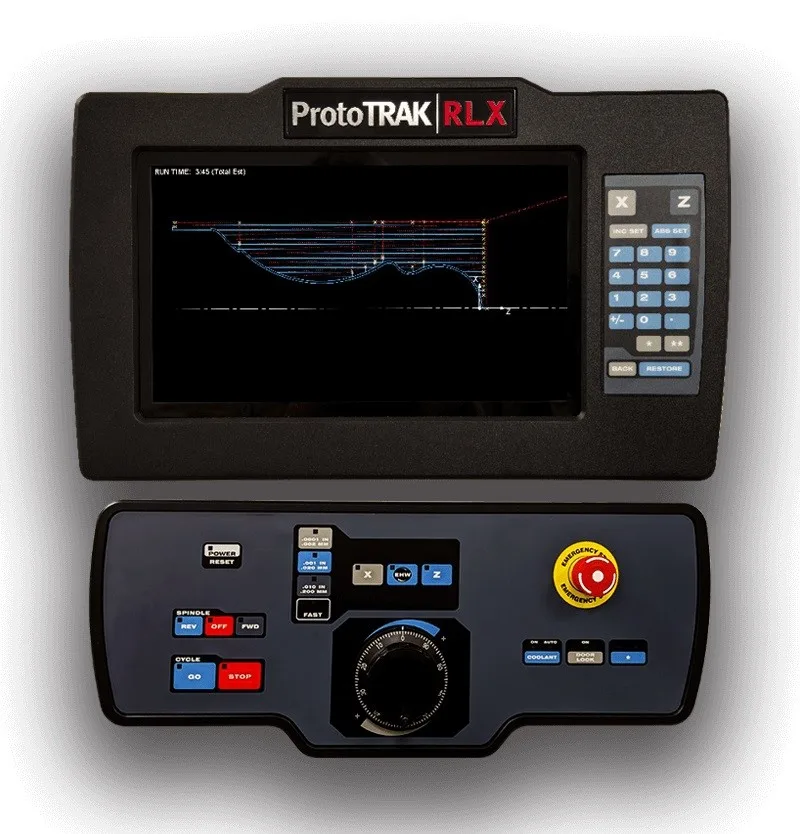

Features: The selected lathe has the excellent inherent design features listed below to provide the rigidity and accuracy necessary to perform heavy duty machining for all multi purpose engineering applications: The slide ways between the saddle and bed are Turcite coated to provide reduction in friction resistance, saving on power consumption and smoother machine operation. Hardened and precision ground gears and bed-way One piece solid cast iron base Delta servo drives & brushless AC motors 15.6" Touchscreen Super high precision taper roller spindle bearing arrangement A2-5 spindle nose
