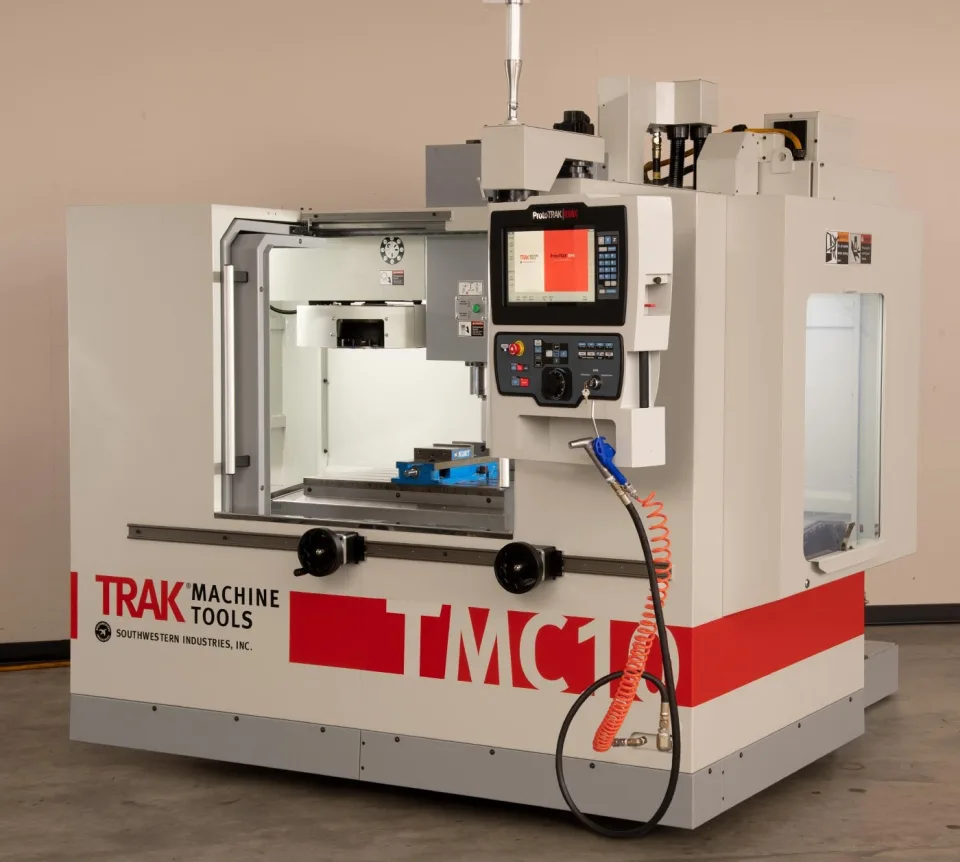

TRAK TMC10 Toolroom Machining Centre
POA
CNC-0-9710 | Prices exclude GST
Product overview
About this machine.
Powered by ProtoTRAK. You've Got This.

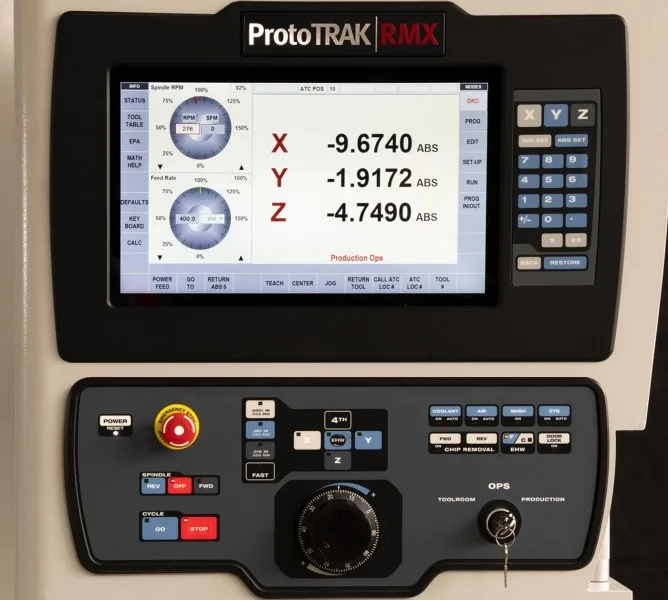

The ProtoTRAK RMX for Toolroom Machining Centres is packed full of advanced technology to make the most of this truly unique machine. It features everything you would expect from a ProtoTRAK toolroom CNC, plus the ability to run production jobs with the flip of a switch. - Easy To Use Touchscreen - TRAKing and Electronic Handwheels, optional - Manual and CNC Operation - Powerful Solid Model Graphics - Synchronized Tool Table - Enhanced ProtoTRAK Assistance - Auto Geometry Engine - Prompted Programming Events - Defaults and User Profiles
The Versatile Machine That Works Two Ways:
PRODUCTION OPS
It's a full featured 3 axis machining centre when you need to run low volume production. The amazing new ProtoTRAK RMX CNC delivers a powerful easy-to-use interface.
- Low Volume/High Mix Jobs
- 16-station Tool Changer
- Powerful, Intuitive Tool Table
- Door Closed and Interlocked
- Complies with ANSI B11
TOOLROOM OPS
With the flip of a switch, you enter into Toolroom Ops. Now your VMC works like our popular ProtoTRAK RMX range, only with an enclosure that keeps chips and coolant contained.
Optional electronic handwheels allow you to crank the table and saddle for that familiar feel of working a manual machine. Transition from manual operations to 2 and 3-axis CNC.
- Manual with DRO, 2 or 3-axis
- Optional Handwheels X, Y and Z
- TRAKing
- Contain Chips and Coolant
Options
- Electronic Handwheels
- Offline Programming
- Remote Stop/Go Switch
- Internal Memory Drive
- Auxiliary Functions
- DXF File Converter
- Parasolid File Converter
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
TMC10
Table size
1,120mm x 500mm
Travel (X,Y,Z)
1,035mm x 508mm x 508mm
Spindle Taper
BT40
Spindle Speed Range
50 - 8,000 RPM (12,000 RPM optional)
ATC Tool Capacity
16
ATC Type
Carousel
Spindle Motor HP (peak)
11.2 kW (15hp)
Spindle Motor HP (continuous)
7.45 kW (10hp)
Power Requirements
415V, 3ph, 50Hz
Maximum Weight of Workpiece
450 kg
Rapid Traverse in Toolroom Ops
10 m/min
Rapid Traverse in Production Ops
25 m/min
Weight Net
4,490 kg
Shipping Dimensions
3000mm x 2300mm x 2500mm = 17.25m3, 4,650 kg
