Tailift HPS1250X Servo Hydraulic CNC Turret punch
C/w Fanuc Oi-PD CNC control
Product overview
About this machine.
Taiwan’s leading manufacturer of sheet metal working machines with over 25 years experience building CNC turret punches. Tailift CNC turret punch presses are outstanding machines for punching and forming. Tailift offers a variety of models with a wide working size ranging to 4980mm. They are ideal for manufacturing a variety of products such as precision enclosures, control cabinets, and aerospace parts. All machines are built safety standard ISO 9001 and with CE accreditation.

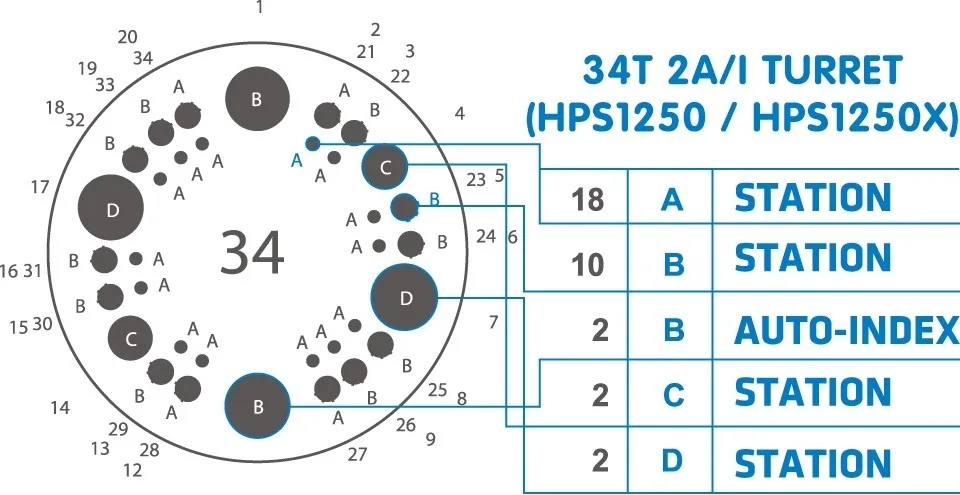

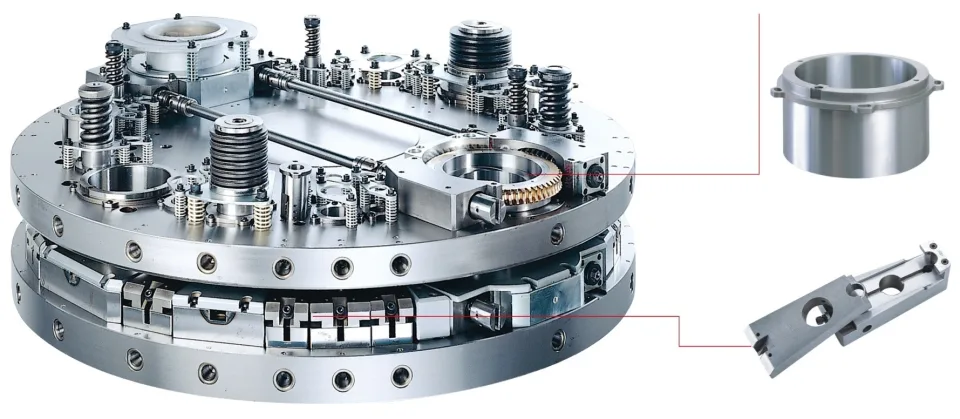

Parts introduction: Turret – Large turret design, with two concentric circle tool stations. 34 tool stations with two 2B auto-index stations. All standard thick turret tools from Mate, Wilson or Amada compatible are accepted. Hardened steel bushings for all tool stations increase durability and precision, these are easily replaceable in the event of damage. Supporting ball set – Rising balls on the machine table to support sheet loading Distortion sensor – To detect sheet distortion and shut down the machine to protect the turret and tools from potential damage Air blow system – Provide lubrication directly to tools to extend tool life Solenoid valve – German made Bosch pneumatic solenoid valve to ensure the precise execution of all commands Control cabinet – Module assembly. Fully automated equipment inspection. FANUC controller – The most sophisticated and advanced CNC controller in the world. With worldwide branches to provide fast and complete after sales service.
Scott package includes
- CAD/CAM software package

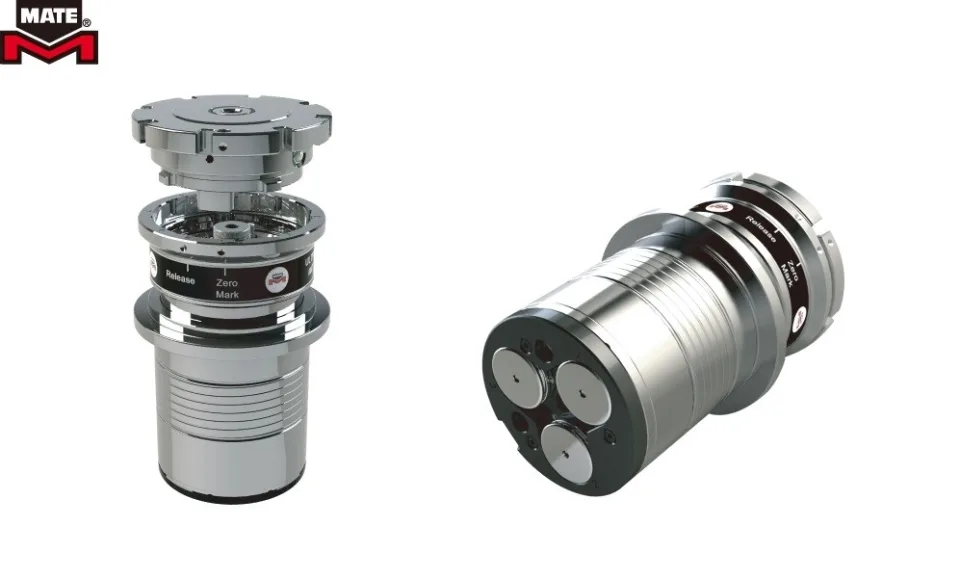

- Two auto index stations (2B type 1-1/4")
- 34 Turret stations
- 3 pneumatic sheet clamps
- Tooling assembly jig

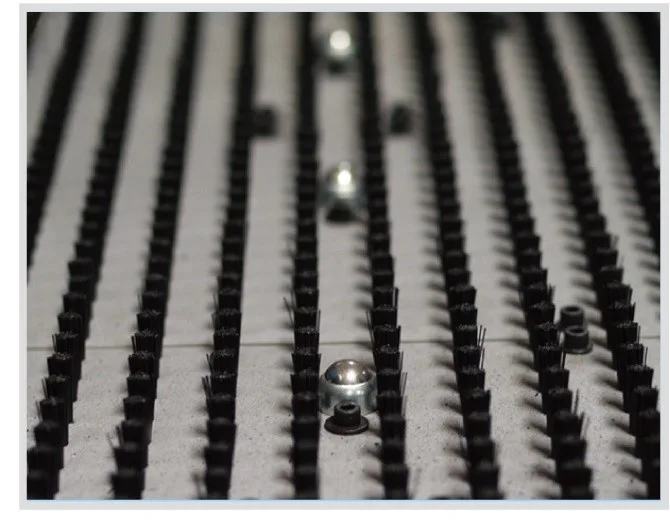

- Ball and brush work table
- 512kb memory capacity
- 4 sets anti-vibration feet
Optional
- Tapping attachment M3-M6 thread
- Extension table
- Custom tooling to suit your requirements
