King Rich KR-BL480 Combination Manual / CNC Lathe
c/w Fagor 8058 Elite control
POA
CNC-0-4820 | Prices exclude GST
Product overview
About this machine.
Model KR-BL480 is the longer bedway version of the popular KR-L480 an excellent size teach lathe for general engineering. It has features including a nice roller door system which keeps the machine fully enclosed, external hand wheels and controls, a nice chip removal tray system and having the control mounted above the headstock works well as this is the direction you are looking when watching machining.
Quality Taiwanese Manufacturing
- Fagor 8055-TC Control
- Fagor digital spindle drive and motor
- Conversational Easy Programming
- Solid Graphics Simulation
- Saddle and guideway c/w turcite-B
- Automatic Headstock Gear Range Change
- Roller door style enclosed Guarding

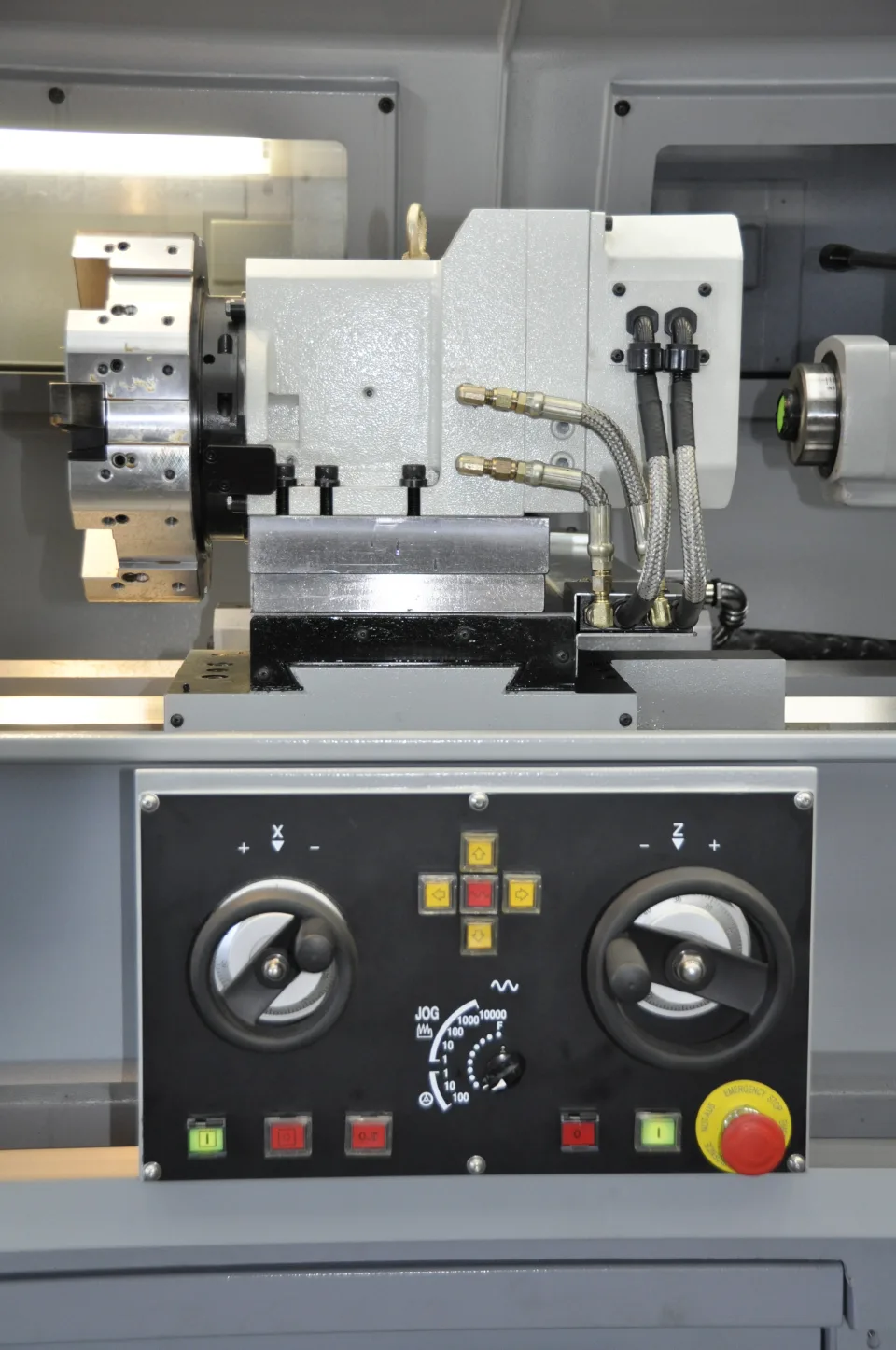

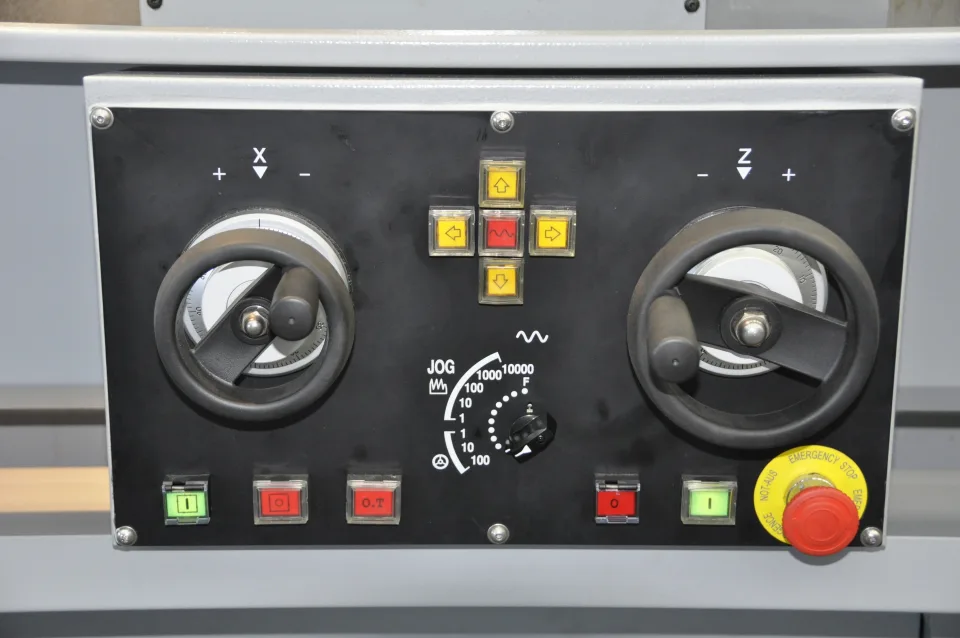

- X/Z Electronic (MPG) hand wheels on Carriage
- Integrated machine base and bed for rigidity
- Camlock spindle

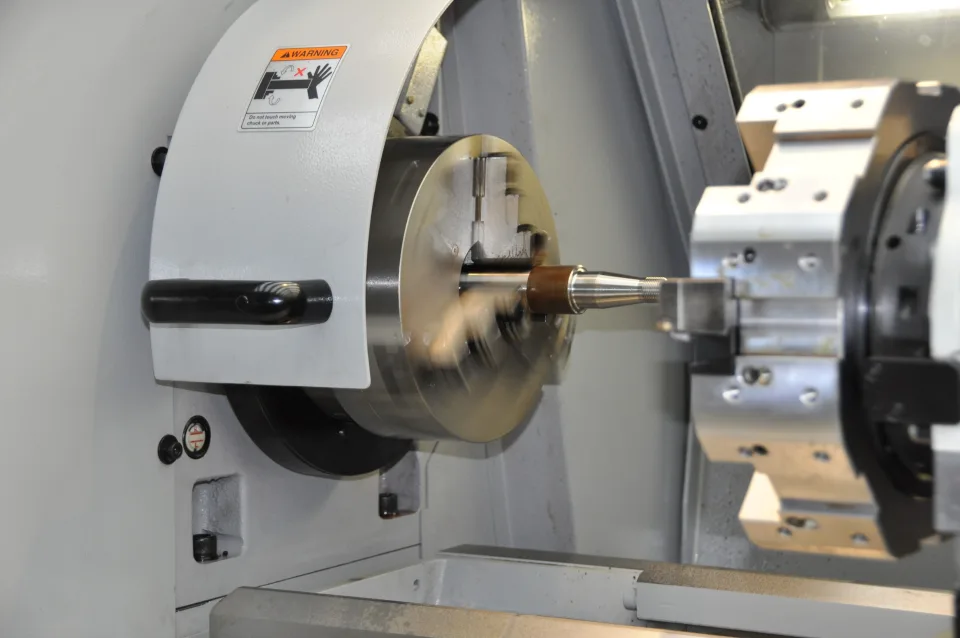

3 Jaw lathe chuck 250mm (Strong KD8-10)

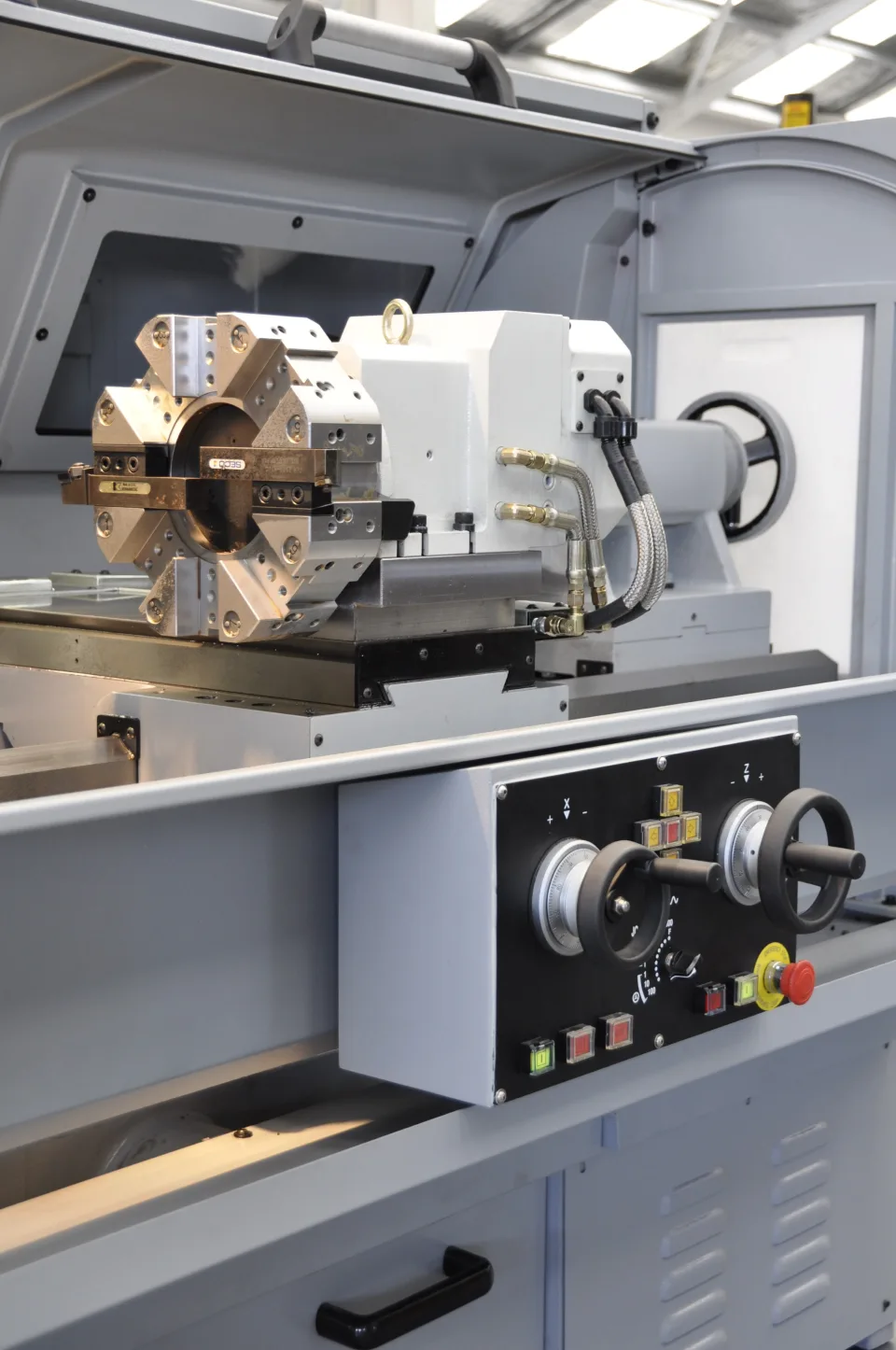

- 8 Station Servo (high speed) Turret
- Auto Lubrication System
- Heat exchanger for the headstock oil, with filter
- Air assisted levitating tailstock
- Ethernet, USB and RS-232 file transfer options
Optional:
- Smaller models - KR-L360 & KR-L480
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
KR-BL480 CNC
Swing over bed
480mm
Swing over cross slide
263mm
Swing in gap
700mm
Spindle bore
80mm
Spindle nose
D1-8
Width of bed
370mm
Turning length
Workpiece length
Distance between centres
2000mm
Speed range
15 - 2,500rpm (3 ranges)
Tailstock taper
5MT
Tooling size (external)
25 x 25mm
Motor power
7.5kw
Machine weight
3,800 kg
