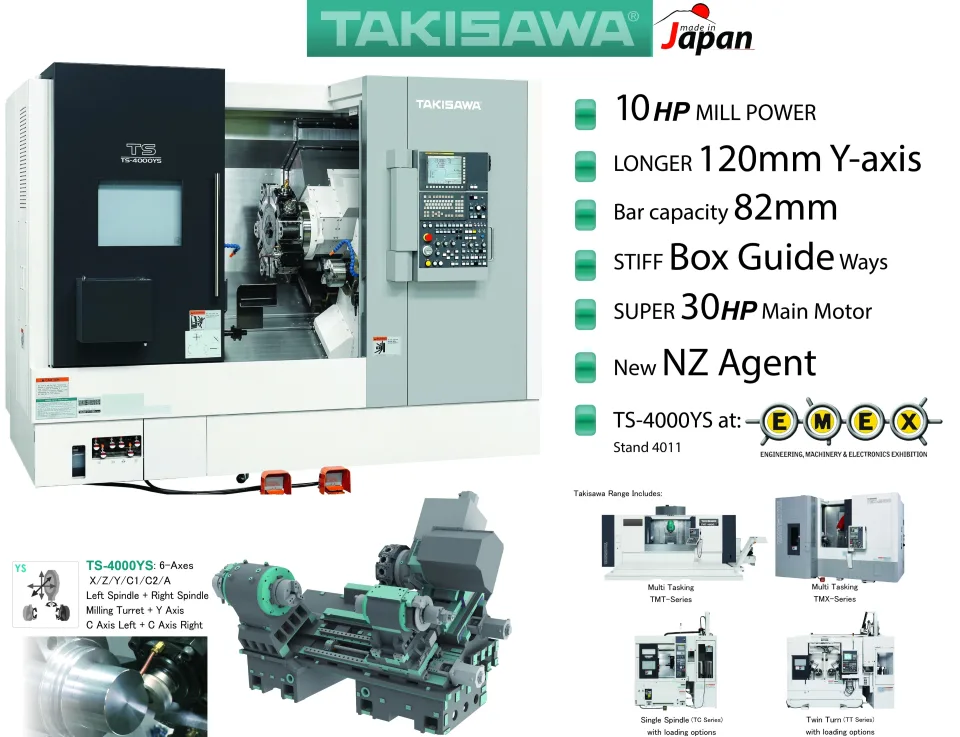

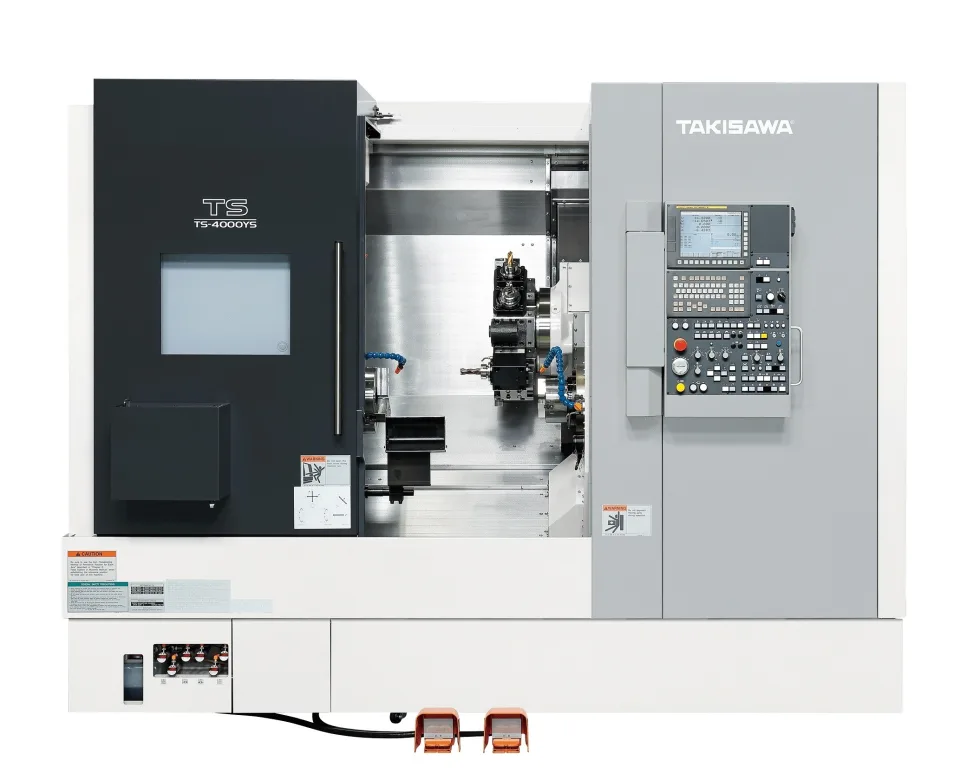

Takisawa TS-4000YS CNC Lathe
c/w Fanuc 32i-B
POA
CNC-0-4000 | Prices exclude GST
Product overview
About this machine.
Takisawa TS-4000YS High quality Japanese manfacturing
Solid slideway Turning Centre with Milling Turret with Y axis (vertical travel) - 120mm travel (-50 to +70mm) Main spindle with inbuilt motor and C axis (rotary indexing/feeding) Sub spindle with inbuilt motor and C axis (rotary indexing/feeding)
Standard features:
- Twin spindle 6 axes
- Fanuc 32i-B Controller with conversational programming
- Bar feed interface
- Parts catcher
- 82mm Bar capacity
- 750mm Turning length
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Swing (max)
600mm
Turning diameter (max)
370mm
Turning length (max)
750mm
Bar capacity
82mm
Number of tools
12 (10, 15 or 20 optional)
Left spindle speed
4200rpm
Right spindle speed
6000rpm
Rotary tool speed
6000rpm
Motor power
22kW (30HP)
Weight
6700kg
Floor space
3000 x 2140mm
