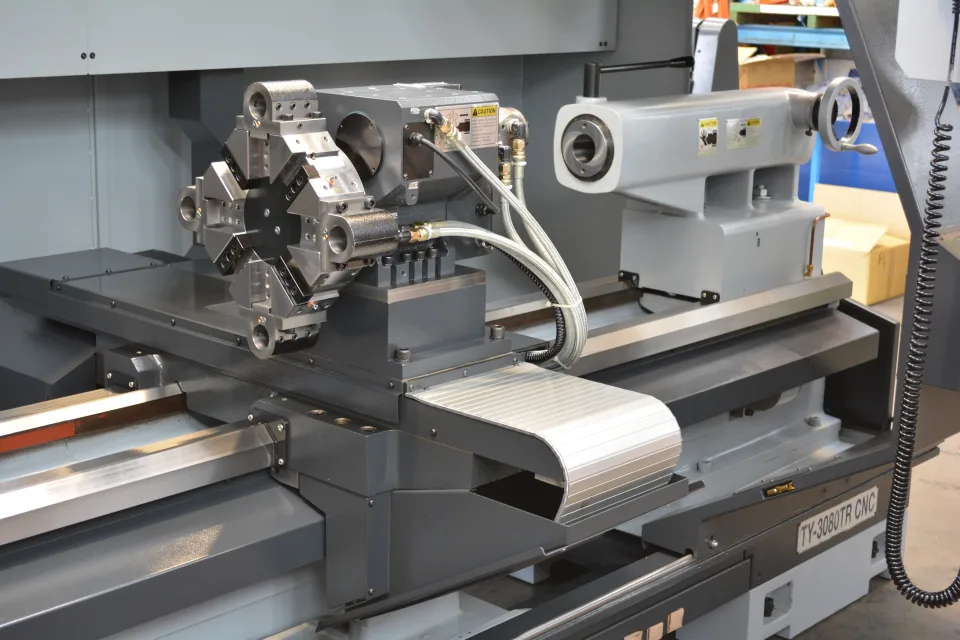

Microweily TY-3080TR CNC Combination Manual / CNC Lathe
POA
CNC-0-2308 | Prices exclude GST
Product overview
About this machine.
The Microweily CNC lathe range sets the standard for precision turning in New Zealand. Built by one of Taiwan's original machine tool manufacturers, with over 50 years of experience in producing both CNC and high speed conventional lathes, Microweily machines are engineered for accuracy, reliability, and long service life. Designed to handle everything from intricate toolmaking to high volume production, these CNC lathes combine robust construction with advanced control systems for superior performance. Manufactured in Taiwan and trusted worldwide
Features
- Quality Taiwanese Manufacturing

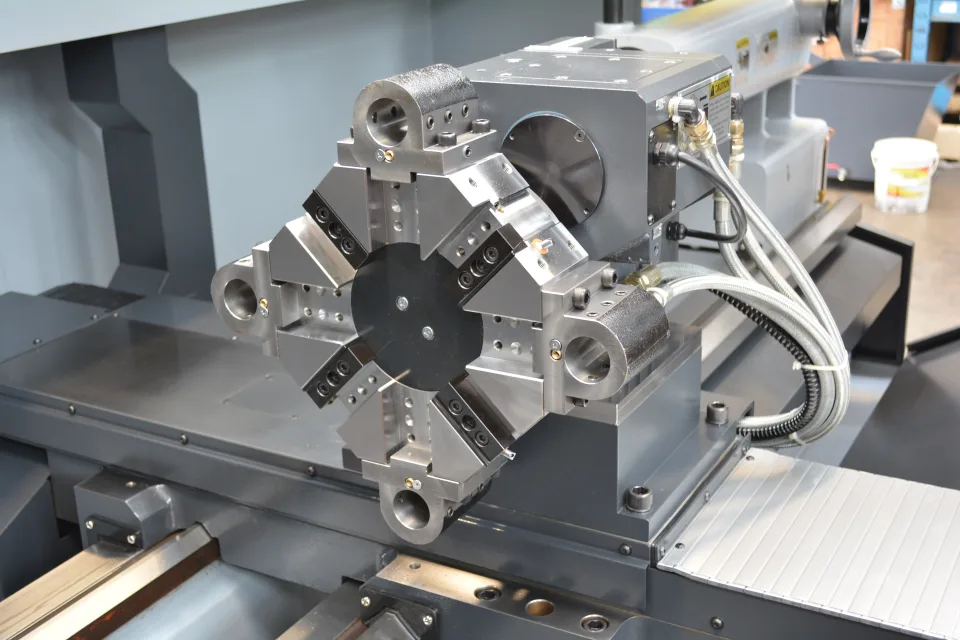

- Hydraulic 8 station turret
- Hydraulic headstock gear change (automatic)
- Intuitive programming, no prior CNC knowledge needed
Solid graphics for program simulation
- High speed spindles available

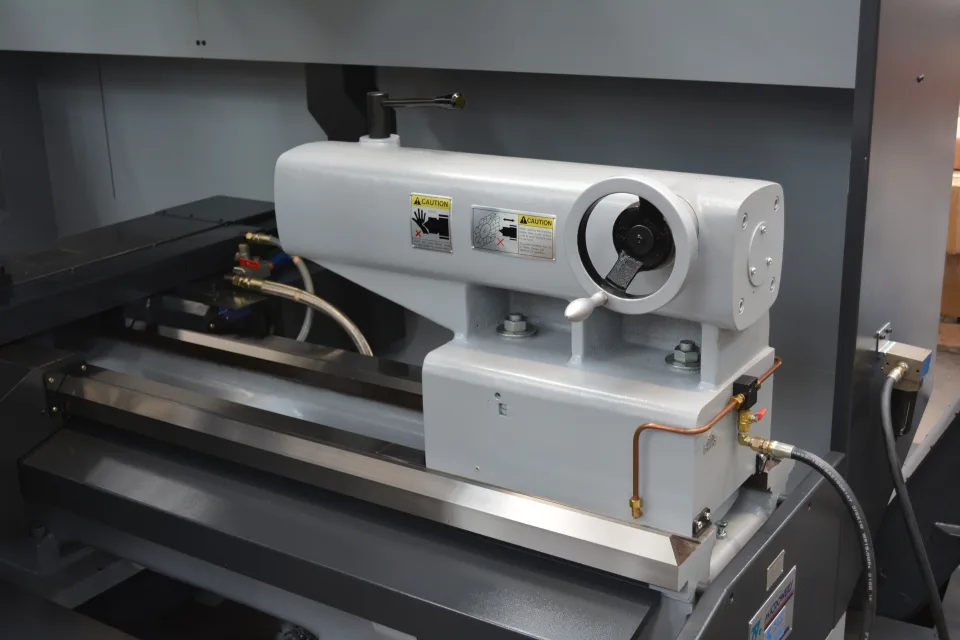

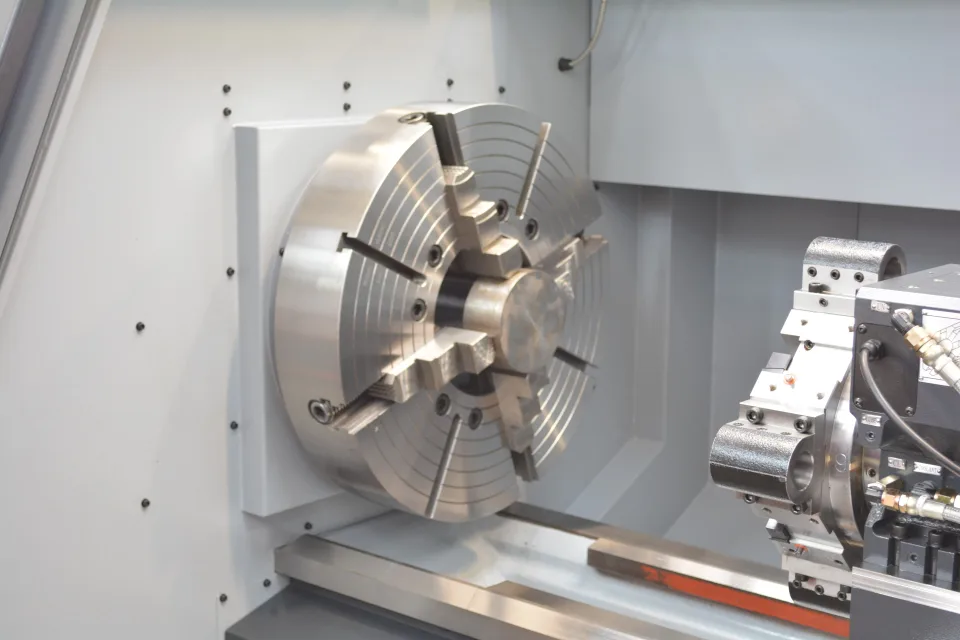

- Hydraulic chuck & tailstick options available
- Large 255mm bore option
- Front & rear chuck options
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Microweily
TY-30TR Series
Swing over bed
760mm
Swing over cross slide
480mm
Bed width
460mm
Spindle bore & speed options
170mm (10-1000 rpm) or 255mm (6 - 600 rpm)
Main motor power
20HP or 25HP optional
Tailstock taper
5MT
