Microweily TY-2260TR CNC Combination Manual / CNC Lathe
POA
CNC-0-2260 | Prices exclude GST
Product overview
About this machine.
The Microweily CNC lathe range sets the standard for precision turning in New Zealand. Built by one of Taiwan's original machine tool manufacturers, with over 50 years of experience in producing both CNC and high speed conventional lathes, Microweily machines are engineered for accuracy, reliability, and long service life. Designed to handle everything from intricate toolmaking to high volume production, these CNC lathes combine robust construction with advanced control systems for superior performance. Manufactured in Taiwan and trusted worldwide
TY-26 series pictured
Features
- Quality Taiwanese Manufacturing

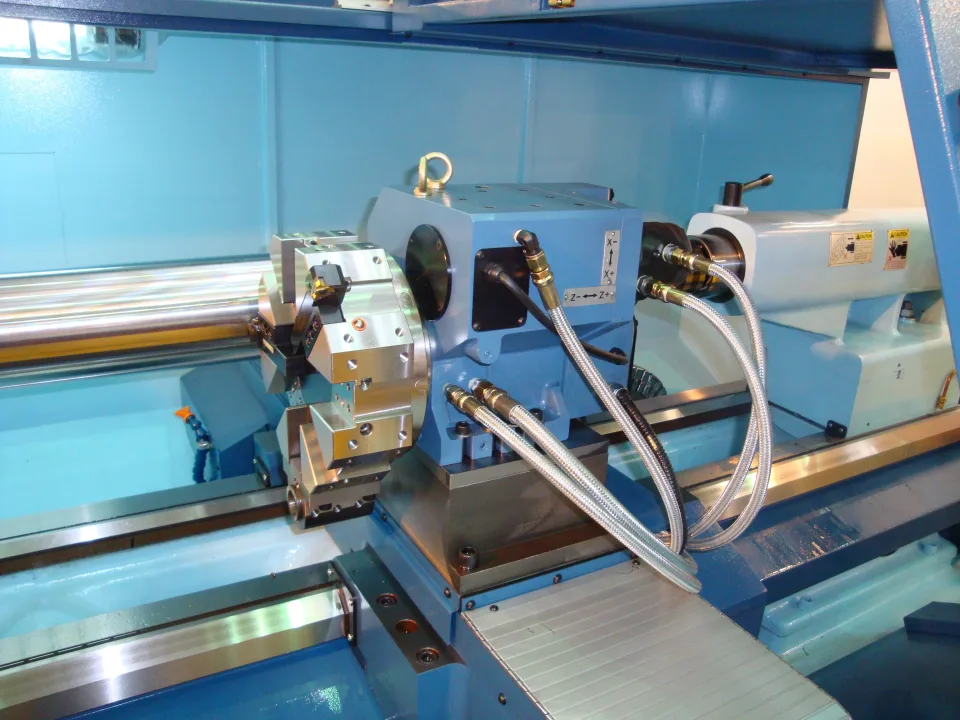

- Hydraulic 8 station turret
- Hydraulic headstock gear change (automatic)
- Intuitive programming, no prior CNC knowledge needed
Fagor 8055 controller
- Solid graphics for program simulation
- High speed spindles available
- Hydraulic chuck & tailstock options available
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Microweily
TY-22 Series
Swing over bed
560mm
Swing over carriage
280mm
Spindle bore
86 or 105mm
Bed width
460mm
Spindle speed range
15-1,500 rpm
Spindle motor power
15HP (20HP optional)
